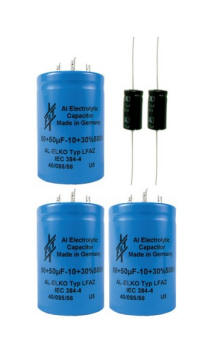

Contains 3 50uf+50uf/500V dual can capacitors, and two axial lead EL-CAP-10/160.   Available in Top Premium, Prime, or Pro grade capacitors.

Note:  This set is not for the early versions of the JCM800 2203 and 4103 from 1981-1987.

Part #MCK-1

Prime Set:
$56.95

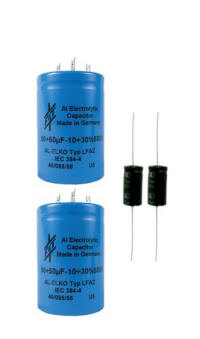

Contains 2 50uf+50uf/500V dual can capacitors, and two axial lead EL-CAP-10/160. Available in Premium, or Prime, or Pro grade capacitors.

Part #MCK-2

Prime Set:
$39.95

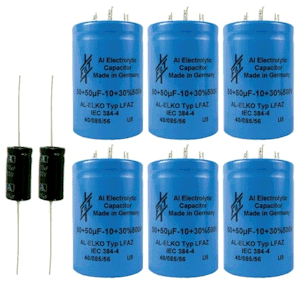

Contains 6 50uf+50uf/500V dual can capacitors, and two axial lead 10uF/150V.  Available in Top Premium, or Prime grade capacitors.

Part #MCK-3

Prime Set:
$110.95

Part #MCK-4

Prime Set:
$98.95

• 2 2200uF-25V (Main Filters)
• 3 22uF-50V (Decoupling Filters)
• 1 100uF-35V (Rolloff Filter)

This kit is for the early version of the Lead 12, which did had only one jack next the power switch (some didn't have a jack there at all).   See below:

Part #MCK-5

• 2 2200uF-25V Radial (Main Filters)
• 3 22uF-50V (Decoupling Filters)
• 1 100uF-25V (Rolloff Filter)
• 1 2.2uF-50V (Coupling Capacitor)

This kit is for the later version of the Lead 12, which has TWO jacks next to the power switch.   See below:

Part #MCK-5A

Contains the following electrolytic capacitors, which includes all axial electrolytic capacitors used in the Lead 100 Mosfet Model 3210:

• 2 2200uF-50V
• 3 100uF-25V
• 4 47uF-63V
• 8 22uF-50V

Download the installation guidelines

Part #MCK-6

• 2 F&T 100uF-450V (Main Filters)
• 2 F&T 22uF-500V (Decoupling Filters)
• 5 Axial 220uF-50V (Replaces 150uF-50V)

Part #MMCK-1

ELECTROLYTIC Electrolytic Capacitor Kit, fits Peavey^™ Original Classic 20 (mid 1990s forward)   NOT for the reissue Classic 20 MH Mini Head, which was introduced in 2013.  Contains all of the electrolytic capacitors for the Peavey^™ Classic 20 amplifier (1990s version only).   All capacitors are made by Illinois Capacitor^™, all are axial type.   Contains (2) 47uF-500V, (3) 22uF-500V, (2) 2200uF-50V, (3) 22uF-50V.

Part # PCK-20

$61.95

ELECTROLYTIC Electrolytic Capacitor Kit, fits Peavey^™ Original Classic 30 (mid 1990s forward)   NOT for the reissue Classic 30 II, which was introduced in 2013.   Contains all of the electrolytic capacitors for the Peavey^™ Classic 30 amplifier (1990s version only).   All capacitors are made by Illinois Capacitor^™, all are axial type.   Contains (2) 47uF-500V, (3) 22uF-500V, (2) 2200uF-50V, (1) 100uF-25V, (9) 22uF-50V, (2) 10uF-50V, (1) 2.2uF-50V.

Part # PCK-30

$71.95

ELECTROLYTIC Electrolytic Capacitor Kit, fits Peavey^™ Delta Blues (mid 1990s forward)    Contains all of the electrolytic capacitors for the Peavey^™ Delta Blues amplifier.  All capacitors are made by Illinois Capacitor^™, all are axial type.   Contains (2) 47uF-500V, (3) 22uF-500V, (2) 2200uF-50V, (1) 100uF-25V, (8) 22uF-50V, (2) 10uF-50V, (1) 2.2uF-50V, (1) 1000uF-35V.

Part # PCK-42

$72.95

Electrolytic Capacitor Kit, fits Peavey^™ Original Classic 50 and Classic 100 (mid 1990s forward)   NOT for the reissue Classic 50 II, which was introduced in 2013.  Contains the electrolytic capacitors for the Peavey^™ Classic 50 and Classic 100 amplifiers (1990s version only).   All axial capacitors are made by Illinois Capacitor^™, all are axial type unless otherwise noted.   Contains (3) 47uF-500V, (2) 22uF-500V, (1) 2200uF-50V Radial, (1) 1000uF-35V Radial, (8) 22uF-50V, (3) 2.2uF-50V.

Part # PCK-50

$69.95

Capacitor Kit, fits Peavey^™ Classic VTX Series and Heritage VTX(not the Classic VT)   Contains all of the electrolytic filter capacitors for the Peavey^™ Classic VTX and Heritage VTX Series amplifiers (early 1980s).   All capacitors are made by Illinois Capacitor^™, all are axial type.   Contains (2) 100uF-350V, (2) 22uF-50V, (2) 1000uF-35V.   Note:  Contains only the power supply filter capacitors for both high and low voltage power supplies.   Does not contain any other capacitors.

Part # PCK-81

$28.95

Capacitor Kit, fits Peavey^™ Classic VT Series (not the Classic VTX)   Contains all of the electrolytic filter capacitors for the Peavey^™ Classic VT Series amplifier (late 1970s).   All capacitors are made by Illinois Capacitor^™, all are axial type.   Contains (4) 100uF-350V, (2) 22uF-50V, (2) 1000uF-35V, (2) 10uF-160V, (1) 10uF-450V.   Note:  Contains only the power supply filter capacitors for both high and low voltage power supplies.   Does not contain any other capacitors.

Part # PCK-82

$59.95

Electrolytic Capacitor Kit, fits Peavey^™ Butcher Amplifier   Contains all of the electrolytic capacitors for the Peavey^™ Butcher amplifier (late 1980s).   All capacitors are made by Illinois Capacitor^™, all are axial type.   Contains (4) 100uF-350V, (4) 22uF-500V, (2) 220uF-100V, (1) 1000uF-50V, (1) 100uF-25V, (1) 22uF-50V.   Note:   Contains all of the electrolytic capacitors used in filtering applications.  Does not contain any other capacitors, such as non-electrolytic coupling capacitors

Part # PCK-83

$70.95

Electrolytic Capacitor Kit, fits Peavey^™ VTM60 or VTM120 (late 1980s)   Contains all of the electrolytic capacitors for the Peavey^™ VTM 60 and VTM120 amplifiers.  This kit includes the electrolytic capacitors used as power supply filters - no other capacitors are included.    All axial capacitors are made by Illinois Capacitor^™, all are axial type.   Contains four 100uF-350V, two 220uF-100V (replaces 220uF-80V), one 1000uF-50V, four 22uF-500V (replaces 22uF-450V), and one 100uF-25V.

Part # PCK-88

$82.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-1

Top Professional Set:
$47.95

Basic MOD Set:
$33.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-1A

Top Professional Set:
$48.95

Basic MOD Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-2

Top Professional Set:
$39.95

Basic MOD^™ Set:
$28.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-3

Top Professional Set:
$43.95

Basic MOD^™ Set:
$28.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4

Top Professional Set:
$48.95

Basic MOD^™ Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4A

Top Professional Set:
$48.95

Basic MOD Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4B

Top Professional Set:
$49.95

Basic Economy Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4C

Top Professional Set:
$49.95

Basic MOD Set:
$35.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4D

Top Professional Set:
$48.95

Basic MOD^™ Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4E

Top Professional Set:
$51.95

Basic MOD Set:
$37.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4F

Top Professional Set:
$49.95

Basic MOD Set:
$35.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4G

Top Professional Set:
$49.95

Basic MOD Set:
$35.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-5

Top Professional Set:
$43.95

Standard Set:
$29.95

Basic Economy Set:
$28.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-6

Top Professional Set:
$42.95

Basic MOD Set:
$31.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-6A

Top Professional Set:
$43.95

Basic MOD Set:
$31.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-6B

Top Professional Set:
$36.95

Basic MOD Set:
$24.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-7

Top Professional Set:
$55.95

Basic Economy Set:
$31.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-8

Top Professional Set:
$42.95

Basic Economy Set:
$24.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-8A

Top Professional Set:
$43.95

Basic Economy Set:
$29.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-8B

Top Professional Set:
$55.95

Basic Economy Set:
$30.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-8C

Top Professional Set:
$47.95

Basic MOD Set:
$36.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-9

Top Professional Set:
$55.95

Basic Economy Set:
$31.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-9A

Top Professional Set:
$55.95

Standard Set:
$41.95

Basic Economy Set:
$32.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-10

Top Professional Set:
$59.95

Standard Set:
$48.95

Basic Economy Set:
$31.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-10A

Top Professional Set:
$45.95

Standard Set:
$42.95

Basic Economy Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-11

Top Professional Set:
$53.95

Basic Economy Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-11A

Top Professional Set:
$53.95

Basic Economy Set:
$36.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-12

Top Professional Set:
$53.95

Basic Economy Set:
$31.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-13

Top Professional Set:
$50.95

Basic Economy Set:
$29.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-13A

Top Professional Set:
$50.95

Standard Set:
$39.95

Basic Economy Set:
$28.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-13B

Top Professional Set:
$49.95

Standard Set:
$44.95

Basic Economy Set:
$32.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-13C

Top Professional Set:
$51.95

Standard Set:
$48.95

Basic Economy Set:
$38.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-13D

Top Professional Set:
$48.95

Standard Set:
$44.95

Basic Economy Set:
$32.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-13E

Top Professional Set:
$50.95

Basic Economy Set:
$29.95

• 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
• 2 I.C. 22uF-50V (Cathode Bypass)
• 1 I.C. 2.2uF-50V (Cathode Bypass)
• 470-2W Resistor (Cathode Resistor)
• 1K-2W Resistor (Dropping Resistor)
• 10K-2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-14

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-15

Standard Set:
$60.95

Standard Set:
$63.95

Fender™ Electrolytic Filter Capacitor Kit 17.  Contains the following capacitors, used as main filters, decoupling filters, bias filters and low voltage filters in the Fender Pro Tube amps.    This includes the Pro Reverb PR448, the Concert Reverb PR450 and the Twin Amp PR449 from 2001-2005.   These amps are easy to spot, because they have only one input jack on the far left side of the front control panel.  See the complete model cross reference.

• 4 F&T 47uF-500V (Main Filters - Replaces 47uF/350)
• 2 F&T 47uF-500V (Decoupling Filters) (See note*)
• 1 F&T 22uF-500V (Decoupling Filter)
• 2 Radial 100uF/100V (Bias Filters)
• 2 Radial 220uF/50V (Low Voltage Filters)
• 2 Radial 1000uF/35V (Low Voltage Filters)

*Note:  Some early versions of these amps used 22uF/500V caps in these positions, and that is the value shown on the schematic.  Fender issued a service bulletin in 2003 noting that the values in these two locations had been increased to 47uF/500V for better performance.  However, they never reissued the schematic.

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-17

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-18

Top Professional Set:
$61.95

Basic Economy Set:
$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-18A

Top Professional Set:
$62.95

Basic Economy Set:
$35.95

Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

• 3 F&T 22uF-500V (Main Filters - Decoupling)
• 2 F&T 220uF-300V (Main Filters)
• 2 F&T 100uF-100V (Bias Filters)
• 2 Axial 4.7uF-450V (Decoupling)
• 3 25uF-25V (Cathode Bypass)
• 2 4.7uF-50V (Cathode Bypass)

NOTES:   Does not include the 750uF/3V or 150uF/6V cathode bypass capacitors.   Some Super Twin models (without reverb) will not use all of the cathode bypass capacitors provided.

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-19

• 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
• 3 25uF-25V (Cathode Bypass)
• 1 10uF-50v (Cathode Bypass)
• 470-2W (Dropping Resistor)
• 1K-2W Resistor (Dropping Resistor)
• 10K-2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-20

Fender™ Electrolytic Filter Capacitor Kit 21.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, low voltage filters and cathode bypass capacitors in the Fender 94 Twin Amp, Rev A-C.  (If your 94 Twin has a Rev D or Rev E circuit board, you will need the FCK-21D kit).  The 94 Twin Amp is blackface, is "three channel" with a boost on the clean channel and high gain overdrive on channel two.   Two input jacks, 14 knobs.  Revisions A, B and C produced 1994-1998.  See the complete model cross reference.

Click on photo for larger view

• 2 F&T 220uF-300V (Main Filters)
• 4 F&T 47uF-500V (Decoupling Filters)
• 4 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 100uF-100V (Bias Filters)
• 4 Radial 22uF-63V (Bias and Relay Filters)
• 7 I.C. 22uF-50V (Cathode Bypass)
• 1 I.C. 4.7uF-50V (Cathode Bypass)
• 2 Radial 220uF-50V (Low Voltage Filter)
• 2 Radial 1000uF-35V (Low Voltage Filter)
• 1 Radial 47uF-50V (Relay Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-21

Fender™ Electrolytic Filter Capacitor Kit 21D.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, low voltage filters and cathode bypass capacitors in the Fender 94 Twin Amp, Rev D and Rev E.  (If your 94 Twin has a Rev A through Rev C circuit board, you will need the FCK-21 kit).  The 94 Twin Amp is blackface, is "three channel" with a boost on the clean channel and high gain overdrive on channel two.   Two input jacks, 14 knobs.  Revisions D and E produced 1999-2001.  See the complete model cross reference.

Click on photo for larger view

• 2 F&T 220uF-300V (Main Filters)
• 2 F&T 47uF-500V (Decoupling Filters)
• 5 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 100uF-100V (Bias Filters)
• 4 Radial 22uF-63V (Bias and Relay Filters)
• 7 I.C. 22uF-50V (Cathode Bypass)
• 1 I.C. 4.7uF-50V (Cathode Bypass)
• 2 Radial 220uF-50V (Low Voltage Filter)
• 2 Radial 1000uF-35V (Low Voltage Filter)
• 1 Radial 47uF-50V (Relay Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-21D

Fender™ Electrolytic Capacitor Kit 22.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, cathode bypass capacitors in the Fender 65 Princeton Reverb Reissue amp, produced from 2008 to the present.

• 4 F&T 22uF-500V (Main and Decoupling Filters)
• 1 Radial 100uF-100V (Bias Filters)
• 6 Axial 25uF-25V (Cathode Bypass)

Part #FCK-22

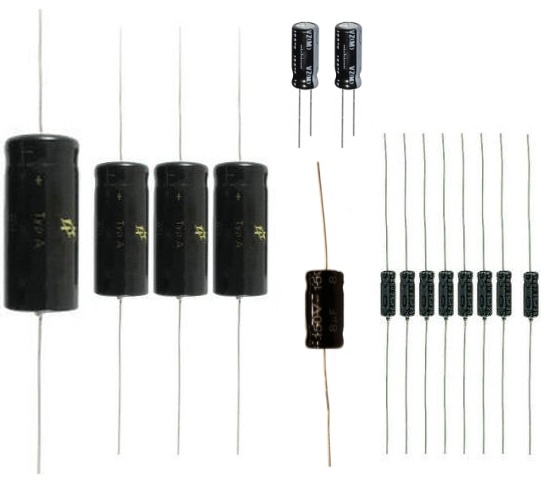

Fender™ Electrolytic Capacitor Kit 23.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender 65 Deluxe Reverb Reissue amp, produced from 1993 to the present.

• 1 F&T 47uF-500V (Main Filter)
• 1 Axial 220uF-100V (Main Filter)
• 3 F&T 22uF-500V (Decoupling Filters)
• 1 Radial 100uF-100V (Bias Filter)
• 1 Radial 22uF-63V (Bias Filter)
• 7 I.C. 22uF-50V (Cathode Bypass)
• 1 I.C. 4.7uF-50V (Footswitch Suppression)

Part #FCK-23

Fender™ Electrolytic Standard OEM Filter Capacitor Kit 24.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender `65 Super Reverb Reissue amp, produced from 2000 to the present.

• 2 I.C. 100uF-350V (Main Filters)
• 3 I.C. 22uF-500V (Decoupling Filters)
• 1 Radial 100uF-100V (Bias Filter)
• 1 Radial 22uF-50V (Cathode Bypass)
• 6 I.C. 22uF-50V (Cathode Bypass)
• 1 I.C. 4.7uF-50V (Footswitch Suppression)

Part #FCK-24 (See also FCK-24A, below)

Fender™ Top Premium Electrolytic Filter Capacitor Kit 24A.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender `65 Super Reverb Reissue amp, produced from 2000 to the present.

• 2 F&T 100uF-350V (Main Filters)
• 3 F&T 22uF-500V (Decoupling Filters)
• 1 Radial 100uF-100V (Bias Filter)
• 1 Radial 22uF-50V (Cathode Bypass)
• 6 Sprague 25uF-25V (Cathode Bypass)
• 1 Sprague 5uF-50V (Footswitch Suppression)

Part #FCK-24A

Fender™ Electrolytic Filter Capacitor Kit 25.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender `65 Twin Reverb Reissue amp, produced from 1990 to the present and the Fender `68 Custom Twin Reverb amp, produced from 2009 to the present.

• 2 F&T 220uF-300V (Main Filters)
• 3 F&T 22uF-500V (Decoupling Filters)
• 1 Radial 100uF-100V (Bias Filter)
• 1 Radial 22uF-63V (Bias Filter)
• 1 Radial 10uF-100V (Footswitch Filter)
• 7 Radial 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-25

Fender™ Electrolytic Filter Capacitor Kit 25A.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender Custom Vibrasonic Reissue amp, produced in 1995 and 1996.

• 2 F&T 220uF-300V (Main Filters)
• 3 F&T 22uF-500V (Decoupling Filters)
• 1 Radial 100uF-100V (Bias Filter)
• 1 Radial 22uF-63V (Bias Filter)
• 1 Radial 10uF-100V (Footswitch Filter)
• 5 Radial 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-25A

Fender™ Electrolytic Filter Capacitor Kit 26.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, and cathode bypass capacitors in the Fender Custom Vibrolux Reverb amp from 1995-2010.   Note:  This is the blackface Custom Vibrolux Reverb Reissue amp with white "cupcake" knobs and the control levels printed on the front panel.  We do not currently have a recap kit for the 68 Custom Vibrolux Reverb amp that is silverface with a drip edge.  See the complete model cross reference.

• 5 F&T 22uF-500V (Main & Decoupling Filters)
• 1 F&T 47uF-500V (Decoupling Filter)
• 1 Radial 100uF-100V (Bias Filter)
• 1 Radial 22uF-63V (Bias Filter)
• 6 25uF-25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-26

Fender™ Electrolytic Filter Capacitor Kit 27.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, and cathode bypass capacitors in the Fender `59 Bassman Reissue amp from 1990 to the present.   See the complete model cross reference.

• 2 F&T 100uF-350V (Main Filters)
• 2 F&T 47uF-500V (Main Filters)
• 3 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 10uF-100V (Bias Filters)
• 1 Radial 220uF-25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-27

Fender™ Electrolytic Filter Capacitor Kit 28.  Contains the following capacitors, used as main filters, decoupling filters, and cathode bypass capacitors in the Fender 63 Reverb (Reissue Series Reverb Unit) from 1994 to 2016.  See the complete model cross reference.

• 2 F&T 22uF-500V (Main and Decoupling Filters)
• 1 F&T 47uF-500V (Decoupling Filter)
• 2 I.C. 22uF-50V (Cathode Bypass Filters)
• 1 Axial 220uF-16V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-28

Electrolytic Capacitor Kit, for the original Fender^™ 6G15 Reverb Unit (1961-1966)  Contains all of the axial electrolytic capacitors for the Fender^™ original tube Reverb Unit from the 1960s.   Contains three Illinois Capacitor 47uF-500V (replaces 40uF-450V), two 25uF-25V, and one 220uF-16V (replaces 250uF-6V), along with a 10K 2 watt dropping resistor.

Part # FCK-28A

$39.95

Fender™ Electrolytic Filter Capacitor Kit 29.  Contains the following capacitors, used as main filters, decoupling filters, and cathode bypass capacitors in the Fender 93 Concert Amp (PR245) and the 93 Super Amp (PR244) from 1993 to 1995.  (Not for the vintage Concert Amps from the 1960s.  Not for the Concert II amps from 1982-1987.  Not for the Concert Reverb Amp PR450 from 2001-2004).  See the complete model cross reference.

Front panel of 93 Concert Amp.    93 Super Amp has identical layout.

Click on photo for larger view

• 3 F&T 22uF-500V (Main and Decoupling Filters)
• 4 F&T 100uF-350V (Main Filters)
• 9 I.C. 22uF-50V (Cathode Bypass Filters - Replaces 22uf/16V)
• 1 I.C. 2.2uF-50V
• 1 IC. 4.7uF-50V
• 3 Radial 22uF/63V
• 2 Radial 100uF/100V
• 1 Radial 220uF/25V
• 2 Radial 220uF/50V
• 2 Radial 1000uF/35V

See the model cross reference for applicable models.

Part #FCK-29

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-30

Top Professional Set:
$31.95

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-31

Top Professional Set:
$25.95

• 5 TAD Gold 16uF-475 (Main and Decoupling Filters)
• 2 IC 10uF-50V (Bias Filters)
• 4 25uF-25V (Cathode Bypass)
• 2 10K-2W Resistor (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-32

• 5 TAD Gold 16uF-475 (Main and Decoupling Filters)
• 1 TAD Gold 80uF-100V (Bias Filter)
• 4 TAD Gold 25uF-25V (Cathode Bypass)
• 2 10K-2W Resistor (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-33

• 7 20uF-600V (Main and Decoupling Filters)
• 2 8uF-150V (Bias Filters)
• 4 25uF-25V (Cathode Bypass)
• 1 2.2uF-50V (Cathode Bypass)
• 1 4.7K-2W Resistor (Dropping Resistor)
• 3 27K-2W Resistors (Dropping Resistors)
• 3 56K-1W Resistors (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-34

*Note:  Some versions of these models built in late 1963 use the FCK-36 instead.  It is a good idea to open the amp and compare capacitor values to the kit contents to ensure you get the correct kit.

• 7 20uF-600V (Main and Decoupling Filters)
• 2 8uF-150V (Bias Filters)
• 4 25uF-25V (Cathode Bypass)
• 1 4.7uF-50V (Cathode Bypass)
• 1 4.7K-2W Resistor (Dropping Resistor)
• 3 27K-2W Resistors (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-35

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-35A

Top Professional Set:
$39.95

• 7 20uF-600V (Main and Decoupling Filters)
• 1 80uF-50V (Bias Filter)
• 4 25uF-25V (Cathode Bypass)
• 1 2.2uF-50V (Cathode Bypass)
• 1 4.7K-2W Resistor (Dropping Resistor)
• 3 27K-2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-36

• 7 20uF-600V (Main and Decoupling Filters)
• 2 8uF-150V (Bias Filters)
• 2 25uF-25V (Cathode Bypass)
• 2 80uF-50V (Cathode Bypass)  Replaces 50uF-25V
• 1 4.7uF-50V (Cathode Bypass)  Replaces 4uF-25V
• 1 4.7K-2W Resistor (Dropping Resistor)
• 2 27K-2W Resistor (Dropping Resistor)
• 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-37

• 7 20uF-600V (Main and Decoupling Filters)
• 2 8uF-150V (Bias Filters)
• 2 25uF-25V (Cathode Bypass)
• 2 80uF-50V (Cathode Bypass)   Replaces 50uF-25V
• 1 4.7uF-50V (Cathode Bypass)  Replaces 4uF-25V
• 1 4.7K-2W Resistor (Dropping Resistor)
• 2 27K-2W Resistor (Dropping Resistor)
• 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-38

• 5 TAD Gold 16uF-475 (Main and Decoupling Filters)
• 1 TAD Gold 80uF-100V (Bias Filter)
• 6 TAD Gold 25uF-25V (Cathode Bypass)
• 2 10K-2W Resistor (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-39

• 6 20uF-600V (Main and Decoupling Filters)
• 2 8uF-150V (Bias Filters)
• 3 25uF-25V (Cathode Bypass)
• 1 4.7K-2W Resistor (Dropping Resistor)
• 1 27K-2W Resistor (Dropping Resistor)
• 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-40

• 6 20uF-600V (Main and Decoupling Filters)
• 2 8uF-150V (Bias Filters)
• 4 25uF-25V (Cathode Bypass)
• 1 4.7K-2W Resistor (Dropping Resistor)
• 1 27K-2W Resistor (Dropping Resistor)
• 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-41

• 6 20uF-600V (Main and Decoupling Filters)
• 1 70uF-100V (Bias Filter)
• 4 25uF-25V (Cathode Bypass)
• 1 4.7K-2W Resistor (Dropping Resistor)
• 1 27K-2W Resistor (Dropping Resistor)
• 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-42

• 4 F&T 22uF-500V (Main and Decoupling Filters)
• 1 F&T 100uF-100V (Output Cathode Bypass Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-44

• 1 CE Mfg 30uFX3-525V (Main Filters - Decoupling)
• 1 25uF-50V (Bias Filter)
• 2 25uF-25v (Cathode Bypass)
• 1K-2W Resistor (Dropping Resistor)
• 10K-2W Resistor (Dropping Resistor)

Part #FCK-45

See the model cross reference for applicable models.  Download the installation guidelines.

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-50

Standard Set:
$59.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-50A

Standard Set:
$60.95

• 3 F&T 22uF-500V (Decoupling Filters)
• 2 F&T 220uF-300V (Main Filters)
• 3 70uF-100V (Decoupling, Bias Filters)
• 2 4.7uF-450V (Decoupling Filters)
• 6 25uF-25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-51

• 2 F&T 22uF-500V (Decoupling Filters)
• 4 F&T 100uF-350V (Main Filters)
• 2 Axial 25uF-25V
• 1 Radial 470uF-50V
• 3 Radial 100uF-100V
• 2 Radial 22uF-50V
• 1 Radial 47uF-50V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-52

• 1 F&T 47uF-500V (Main Filter)
• 3 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 1000uF-35V
• 3 Radial 100uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-53

• 2 F&T 100uF-350V (Main Filters)
• 2 F&T 47uF-450V (Decoupling Filters)
• 2 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 1000uF-35V
• 4 Radial 100uF-100V
• 1 Radial 22uF-63V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-54

• 2 F&T 100uF-350V (Main Filters)
• 2 F&T 47uF-500V (Decoupling Filters)
• 2 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 1000uF-35V
• 4 Radial 100uF-100V
• 1 Radial 10uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-54A

Click on photo for larger view

• 3 F&T 22uF-500V (Decoupling Filters)
• 2 F&T 220uF-300V (Main Filters)
• 4 F&T 100uF-100V (Decoupling, Bias Filters)
• 2 F&T 47-500V (Decoupling Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-55

• 4 F&T 100uF-350V (Main Filters)
• 2 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 1000uF-35V
• 4 Radial 100uF-100V
• 1 Radial 22uF-63V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-56

• 2 F&T 100uF-350V (Main Filters)
• 2 F&T 47uF-500V (Decoupling Filters)
• 2 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 1000uF-35V
• 4 Radial 100uF-100V
• 1 Radial 22uF-63V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-56A

• 1 F&T 47uF-500V (Main Filter)
• 3 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 1000uF-35V
• 3 Radial 100uF-100V
• 1 Radial 22uF-63V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-56B

• 1 F&T 47uF-500V (Main Filter)
• 3 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 470uF-50V
• 2 Radial 220uF-25V
• 1 Radial 100uF-25V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-57

• 4 F&T 22uF-500V (Main and Decoupling Filters)
• 2 Axial 10uF-50V (Bias Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-58

• 1 F&T 47uF-500V (Main Filter)
• 2 F&T 22uF-500V (Decoupling Filters)
• 2 Axial 10uF-50V (Bias Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-58A

• 4 United Chemicon 22uF-450V (Main and Decoupling Filters)
• 2 Axial 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-59

• 2 3300uF/63V Snap-In Electrolytic Capacitors
• 7 22uF/50V Radial Electrolytic Capacitors (replace 22uF/25V)
• 2 100uF/16V Radial Electrolytic Capacitors
• 6 100uF/25V Radial Electrolytic Capacitors
• 1 4.7uF/50V Radial Electrolytic Capacitors
• 4 2.2uF/50V Radial Electrolytic Capacitors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-60

• 1 F&T 47uF-500V (Main Filters)
• 3 F&T 22uF-500V (Decoupling Filters)
• 2 Radial 1000uF-35V
• 2 Radial 100uF-100V
• 1 Radial 10uF-100V
• 2 Radial 47uF-160V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-61

Fender™ Electrolytic Filter Capacitor Kit 62.  Contains the following capacitors, used as main filters, decoupling filters, and cathode bypass capacitors in the Fender 5E9 and 5E9A Tremolux from 1955 to 1956.  (Note: Some late 1956 5E9As actually have the 5G9 circuit, and require the FCK-63 capacitor kit).  See the complete model cross reference.

• 3 TAD Gold 16uF-475 (Main and Decoupling Filters)
• 4 25uF-25V (Bias Filters)

Download the installation guidelines.

Part #FCK-62

Fender™ Electrolytic Filter Capacitor Kit 63.  Contains the following capacitors, used as main filters, decoupling filters, bias filters and cathode bypass capacitors in the Fender 5G9 Tremolux from 1957 to 1960.  See the complete model cross reference.

• 4 F&T 22uF-500V (Main and Decoupling Filters)
• 2 Axial 8uF-150V (Bias Filters)
• 2 Axial 25uF-25V (Cathode Bypass)

Download the installation guidelines.

Part #FCK-63

Fender™ Electrolytic Filter Capacitor Kit 64.  Contains the following capacitors, used as main filters, decoupling filters, bias filters and cathode bypass capacitors in the Fender 75 Amp from 1980 to 1982.  See the complete model cross reference.

• 3 F&T 22uF-500V (Decoupling Filters)
• 2 F&T 220uF-300V (Main Filters)
• 2 Axial 70uF-100V (Decoupling, Bias Filters)
• 5 Axial 25uF-25V (Cathode Bypass)

Download the installation guidelines.

Part #FCK-64

Fender™ Electrolytic Filter Capacitor Kit 65.  Contains the following capacitors, used as main filters, decoupling filters, bias filters and cathode bypass capacitors in the Fender Music Master Bass Amp from 1970 to 1982.   Covers both the versions with 6AQ5A and 6V6 power tubes.  See the complete model cross reference.

• 3 F&T 22uF-500V (Main & Decoupling Filters)
• 1 I.C 2.2uF-50V (Cathode Bypass)
• 1 I.C. 10uF-50V (Cathode Bypass)
• 1 I.C. 22uF-50V (Cathode Bypass)

Download the installation guidelines.

Part #FCK-65

• 4 TAD Gold 16uF/475V (Main & Decoupling Filters)
• 1 Axial 100uF/100V (Cathode Bypass, replaces 100uF/25v)
• 1 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 1 TAD Gold 25uF/25V (Cathode Bypass)
• 1 Axial 220uF/25V (Cathode Bypass, replaces 250uF/6V)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-70

• 4 Epcos 22uF/560V (Main & Decoupling Filters)
• 1 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 2 Axial 8uF/150V (Bias Filters)
• 1 Axial 220uF/16V (Cathode Bypass, replaces 250uF/6V)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-71

• 3 TAD Gold 16uF/475V (Main & Decoupling Filters)
• 3 TAD Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-72

• 1 TAD Gold 16uF/475V (Main Filter, replaces 16uF/450V)
• 2 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 2 TAD Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-73

• 3 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 2 TAD Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-74

• 3 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 1 TAD Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-75

• 2 TAD Gold 16uF/475V (Main Filters)
• 2 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 2 TAD Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-76

• 4 TAD Gold 16uF/475V (Main & Decoupling Filters)
• 3 TAD Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-77

• 3 TAD Gold 16uF/475V (Main & Decoupling Filters)
• 1 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 1 F&T 100uF/100V (Cathode Bypass, replaces 100uF/25v)
• 2 TAD Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-78

• 4 Epcos 22uF/560V (Main & Decoupling Filters)
• 1 TAD Gold 8uF/475V (Decoupling Filters, replaces 8uF/450V)
• 2 Axial 8uF/150V (Bias Filters)
• 1 Axial 220uF/16V (Cathode Bypass, replaces 250uF/6V)
• 1 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-79

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-80

Top Professional Set:
$56.95

Standard Set:
$49.95

Basic Economy Set:
$34.95

• 3 F&T 16uF/475V (Main & Decoupling Filters)
• 3 I.C 22uF/50V (Cathode Bypass, replaces 25uF/50V)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-81

• 5 F&T 22uF/500V (Main & Decoupling Filters)
• 1 F&T 47uF/500V (Decoupling Filter, replaces 47uF/350V)
• 6 Radial 22uF/50V (Cathode Bypass, replaces 22uF/25V)
• 1 Radial 22uF/63V (Bias Filter)
• 1 Radial 100uF/100V (Bias Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-82

• 2 F&T 220uF/300V (Main Filters, replaces 220uF/285V)
• 2 F&T 22uF/500V (Decoupling Filters)
• 2 F&T 47uF/500V (Decoupling Filters, replaces 47uF/350V)
• 7 Axial 22uF/50V (Cathode Bypass, replaces 22uF/25V)
• 1 Axial 4.7/50V (Footswitch Filter)
• 1 Radial 22uF/63V (Cathode Bypass)
• 1 Axial 100uF/100V (Bias Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-83

• 5 F&T 22uF/500V (Main and Decoupling Filters)
• 1 F&T 100uF/100V (Bias Filter)
• 1 Axial 22uF/50V (Cathode Bypass, replaces 22uF/25V)
• 1 Axial 220uF/16V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-84

Fender™ Electrolytic Filter Capacitor Kit 85.  Contains the following electrolytic filter capacitors, used in the Fender Deluxe Reverb II from 1982-1986.  See the complete model cross reference.    The Deluxe Reverb II has 11 front panel controls, and the front panel is shown below:

• 1 CE Mfr 80-40-30-20uF/525V (Main and Decoupling Filters)
• 1 Epcos 22uF/560V (Decoupling Filter)
• 2 Axial 4.7uF/450V (Decoupling Filters)
• 2 Axial 70uF/100V (Bias Filters)
• 5 Axial 25uF/25V (Cathode Bypass)
• 1 4.7K-2 Watt Resistor

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-85

Fender™ Electrolytic Filter Capacitor Kit 86.  Contains the following electrolytic filter capacitors, used in the Fender Champ II from 1982-1983.  See the complete model cross reference.    The Champ II has 4 front panel controls, and the front panel is shown below:

• 1 CE Mfr 80-40-30-20uF/525V (Main and Decoupling Filters)
• 1 Axial 4.7uF/450V (Decoupling Filter)
• 2 Axial 70uF/100V (Bias Filters)
• 3 Axial 25uF/25V (Cathode Bypass)
• 1 1K-2 Watt Resistor
• 2 10K-2 Watt Resistors
