VCR Assemblies
(Gear Assemblies, Cassette Carriages and Loading Motor Blocks)
This is a small sample of the assemblies we have available - if the part
you need is not shown, visit Part Research

Our cassette carriage selection represents the most
commonly replaced cassette carriages.


MBK-77-LDR CASSETTE CARRIAGE
RCA, Samsung, GE, Toshiba Cassette Carriage Assembly

RCA part number:  218911

Used in RCA VR301, VR319, VR320, VR324, VR329, VR337, VR506, VR506A, VR510, VR510A, VR526, VR526A, VR507, VR604HF, VR610HF, VR657HF, VR658HF, VR664HF, VR672HF
GE VG2021, VG2035, VG4014, VG4019, VG4025, VG4029, VG4035, VG4036, VG4210, VG4215, VG4217, VG4235
SAMSUNG VR3602, VR3604, VR5602, VR5604, VR5702, VR5703,VR5704, VR5802, VR8703, VR8704, VR8903, VT300, VT320, VT322, VT325, VT3220
TOSHIBA M259, M44, M448, M449, M459, M469, M648
Regular manufacturer's price is $34.75!

MBK-77-LDR - $15.95

CH-496 CASSETTE CARRIAGE

SONY: A6775-357-A

Used in Sony models SLV-340, SLV-360, SLV-390, SLV-440, SLV-495, SLV-640HF, SLV-660HF, SLV-675HF, SLV-685HF ,SLV-690HF, SLV-695HF, SLV-740HF, SLV-760HF, SLV-761HF, SLV-765HF, SLV-775HF, SLV-780HF, SLV-790HF, SLV-795HF, SLV-940HF, SLV-960HF, SLV-975HF, SLV-980HF

CH-496 - $ 34.85

CH-957 CASSETTE CARRIAGE

PANASONIC/QUASAR: VXYS0494, VXYS0525, VXYS0630, VXYS0794, VXYS0876, VXYS0894, VXYS0955, VXYS0956, VXYS0957
RCA/GE: 211435

Used in PANASONIC AG1270, AG1270P, PV2101, PV2201, PV4101, PV4110, PV4114, PV4164, PV4201, PV4208, PV4225S, PV4250, PV4265S
CROSLEY CV1110, CV1240
GE VG2009, VG2011, VG2011A, VG201, VG4011, VG4012, VG4013
MAGNAVOX VR3310, VR3330, VR3410, VR9010, VR9035, VR9060, VR9120, VR9130
MEMOREX SM470, SM475
PHILCO VT2310, VT2410, VT8720
QUASAR VH200, VH220, VH400, VH420, VH425, VH6410
RCA VR334, VR512, VR512A

CH-957 - $26.85

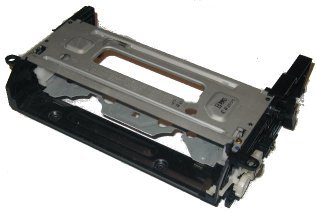

CH-885 CASSETTE CARRIAGE

PANASONIC/QUASAR: VXYS0885, VXYS0917, VXYS1063, VXYS1066
RCA/GE: 232200, 225160, 225238

Used in Panasonic PV-2401, PV2408, PV2409, PV2501, the complete PV4400 series (PV44xx) and the complete PV4500 series (PV45xx).
Quasar VHQ42, VHQ46, VHQ460
JC Penney 686-6304
GE VG2030, VG4030, VG4230, VG4253, VG4451
Curtis Mathes 741VHA
RCA VR327, VR501A, VR503, VR601AHF, VR603HF, VR603AHF

CH-885 - $28.65


VCR CARRIAGE REPAIR:
SHAFT WITH GUIDE ARMS

IW-232       $12.85

Fixes the most common problem with the carriage assembly in many RCA and Hitachi VCRs.

Hitachi Models VT498EM, VT2500, VT2600, VT2605, VT2700, VT2805, VT3000, VT3005, VT3006, VT3010, VT3011, VT3012, VT3040, VT3044, VT3046, VT3050, VT3400, VT3500, VT3800, VT3805, VT4990, VTF320, VTF330, VTF333, VTF350, VTF351, VTF440, VTF441, VTF445, VTF540, VTM120, VTM121, VTM123, VTM132, VTM133, VTM135, VTM137, VTM140, VTM141, VTM150, VTM151, VTM161, VTM231, VTM240, VTM241, VTM250, VTM251, VTM260, VTM265, VTM350, VTM351, VTM598, VTM758
(Note:  In the above models, an "A" or "AW" may follow the model number - same part applies)

RCA Models VPT630HF, VPT640HF, VPT695HF, VR270, VR271, VR273, VR275, VR291, VR293, VR340, VR341, VR343, VR450, VR451, VR452, VR470, VR475, VR490, VR495, VR520, VR521, VR523, VR535, VR550, VR595, VR600HF, VR630HF, VR635HF, VR640HF, VR675HF, VR690HF, VR695HF, VR696HF

 VCR CARRIAGE REPAIR:
SHAFT WITH GUIDE ARMS

TCE-225360    $15.95

Fixes the most common problem with the carriage assembly in many GE, RCA, ProScan and Toshiba VCRs.

GE Models: VG4038, VG4039, VG4238, VG4239
RCA Models VR322, VR332, VR528, VR532, VR532, VR538, VR539, VR541, VR542, VR615HF, VR616HF, VR618HF, VR652HF, VR653HF, VR673HF, VR674HF, VR676HF, VR678HF, VR684HF, VR688HF
ProScan Models PSVR57, PSVR62, PSVR63, PSVR64, PSVR65, PSVR82, PSVR83
Toshiba Models M650, M660, M671, M750, M752, M760, M761, M770, M782

Another gear on the carriage which may also fail in the above models:
TCE-225361     $2.50
VCR CARRIAGE REPAIR:
SHAFT WITH GUIDE ARMS

IW-214       $10.50

Fixes the most common problem with the carriage assembly in many RCA and Hitachi VCRs.

Hitachi Models VTF365AW, VTF380A, VTF381A, VTF382A, VTF390A, VTF391A, VTF392A, VTF462A, VTF482A, VTF494A, VTF631A, VTM170A, VTM171A, VTM181A, VTM261AW, VTF265A, VTF270A, VTF281A, VTF284A, VTUX605A

RCA Models VR621HF

 VCR CARRIAGE REPAIR:
SHAFT WITH GUIDE ARMS

IW-84       $10.75

Fixes the most common problem with the carriage assembly in many Goldstar and Zenith VCRs.

Goldstar Models:  GCV-1234M, GCV1324M, GCV1924M, GVP10025, GVP-B115, GVP-B125, GVP-B135, GVP-C120, GVP-C125, GVP-C135, GVP-C200, GVP-D150, GVP-E130, GVP-F125, GVP-F130, GVP-F135, GVR-A215, GVR-A225, GVR-A235, GVR-A245, GVR-A435, GVR-A445, GVR-A445-1, GVR-A465, GVR-A465-1, GVR-A485, GVR-B235, GVR-B245, GVR-B435, GVR-B445, GVR-B455, GVR-B465, GVR-C235, GVR-C245, GVR-C435, GVR-C445, GVR-C447, GVR-C447-1, GVR-C455, GVR-C467, GVR-C467-1, GVR-D245, GVR-D246, GVR-D445, GVR-D448, GVR-D465, GVR-D468, GVR-E235, GVR-E245, GVR-E435, GVR-E445, GVR-E448, GVR-E465, KMV2104, KMV9002, KV9002, RE-21M, RG10M

Zenith Models:  VRJ-210, VRJ-214, VRJ-410, VRJ-411, VRJ-412, VRJ-413, VRJ-417, VRJ-420HF, VRJ-422HF, VRJ-424HF, VRJ-428HF, VRL2110, VRL4110, VRL4130, VRL4132, VRL4141, VRL4170HF, VRL4210HF, VRL4230HF, VRL4232HF, VRL4241HF, VRL4270HF, VRM2120, VRM4120, VRM4130, VRM4132, VRM4150, VRM4270HF, VRS416, VRS417, VRS426HF, VRS427HF

This is a small sample of the assemblies we have available - if the part you need is not shown, visit Part Research
