MBK-03

Goldstar, Audiovox, Craig, JC Penney, and Sears VCR replacement rubber kits. Your VCR may have the Audiovox, Craig, JC Penney, or Sears logo in place of the Goldstar logo. The on-line database has been setup to direct you to the proper rubber replacement kit for your VCR, VCP, or TV/VCR combo unit. Even though every precaution has been taken to assure the accuracy of the database, mistakes can be made. If you have doubts about the pictured VCR being similar to yours please check the chassis photos below. If the photos do not match your chassis you may want to check our MBK-25 series of kits. The VCRs are similar. If you feel that we've made a mistake, please E-Mail us and let us know.

We have two replacement rubber kits for these Goldstar manufactured VCRs and VCPs.

MBK-03:	Contains both belts that are used in the VCR. Most problems that are associated with bad belts in these VCRs will show up in playback mode. Belts can cause problems ranging from lines in the picture to eating tapes. Your price is $2.90 for this kit. See photo for location
MBK-03P:	The VCRs that our MBK-03 series of parts are for were built about the time that Goldstar was converting from an idler with a rubber tire to a geared idler assembly. This kit is for the ones with a geared idler. It contains both belts and a replacement pinch roller. This kit is a complete rubber replacement kit for these Goldstar built VCRs. If the pinch roller has never been changed you probably need one. If the roller has a hard glaze on it or the capstan shaft has a black build up the pinch roller has probably been slipping. Your price is $9.95 for this kit. See photo for location
MBK-03PT:	The VCRs that our MBK-03 series of parts are for were built about the time that Goldstar was converting from an idler with a rubber tire to a geared idler assembly. This kit is for the ones with a rubber tired idler. It contains both belts, the idler tire, and a replacement pinch roller. This kit is a complete rubber replacement kit for these Goldstar built VCRs. The tire is the only part of the idler assembly that normally needs to be replaced. Your price is $11.75 for this kit. See photo for location

If you need a part for your Goldstar built VCR that is not listed above, use Part Research to check with us. We will list more parts as the catalog grows.

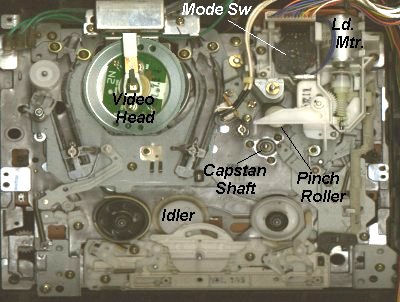

Top view of Goldstar MBK-03 type chassis

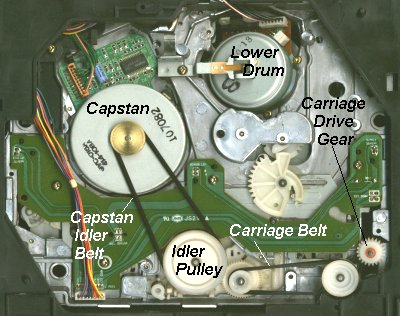

Bottom view of Goldstar MBK-03 type chassis
