MBK-09

Sanyo, Fisher, Realistic, Craig and Sears VCR replacement rubber kits.

Your VCR may have the Sears, Craig, Fisher, Realstic or Sanyo name on it. The on-line database has been setup to direct you to the proper rubber replacement kit for your VCR. Even though every precaution has been taken to assure the accuracy of the database, mistakes can be made. If you have doubts about the pictured VCR being similar to yours please check the chassis photos below. If you feel that we've made a mistake, please E-Mail us and let us know.

We have three replacement rubber kits for these Sanyo/Fisher manufactured VCRs.

MBK-09:	Contains both belts that are used in the VCR. This kit contains the Capstan/idler belt, and the carriage belt. The Capstan/Idler belt will cause problems such as lines in the picture, no Play/FF/REW. The Capstan/Idler belt drives the clutch that drives the idler assy. If this belt breaks, stretches, or deteriorates the tape will not move through the VCR properly. Your price is $2.95. See photos for belt placements
MBK-09T:	Contains both belts, Capstan/Idler belt, and the carriage belt, as well as the idler tire. The idler tire turn the reels which move the tape through the VCR. A faulty tire can cause problems ranging from lines in the picture, to no play at all. Your total price is $3.95. See photos for parts placements
MBK-09PT:	Kit contains both belts, Capstan/Idler belt, and the carriage belt. This kit also contains a replacement idler tire and pinch roller. If the pinch roller has never been changed you probably need one. If the pinch roller has a hard glaze on it or the capstan shaft has a black buildup the pinch roller has probably been slipping. This kit is a complete rubber replacement kit for these VCRs built by Sanyo/Fisher. Your price is $10.95 See photos for parts placements
MBK-09-I:	Our MBK-09-I is a replacement idler assembly for these VCRs. In most cases the tire is the only part of the idler assembly that needs to be replaced. The entire idler assembly does need to be replaced occasionally; the clutch that is built into the idler will eventually wear out and allow the idler to slip. Your price for our MBK-09-I is $6.95 See photos for parts placements
MBK-09-MNT:	Our MBK-09-MNT is a complete maintenance kit for these VCRs. It contains both belts, the pinch roller and a replacement idler assembly. The parts in this kit are the parts that cause the majority of problems in these VCRs. The VCRs that this kit is designed for are fairly old but solid. In most cases the idler tire is all you need to replace but these VCRs are old enough that the idler assemblies are failing. Your price is $14.95 See photos for parts placements

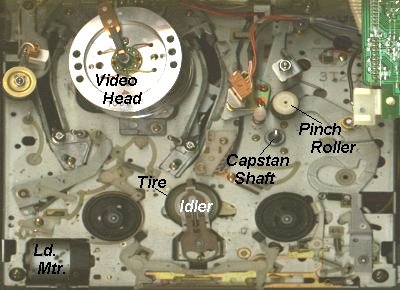

Top view of Sanyo/Fisher Chassis Our MBK-09 Series of parts are for this chassis

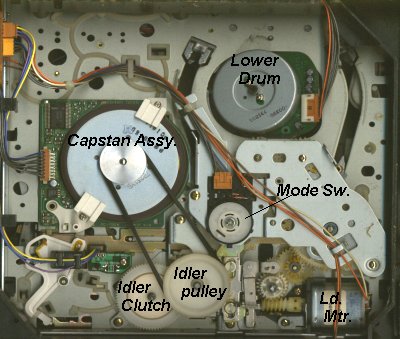

Bottom view of Sanyo/Fisher Chassis Our MBK-09 Series or parts are for this chassis

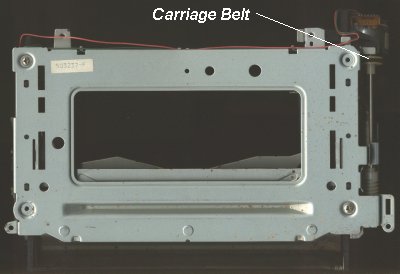

Cassette carriage view of MBK-09 chassis, showing the
location of the carriage belt.
