MBK-107

Panasonic, GE, JC Penney, Quasar, and RCA VCR replacement parts kits.

Your VCR may have the GE, JC Penney, Quasar, or RCA name on it instead of Panasonic. The on-line database has been set up to direct you to the proper rubber replacement or Maintenance kit for your VCR. Even though every precaution has been taken to assure the accuracy of the database, mistakes can be made. If you have doubts about the pictured VCR being similar to yours please check the chassis photos below. If you feel that we've made a mistake, please E-Mail us and let us know.

If the photographs below do not match the chassis and carriage in your VCR you may want to check our MBK-106 and our MBK-22 pages. If you were directed to this page but your VCR actually matches the photos on one of the other pages we would appreciate it if you would let us know.

We have two replacement rubber replacement kits as well as a maintenance kit and a wide selection of parts for these VCRs that were manufactured by Panasonic under various brand names.

MBK-107: Belt Kit	Contains both belts that are used in these Panasonic VCRs. Your price for our MBK-107 kit is $2.95. See photo for location of Belts
MBK-107P: Complete Rubber Kit	This kit contains both belts and the pinch roller. If the pinch roller has never been replaced your VCR probably needs one. This kit is a complete rubber replacement kit for these Panasonic VCRs. Your price for our MBK-107P kit is $9.95. See photo for location of Pinch Roller
MBK-107-MSW: Mode Switch	The mode switch in these Panasonic VCRs is a common source of problems. The VCR may accept a cassette and load it into the play position. Then unload the tape and eject. The Mode Switch can also case other problems. Soldering is required. Your price for our MBK-107-MSW is $5.95. Instructions for installation (PDF) See photo for location of Mode Switch
MBK-107-OH: Overhaul Kit	Our Overhaul Kit for these Panasonic VCRs consist of both belts, the pinch roller, and the mode switch. Your price for our MBK-107-OH kit is $15.95. Instructions for installation (PDF) See photos for parts location

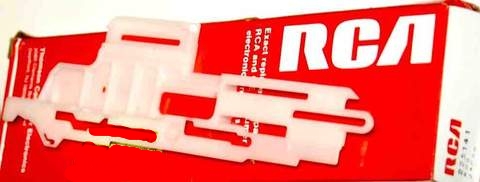

MBK-107-SP: Slide Plate	The slide plate in these models sometimes breaks, or loses a tooth in the gear section of the plate. The MBK-107-SP is the original replacement part for this model series. Your price for the MBK-107-SP slide plate is $6.95. See photos for parts location
MBK-107-CG Cam Gear	Occasionally the main cam gear in these models develops a problem, typically losing a few teeth or breaking a path in the cam maze. The replacement cam gear is our part number MBK-107-CG, and it sells for $4.95. The cam gear is the big gear located near the mode switch and the load motor. See photos for parts location
MBK-107-189	This gear/arm assembly is the take-up guide post drive arm. This gear/arm, located under the chassis, is driven by the MBK-107-SP slide plate, and is responsible for pushing the take-up guide post down the guide slot, pulling the tape out of the cassette and wrapping it around the head (right side guide post when looking at the VCR from the top front) When this gear fails, it is normally due to a broken tooth. The replacement is part number MBK-107-189, and it sells for $6.95.
MBK-107-190	This gear/arm assembly is the supply side guide post drive arm. This gear/arm, located under the chassis, is driven by the MBK-107-SP slide plate, and is responsible for pushing the take-up guide post down the guide slot, pulling the tape out of the cassette and wrapping it around the head (left side guide post when looking at the VCR from the top front) When this gear fails, it is normally due to a broken tooth. The replacement is part number MBK-107-190, and it sells for $6.95.

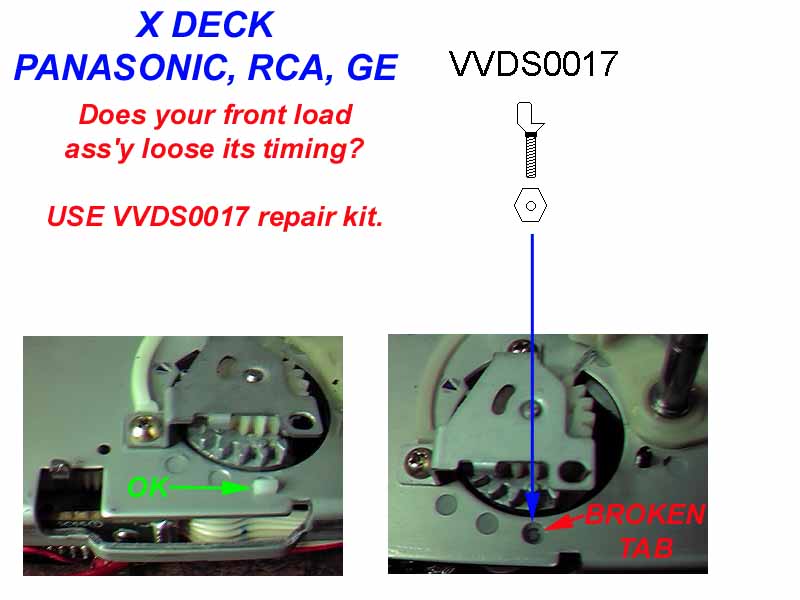

VVDS0017 Kit	If the carriage assembly in these models seems OK, but yet it tends to jump the gear timing on a regular basis, a little white plastic protrusion from the chassis which fits up into a groove on the carriage assembly may have broken off. Click here for more information and details. The VVDS0017 kit is designed to fix this problem. The VVDS0017 Kit sells for $7.95.

Top view of MBK-107 type Panasonic Chassis

Panasonic Chassis, Bottom View

Bottom view of MBK-107 type Panasonic Chassis

Panasonic Carriage

Our MBK-107-Ldr type Panasonic Carriage
