Click on photo for
larger view |
 JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and
ring conductors are switched (normally
 closed). 5 pins. Original Peavey™ part number 31466217. Found
in most Peavey™
Vyper™
models as the input jack.
Replaces Switchcraft 114BPCX and 114BPCSX. Nut and washer included.
Part #J-217 |
$4.95 |
|
Click on photo for
larger view |
JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.
Both tip and ring
are switched (normally closed). Used in Peavey™
and other brands. Same as J-114BPC, except that the threads are insulated.
Nut and washer included. This version has standard wide pins for
insertion into PC board. See the J-527 for narrow pins for small PC
board holes.
Part #J-523 |
$6.95 |
|
Click on photo for
larger view
|
JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.
Both tip and ring
are switched (normally closed). Used in Peavey™
and other brands. Same as J-523, except that the pins are
narrow for insertion into smaller PC holes.
Nut and washer included.
Part #J-527 |
$6.95 |
|
Click on photo for
larger view
|
JACK, 1/4", Peavey™ ORIGINAL,
DUAL TIP HID, PC MOUNT, MONO, 4 PINS (WIDE PINS).
SPECIAL APPLICATION!!
This jack is for use in Peavey™ products only, and is unusual in that two different pins contact the tip of the plug. One of the tip contacts is switched
 (normally closed),
and the other tip contact is open. The pins on this jack are wide
(1.7mm), so the hole in the PC board must be large enough to accept the pin.
For the same jack with narrow pins, see the J-214. This jack is exclusive to Peavey™.
Peavey part number 71466032 or 31466032. Used for a variety of functions
on Peavey products, including input jacks. Nut and washer included.
Part #J-521 |
$6.95 |
|
Click on photo for
larger view
|
JACK, 1/4", Peavey™ ORIGINAL,
DUAL TIP HID, PC MOUNT, MONO, 4 PINS (NARROW PINS).
SPECIAL APPLICATION!!
This jack is for use in
Peavey™ products only, and is unusual in that two different pins contact the tip of the plug. One of the tip contacts is switched (normally closed),
and the
 other tip contact is open.
The pins on this jack are narrow (1.1mm). For the same jack with wide
pins, see the J-521. This jack is exclusive to Peavey™.
Peavey part number 71466214 or 31466214. Used for a variety of functions on Peavey products, including input jacks. Nut and washer included. Found in the
Fire Bas 700, GPS1500, Classic 20, Classic 30, Delta Blues,
112TI, 115TI, and some Ecoustic models, among others.
Part #J-214 |
$8.95 |
|
Click on photo for
larger view
|
JACK, 1/4", Peavey™ ORIGINAL,
DUAL TIP HID, PC MOUNT, MONO,
4 PINS, INSULATED.
SPECIAL APPLICATION!!
This jack is for special applications in Peavey™ products only, and is unusual in that two different pins contact the tip of the plug. One of the tip contacts is switched (normally closed),
and the other tip contact is open. This jack is exclusive to Peavey™. Same as J-521 except that the threads are insulated.
Nut and washer included.
Part #J-522 |
$5.95 |
|
Click on photo for
larger view
|
JACK, 1/4", Used in Peavey™, PCB, MONO CLOSED CIRCUIT
PCB mono closed circuit. Original Peavey part numbers 31466164,
71466164, and 71466088. Found in the Peavey™
KB60, KB300, Studio Chorus 210, some versions of the Basic 112, Micro Bass (original
version), Rage 158, and other models. Includes nut and
washer.
Part #J-525 |
$9.50 |
|
Click on photo for
larger view |
JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.
Original Peavey part number 31466167 and 71466167. Used as the headphone
jack in the KB/A 60 keyboard amp. Also found in some other Peavey
products. Insulated bushing for ground isolation from the chassis. Nut and washer included.
Part #J-526 |
$6.99 |
|
Click on photo for
larger view |
JACK, 1/4", PC MOUNT, STEREO,
3 PINS, SWITCHED, INSULATED. Used in many Peavey™
and SWR™ models. Switched tip contact.
Original Peavey™ part number 71466165. Original SWR™ part number
0066442000. Nut and washer are included. 3 pins.
Part #J-526A |
$7.75 |
|
Click on photo for
larger view |
JACK, 1/4", PC MOUNT, STEREO,
6 PINS, SWITCHED, INSULATED.
Original Peavey part number 31466165 and 71466165. Found in some versions
of the 5150, 6505, 5150-II and 6505+, as well as the pre-EQ jack on the KB60.
Used as the input jack on the older version of the Basic 112. Nut and washer included.
Part #J-625 |
$8.95 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output. Includes nut and washer.
Part #J-11 |
$3.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L11 |
$4.79
|
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING,
ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation
washers keep the jack from making contact with your chassis. This leaves the
jack ungrounded which is needed in certain applications.
Part #J-L11W |
$4.99 |
|
Click on photo for
larger view |
 JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Found in vintage Fender™ (and other) amps as the input jack.
Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main
speaker out jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550). Peavey part number 71466004.
Part #J-12A |
$4.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT
(SHORTING), WIRED, Switchcraft™, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L12A |
$5.50 |
|
Click on photo for
larger view |
JACK, 1/4", MONO,
TIP SHUNT, WIRED, Switchcraft™,
LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but
includes a set of isolation washers.
The
isolation washers keep the jack from making contact with your chassis. This
leaves the jack ungrounded which is needed in certain applications.
Commonly used in older Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville
amps to
replace the fragile input jacks.
Part #J-L12AW |
$5.99 |
|
Click on photo for
larger view |
 JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™
Used with T/R/S plugs for either balanced connections or stereo connections. Also very common in guitars with active pickups, and as the input jack on some effects pedals.
The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Fender part number 0013043000.
Part #J-12B |
$4.35 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L12B |
$5.99 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING. Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place. Used in a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models). Original
 Fender™ part number 0041701000
(originally 042701). Also found in some Peavey amps, such as the
Classic 50 speaker jack.
Part #J-13A |
$9.95 |
|
Click on photo for
larger view |
JACK, 1/4", TIP/RING/SLEEVE, WITH
TIP SHUNT. Switchcraft 13B Jack.
 Tip/Ring/Sleeve
Switchcraft jack. Tip has a shunt contact, ring contact is open
circuit.
Part #J-13B |
$9.95 |
|
Click on photo for
larger view |
WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and
chrome nut jacks to provide proper spacing. Jacks come with the
washers included, but the washers are easily lost. Without the washers,
the jacks will not fit properly.
Part #W-583 |
$0.18
for each washer.
(Jacks not included). |
|
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE
Stereo jack. 6 PC board terminals, switched. With nut and washer.
British style.
Part #J-504 |
$2.15 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK! JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE,
PACK OF 6
Stereo jack. 6 PC board terminals, switched. Pack of 6 jacks, with
nuts and washers.
Part #J-504-6 |
$10.99
(Set of 6 jacks) |
|
|
Click on photo for
larger view |
SAVE WITH
OUR
MULTIPACK ASSORTMENT! THIS PACK CONTAINS THREE J-503 (4 PIN) AND THREE J-504 (6-PIN)
JACKS.
Many amps contain both the 4 pin and the 6 pin British jacks. This
assortment gives you 3 of each jack ... Three J-503, and three J-504.
Part # J-5034-6 |
$10.49
(For 3 J-503 Jacks and 3 J-504 Jacks)
|
|
Click on photo for
larger view |
JACK, 1/4",
T/R/S PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-504, with the addition of a special ground washer which
contacts the chassis AND is inserted into the ground connection of the PC board
via dual pins under the jack. 6 PC board terminals for signal, plus
2 additional terminals for the ground washer. Only for
amplifiers so equipped for this jack, designed
 to
reduced EMI/RFI interference (radio stations, ground loops). Found in some
Marshall solid state amps, as well as other brands. Note:
Must be used only on amps designed for this type of jack that have the PCB holes
to accept the pins of the ground washer. Nut is included.
Part #J-504GW |
$2.89 |
|
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE - WHITE
Identical to the J-504 above, except in white. How cool is that! Stereo jack. 6 PC board terminals, switched. With nut and washer.
Part #J-556 |
$3.99 |
|
Click on photo for
larger view |
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE
4 PC board terminals, switched. Used in many brands of amps and other equipment. With nut and washer.
Part #J-503 |
$1.99 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK! JACK, 1/4", MONO PC MOUNT PLASTIC,
BRITISH STYLE,
PACK OF 6
4 PC board terminals, switched. Used in many brands of amps and other
equipment. Pack of 6 jacks, with nuts and washers.
Part #J-503-6 |
$9.99
(Set of 6 jacks) |
|
Click on photo for
larger view |
JACK,
1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL-PLATED NUT AND CHROME TRIM RING
4 PC board terminals, switched. Used in many brands of amps and other
equipment. Same footprint as J-503 jack - may be used in place of
J-503 to add a touch of "chrome" class to your amp! Used in
newer Mesa Boogie amps, including the Rosette, Mini Rectifier, Mark
5:Twenty-Five, etc.
Part #J-603 |
$2.79
(per jack) |
|
Click on photo for
larger view |
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-503, with the addition of a special ground washer which
contacts the chassis AND is inserted into the ground connection of the PC board
via dual pins under the jack. 4 PC board terminals for signal, plus
2 additional terminals for the ground washer. Only for
amplifiers so equipped for this jack, designed
to
reduced EMI/RFI interference (radio stations, ground loops). Found in some
Marshall solid state amps, as well as other brands. Note:
Must be used only on amps designed for this type of jack that have the PCB holes
to accept the pins of the ground washer. Nut is included.
Part #J-503GW |
$2.59 |
|
Click on photo for
larger view |
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE - WHITE
Identical to the J-503 above, except in white. How cool is that! Mono input jack. 4 PC board terminals, switched. With nut and washer.
Part #J-555 |
$3.99 |
|
|
Click on photo for
larger view
|
JACK, 1/4", TIP/RING/SLEEVE 6-PIN, PC MOUNT,
Peavey™ AMPS
Peavey™ PCB mount 1/4" jack. Stereo, 6 pin. Fits certain
Peavey™
amp models. Peavey part number 71466323. Black nut is included. For savings on
multiple jacks, see J-518-6 below.
Part #J-518 |
$3.50 |
|
|
Click on photo for
larger view
|
SAVE WITH MULTIPACK! JACK, 1/4",
TIP/RING/SLEEVE 6-PIN, PC MOUNT,
Peavey™ AMPS,
SET OF 6 JACKS.
Peavey™ PCB mount 1/4" jack. Stereo, 6 pin. Fits certain
Peavey™
amp models. Peavey part number 71466323. Black nuts are included. Set of 6 jacks.
Part #J-518-6 |
$14.95
(For Set of 6 Jacks) |
|
|
Click on photo for
larger view
|
JACK, 1/4", MONO 4-PIN, PC MOUNT,
Peavey™ AMPS
Peavey™ PCB mount 1/4" jack.
Tip/Sleeve, 4 pin.
Fits certain Peavey™
amp models. Peavey part number 71466322. Black nut is
included. For savings on multiple jacks, see the J-519-6 jack set
below.
Part #J-519 |
$2.95 |
|
|
Click on photo for
larger view
|
SAVE WITH MULTIPACK! JACK, 1/4",
TIP/SLEEVE
4-PIN, PC MOUNT,
Peavey™ AMPS,
SET OF 6 JACKS.
Peavey™ PCB mount 1/4" jack.
Tip/sleeve, 4 pin.
Fits certain Peavey™
amp models. Peavey part number 71466322. Set of 6 jacks, black
nuts are included.
Part #J-519-6 |
$14.95 |
|
|
Click on photo for
larger view |
JACK, 1/4", MONO,
PC MOUNT, SHORT THREAD, PEAVEY
PCB mount 1/4" jack. Mono, 4 pin, PC board mount. Used in several
versions of the Peavey ValveKing amplifiers, the MP4 Plus Powered Mixer, and the
newer versions of the Basic 112. Nut is included. Peavey part
number 71466222 and 31466322.
Part #J-661 |
$ 3.79
(per jack) |
|
|
Click on photo for
larger view |
JACK, 1/4",
STEREO,
PC MOUNT, SHORT THREAD, PEAVEY
PCB mount 1/4" jack. Mono, 6 pin, PC board mount. Used in several
versions of the Peavey ValveKing amplifiers. Also used in the Tour
TKO Amp. Peavey part number 31466323. Nut is included.
Part #J-662 |
$ 3.99
(per jack) |
|
Click on photo for
larger view |
JACK NUT, PLASTIC,
BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Note: Replaces most black plastic jack nuts EXCEPT for
Roland. Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and
J-504L jacks. Also fits the J-518 and J-519 jacks.
Part #J-5NT |
$0.50 |
|
Click on photo for
larger view |
JACK NUT MULTI-PACK - SAVE!
6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Note: Replaces most black plastic jack nuts EXCEPT for
Roland. Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and
J-504L jacks. Also fits the J-518 and J-519 jacks.
Part #J-5NT-6 |
$2.39 |
|
Click on photo for
larger view |
JACK NUT, PLASTIC,
BRITISH STYLE, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L, J-504L, J-518 and
J-519 black jacks, if you wish to create a two-tone effect.
Part #J-5NTW |
$1.00 |
|
Click on photo for
larger view |
JACK, CHASSIS MOUNT, DIN, 6 PINS
This jack is commonly used as the footswitch connector on many Peavey™ guitar amps. Also used by Genz Benz and other manufacturers.
Part #J-520 |
$3.99 |
|
Click on photo for
larger view |
JACK, CHASSIS MOUNT, DIN, 7 PINS
This jack is commonly used as the footswitch connector on many Peavey™ guitar amps. Also used by Mesa Boogie, Genz Benz and other manufacturers.
Part #J-516 |
$3.99 |
|
Click on photo for
larger view |
JACK, CHASSIS MOUNT, DIN, 8 PINS
This jack is commonly used as the footswitch connector on many Peavey™ guitar amps. Also used by Genz Benz and other manufacturers.
Part #J-528 |
$3.99 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK!
JNUT-38 JACK NUT AND WASHER, METAL,
SWITCHCRAFT™, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots. Set of
6 washers and 6 nuts.
Part #JNUT-38-6 |
$4.50
(Set of 6 washers and 6 nuts) |
|
 |
JACK NUT AND WASHER, METAL,
SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38 |
$0.89
(Set of 1 washer and 1 nut) |
|
Click on photo for
larger view. Jack is in the picture to demonstrate how the washers
are installed - jack is NOT included with the washers. |
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal
bushings. Used to mount standard jacks in a 1/2" diameter chassis
hole, while insulating the metal bushing (ground) of the jack from the chassis.
ID 3/8", OD 1/2". Works great when replacing isolated plastic jacks with a
more durable metal jack, which is frequently done on the input jacks of the
Fender™ Hot Rod Deville/Deluxe and Blues Deville/Deluxe. Two washers
are used on each jack, and the "shoulders" are placed facing each other through
the chassis. The washers not only isolate the ground of the jack
electrically for noise reduction, but also stabilize the jack in the 1/2"
diameter hole. Jack shown in picture NOT included. Works
well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13,
J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069 |
$0.49
(For a pair of washers. Each jack needs two washers.) |
|
Click on photo for
larger view |

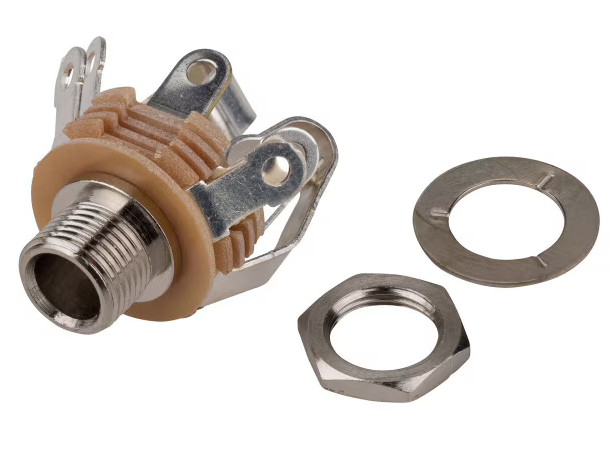

JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING,
ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation
washers keep the jack from making contact with your chassis. This leaves the
jack ungrounded which is needed in certain applications.
Part #J-L11W |
$4.99 |
|
Click on photo for
larger view |
Revisit™
SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.
Used to replace speaker cable in most combo amplifiers where the speakers are
connected to the amplifier chassis via a 1/4" jack and plug. 18ga black zip cord,
right-angle plug and fast-on connectors for attachment to one
speaker.
Part #SCH-280 - NOTE: OUT OF STOCK! NONE AVAILABLE AT THIS TIME. |
$6.99 |
 |
|
Click on photo for
larger view
|
SPEAKER JUMPER CABLE
polyvinyl
insulated silver plated copper speaker wire, 18 gauge, twisted
pair, black and white. Terminated at each end in standard
3/16" speaker fast-on connectors. Great for connecting
speakers in parallel in 2x12 or 4x12 cabinets. 24 inches (61
cm) long. Made in USA.
Part #SJ-150
|
$5.99
|
|
|
 |
BUILD YOUR OWN Speaker Harness for Combo Amps: Choose the SJ-150
cable (above) along with the P-287 Plug (below). Cut off the
cable's fast-on connectors on ONE end of the cable. Strip both
conductors of cable back about 1/4" on that end. Solder that end to
the P-287 plug (black to the sleeve, white to the tip.). This
will give you a 24 inch speaker harness. Note:
Cable-building experience strongly recommended. Soldering
equipment needed. |
Total cost for materials will be $5.99 + $3.95 = $9.94. |
 |
Click on photo for
larger view |
PLUG, 1/4", MONO, RIGHT ANGLE,
SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug. Nickel plated copper alloy.
2-conductor right-angle phone plug, solder terminals.
Part #P-287 |
$3.95 |
|
Click on photo for
larger view |
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates. Works well with the Switchcraft J-11 1/4" jacks
that we carry. Hole is 3/8", for most Switchcraft type jacks. Easy to install, economical.
Includes 3 black oxide coarse-thread mounting screws, #6x3/4".
Jack not included - order separately. For size specifications, click here.
Part #JP-180 |
$1.89
|
|
Click on photo for
larger view |
Revisit™
JACK PLATE COMPLETE WITH
SWITCHCRAFT #11 JACK.
Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180 |
$4.95
|
|
Click on photos for
larger views
 |
JACK PLATE, MONO/STEREO, PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in.
Labels shows the common 4 or 16 Ohm Mono and 8 Ohm Stereo option. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.
Requires a 3 inch x 3-7/16 inch rectangular hole cut in the cabinet. Direct easy replacement for many existing small jack dishes. No soldering required. Complete wiring directions included - click here for more details.
Designed to be used with 2x12 cabinets containing two 8-ohm speakers, 4x12
cabinets with four 16-ohm speakers, or 4x12 cabinets with four 4-ohm speakers.
Can be used for the following configurations:
- 4 ohm mono
- 8 ohm left + 8 ohm right stereo
- 8 ohm left only mono
- 8 ohm right only mono
- 16 ohm mono
Part #CJP-1 |
$35.95
|
|
Click on photo for
larger view |
Peavey binding post, pc mount, black.
Found on several models of Peavey power amplifiers. Red type also
available, below. Fits standard banana plugs.
Part #BP-277 |
$6.50 |
|
Click on photo for
larger view |
Peavey binding post, pc mount, red.
Found on several models of Peavey power amplifiers. Black type also
available, above. Fits standard banana plugs.
Part #BP-278 |
$6.50 We only have one BP-278
left in stock! |
|
Click on photo for
larger view |
JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR
WIRE ATTACHMENT (3/16" PUSH ON CONNECTORS OR SOLDER TABS).
Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including
Peavey™.
Part #J-NL4MP |
$4.95 |
|
Strat™, Stratocaster™, Esquire™,
Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™
are registered trademarks of Fender™ Musical Instruments. The replacement necks
and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The
distinctive headstock designs and the distinctive body designs of the
Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered
trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
|
