For the following models:
PANASONIC/QUASAR: VXYS0885, VXYS0917, VXYS1063, VXYS1066
RCA/GE: 232200, 225160, 225238

Used in Panasonic PV-2401, PV2408, PV2409, PV2501, the complete PV4400 series (PV44xx) and the complete PV4500 series (PV45xx).
Quasar VHQ42, VHQ46, VHQ460
JC Penney 686-6304
GE VG2030, VG4030, VG4230, VG4253, VG4256, VG4451
Curtis Mathes 741VHA
RCA VR327, VR501A, VR503, VR601AHF, VR603HF, VR603AHF

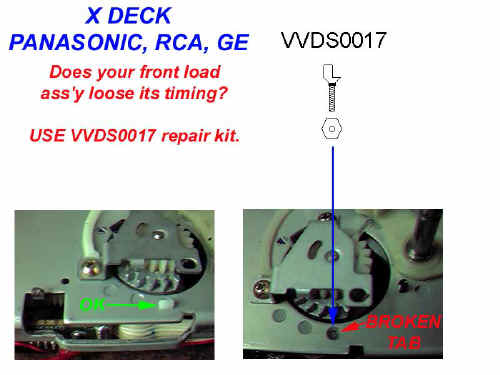

VVDS0017 Kit  $7.95 ea

Mitsubishi Gear-Sense Kit

KIT-M1 - $22.95

Contains parts need to rebuild the cassette loading assembly (cassette carriage) after the common failure of stripped or broken loading gears on the right-hand side of the carriage. Kit includes needed replacement gears and a Hypalon strip to improve loading performance. Complete with full instructions. For the following models:

Mitsubishi Models

HS-U28, HS-U38, HS-U48, HS-U58, HS-U100, HS-U200, HS-U250, HS-U500, HS-U550, HS-U770.

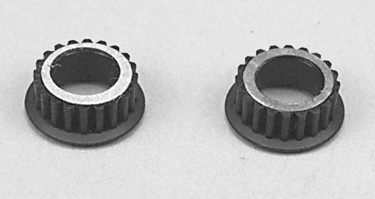

JVC / Zenith Capstan Motor Belt Pulley Repair Kit

IW-97 - $10.50

Complete kit to repair the cracked belt pulley on many JVC HRD and HRS series model VCRs, and also some Zenith VRG series models. Includes all models using the PU61003-1-2 capstan motor. Contains choice of two original replacement pulleys for "geared" type drive belt, and complete instructions and diagrams.

JVC models: HRD540, HRD550, HRD560, HRD660, HRD670, HRD680, HRD720, HRD730, HRD740, HRD760, HRD780, HRD865, HRD870, HRD875, HRD910, HRD920, HRD930, HRD940, HRD960, HRD970, HRD980, HRD990, HRS66, HRS4700, HRS5800, HRS6600, HRS6700, HRS6800

Zenith Models: VRG170, VRG180, VRG260, VRG265, VRG310, VRG520

Mitsubishi "F-Deck" Pinch Roller / Belt Repair Kit

PR-21B - $21.95

Contains replacement pinch roller assembly and new capstan belt. Fixes common problems of "won't play", mangled tape and other jammed mechanism problems common to the F-Deck chassis, used in the following Mitsubishi models:

HS-U31, HS-U32, HS-U34, HS-U35, HS-U36, HS-U51, HS-U52, HS-U53, HS-U54, HS-U55, HS-U56, HS-U57, HS-U59, HS-U61, HS-U62, HS-U65, HS-U67, HS-U69, HS-U71, and HS-U82

Mitsubishi Power Supply Repair Kit

KIT-UPWR - $12.95

Symptoms: Dead VCR, especially after a power surge or electrical storm. Note: Installation requires soldering capability, and some VCR repair experience would be helpful. Requires that both the mechanical deck and main circuit board be removed from the VCR. Basic electronics experience also necessary. Contains transistors, resistors, capacitors, complete instructions.

Applicable only to the following Mitsubishi models:

HS-U120, HS-U270, HS-U420, HS-U520, HS-U570

RCA / GE / Samsung Repair Kit
(Tape won't load, capstan motor won't run, no display, or dead unit)

TCE-216135 - $3.95

Kit to replace up to 11 diodes on the main circuit board in the RCA, GE, Toshiba and Samsung models listed below. Symptoms vary, but typically include one or more of the following: Tape won't load into machine; capstan motor won't turn; no clock display; completely dead unit. Kit includes replacement diodes and full instructions. Note: Installation requires soldering capability, and basic electronics experience would be helpful.

RCA models: VR300, VR301, VR335, VR505, VR515, VR660HF

GE models: VG2010, VG2016, VG4016, VG4216

Samsung models: VR3711, VR3901, VR4300, VR5711, VR5901

Toshiba models: M-222, M-227

 Prism / LED / Sensor Kit
(for Magnavox, Philips, Philco, Sylvania, Funai, Symphonic, Sears, White-Westinghouse and Hitachi VCRs)

PK-100 - $9.95

Symptoms: Shuts down & ejects tape in play or record, or shuts down after 10-15 seconds. May shut down and display "Error Code 1" on display. Also, may try to load cassette tray when no cassette is present. Kit includes one new prism assembly, one center LED emitter (D511) and one each start and end sensors (Q503 and Q504). Note: Installation requires soldering capability, and some VCR repair experience would be helpful. Requires that both the mechanical deck and main circuit board be removed from the VCR.

Funai Models: FE226G, FE426G, FE436G, FV20G, FV4261G, F9TGG1, F13TRG1, F19TRG1
Symphonic Models: SE226G, SE426G, SE436G, SE456G, SV406G, SV4261G, TVCR9G1, TVCR13G1, TVCR19G1
Hitachi Models: VTMX221A, VTMX421A, VTMX421AC, VTMX424A, VTFX601A, VTFX601AC, 13VR3B, 20VR4B
White Westinghouse Model: WV827
Magnavox/Philco/Sylvania/Philips Models: VRU222, VRU242, VRU262, VRU340, VRU342, VRU344, VRU362, VRU364, VRU542, VRX262, VRX360, P862VR, P964VR, P966VR, LV226G, LV227G, L9TRG, L13TRG, L19TRG. (Note: These model numbers typically end in "AT" plus a 2-digit number. This has been removed from the model numbers listed here to conserve space).
Sears models made in 1995-1997 with an FCC ID code starting with the letters "ADT"

RCA / Toshiba / ProScan Cam Lever

TCE-224988 - $18.75
(Limited Quantity Available)

Symptoms: Unable to properly load or eject the cassette tray. This lever is located underneath the large cam gear, right rear side of the top of the chassis. It drives the arm that moves the cassette tray. Typically, the end in the upper left-hand corner of the above picture will break off.

GE Models: VG4038, VG4039, VG4238, VG4239

RCA Models VR322, VR332, VR528, VR532, VR532, VR538, VR539, VR541, VR542, VR615HF, VR616HF, VR618HF, VR652HF, VR653HF, VR673HF, VR674HF, VR676HF, VR678HF, VR684HF, VR688HF

Zenith/Goldstar LED Emitter Modification Kit

903-1487-01 - $3.99

Symptoms: Tries to load cassette tray when no cassette is present. Or, play mode loads the tape, spins the reels, then ejects the tape without playing. Kit includes new center LED emitter and three resistors which replace existing resistors on the main circuit board. Instructions are included.
Note: Installation requires soldering capability, and some VCR repair experience would be helpful. Requires that both the mechanical deck and main circuit board be removed from the VCR.

Zenith Models: VR2107, VR4106, VR4107, VR4126, VR4127, VR4137, VR4206, VR4207, VR4226, VR4227, VR4238

Goldstar GVR-F Series Models

Power Supply Repair/Modification
Kit for RCA & GE

This kit is designed for RCA models VR332, VR528, VR538, VR539 and GE models VG4038 and VG4039.  Contains components and instructions for modification of power supply after failure caused by electrical storms or power surges.   Download the Adobe Acrobat copy of the service bulletin which discusses this kit; right click here and choose "Save Target As"

 TCE-231734   $3.99 ea

Rubber Keypad repair kit

Repair remote controls with bad buttons!
The conveniently-sized kit for permanently repairing rubber keypads in remote controls, telephones, keyboards and more!

> Restores electrical conductivity
> Forms a tough, flexible, wear-resistant surface
> One kit repairs over 50 rubber button contacts
> Repairs tested to 500,000 keystrokes

KCT-44        $15.95 ea
