Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB2C1A.
Input impedance 8 ohms, output impedance 2250 ohms, medium decay (1.5 -
2.75 seconds), input insulated/output grounded, designed for horizontal
mounting, open side up. Used in the Yamaha G100 Series I and Series II.
See explanation of reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here. Part #4AB2C1A
"Bringing back the sound of vintage USA-built
Accutronics tanks"
$46.95
Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 2 spring,
2AB2C1A.
Lower cost short tank with Medium Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side up.
Replacement for tanks in early Yamaha solid-state amps from the 1970s and early
80s. See explanation of reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty
details here. Part #2AB2C1A
"Bringing back the sound of vintage USA-built Accutronics tanks"
$32.95
Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1A. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side up.
Replacement for tanks in early Yamaha solid-state amps from the 1970s and early
80s. See explanation of reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
For an equivalent tank in a 2-spring version
for 25% less, see the 2AB2C1A tank in this section
View the 2-year warranty
details here. Part #8AB2C1A
"Bringing back the sound of vintage USA-built Accutronics tanks"
$43.95
Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 2 spring,
2EB2C1A.
Lower cost short tank with 2 springs, Medium Decay, input impedance 800 ohms, output 2575 ohms,
grounded input and insulated output. Mounts horizontal, open side up.
Used in Peavey™ 6505+ and Yamaha™ JX30.
See explanation of reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty
details here. Part #2EB2C1A
"Bringing back the sound of vintage USA-built Accutronics tanks"
$32.95
Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1A. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side
up. Used in Peavey™ 6505+ and Yamaha™ JX30.
See explanation of reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
For an equivalent tank in a 2-spring version
for 25% less, see the 2EB2C1A tank in this section
View the 2-year warranty
details here. Part #8EB2C1A
"Bringing back the sound of vintage USA-built Accutronics tanks"
Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.
Used in Fender™ Blues Junior,
Fender™ Deluxe 85, Fender™
Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series
(Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™
Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™
Ultimate Chorus, Fender™ Princeton Chorus, Fender™ H.O.T., Fender™ Vaporizer, Fender™ Acoustasonic Junior,
Fender™ M-80 HM Series Combo, Fender Performer 650 & 1000.
Peavey Envoy 110, Peavey™ Ultra 60/120,
Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior
Hot Rod, Tech 21™ Trademark 30, Crate V-18, Supro BluesKing 12, Yamaha G5. This is the most popular short tank.
See explanation of reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces Fender ™ part numbers 0028055000,
028055, 025269, 020550.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
For an equivalent tank in a 2-spring version
for 25% less, see the 2EB2C1B tank in this section
View the 2-year warranty
details here. Part #8EB2C1B
"Bringing back the sound of vintage USA-built Accutronics tanks"
Korean-made Accutronics Reverb Tanks are a
copy of the Belton tank, and are now made by Accu-Bel in South
Korea. They are of lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.
Used in Fender™ Blues Junior,
Fender™ Deluxe 85, Fender™
Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series
(Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™
Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™
Ultimate Chorus, Fender™ Princeton Chorus, Fender™ H.O.T., Fender™ Vaporizer, Fender™ Acoustasonic Junior,
Fender™ M-80 HM Series Combo, Fender Performer 650 & 1000.
Peavey Envoy 110, Peavey™ Ultra 60/120,
Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior
Hot Rod, Tech 21™ Trademark 30, Crate V-18, Supro BluesKing 12, Yamaha G5. This is the most popular short tank.
See explanation of reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces Fender ™ part numbers 0028055000,
028055, 025269, 020550.
Soft mounting grommets are not included
with this tank. If needed, order the RRG-4 grommet set found in
this section.
Korean-made Accutronics Reverb Tanks are made in South Korea by Belton. Please be aware that these are NOT the same tanks as originally made by Accutronics in Cary, Illinois, USA.
Part #ACC-8EB2C1B
$35.95
Click on photo for
larger view
TACT SWITCH, PC MOUNT Fits the following: Boss ME-5.
Casio CZ-1000, CZ-3000, CZ-5000. Ibanez TS9 Tube Screamer. Kawai K3,
Korg DW Series, EX-8000, KPR-77, Poly-61. Kurzweil K1000, K1200, K2000.
Roland Axis-1, FC-100, GR-700, JX-8P, PG-800, TB-303, TR-606. Yamaha DX7,
DX9, KX88. Oberheim Matrix 6/6R/1000. Sequential Circuits Multi-Trak.
Boss part # 13129715. Korg # 37505000. Roland # 13129715.
Yamaha # KA905510. 12mm x 12mm (about 1/2" x 1/2").
Height of switch from under the base to the top of the plunger is about 7mm.
Data Sheet here.
Part #FS-621
$0.99
Click on photo for
larger view
JACK, 1/4", Marshall™
G SERIES, INPUT, LINE OUT, FOOTSWITCH, PC MOUNT,
HAS RED STRIPE, ALSO USED IN YAMAHA, KORG, FENDER. MONO,
SWITCHED. Used in certain Marshall™ G-series amps from the late 90s -
compare with original jack. Back legs are slightly staggered -
not positioned directly across from each other. Check the
back of the existing jack - if the back is red and the back legs are
staggered, this would be the correct replacement. NUT AND WASHER
ARE INCLUDED. Used as the input jack
and the line out jack in the Marshall™ G15RCD. Used as the input, line out
and footswitch jack in the Marshall™ G30RCD. Used as the line out,
footswitch, FX send and return jacks in the Marshall™ G50RCD. Used as the
input jack on certain Fender™ SideKick amps, such as the SideKick Chorus
20. Also used in Korg and Yamaha keyboards - Korg part number 454X851003,
Yamaha part number LB202330.
Part #J-531
$4.75
Click on photo for
larger view

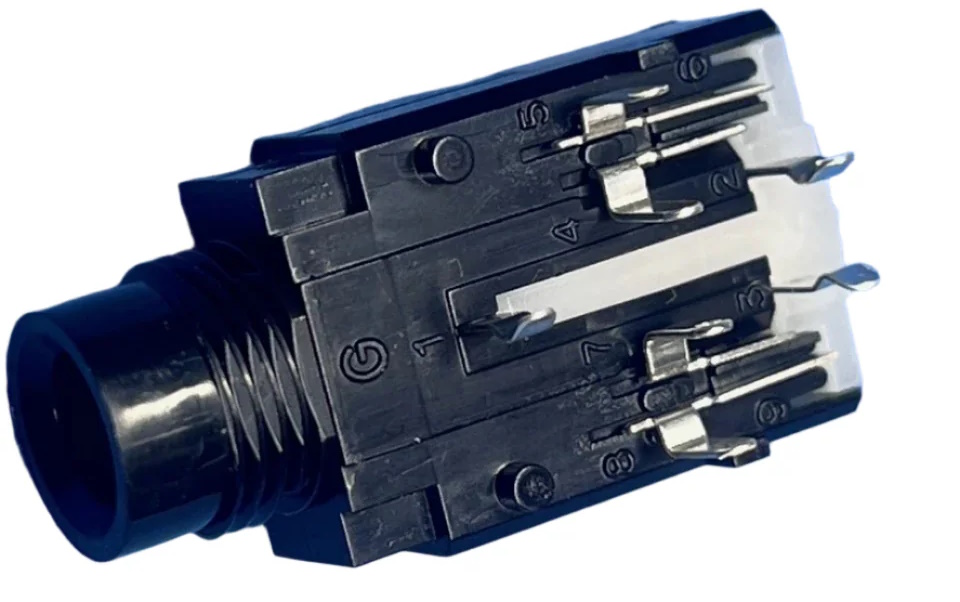

JACK, 1/4", 7-PIN, HEADPHONE,
USED IN Marshall™, FENDER™, YAMAHA™ & OTHERS, PC MOUNT The Yamaha LB10187R is an OEM 1/4″ stereo headphone jack used in various
Yamaha keyboards and amplifiers. It is a 7-pin, PC-mount jack commonly found in
models such as the YPR6, HE6, PSR520, and YPR8. This part is also compatible
with certain Marshall, Fender, and Korg models. Note: No trim ring at jack opening.
Includes nut and washer. Part # LB10187R
$6.70
WITH CHROME TRIM RING
Click on photo for
larger view
JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, USED AS CD OUTPUT JACK, PC MOUNT, ALSO USED IN YAMAHA,
KORG, ROLAND, ENSONIQ. CHROME SLEEVE, STEREO. Used in certain Marshall™ G-series amps
from the late 90s - compare with original jack. Used as the CD
input jack in the Marshall™ G15RCD and the G30RCD. Genuine Marshall
part number J1031. Used for the Headphone output of the Roland S-50
and S-770 and for the Headphone and Ext. Control jack of the Roland U-220.
It also replaces all the jacks in the Korg 01/W and 01R/W, and the CV Pedal
jacks in the Ensoniq ESQ-1, ESQ-M, and SQ-80 keyboards. The jack is
equivalent to Roland part # 13449148 (YKB21-5009), Korg part # 454004400, and
Behringer part # W64-01081-03178. Used in the Behringer V-Amp and
P16-M. The chrome sleeve at the jacks opening is cosmetic. The jack will replace
equivalent jacks
that have a gold sleeve or no sleeve. Nut and
washer are included. Replacement
nut/washer set is the JN-916. This is a stereo jack - unswitched tip,
ring and sleeve.
Part #J-532
$4.75
4-PIN, WITH CHROME TRIM RING
Click on photo for
larger view
JACK, 1/4", STEREO, 4-PIN
SWITCHED, MADE BY KOBICONN OR JALCO, USED IN KORG, YAHAMA & OTHERS, PC MOUNT
This
4-pin, PC mount, 1/4" stereo phone jack has a normally closed tip shunt and is
used in a variety of amps and keyboards made by Yamaha Ensoniq, Marshall™, Ibanez,
Casio, Korg, Roland and others. Yamaha part number VM57600R.
Nut and washer are included. Replacement
nut/washer set is the JN-916.
Part #J-533
$4.75
3 PIN, WITH CHROME TRIM RING
Click on photo for
larger view
JACK, 1/4", MONO, 3-PIN, INPUT, MADE BY KOBICONN, Used in Marshall™, Korg, Yamaha, Roland,
Behringer & others, PC Mount.
Chrome
sleeve around jack entrance. Gold sleeve also available, see J-539G. Korg
part number 454004300. Behringer part number W64-01382-03176.
Roland part number 13449146. Nut and washer are included. Replacement
nut/washer set is the JN-916. This is a mono jack with a
normally closed contact to the tip conductor.
Part #J-539
$5.75
Click on photo for
larger view
USB
CONNECTOR, "A" type. USED IN YAMAHA, KORG, ROLAND, Others.
"A" Type USB connector, found in a number of keyboards, processors,
professional audio gear made by many manufacturers. Right-angle PC
mount 4-conductor. Industry standard USB. As found
in the Korg Pa3X, Triton Extreme. As found in the Yamaha MOXF8. Part #J-427
$1.89
Click on photo for
larger view
USB
CONNECTOR, "B" type. USED IN YAMAHA, KORG, ROLAND, Others.
Korg part number CON0001079, as found in the Korg SV1-73, and Triton
Extreme. Also found in the Access Virus T1, Akai MPK49 and MPK61, Alesis
Q25, Q49, QX25, QX49, Dave Smith Prophet 12, Edirol PCR Series, M-Audio Axiom
49, Axiom Pro 49, Axiom 61, Axiom Pro 61, KeyRig Series, Keystation Series and
Key Studio, Roland PCR Series Controllers, and Yamaha MM6, MM8, and S90, as well
as other brands and models not listed. Line 6 part number 21-21-0001, as
found in many Line 6 guitar processors. Part #J-437
$1.89
Op-Amp, 4558, very common in amplifiers, mixers, power amps. 8-pin DIP Part #NJM4558-D
$1.00
Low-noise 5532 Dual Op-Amp in 8-pin DIP package. Part #NE5532
$1.50
Low-noise 5534 Single Op-Amp in 8-pin DIP package. Part #NE5534
$1.50
Low-noise 2068 Dual Op-Amp in 8-pin DIP package. Part #NJM2068
$1.50
Low-current, JFET input, TL062 Dual Op-Amp in
8-pin DIP package. Compatible with TL072 designs, with significantly
lower current draw. Good choice for battery-operated pedals to
increase battery life. Part #TL062
$1.00
Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.
Also TL071CN. Part #TL071CP
$1.50
Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.
Also TL072CN. Part #TL072CP
$1.60
High slew rate, JFET input, TL082 Dual Op-Amp in
8-pin DIP packag Part #TL082
$1.90
4808-3004
From the 3M Company ... 8-pin DIP socket, fits all of the
8-pin op-amps above. We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier! #4808-3004
$0.35
+15V 1 amp Voltage Regulator - Metal Tab Part #7815
$0.90
-15V 1 amp Voltage Regulator - Metal Tab Part #7915
$0.90
Click on photo for
larger view
GENUINE EMINENCE DIAPHRAGM 16
OHMS Replacement 16-Ohm Audio Diaphragm, Titanium compression driver, 2"
diameter voice coil, 80 watts, 16 ohms impedance. 1,200Hz-20,000Hz
range. Used in many professional horn drivers, including Yamaha and Carvin.
Manufactured by Eminence.
Part #
PSD2002-16DIA
Special Price!
$29.95
Click on photo for
larger view
CUP WASHER, BLACK METAL, PACK OF 10. Used with #8 Black screws, on
amps and speaker cabinets. Part #BCW-10
$2.49
(pack of 10)
Click on photo for
larger view
SPEAKER BAFFLE MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4. Locking
nut and washer included. Phillips head. Drill hole, insert and
tighten screws into wood from front of baffle. Install grill cloth, and
you have professional speaker mounting studs. Replacement for
original Fender™ speaker mounting studs. Fender™ part number
0992094000. Set of 4.
Part #SC-409-4
$4.50
(For a pack of 4 screws with nuts and lock washers)
Click on photo for
larger view
ISOLATION WASHER - 3/8" - For #8 Screws
3/8" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #8 screws. Ideal for vintage Fender
amps with #8 speaker mounting screws. Set of 4 washers.
Part #SIW-38-4
$0.59
(For a set of 4 washers)
Click on photo for
larger view
ISOLATION WASHER - 1/2" - For #10 Screws
Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #10 screws, such as a 10-32 machine screw. Set of 4 washers.
Part #-4
$0.69
(For a set of 4 washers)
Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #6 screw, Pack of 10.
Part #SCR-435
$0.79
(pack of 10)
BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #8 screw, 1/2 inch
long, pack of 10.
Part #BWS8-5
$1.29
(pack of 10)
BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #8 screw, 3/4 inch
long, pack of 10.
Part #BWS8-75
$1.49
(pack of 10)
BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #8 screw, 1 inch long,
pack of 10.
Part #BWS8-1
$1.69
(pack of 10)
BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.
Deep threads, sharp point, pan head with Philips drive. #8 screw, 1-1/2
inches long, pack of 10.
Part #BWS8-15
$1.79
(pack of 10)
Click on photo for
larger view
CAGE NUT, ZINC, 10-32
THREAD. Used on square-punched amp chassis rails to secure the
chassis to the cabinet. Frequently found in Peavey, Crate, Ampeg,
other brands. NOT used in Marshall™ - see the MCN-4.
Works with all
10-32 screws.
Verify screw thread before ordering, as not all cage nuts are 10-32. Zinc coating retards oxidation.
Pack of 4 nuts. Made in Canada by Hammond Industries. Part CNA-1421
$4.29
(pack of 4)
Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip
on all types of surfaces. Ideal for smaller amps, amp heads, effects units,
larger floor effects pedals, or speaker
cabinets. The integral metal washer in the mounting hole helps prevent
mounting screw "break-through" and adds overall durability.
0.84"
diameter x 0.31" high. Screws not included. Set of 4
feet. Part #BRF-750
$4.95
(pack of 4)
Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for smaller amps, amp heads, or speaker
cabinets. The integral metal washer in the mounting hole helps prevent
mounting screw "break-through" and adds overall durability.
Just under 1 inch - 15/16"
diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8"
tall. Screws not included. Set of 4
feet. Part #BRF-723
$4.95
(pack of 4)
Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets.
the integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter x
5/8" tall. Mounting
screws not included. Part #BRF-1692
$4.95
(pack of 4)
Click on photo for
larger view

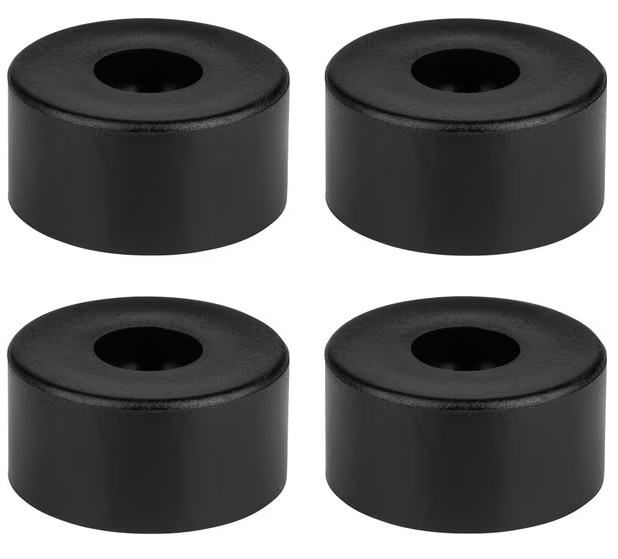

MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for large rack cabinets or speaker cabinets.
the integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter x 1" tall. Mounting
screws not included.
Part #BRF-1691
$5.95
(pack of 4)
Click on photo for
larger view
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets.
The integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter
(wide end) x 3/4" diameter (narrow end) x 0.85" tall. Mounting
screws not included. Set of 4 feet.
Part #BRF-9105
$4.95
(pack of 4)
Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4. Tapered: 1 3/16" Diameter
At Small End, 1 1/4" Diameter At Large End. 1/2" Tall. Black Rubber With Metal
Insert. Used To Support Effects, Amps, Mixers. Mounting Screws Not Included.
Part #BRF-9112
$5.95
(pack of 4)
Click on photo for
larger view
X-LARGE BLACK RUBBER FEET, SET OF 4. TAPERED - 1 5/8" DIAMETER AT
LARGE END, 1 1/4" AT SMALL END. 3/4" TALL. BLACK RUBBER WITH METAL INSERT. USED TO SUPPORT AMP HEADS, SPEAKER CABINETS.
MOUNTING SCREWS NOT INCLUDED.
Part #BRF-9107
$7.95
(pack of 4)
Click on photo for
larger view
Fender™ Style Pop-Out 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable
supporting 45 lbs, or 180 lbs total for the set of 4. Wheels 2" in
diameter. The same type of removable caster wheels used on Fender™ amps
since the 1960s. Note:
Mounting screws NOT included. Must drill 5/8" hole in bottom of
cabinet to accommodate post for wheel. Part #FCW-4R
$34.95
(Set of 4 pop-out casters)
NOT SOLD OUTSIDE the USA
Click on photo for
larger view
Fender™ Style Flat Mount 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.
Wheels 2" in diameter. Specifications found
here. Note:
Mounting screws NOT included. Part #FCW-4F
$34.95
(Set of 4 casters)
NOT SOLD OUTSIDE the USA
Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE Popular strain relief found on most
vintage
guitar amplifiers with round power cords, including most vintage Fender™ amps. Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below. Part #SR-1200
$0.99
Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage. Part #YTH-205
$12.95
Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH
CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH) Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 1/4 inch diameter inner hole,
and mounts in a 3/8 inch chassis hole.
Full
datasheet here. Part #RCG-739
$0.49
each
Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE
(GROMMET INNER HOLE 3/8 INCH) Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 3/8 inch diameter inner hole,
and mounts in a 1/2 inch chassis hole.
Full
datasheet here. Part #RCG-745
$0.49
each
Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR
AT EQUIPMENT END. Common replacement cord for use on many
guitar amps, power amps, effects units, etc. Standard NEMA 5-15 plug
for North American use at 110-120 Volts AC. IEC connector at
equipment end. Used only in North America. Part #PC-300
$6.95
Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END. REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.
10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT, REDUCES USE OF
EXTENSION CORDS.Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.
IEC connector at equipment end. Used only in North America. Part #PC-600
$10.95
Click on photo for
larger view
SUPER-LONG,
16 gauge
Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,
OUR LONGEST HEAVY-DUTY POWER CORD!
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length is a super-long 15 feet, cord thickness is 0.34 inches (about 11/32" or
8.6mm).
Standard NEMA 5-15P plug for North American use at 110-120 Volts AC, rated at 16
amps maximum. Used only in
North America.
Part #PC-163SJT15
$19.95
Click on photo for
larger view
EXTRA-LONG
12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type. Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length is an
extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).
Wire gauge is 18AWG, rated at 10 amps.
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in
North America.
Part #PC-183SJT12
$18.95
Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SJT8
$9.95
Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SVT type,
"Thin Line". Cut ends for installing (soldered connection) into
many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older
amps). Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about
1/4" or 6.1mm).
Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp
cords in smaller amplifiers where there was formerly a 2-wire cord without
ground.
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SVT8-TL
$9.95
1 foot long!
Click on photo for
larger view
1 ft
EXTENSION CORD, 3-WIRE, 16ga, 13 Amps. Quality extension cord for use
on stage, at home, office or workshop. Cord length is 1 ft (including plug
and socket), 16 gauge,
3-wire cord thickness is 0.31 inches (about
5/16" or 7.9mm).
Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC,
13 amps maximum. Used only in
North America. Increases the ability of power strips to accept AC adaptors
without blocking the adjacent outlet socket! See inset photo for
more info, click on it for a larger view.
Part #EC-5296
$5.95
Click on photo for
larger view
15 ft
EXTENSION CORD, 3-WIRE, 16ga, 13 Amps. Quality extension cord for use
on stage, at home, office or workshop. Cord length is 15 feet, 16 gauge,
3-wire cord thickness is 0.31 inches (about
5/16" or 7.9mm).
Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC,
13 amps maximum. Used only in
North America.
Part #EC-5301
$19.95
Click on photo for
larger view
Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381
$0.99
Click on photo for
larger view
Revisit™
SPEAKER HARNESS Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.
Used to replace speaker cable in most combo amplifiers where the speakers are
connected to the amplifier chassis via a 1/4" jack and plug. 18ga black zip cord,
right-angle plug and fast-on connectors for attachment to one
speaker. Part #SCH-280
$6.99
Click on photo for
larger view
Revisit™
SPEAKER HARNESS Replacement straight plug with 24" cable and bare stripped and tinned
conductors for soldering to speaker terminals.
Used to replace the speaker cable in some combo amplifiers where the speakers are
connected to the amplifier chassis via a 1/4" jack and plug.
Round black professional cable with black
and white color-coded 18ga wires, straight metal 1/4 inch plug and bare tinned
conductors for soldering to speaker terminals. Part #SCH-7085
$6.99
Click on photo for
larger view
SPEAKER JUMPER CABLE polyvinyl
insulated silver plated copper speaker wire, 18 gauge, twisted
pair, black and white. Terminated at each end in standard
3/16" speaker fast-on connectors. Great for connecting
speakers in parallel in 2x12 or 4x12 cabinets. 24 inches (61
cm) long. Made in USA. Part #SJ-150
$5.99
BUILD YOUR OWN Speaker Harness for Combo Amps:
Choose the SJ-150
cable (above) along with the P-287 Plug (below). Cut off the
cable's fast-on connectors on ONE end of the cable. Strip both
conductors of cable back about 1/4" on that end. Solder that end to
the P-287 plug (black to the sleeve, white to the tip.). This
will give you a 24 inch speaker harness. Note:
Cable-building experience strongly recommended. Soldering
equipment needed.
Total cost for materials will be $5.99 + $3.95 = $9.94.
Click on photo for
larger view
PLUG, 1/4", MONO, RIGHT ANGLE,
SOLDER TERMINALS, STRAIN RELIEF Similar to the Switchcraft 226 right-angle plug. Nickel plated copper alloy.
2-conductor right-angle phone plug, solder terminals. Part #P-287
$3.95
Other Yamaha Parts
We can supply other available genuine Yamaha parts on special
order. The part number is required. Part numbers may be obtained from
Yamaha service manuals for your particular Yamaha product.
All company names, logos and product names mentioned on these pages are
trademarks of their respective owners.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
that have a gold sleeve or no sleeve. Nut and
washer are included. Replacement
nut/washer set is the JN-916. This is a stereo jack - unswitched tip,
ring and sleeve.

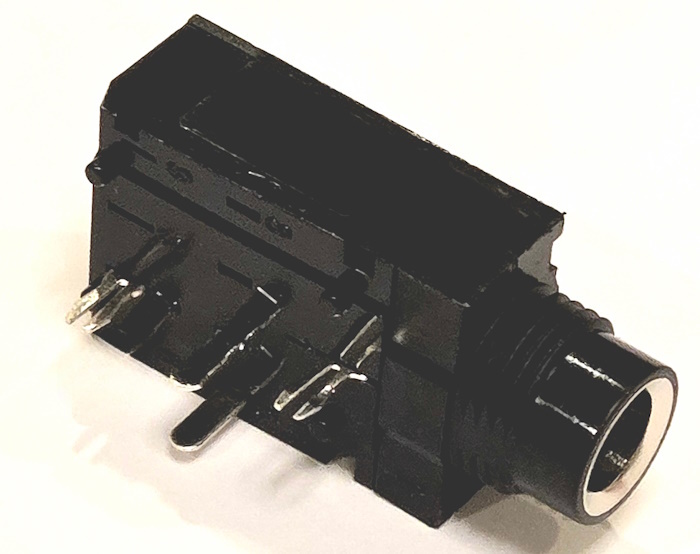

Roland part number 13449146. Nut and washer are included. Replacement
nut/washer set is the JN-916. This is a mono jack with a
normally closed contact to the tip conductor.
Fender™ Style Pop-Out 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable
supporting 45 lbs, or 180 lbs total for the set of 4. Wheels 2" in
diameter. The same type of removable caster wheels used on Fender™ amps
since the 1960s. Note:
Mounting screws NOT included. Must drill 5/8" hole in bottom of
cabinet to accommodate post for wheel.
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
