GMA Fuses - Fast Blow



(Sold in packs of five fuses.
20mm long x 5mm diameter)

GMA fuses are smaller European fuses, fast blow, 5mm diameter x 20mm long.   Measure your old fuse.  In English dimensions, they are 0.2 inches x 0.79 inches.  Choose amperage value in Options.
Part #GMA-X

$2.95
(Pack of 5 fuses)

Select Option:


Quantity:



GDC Fuses - Slow Blow



(Sold in packs of five fuses.
20mm long x 5mm diameter)

GDC fuses are smaller European fuses, slow blow, 5mm diameter x 20mm long.   Measure your old fuse.  In English dimensions, they are 0.2 inches x 0.79 inches.  GDC fuses are sometimes listed as 5 x 20 fuses, or "T" fuses, such as T1A.  GDC fuses are the same physical size as GMA fuses, except that they are "slow blow", or "time delay".  The GDC fuses are engineered to withstand normal surge current without blowing needlessly.   During steady-state operation, they protect to the same value as fast-blow fuses.  Choose amperage value in Options.
Part #GDC-X

$4.95
(Pack of 5 fuses)

Select Option:


Quantity:



2AG Pigtail Fuses - Slow Blow



Click on photo for
larger view
2AG Pigtail fuses are subminiature 5mm diameter x 15mm long, with axial leads for soldering.  Measure your old fuse.   These pigtail fuses are designed to be soldered to a circuit board.  In English dimensions, they are about 3/16 inches x 9/16 inches.   1 amp slow-blow.   These fuses are commonly found on circuit boards in some Peavey equipment.
Part #2AG-P-1A
$1.69
(each)



AGC Fuses - Fast Blow



(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)

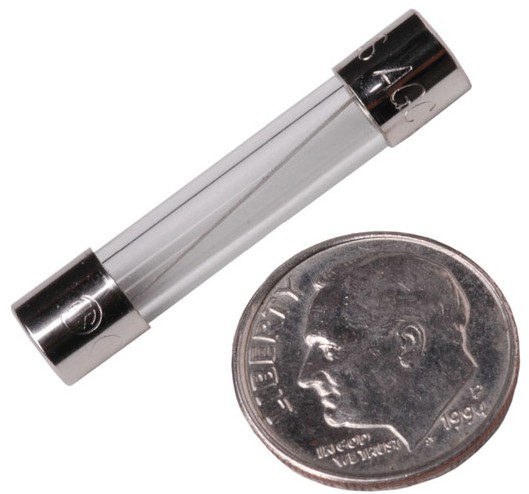

AGC fuses are larger American fuses, fast blow, 1/4" diameter x 1-1/4" long.   Measure your old fuse.   AGC fuses are sometimes listed as 3AG fuses.   In metric dimensions, they are 6.3mm x 31.75mm (or 6 x 32 for short).  Choose amperage value in Options.
Part #AGC-X

$2.95
(Pack of 5 fuses)

Select Option:


Quantity:



MDL Fuses - Slow Blow



(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter.  Same as the MDL1 fuse)

MDL fuses are larger American fuses, slow blow, 1/4" diameter
x 1 1/4" long, the same size as AGC fuses.   Measure your old fuse.  Slow Blow (also called Time Delay) fuses are engineered to withstand normal surge current without blowing needlessly.   During steady-state operation, they protect to the same value as fast-blow fuses.    In metric dimensions, they are 6.3mm x 31.75mm (or 6 x 32 for short).  Choose amperage value in Options.
Part #MDL-X

$4.95
(Pack of 5 fuses)

Select Option:


Quantity:


Diodes


Part No. Description Price Each Shopping Cart
1N34A Glass Germanium Signal Diode $0.75

1N4148 Glass Signal Diode $0.12

1N5408 3A / 1000V PIV $0.60

1N4007 1A / 1000V PIV $0.15

1N4937 1A High Speed $0.65

SF14 1A High Speed $0.72

KBPC806, BR86
8A Bridge,
600PIV
0.75" x 0.75" x 0.25"
$2.95

6A10
6A Diode,
1000PIV
$1.50

1N5353
(Equiv to NTE5131.  Used in 90's vintage Crate™ & Fender™ Amps)
16V 5W Zener $1.95

1N4744A 15V 1W Zener $1.00

1N4746A 18V 1W Zener $1.00

R3000
0.25A / 3000V
High Voltage Protection
Diode

Click here for information

$1.00


Larger Transistors
"2S" prefix has been omitted ... C3890 = 2SC3890 Description Price Each Shopping Cart
C3890 Power Supply Switching Transistor $1.75

C4073 Power Supply Switching Transistor $2.35

C4130 Power Supply Switching Transistor $2.90

IRF830 Power MOSFET, 500V, 4.5A.   Common failure item in some Blackstar models. $2.95

TIP142 NPN Silicon Darlington Power Transistor $6.99

TIP147 PNP Silicon Darlington Power Transistor $6.99


Click on photo for
larger view

Heatsink Compound, ThermalCoolFlux High Performance Polysynthetic Silver Thermal Paste
Heatsink silver thermal compound designed for CPUs, GPUs, transistors, integrated circuit output modules.   Only a small dab is needed on each device.  For a transistor, typically a small dab about the size of 1/2 grain of rice.  For a CPU, a dab about the size of a pea.  For an output module, a dab about the size of a grain of rice. 1.5 grams in a syringe - enough for about 20 transistors, 10 modules or 5 CPUs.  High thermal conductivity: > 3.2 W/mK.
Part #HC-180

$1.95

Output Modules
TDA2030 OUTPUT CHIP, COMMONLY FOUND IN Crate™, FENDER, KORG AND many others.  5 PINS.  RATED 14 WATT OUTPUT.
Part #TDA2030
$6.95

TDA2040 OUTPUT CHIP, COMMONLY FOUND IN Crate™, FENDER, KORG AND many others.  5 PINS.  RATED 22 WATT OUTPUT.  OBSOLETE.   USE LM1875T AS A REPLACEMENT.
Part #TDA2040
$6.95
TDA2050 OUTPUT CHIP, COMMONLY FOUND IN Crate™, FENDER, KORG AND many others.  5 PINS.  OBSOLETE.   USE LM1875T AS A REPLACEMENT.
Part #TDA2050
$6.95
TDA7240A OUTPUT CHIP, COMMONLY FOUND IN TRAYNOR, YORKVILLE AND many others.  7 PINS.  RATED 20 WATT OUTPUT.  OBSOLETE - DISCONTINUED.
Part #TDA7240A
$4.95

Click on photo for
larger view
LM1875T OUTPUT CHIP, COMMONLY FOUND IN Crate™, RMS, KORG AND many others.  5 PINS.  RATED 20 WATT OUTPUT.  REPLACES TDA2050.
Part #LM1875T
$6.95


Click on photo for
larger view
LM3886TF OUTPUT CHIP, COMMONLY FOUND IN Marshall™, AND many others.  11 PINS.  RATED 68 WATT OUTPUT INTO 4 OHMS.
Part #LM3886TF
$12.95


Click on photo for
larger view
LM4765T OUTPUT CHIP, COMMONLY FOUND IN LINE 6™ SPIDER MODELS, AND many others.  15 PINS.  OBSOLETE - DISCONTINUED.
Part #LM4765T
$8.95

Click on photo for
larger view

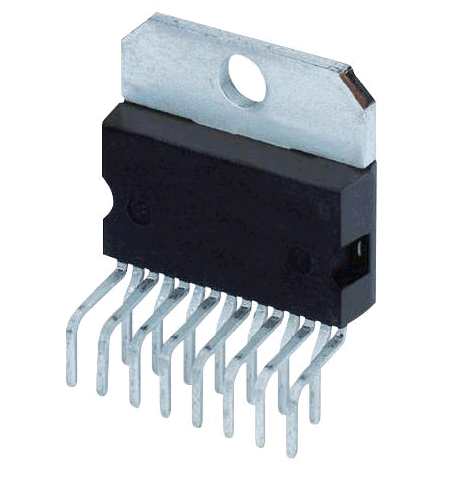

TDA7293 OUTPUT CHIP, COMMONLY FOUND IN Crate™, Marshall™ AND many others.  15 PINS.  RATED 100 WATT OUTPUT, AT UP TO 120V SUPPLY.
Part #TDA7293 / TDA7293V
$17.95


TDA7294 OUTPUT CHIP, COMMONLY FOUND IN Crate™, Marshall™ AND many others.  15 PINS.  RATED 100 WATT OUTPUT AT UP TO 80V SUPPLY.
Part #TDA7294 / TDA7294V
$11.95


STK401-140 OUTPUT CHIP, STEREO 120 WATTS PER CHANNEL, DUAL RAIL POWER SUPPLY AT UP TO +/- 70V.
Part #STK401-140
$11.95

One left in stock




Click on photo for
larger view
TIP142 NPN DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN Crate™, Marshall™, Fender™ AND many others.
Part #TIP142
$6.99


Click on photo for
larger view
TIP147 PNP DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN Crate™, Marshall™, Fender™ AND many others.
Part #TIP147
$6.99


Regulators
  Description Price Each Shopping Cart
7815 +15V 1amp Voltage Regulator - Metal Tab $0.90

7915 -15V 1amp Voltage Regulator - Metal Tab $0.90


Small Signal Transistors



"2S" prefix has been omitted ... A933 = 2SA933

Description Price Each Shopping Cart
B641 M-68 Case $0.58

B643 M-68 Case $0.72

C3203 TO-92 Case $0.59

C3616 TO-92 Case $1.12

D1330 M-68 Case $0.85

D1458 M-68 Case $0.93

D2144

TO-92 Case $0.72


Click on photo for
larger view
J111 JFET N-CHANNEL

General replacement N-Channel Field Effect Transistor (FET).   Used for analog switching in many Mesa/Boogie models.
    Download datasheet here.

Part #
J111
$0.99


Click on photo for
larger view
J175 JFET P-CHANNEL (ALSO SUBS FOR J174)

General replacement p-Channel Field Effect Transistor (FET).   Used for analog switching in many Mesa/Boogie models.
  Also can be used in place of the J174 JFET.  Download datasheet here.

Part #
J175
$0.99


Opto-Isolators



Part No:

Description Price Each Shopping Cart

PC817

Opto-Isolator

$1.20

TLP621 Opto-Isolator
(replaces ON3131)
$1.14

PS2501 Opto-Isolator $0.98



Click on photo for
larger view
Revisit™ VTL5C1 OPTO-ISOLATOR
Replaces VTL5C1 from Vactec or Excelitas at an affordable price.   Used in many Mesa-Boogie and Crate models in the channel switching circuit.  100dB dynamic range, fast response (2.5ms turn-on), very high dark resistance (50 M Ohm).  Light resistance 200 Ohms at 20mA LED current.  See datasheet here.
Part #
VTL5C1
$4.95




Op-Amps



Part No:

Description Price Each Shopping Cart

Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP
Part #NJM4558-D
$1.00

Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532
$1.50

Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534
$1.50

Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068
$1.50

Precision Op-Amp, very low offset voltage.   Used in some effects pedals, such as the ProCo RAT.
Part #OP07
$4.40

Low-current, JFET input, TL062 Dual Op-Amp in 8-pin DIP package.   Compatible with TL072 designs, with significantly lower current draw.   Good choice for battery-operated pedals to increase battery life.
Part #TL062
$1.00

Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.  Also TL071CN.
Part #TL071CP
$1.50

Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.  Also TL072CN.
Part #TL072CP
$1.60

High slew rate, JFET input, TL082 Dual Op-Amp in 8-pin DIP packag
Part #TL082
$1.90

LM386 LM386L AUDIO POWER AMPLIFIER IC.  Low voltage audio power amplifier.  Max power 325mW into 8 ohms (single channel).   Voltage supply 4V-12V
Part #LM386
$1.50


4808-3004
From the 3M Company ... 8-pin DIP socket, fits all of the 8-pin op-amps above.   We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
Part #4808-3004
$0.35

Relays
  Description Price Each Shopping Cart

RLY-5
5V DC DIP Relay 5V, 8.3mA coil, DPDT.   Used for channel switching in a variety of products who utilize the 5V supply for the digital section to also power the relay.  Check coil voltage on existing relay to ensure compatibility $9.95


RLY-12
12V DC DIP Relay 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including Crate, Peavey, Mesa Boogie, Marshall, etc.   Check coil voltage on existing relay to ensure compatibility $9.95

RLY-24 24V DC DIP Relay 24V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including Fender, Marshall and others.  Original Fender part # 0036613000.  Check coil voltage on existing relay to ensure compatibility $9.95
