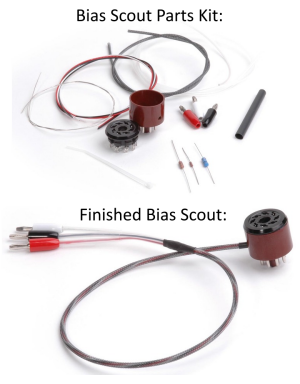

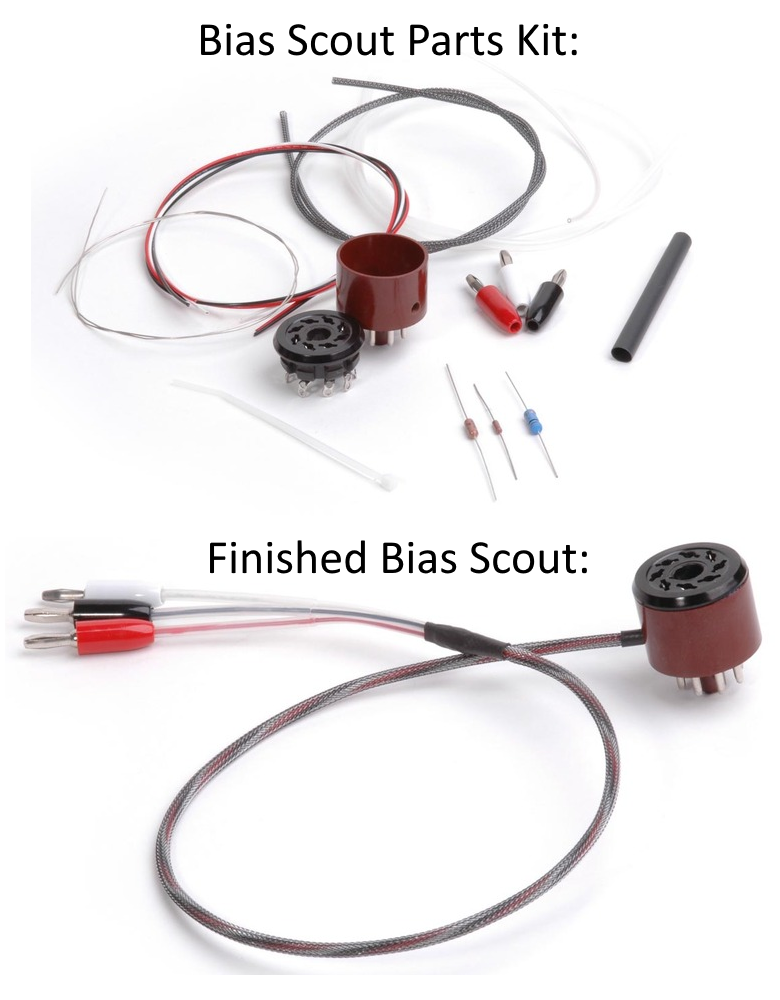

TUBE DEPOT BIAS SCOUT™ KIT

Build your own bias adapter with the TubeDepot Bias Scout kit and you'll save money every time you set the bias on your amp!

This kit includes all the parts to build a single octal socket TubeDepot Bias Scout. Used with a basic multimeter (Get Yours Here), the finished adapter will allow you to measure both cathode current and plate voltage of a single tube position.   Comes complete with detailed instruction booklet.  Soldering tools and soldering skills required.

Note: This adapter, as designed, will NOT test 7591 tubes.

Part #BIAS-SCOUT

Our price:
$16.95

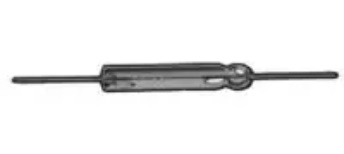

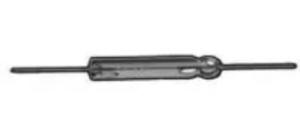

Large mixers with VU meters often use this as the illumination lamp for the meters.   Since the meters are hard if not impossible to see if the lamp fails, it's a good idea to keep a few of these on hand!   12 Volts, 250mA, 3/4 inch long X 1/8 inch diameter.   Lead length at each end 1 inch.

Part #25-455

Our Aluminum Tube Shield Base is the perfect replacement for a damaged bayonet "twist and lock" tube socket base.  Base only - not a tube socket.    For base with socket included, see TS-9-700.  Please note, we cannot guarantee compatibility with preexisting tube shields that were installed in your amps.  However, if you have twist-lock tube shields in Fender, Orange, Peavey, or vintage Marshall amps, this base should fit.
Part #RS-325B

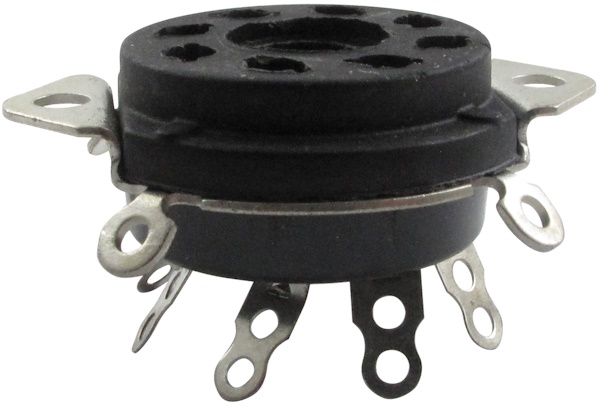

Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.   For 1-1/8" hole.  Bottom mounting (mounted from the inside of the chassis), mounting holes spaced 1 1/2" apart.   (Note:  Does not fit vintage Fenders)
Part #TS-8-250

Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.   For 1-1/8" hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.   (Note:  Does not fit vintage Fenders)
Part #TS-8-300

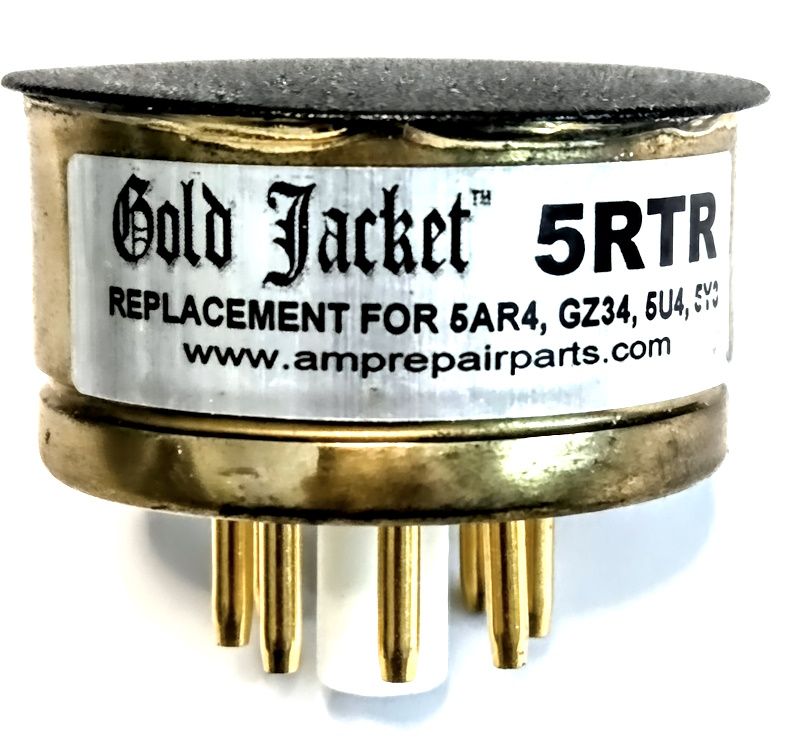

Costs much less than a new rectifier tube, and unlike tubes, should last indefinitely.    No deterioration over time.   Doesn't generate any heat, which lowers the heat given off by the amp.   Gold pins for exceptional electrical conductivity.    Metal housing for durability.

NOTE! Because there is no warm up of a rectifier tube when using this solid state device, it is absolutely necessary that a standby switch is used in conjunction with this device.   Do not install in an amplifier that does not have a standby switch - always use the standby switch in amps so equipped when using the 5RTR.

Part #5RTR

Part #HANDY-HANK



Click on photo for
larger view

Used as the Effects A return jack and Effects B return jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL122 and TSL-100.   Used in a few unique Fender models.  NOTE: Gold trim ring.  Jack data here.   Nut and washer are included.   Replacement nut/washer set is the JN-916.

Part # J-560G



Click on photo for
larger view

Generally found only in Crate or Ampeg products.   Common input, footswitch or effects loop jack exclusive to Crate™ and Ampeg™.   (Other brands with chrome-nut jacks use a straight pin jack such as the J-580.)  4 pins, PC mount, with chrome nut and washer, and gold plated contacts for longer life.   Note "L-Leg" pins as shown in photo.   Original Crate or Ampeg part number 39-119-01.

Part # J-580LG

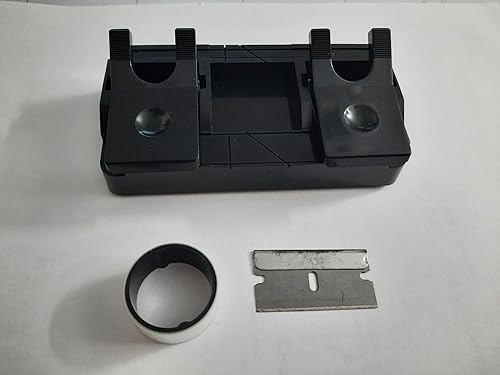

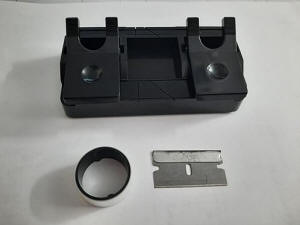

The most frustrating thing about splicing tape is holding it in position.   This jig fixes that problem!    Designed for both 1/2" video tape and 1/4" cassette tape.   Includes splicing tape and additional leader tape for VHS and Beta cartridges.    Note:   Razor blade is not included for safety reasons - supply your own single-edge razor blade.

Part #TAPE-SPLICE-KIT

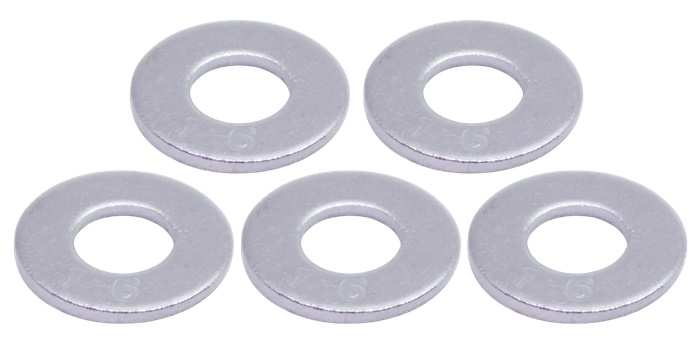

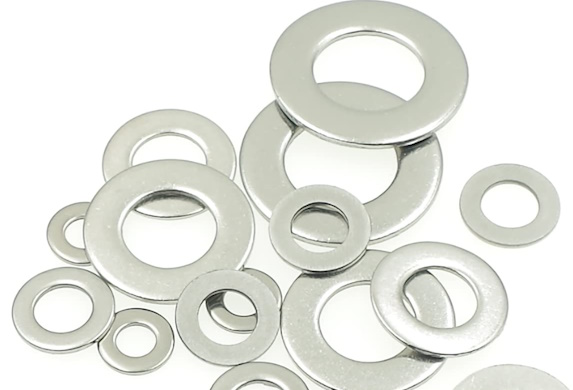

Approximately 2 dozen various size washers for all sizes of pots - washers with inside diameters of 3/8", 7mm, 8mm, 9mm.   No two kits are identical.

Part #POT-WASHERS

Weber axial electrolytic 20uF/600V.   Used as the main filter capacitors in most brownface and blonde Fender™ models from 1960 through 1964.   Most models used either 6 or 7 of these capacitors.    The B+ voltage was greater than 500 volts in those designs, so the regular capacitors rated at 500V are insufficient.

Part #WEB-CAP-20-600

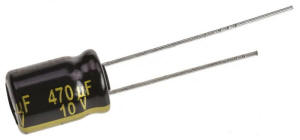

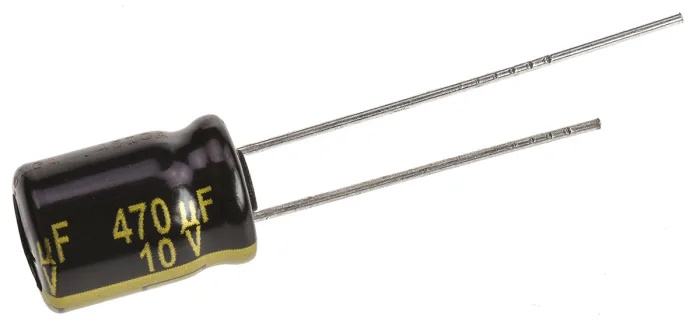

New stock of Panasonic 470uF/10V electrolytic capacitors.   Rated at 105° C.   Dimensions 11.6mm H x 8.2mm D.

Part #PAN-CAP-470-10

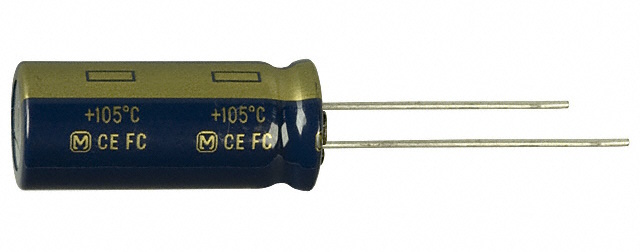

New stock of Panasonic 3300uF/10V electrolytic capacitors.   Rated at 105° C.   Dimensions 30.4mm H x 12.6mm D.

Part #PAN-CAP-3300-10

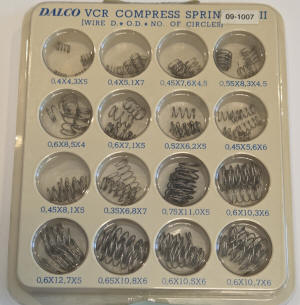

Originally used in VCR idlers, these multiple size compression springs are useful in the shop for a variety of projects.   Smallest size has a wire diameter of 0.4 mm, a coil diameter of 4.3 mm, and 5 layers to the spring.   The largest has a wire diameter of 0.75 mm, coil diameter of 11.0 mm, and 6 layers in the spring.    16 different sizes, 5 springs of each size for a total of 80 springs.

Part #09-1007

Click on photo for larger view

New, but with slight external cosmetic damage on the top.   Click on photo for a close-up view.  Top was slightly stained by a cleaning compound.   Does not affect the operation of the tank.

Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Primarily used by all Fender™ amplifiers with tube reverb from 1963-1990.   Also used in Reissue models like:   Fender™ Princeton Reverb, Fender™ Deluxe Reverb, Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb, Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb Reissue, Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65 Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™ Dual Professional.  Also used in Mesa Boogie™ MK2C and others, LAB Series L5, L7, L9, Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52™ AT-100.  See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Soft mounting grommets are not included with this tank.   If needed, order the RRG-4 grommet set found in this section.

Part #BL2AB3C1B

$21.95

Commercial wide-body 1/4" mono phone plugs designed specifically for use with heavy-gauge speaker wire. Features machined turned brass construction, large cable clamp and solder tabs that accept up to 12 gauge wire. 8mm cable entry. • Nickel Shell • Mfg. #NYS225
Part #NYS225

GENUINE EMINENCE DIAPHRAGM 16 OHMS

Replacement 16-Ohm Audio Diaphragm, Titanium compression driver, 2" diameter voice coil, 80 watts, 16 ohms impedance.   1,200Hz-20,000Hz range.  Used in many professional horn drivers, including Yamaha and Carvin.   Manufactured by Eminence.

Part # PSD2002-16DIA

PC MOUNT TYPE
Click on photo for
larger view

Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  PC Pins.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the RS-325S tube shield, or vintage Fender™ tube shields.

Part #TS-9-700-PC

ROCKER SWITCH, STANDBY, WHITE, Genuine Marshall, FOUND IN Marshall™ JVM, JCM2000, DSL, TSL SERIES

• Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40 (with on-off standby switch only), later versions of the DSL201 and DSL401, JVM210H, JVM410H, and JVM215C.
• Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.   15/16" x 1 1/16" x 1" deep.
• For the similar standby switch used in previous model series such as the JCM-900, early versions of the TSL and DSL series, see the SW-490 switch.
• This is a 2-position standby switch - not the High-Low-Off 3-position switch used in some versions.   For the 3-position switch, see the SW-496.
• This switch is priced to sell!

Part #SW-490CW

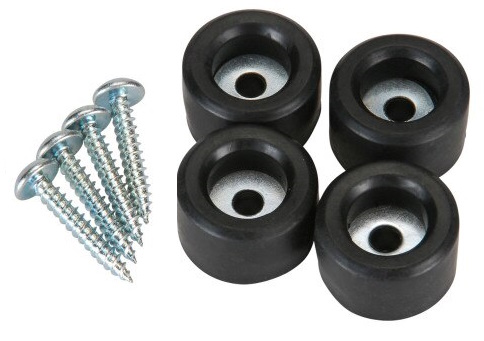

Nickel cover over rubber foot.  15/16" Diameter, 0.33" Tall.   Replacement for glides used on many Fender™ amplifiers, including the blackface and silverface designs.  Set of 4, includes 7/8" wood screws.   Replaces Fender™ part number 0993900000.   Made in Taiwan.

Part #SG-239

Part #3S-WICK

$1.65

Click on photo for
larger view

Part #NIPPON-SOLDER

$0.99

Click on photo for
larger view

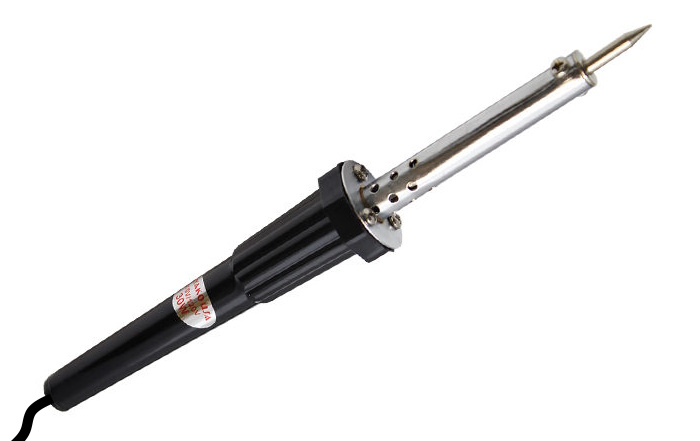

DESCRIPTION: Plastic Handle Soldering Iron
POWER CONSUMPTION: 30 Watts
HEATING ELEMENT: Mica heating element
TEMPERATURE RANGE: 752°-788° F
VOLTAGE: 110-125 V

Part #74B30

$2.99

Click on photo for
larger view

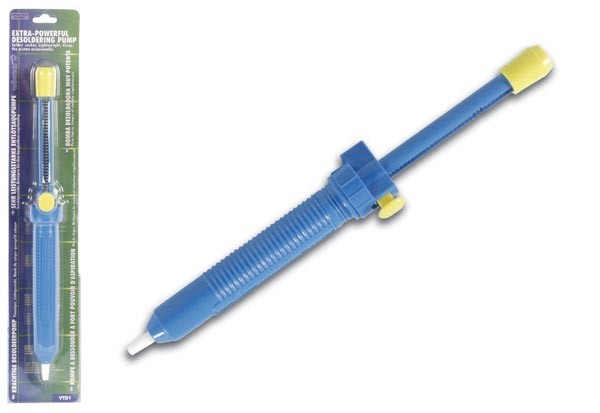

Remove solder with ease using the large capacity desoldering pump by Velleman. This professional desoldering tool features heavy-duty plastic and a long life Teflon nozzle. Simple operation with spring powered hi-vacuum force. Measures 10.8 inches long and 0.9 inches wide. Illustrated directions are printed on the back of the product package.

Part #VTD-1

$4.99

Click on photo for
larger view

$2.95

Click on photo for
larger view

$2.95

Click on photo for
larger view

$2.95

Click on photo for
larger view

$2.95

Click on photo for
larger view

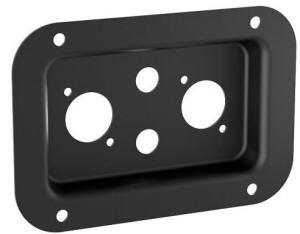

Part #JP-322

$2.95
