Parts for Vintage & Modern Epiphone Amps



Click on photo for
larger view

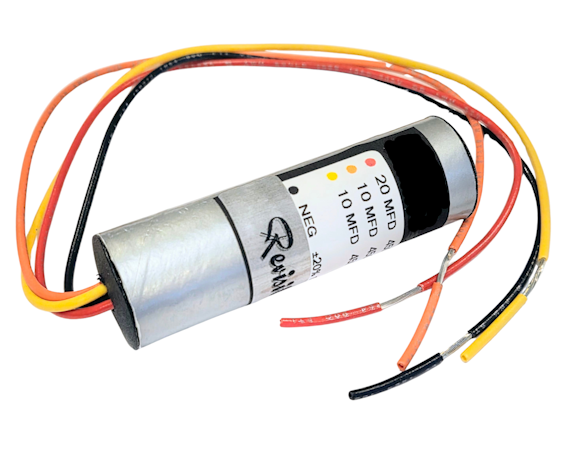

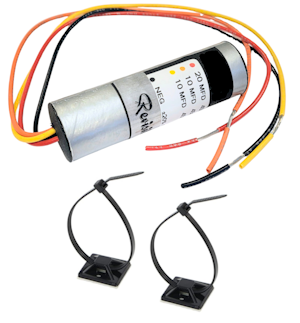

 REVISIT™ MULTI-SECTION TUBULAR CAPACITOR, 20uF+10uF+10uF @ 450V FOR VINTAGE GIBSON, EPIPHONE, AND KALAMAZOO AMPLIFIERS

This type of capacitor is found in many smaller 1960s and 1970s Gibson, Epiphone, and Kalamazoo amps, manufactured by Gibson in their Kalamazoo, Michigan factory.   Examples of models which use this capacitor are the Gibson BA-15RV, BR-6, GA-1RVT, GA-6 Lancer, GA8T, GA-19RVT, along with the Epiphone EA-10 Deluxe, EA-30 Triumph, EA-100, EA-101, the Kalamazoo Models 1 and 2, and many more models.

3 SECTION CAPACITOR:   20uF+10uF+10uF @ 450V

Check inside your amp chassis for an orange/brown tubular capacitor.   If the markings indicate 20uF-450V, 10uF-450V, 10uF-450V, this capacitor is the replacement.

Included are two 3M Adhesive bases with 6" long zip-ties for fastening the capacitor to the inside of the chassis.  Clean the chassis with isopropyl alcohol before attaching.

These capacitors are custom-built for us in the USA. They are available exclusively from us on this website.

The capacitors are 15/16" in diameter, 3-1/2" long, and have color-coded wires.   The capacitors are rated at 105° C.

Part #REV-CAP-201010

 $39.95


Click on photo for
larger view

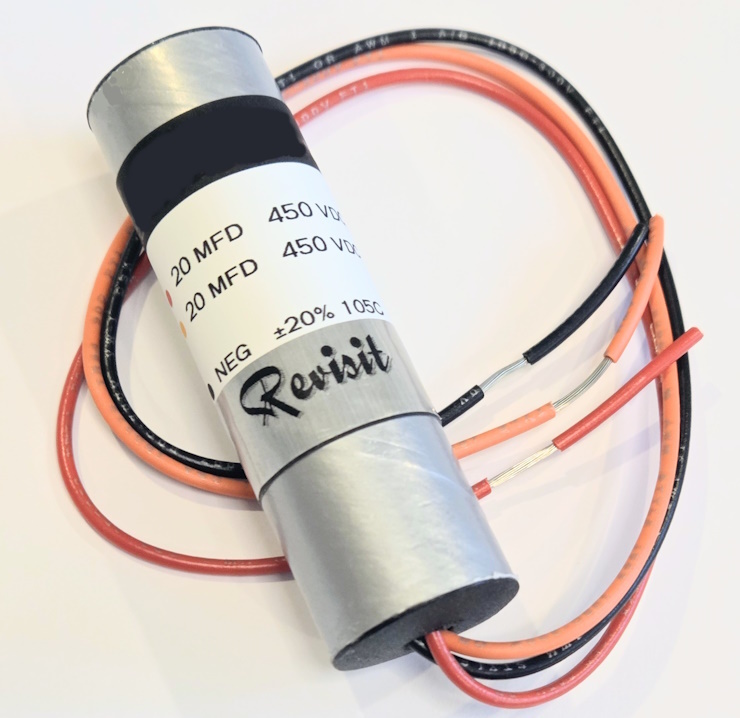

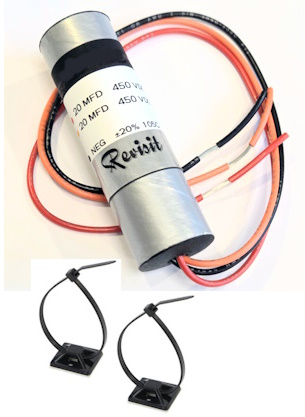

 REVISIT™ MULTI-SECTION TUBULAR CAPACITOR, 20uF+20uF @ 450V FOR VINTAGE GIBSON, EPIPHONE, AND KALAMAZOO AMPLIFIERS

This type of capacitor is found in many medium-size 1960s and 1970s Gibson, and Epiphone amps, manufactured by Gibson in their Kalamazoo, Michigan factory.  Examples of models which use this capacitor are the Gibson GA15RVT, GA17RVT Scout, along with the Epiphone EA7P, EA12RVT Futura, EA-15RVT Zephyr, EA-16RVT Regent, EA-28RVT Pathfinder, EA-30 Triumph, EA32RVT Comet, EA33RVT Galaxie, EA-50 Pacemaker, EA-300RVT Embassy, and many other Gibson and Epiphone models.

2 SECTION CAPACITOR:   20uF+20uF @ 450V

Check inside your amp chassis for an orange/brown tubular capacitor.   If the markings indicate 20uF-450V, 20uF-450V this capacitor is the replacement.

Included are two 3M Adhesive bases with 6" long zip-ties for fastening the capacitor to the inside of the chassis.  Clean the chassis with isopropyl alcohol before attaching.

These capacitors are custom-built for us in the USA. They are available exclusively from us on this website.

The capacitors are 15/16" in diameter, 3" long, and have color-coded wires.   The capacitors are rated at 105° C.

Part #REV-CAP-2020

 $39.95

CAPACITOR KIT, FOR EPIPHONE™ VALVE JUNIOR

Contains all of the electrolytic filter capacitors for the Epiphone™ Valve Junior, produced from 2005 through 2012.   All capacitors are radial type.   Contains (4) 22uF-450V, (3) 22uF-50V, and (1) 4700uF-16V.

Part #ECK-101

$15.95

CAPACITOR KIT, FOR EPIPHONE™ VALVE STANDARD

Contains all of the electrolytic filter capacitors for the Epiphone™ Valve Standard, produced from 2005 through 2009.   All capacitors are radial type.   Contains (2) 47uF-450V, (3) 22uF-450V, (2) 4700uF-25V, (3) 1000uF-16V, (1) 100uF-50V, (2) 22uF-50V, (1) 10uF-63V, and (3) 1uF-50V.

Part #ECK-201

$29.95

CAPACITOR KIT, FOR EPIPHONE™ VALVE SENIOR

Contains all of the electrolytic filter capacitors for the Epiphone™ Valve Senior, produced from 2005 through 2009.   All capacitors are radial type.   Contains (5) 22uF-450V, (3) 22uF-50V, and (2) 6.8uF-50V.

 Part #ECK-301

$19.95

CAPACITOR KIT, FOR EPIPHONE™ VALVE SPECIAL

Contains all of the electrolytic filter capacitors for the Epiphone™ Valve Special, produced from 2005 through 2009.   All capacitors are radial type.   Contains (4) 22uF-450V, (2) 4700uF-25V, (3) 1000uF-16V, (3) 22uF-50V, (1) 10uF-63V, and (3) 1uF-50V.

Part #ECK-401

$27.95

CAPACITOR KIT, FOR EPIPHONE™ BLUES CUSTOM 30

Contains all of the electrolytic filter capacitors for the Epiphone™ Blues Custom 30, produced from 2006 through 2011.   All capacitors are radial type.   Contains (4) 100uF-400V, (2) 22uF-450V, (1) 47uF-450V (1) 22000uF-25V, (1) 100uF-100V, (4) 22uF-50V, and (1) 4.7uF-50V

 Part #ECK-501

$42.95

Special order!  Ships in 4-5 working days.


Click on photo for
larger view		 CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)

Illinois Capacitor is now a subsidiary of Cornell Dubilier Knowles, an American capacitor manufacturer tracing its roots to 1909.  Values available include 0.47uF/100V, 1.0uF/50V, 2.2uF/50V, 2.2uF/100V, 4.7uF/50V, 10uF/50V 10uF/160V, 10uF/500V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 80uF/450, 100uF/25V, 100uF/35V 100uF/100V, 100uF/350V, 100uF/450V, 150uF/50V 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 1000uF/100V, 2200uF/25V, 2200uF/50V and 5000uF/55V.  Choose capacitor value under the Select Option box.

 Part #IC-CAP-XX		 Starting at
$0.99
Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE

Similar to the original Sprague Orange Drop capacitors.  Rated at 630 volts.   Values from 0.001uF to 0.47uF.  Radial Leads.   (See Options)

Part #C-PR-XX		 Starting at
$0.40
Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR, METAL FILM, AXIAL

Similar to Mallory 150 style, rated at 630 volts.   Values from 0.001uF to 0.47uF.  Axial Leads.   (See Options)

Part #C-MF-XX		 Starting at
$0.90
Select Option:


Quantity:


Click on photo for
larger view

 CAPACITOR, SILVER MICA, RADIAL

Rated at 500 volts, values from 10pF to 750pF. Radial leads.  Tolerance ±5%.  Dipped in epoxy coating.    (See Options)

1000pF = 1nF = 0.001uF

 Part #C-SM-XX		 Starting at
$0.90
Select Option:


Quantity:


RELAY, 12V, DUAL INLINE PC MOUNT, DPDT

12V DC DIP Relay 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including Epiphone™ Blues Custom 30.
Part #RLY-12

 $9.95


Click on photo for
larger view

 GROUND LUG TERMINALS - ANGLED

Made from tin-plated brass - will not rust.   Used to connect a ground wire to a screw and nut on a chassis.  Angled, with two holes for soldering wires.   With built-in lock washer to keep the screw and nut from loosening.   Designed for a #8 size screw.   Pack of 5 terminals.

Part #GL-113		 $1.39
(Pack of 5 terminals)



Click on photo for
larger view		 SPEAKER ISOLATION WASHER - 3/8" - FOR #8 SCREWS 3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4		 $0.59
(For a set of 4 washers)


Click on photo for
larger view		 SPEAKER ISOLATION WASHER - 1/2" - FOR #8 or #10 SCREWS

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #SIW-50-4

 $0.69
(For a set of 4 washers)


Click on photo for
larger view		 CUP WASHER, BLACK METAL, PACK OF 10.

Used with #8 Black screws, on amps and speaker cabinets.
Part #BCW-10		 $2.49
(pack of 10)


Click on photo for
larger view		 BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10

Deep threads, sharp point, pan head with Philips drive.  #6 screw, Pack of 10.

Part #SCR-435		 $0.79
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10

Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1/2 inch long, pack of 10.

Part #BWS8-5		 $1.29
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10

Deep threads, sharp point, pan head with Philips drive.  #8 screw, 3/4 inch long, pack of 10.

Part #BWS8-75		 $1.49
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10

Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1 inch long, pack of 10.

Part #BWS8-1		 $1.69
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10

Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1-1/2 inches long, pack of 10.

Part #BWS8-15		 $1.79
(pack of 10)



Click on photo for
larger view

REVISIT™ METAL 2-LEG CABINET CORNER BLACK

Durable powder-coated steel corners provide protection and a finished look for small to medium sized speaker cabinets and racks.   Two legs, one edge is cut-away, for use on front of cabinet with any thickness of wood from 1/2" and larger.  Dimensions: 1.6" H x 1.6" W x 0.5" D.  Set of 4 corners.  Screws not included - recommend the SC-304 truss-head screws for use with these corners.

Part #SCC-130-2

 $4.99
(Set of 4 corners)


Click on photo for
larger view

REVISIT™ BLACK TRUSS-HEAD CORNER SCREWS

Flat pan type black truss-head corner screws for NON counter-sunk black corners, such as our SCC-130-2, SCC-130-2L and SCC-130-3 corners.  1/2 inch long, Phillips head, black powder coated.   Sold individually.

Part #SC-304

 $0.20
(each)


Click on photo for
larger view		 SMALL BLACK RUBBER FEET, SET OF 4

This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, effects units, larger floor effects pedals, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  0.84" diameter x 0.31" high.   Screws not included.    Set of 4 feet.
Part #BRF-750 		$4.95
(pack of 4)


Click on photo for
larger view		 MEDIUM BLACK RUBBER FEET, SET OF 4
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.
Part #BRF-1692 		$4.95
(pack of 4)


Click on photo for
larger view		 MEDIUM BLACK RUBBER FEET, SET OF 4

Tapered: 1 3/16" Diameter At Small End, 1 1/4" Diameter At Large End. 1/2" Tall. Black Rubber With Metal Insert. Used To Support Effects, Amps, Mixers. Mounting Screws Not Included.

Part #BRF-9112		 $5.95
(pack of 4)


Click on photo for
larger view		 BLACK RUBBER FEET, SET OF 4

This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces.  The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  1.5" diameter x 0.75" high.   Screws not included.    Set of 4 feet.

 Part #BRF-7517 		$6.95
(pack of 4)


Click on photo for

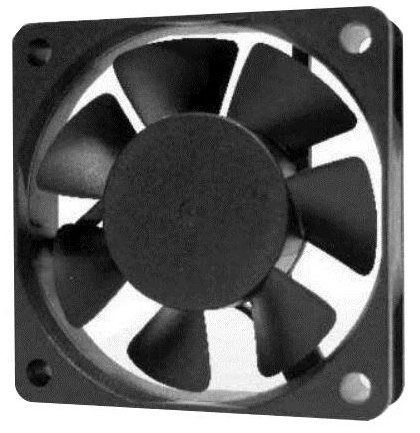

larger view		 COOLING FAN

Cooling fan on the Epiphone Blues Custom 30.    This is available, but a special order (takes less than one week).    Contact us for more details and how to order.

 Part #ODV12 		$19.95

Click here to contact us about ordering this fan.



Click on photo for
larger view

 POT - CTS,  3/8" BUSHING

Top quality CTS 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter solid metal shaft, 3/8" bushing, solder lugs. Fits perfectly in vintage Epiphone amps from the 1960s and 1970s.  With correct 1/4" shaft and 3/8" bushing. Superior quality, solderable back!
Select Pot Value in Options
INCLUDES NUT & WASHER

Part #P-VC-XX

Starting at
$6.95
Select Option:


Quantity:


Click on photo for
larger view

 KNOB, Gibson™, SET-SCREW

 Genuine Gibson™ amp knob, skirted with 1-10 numbering.  Traditional "Witches Hat" design.   For vintage Gibson™ amps from the mid 1960s.  With set-screw, for 1/4" smooth shaft pots.  Used on the Gibson™ GA15RVT Explorer, GA20RVT Minuteman, GA35RVT Lancer, GA45RVT Saturn, GAT77RVT Vanguard and others.  If the looks of your Gibson™ amp reminds you of a Fender amp (see inset photo), then this is the correct knob.   Note:  The Epiphone copies of these Gibson amps from the same period used the same type of knobs, but the Epiphone knobs were dark gray instead of black.  The gray Epiphone knobs are no longer available.

Part #K-155G		 $5.50
(Single Knob)



Click on photo for
larger view		 FUSE HOLDER, Epiphone™ STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE

Epiphone™ style fuse holder, replacement for many other brands.   Twist-lock cap.   Durable, rugged design - better than OEM.  Fits "American" style AGC fuses (1/4" x 1 1/4").

Part #FH-201		 $4.95


Click on photo for
larger view		 FUSE HOLDER, Epiphone™ STYLE

 This fuse holder is similar to the fuse holders used on the Epiphone™ Amplifiers back in the early 1960s. Fits "American" style AGC fuses (1/4" x 1 1/4").

Part #FH-211		 $7.95


Click on photo for
larger view

 SWITCH, CARLING™ SPST TOGGLE, SHORT BAT HANDLE

Replacement for 60s Gibson™, Epiphone™ and Kalamazoo™ power toggle switch.   Made by Carling™ Technologies.

Part #SW-495

 $8.95


 Click on photo for
larger view

 JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, SWITCHCRAFT™

Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.

 Part #J-11		 $4.29


Click on photo for
larger view		 JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, SWITCHCRAFT™

Found in vintage Epiphone™ (and other) amps as the input jack.

Part #J-12A		 $4.99


Click on photo for
larger view		 JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, STRAIGHT LEG

4 pin jack (tip and sleeve) jacks found in the Epiphone Valve series amps (2005-2009).  With nut and washer.
Part #J-580		 $4.95


Click on photo for
larger view		 JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, STRAIGHT LEG

6 pin jack (tip, ring and sleeve) jacks found in the Epiphone Valve series amps (2005-2009).  With nut and washer.
Part #J-581		 $4.95


Click on photo for
larger view		 POT, EPIPHONE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SPLIT KNURLED SHAFT (17mm LONG INCLUDING BUSHING).

Used in the Epiphone Valve series of amps (2005-2009)  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length beyond the threaded bushing is 10mm, and shaft is knurled for push-on knobs.  There is a "key" stud on the left side of the shaft for use in some applications - can be easily broken off with pliers if not needed.   Click on photo for more detail.

INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).

Part #P-VM16M-XX		 $3.95

Select Option:



Quantity:


Click on photo for
larger view		 POT, DUAL 500K OHM AUDIO, (A500KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.

Used as the Master Volume control in the Epiphone Valve Senior (2005-2009)  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).

Part #P-V500KAX2-M16M		 $6.95

Quantity:


Click on photo for
larger view		 KNOB, CHICKEN HEAD, KNURLED PUSH-ON, BLACK

Used in the Epiphone Valve Series amps from 2005-2009.  Used on many retro style amps - can replace any knob which uses a 1/4" knurled type shaft.  Black.   Fits 1/4" knurled shaft only.  Standard chicken-head knob size, 31.5mm nose to tail, 13.5mm tall.

Part #CHKBK-K		 $1.95



Click on photo for
larger view		 POT, Revisit™, 3/8" BUSHING, 24mm, SMOOTH SHAFT.

24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. Exact fit for amplifiers such as vintage Fender™, all Marshalls up to 1979 and some of the JCM800 versions, vintage Vox, vintage Orange, vintage Hiwatt, vintage Boogie, vintage Sound City, Music Man, vintage Epiphone and Gibson and many more.  Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JNUT-38 nut found in this section)

Part #P-38-XX		 $2.95

Select Option:


Quantity:


Click on photo for
larger view		 IEC POWER CONNECTOR, FUSED, WIRED TYPE, SNAP-IN ATTACHMENT TO PANEL

Used as the power connector on Epiphone Valve Junior, Valve Senior, Valve Standard and Valve Special from 2005 until 2009.  Popular IEC type AC connector found in many amplifiers and effects units.   Designed to snap into  1.25" x 1.10" rectangular panel hole.   Uses GMA type fuses (5mm x 20mm).   Space for spare fuse.   Rated up to 10 amps.   Fuse not included.

Part #P-S2-120-3		 $3.95


Click on photo for
larger view		 Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END

Common replacement cord for use on Epiphone Valve Junior, Valve Senior, Valve Standard and Valve Special from 2005 until 2009.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300		 $6.95


Click on photo for
larger view		 Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END

Compatible with the Epiphone Valve Junior, Valve Senior, Valve Standard and Valve Special from 2005 until 2009.   10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT, REDUCES USE OF EXTENSION CORDS.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600		 $10.95


Click on photo for
larger view

 8 ft POWER CORD, 3-WIRE, 18ga, SJT TYPE

Cut end for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Epiphone, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.

Part #PC-183SJT8		 $9.95


Click on photo for
larger view		 8 ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line".

Cut end for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).   Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp cords in smaller amplifiers where there was formerly a 2-wire cord without ground.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.

Part #PC-183SVT8-TL		 $9.95


Click on photo for
larger view		 LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE

Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Epiphone™ amps.   Designed for 5/16" cord diameter (3 conductor 18ga power cable).   Click here for specific dimensions of chassis hole.  For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.

Part #SR-1200		 $0.99


Click on photo for
larger view		 STRAIN RELIEF INSTALLATION/REMOVAL TOOL

Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.

Part #YTH-205		 $14.95


Click on photo for
larger view

 Epiphone™ STYLE DUAL FOOTSWITCH WITH STEREO 1/4" PLUG.   NOT FOR AMPS WHICH USE A 5-PIN CONNECTOR FOR THE FOOTSWITCH

1/4" Stereo plug, 16 ft. cable.    Found on a few Epiphone™ models which used a stereo 1/4" jack for the footswitch.   Most models, however, used a 5-pin DIN type connector, and new replacement footswitches are not available for that application.

 Part #FBS-471		 $39.95


Click on photo for
larger view

 Epiphone™ STYLE FOOTSWITCH

Mono 1/4" Plug, 16 ft. cable.   Used on some Epiphone™ models which featured either Reverb or Tremolo, but not both.

Part #FBS-470		 $29.95



Click on photo for
 larger view

 Revisit™ SPEAKER HARNESS

Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.

Part #SCH-280		 $6.99



Click on photo for
 larger view		 Revisit™ SPEAKER HARNESS

Replacement straight plug with 24" cable and bare stripped and tinned conductors for soldering to speaker terminals.   Used to replace the speaker cable in some combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   Round black professional cable with black and white color-coded 18ga wires, straight metal 1/4 inch plug and bare tinned conductors for soldering to speaker terminals.

Part #SCH-7085		 $6.99


Click on photo for
 larger view		 Revisit™ SPEAKER JUMPER CABLE

 polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.

Part #SJ-150		 $5.99

 BUILD YOUR OWN SPEAKER HARNESS FOR COMBO AMPS:

Choose the SJ-150 cable (above) along with the P-287 Plug (below).   Cut off the cable's fast-on connectors on ONE end of the cable.  Strip both conductors of cable back about 1/4" on that end.  Solder that end to the P-287 plug (black to the sleeve, white to the tip.).   This will give you a 24 inch speaker harness.   Note:  Cable-building experience strongly recommended.   Soldering equipment needed.

Total cost for materials will be $5.99 + $3.95 = $9.94.


Click on photo for
 larger view		 PLUG, 1/4", MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF

 Similar to the Switchcraft 226 right-angle plug.   Nickel plated copper alloy.   2-conductor right-angle phone plug, solder terminals.

Part #P-287		 $3.95



Reverb Tank Cross Reference Guide for Epiphone


Epiphone EA-5RVT (Emperor), EA-12RVT (Futura), EA15RVT (Zephyr), EA-16RVT (Regent), EA26RVT (Electra), EA-28RVT (Pathfinder), EA300RVT (Embassy) 4FB2A1B
  EA-7P, EA-8P, EA33RVT (Galaxy) 4BB2A1C
  Epiphone Blues Custom 30 4AB3C1B


Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B.   Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Used in the Epiphone™ Blues Custom 30 Amp.  See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4AB3C1B

"Bringing back the sound of vintage USA-built Accutronics tanks"

 $46.95



Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1C

Input impedance 150 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for vertical wall mounting, long axis horizontal, connectors up.   Common replacement for some Epiphone amps from the 1960s era.  Epiphone EA-7P, EA-8P, EA33RVT (Galaxy).  See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4BB2A1C

"Bringing back the sound of vintage USA-built Accutronics tanks"

 $46.95





Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1A

Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for horizontal mounting, open side up. Used in the Epiphone EA-5RVT (Emperor), EA-12RVT (Futura), EA15RVT (Zephyr), EA-16RVT (Regent), EA26RVT (Electra), EA-28RVT (Pathfinder), EA300RVT (Embassy)   See explanation of reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4FB2A1A

"Bringing back the sound of vintage USA-built Accutronics tanks"

 $46.95



Click on photo for
larger view
 REVERB TANK BAG FOR 17" TANKS

Used in a variety of amps, including Epiphone™ amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.
Part #RB-017		 $18.90


Click on photo for
larger view		 EPIPHONE™ STYLE REVERB OR AC CABLE CLAMP

Used on Gibson and Epiphone amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Works on many other brands of amplifiers as well.

Part #RCC-381		 $0.99


Click on photo for
larger view		 Revisit™ RCA JACK, PANEL MOUNT, CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK

RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round.  Chrome RCA jack.  Used in vintage USA-Made Accutronic Reverb Tanks made before 2010.   Black phenolic base.
Part #J-351		 $3.50


Click on photo for
larger view

 3 FOOT REVISIT™ RIGHT ANGLE RCA CABLES

For Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 3 feet long.

Part #RC-173		 $6.95


Click on photo for
larger view

 4 FOOT REVISIT™ RIGHT ANGLE RCA CABLES

For Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.

Part #RC-174		 $7.95


Click on photo for
larger view

 5 FOOT REVISIT™ RIGHT ANGLE RCA CABLES

For Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 5 feet long.

Part #RC-175		 $8.95


Click on photo for
larger view

 6 FOOT REVISIT™ RIGHT ANGLE RCA CABLES

For Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 6 feet long.   Great replacement for the long reverb cable in the tall cabinet Epiphone combo amps, such as the Super Reverb and Quad Reverb.

Part #RC-176		 $8.95


Click on photo for
larger view		 EPIPHONE™ REVERB CABLE

Molded plastic right-angle dual RCA on both ends.  48" long

Part #RC-310

 $7.95



Click on photo for
larger view		 RUBBER MOUNTING GROMMETS FOR REVERB TANKS, PACKAGE OF FOUR

Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"

Part #RRG-4		 $1.99
(For a pack of 4 grommets)


(TUBE NOT INCLUDED)

Click on photo for
larger view

 Revisit™ PRE-AMP TUBE DAMPER RINGS.

Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.

Part #PTD-6		 $4.95
(Set of 6 rings)


Click on photo for
larger view		 9 PIN BELTON MICALEX SOCKET FOR PC BOARD MOUNTING

Mounts under the PC board.  Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   Used in Marshall™ , Peavey™, Epiphone™, and other brands.  Click here for additional specs.
Part #TS-9-BEL		 $2.79



Click on photo for
larger view

SOCKET - BELTON, MICALEX, 8 PIN, OCTAL PC MOUNT, LONG LEAD

Micalex, PC mount, long leads (Belton) - MB/MT. 1 ½" mounting centers 1-3/16" chassis hole.  Found in the Epiphone Valve Senior.

Part # TS-8-209

$3.50


Click on photo for
larger view		 TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE FOR MATING WITH PREFORMED CHASSIS HOLE, ALUMINUM, 2" TALL, SPRING IN TOP OF SHIELD WHICH FITS OVER the TUBE.

Fits 12AX7A and similarly sized preamp tubes.  Comes with rubber gasket for sealing and noise damping with chassis.  Used in the Epiphone Valve Senior and some other Valve series amps.
Part #TS-601
 		$2.79



Click on photo for
larger view		 TUBE SHIELD, REVISIT™, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 2" TALL.

Includes new base, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Epiphone™ and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.  Made by Revisit™.   Also found in some models of Ampeg™, Crate™, Vintage Marshall™, Mesa Boogie™, Orange™ and Peavey™ amps.  Top quality, RoHS compliant.

 Part #RS-325S		 $1.99



Click on photo for
larger view		 TUBE SHIELD, REVISIT™, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 2" TALL, SET OF 6.

Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Epiphone™ and many other brands.  Holes in base spaced 1 1/8" apart.   Shield and base only - socket not included.  Made by Revisit™.    Also found in some models of Ampeg, Crate, Vintage Marshall, Mesa Boogie, Orange and Peavey amps.  Top quality, RoHS compliant.

 Part #RS-325S-6		 $8.95



Click on photo for
larger view		 TUBE SHIELD BASE, REVISIT™, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM.

Our Aluminum Tube Shield Base is the perfect replacement for a damaged bayonet "twist and lock" tube socket base.  Base only - not a tube socket.    For base with socket included, see TS-9-700.  Please note, we cannot guarantee compatibility with preexisting tube shields that were installed in your amps.  However, if you have twist-lock tube shields in Epiphone, Orange, Peavey, or vintage Marshall amps, this base should fit.
Part #RS-325B		 $0.35


Click on photo for
larger view		 TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34

 Used in Fender™ and many other amps.     1 1/2" mounting centers.  Made by Belton.  Fender part number 099072500.
Part #TC-142		 $2.59


Click on photo for
larger view		 OCTAL TUBE KEYWAY, SET OF 2, FOR 6L6, EL34, 5881, 6V6 TUBES

If you have a cherished octal power tube, rectifier, or bias probe with a broken keyway, here is a great solution. By cleaning the remainder of the broken keyway from the tube base and properly installing this keyway replacement (a little dab of silicone sealant works great to hold it in place), your tube can safely be reinstalled into your equipment.   These great tube-savers are sold in sets of 2.   Note:  When using an adhesive to secure the keyway to the tube base, DO NOT use a water-based glue.   Silicone sealant (RTV) which is acryllic-based or butyl-based is fine.   Latex sealant or hot-glue is NOT.
Part #OTK8-2		 $8.99
(for a set of 2 tube keyways)


Click on photo for
larger view		 PHENOLIC TUBE SOCKET FOR OCTAL TUBES.  EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall™ (including the JCM900 Series), and many others.

Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.   For 1" to 1 1/8" hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.  Unlike some phenolic tube sockets on the market, this one fits the 1" hole found in most vintage Epiphones.

Part #TS-8-600		 $5.70


Click on photo for
larger view		 FENDER™ STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.

Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the RS-325S tube shield, or vintage Epiphone™ tube shields.

Part #TS-9-700		 $4.49


Click on photo for
larger view		 6-PACK OF FENDER™ STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.

Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the RS-325S tube shield, or vintage Epiphone™ tube shields.   Pack of 6 tube sockets.  Mounting screws not included - recommend the SC-410-12 screws (1 pack of 12 screws needed for 6 tube sockets).  It is also possible to use 1/8 inch pop rivets to mount these sockets.

Part #TS-9-700-6		 $25.99
(for 6 sockets)


Click on photo for
larger view		 TUBE SOCKET WITH SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE .

Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes.   9-Pin tube socket is made of sturdy Micalex.   Replacement for Epiphone™ and many other brands.  Holes in base spaced 1 1/8" apart.   Requires 3/4" hole in chassis.  Solder lugs for wire connection to tube socket. Shield, base and socket.
Part #TS-370		 $5.99


Click on photo for
larger view		 TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS.

Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   For 3/4"  hole.  Bottom mounting (mounted from the inside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-601		 $2.49

Note:  We have decided to discontinue selling vacuum tubes (valves) and refer customers to a company who specializes in tube sales, allowing us to refocus on other guitar amp parts.   Click on the logo below to visit Eurotubes at eurotubes.com.    Quality products, great selection,  good prices and excellent customer service on all of your tube needs.


Copyright ©2025 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.

All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
