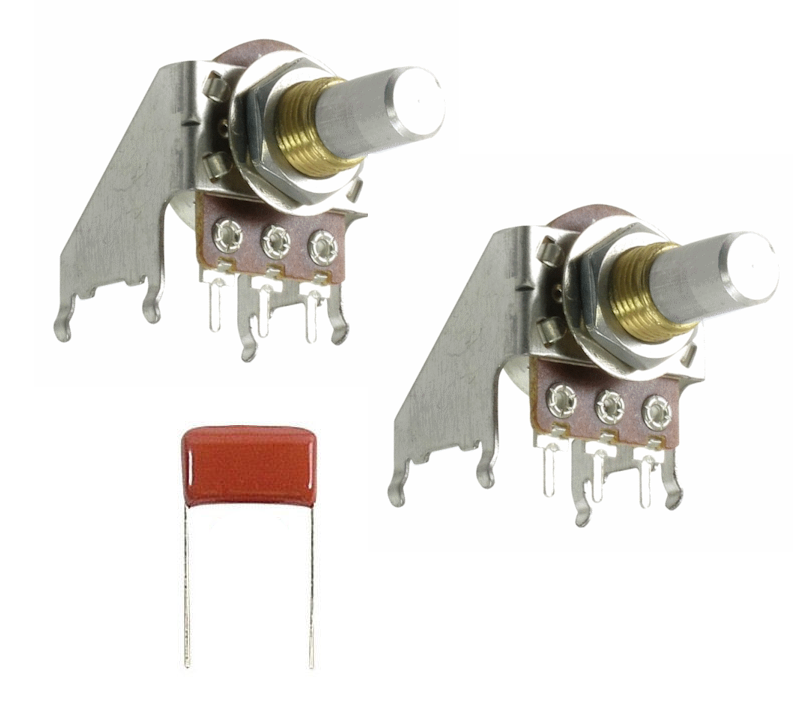

FENDER
STYLE POT,
SINGLE GANG - BRACKET MOUNT, SMOOTH 1/4" SHAFT.
Found in the Blackface Reissue versions
(2000-present) of Deluxe Reverb, Princeton Reverb, Pro
Reverb, Super Reverb and Twin Reverb. Also found in various versions
of the Blues Deville, Blues Deluxe, Hot Rod Deville, Hot Rod Deluxe.
POT VALUE
REPLACES
FENDER PART #
APPLICATION
B25K
0041510000
MIDDLE AND REVERB CONTROLS IN
HOT ROD DELUXE / DEVILLE AND BLUES DELUXE / DEVILLE
30C25K
0047031000
PRESENCE CONTROL IN HOT ROD
DELUXE / DEVILLE AND BLUES DELUXE / DEVILLE
B100K
0037600000
MASTER VOLUME
IN BLUES DELUXE REISSUE / BLUES DEVILLE REISSUE
A250K
0037597000
0047540000
BASS AND TREBLE CONTROLS, 65
REISSUE MODELS: DELUXE / PRINCETON / PRO / SUPER / TWIN.
VOLUME, DRIVE, TREBLE, BASS CONTROLS IN ORIGINAL HOT ROD DELUXE / DEVILLE AND
BLUES DELUXE / DEVILLE
A1M
0037596000 0036966000
BASS AND
MASTER VOLUME CONTROLS IN ORIGINAL BLUES DELUXE / DEVILLE.
INCLUDES NUT & WASHER
(For spare or replacement nut, order the JN-1016
nut found in this section) Part #FPHD-XX
$3.95
Click on photo for
larger view
FENDER
COMPLETE POTENTIOMETER KIT - BLUES DELUXE AND BLUES DEVILLE (ORIGINAL
VERSIONS - NOT REISSUE VERSIONS).
Contains all 8 control pots as found in the
original Blues Deluxe and Blues Deville models, from 1993 to 2004. For
the Blues Deluxe Reissue and Blues Deville Reissue models from 2005 to the
present, see the FPK-115 kit below. INCLUDES NUTS & WASHERS Part #FPK-114
$31.95
Click on photo for
larger view
FENDER
COMPLETE POTENTIOMETER KIT - BLUES DELUXE REISSUE AND BLUES DEVILLE REISSUE.
Contains all 8 control pots as found in the
Blues Deluxe Reissue and Blues Deville Reissue models, from 2005 to the present. INCLUDES NUTS & WASHERS Part #FPK-115
$31.95
New Style:
Old Style:
Click on photo for
larger view
POT - Fender™ BIAS POT 25K LINEAR, SCREW
New style Fender™ 25K linear bias potentiometer. Used in
the reissue 59 Bassman, reissue Hot Rod Deluxe/Deville, reissue Blues
Deluxe/Deville. Fender™ part # 0027873000. This
pot is a drop-in replacement for the original discontinued "blue" bias pot.
Part #FBP-AP25KL
$2.95
Click on photo for
larger view
JACK, 1/4",
TIP/SLEEVE 4 PIN, PC MOUNT, Fender™
Style, Original and Reissue Hot Rod Deville. Fender™
style PC mount 1/4" jack. Mono, 4 pin. Used as the two input jacks, preamp
out jack, and the footswitch jack only on the original 1990s Hot Rod Deville.
Not used on the Hot Rod Deville Reissue (2000s) or the Hot Rod Deville III
(2009- ). Replaces Fender™ part numbers 0990912000, 0037036000, 990912, 037036. Replacement nut/washer set is the JN-916.
Part # J-506
$2.89
Click on photo for
larger view
SAVE WITH
MULTIPACK! JACK, 1/4",
TIP/SLEEVE 4 PIN, PC MOUNT, Fender™STYLE 1988 - Present.
PACK OF 6 JACKS. Fender™
Style PC mount 1/4" jack. Mono, 4 pin. Used as the two input jacks, preamp
out jack, and the footswitch jack only on the original 1990s Hot Rod Deville.
Not used on the Hot Rod Deville Reissue (2000s) or the Hot Rod Deville III
(2009- ). Fender™ part numbers 0990912000, 0037036000, 990912,
and 037036.
Pack of 6 Jacks, including nuts and washers.
Replacement nut/washer is the JN-916.
Part # J-506-6
$15.95
(For 6 Jacks)
Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, 9
PIN, PC MOUNT, Fender™,
Original and Reissue Blues Deville. Fender™
style PCB mount 1/4" jack. Stereo, 9 pin. Used as the Power Amp In jack
only on the original 1990s Blues Deville.
Not used on the Blues Deville Reissue (2000s) or the Blues Deville III (2009-
). Replaces Fender™ part numbers 0990913000, 025931, 990913, and 0025931000 and
031570. Nut and washer included. Click
here for specifications. Replacement
nut/washer set is the JN-916.
Part # J-507
$3.05
Click on photo for
larger view
SAVE WITH
MULTIPACK! JACK, 1/4",
TIP/SLEEVE 9 PIN, PC MOUNT, Fender™
STYLE 1988 - Present.
PACK OF 6 JACKS. Fender™
style PC mount 1/4" jack.
Stereo, 9 pin. Used as the Power Amp In jack only on the original 1990s
Blues Deville.
Not used on the Blues Deville Reissue (2000s) or the Blues Deville III (2009-
). Replaces Fender™ part numbers 0990913000, 025931, 990913, and 0025931000.
Nuts and washers included.
Click
here for specifications.
Pack of 6 Jacks.
Part # J-507-6
$16.95
(For 6 Jacks)
NUT AND WASHER, NICKEL, KOBICONN
OR JALCO TYPE. Fits J-506, J-506A, J-507, J-530, J-531
, J-532, J-533, J-533G,
J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560. Part #JN-916
$0.75
Click on photo for
larger view
Note:
Nut NOT included - reuse original, or order J-510.
JACK, 1/4", MONO, REAN TYPE, PC MOUNT, Fender™,
others. Fender™ PCB mount 1/4" jack. Mono, 4 pin.
Used as the two input jacks and the footswitch jack on the Blues Deville
Reissue (2000s)and the Blues Deville III
(2009-Present) Fender™ part number 0051658000. Nut NOT included. Reuse existing nut or order nut separately as part #J-510. Part #J-509
$2.95
Click on photo for
larger view
NUT, NICKEL, REAN TYPE, Fender™, AMPS 1999 - Present. Fender™ nut, fits J-508 and J-509 jacks. (Note: you can use this nut on the Cliff J-502, J-503, J-504, J-505, J-503L and J-504L jacks as well, if you wish to change your amps appearance.) Part #J-510
$ 0.85
Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™ Found in vintage Fender™ (and other) amps as the input jack.
Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main
speaker out jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550). Peavey part number 71466004. Part #J-12A
$4.79
Click on photo for
larger view
JACK,
1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING. Switchcraft. Used as the external speaker jack in the Fender™ Blues Deville.
Original Fender™ part number 0041701000.
Part #J-13A
$9.95
Click on photo for
larger view
SWITCH, TOGGLE - MADE BY CARLING
- RATED AT 6A, 125VAC. Two position (on/off), single pole
(SPST). Fits 1/2" chassis hole. 1/4" push on terminals.
Original Fender™ part number 003703900 (old number 037039).
Made by Carling™
Used as the standby switch in the following Fender™ amps: Vibro-King, Vibrasonic, Tonemaster, Rumble Bas, Prosonic, Hot Rod Deluxe, Hot
Rod Deville, Custom Vibrolux, Blues Junior, Blues Deluxe, Blues Deville, Bassman
300, 94 Twin, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, Twin Amp (Pro
Tube), Super-Sonic (Head & Combo), 65 Super Reverb Reissue, Pro Junior, Concert
Reverb Reissue, 64 Vibroverb Custom, 57 Twin Amp Reissue.
NOTE: FOR THE HEAVY-DUTY VERSION OF
THIS SWITCH AT A LOWER COST, SEE THE CARLING 2FA53-73 SWITCH BELOW. THE
FENDER VERSION IS RATED AT 6 AMPS WITH SMALL CONTACTS. THE 2FA53-73 IS THE
HEAVY-DUTY VERSION RATED AT 15 AMPS @ 125V AC. Part #SW-515
$10.95
Click on photo for
larger view
SWITCH, TOGGLE - MADE BY CARLING
- RATED AT 15A - 125VAC, 10A - 250VAC. Two position (on/off), single pole
(SPST). Fits 1/2" chassis hole. 1/4" push on terminals.
Made by Carling™ Part #2FA53-73
$9.95
Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING
- RATED AT 15A/125VAC, 10A/250VAC. Two position (on/off), double pole
(DPST). Fits 1/2" chassis hole. Solder terminals or 1/4"
push on. Original Fender™ part number 003657000 (old
number 036570).
Made by Carling™ Used as the power switch in the following Fender™ amps: Vibro-King, Vibrasonic, Tonemaster, Rumble Bas, Prosonic, Hot Rod Deluxe, Hot
Rod Deville, Custom Vibrolux, Blues Junior, Blues Deluxe, Blues Deville, Bassman
300, 94 Twin, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, Twin Amp (Pro
Tube), Super-Sonic (Head & Combo), 65 Super Reverb Reissue, Pro Junior, Concert
Reverb Reissue, 64 Vibroverb Custom, 57 Twin Amp Reissue, Champion 600 Reissue. Part #SW-525
$10.95
Click on photo for
larger view
ORIGINAL
Fender™ PUSH SWITCH DPDT Mini Short-Throw Push Switch. Has
6 electrical terminals on bottom of switch (DPDT). Used for channel
switching, FX switching on the front panels of many Fender™ amps from the
1990s to present. Found in the Acoustasonic series, Blues Deville, Blues Deluxe,
Blues Jr., Bullet Reverb, Bullet Reverb, Bassman 300, Champion 30, Champion 30 DSP, Champion 110, Frontman 25R, Frontman
25G, Hot Rod Deville, Hot Rod Deluxe, Deluxe 112 & 112 Plus, Roc Pro series, Performer 1000,
Princeton 65, Princeton 65 DSP, Princeton 112 & 112 Plus, PCN-2, PCN-4, SFX, Super-Sonic, Cyber Twin series, Satellite Ultimate Chorus, Super Champ X2, Super Champ XD, Twin Amp Pro Tube, and others. Original Fender™ part number 002809100.
Also Fender™ part number 028091, and 028091049. Switch only - see part
number K-058 for the switch cap.
Has actuator shaft of 2.7mm square.
Part #SW-028
$5.95
Click on photo for
larger view
BUTTON,
for push switch, Black.
This black button pushes onto the
switch stem of the Bright and Drive
Select switches in the Blues Deville.
Original Fender™ part number 0028104000.
Button only - not the complete switch. See the SW-028 switch above.
Fits switches with
actuator shaft of 2.7mm square.
Part #K-058
$2.99
Click on photo for
larger view
PILOT LAMP ASSEMBLY, RED, FENDER™ Complete pilot lamp assembly:
Includes pilot lamp holder,
red jewel and #47 bulb complete, fits 11/16" chassis hole. Designed
for 6.3 volts. Ready for installation and wiring in the Fender™ Blues
Deville. Part #FLA-124R
$8.50
Select Option:
RED
Click on photo for
larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many
others. RED - the standard on Fenders since the 1940's.
Replaces Fender™ part number 0990952000. Part #JL-115R
$2.99
Click on photo for
larger view
NEW! BRIGHT LED INDICATOR LAMP,
REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life LED replacement lamp for
pilot lamps. Fits Fender amps which are designed for the P-47 type
incandescent bulb (including most Fender amps from the 1950s through the
present). The LED
replacement is long lasting, runs much cooler, and is substantially brighter
than the P-47 incandescent bulb. If less brightness is desired,
install a series resistor feeding the lamp socket (1/4 or ½ watt, value
between 560Ω and 1KΩ). Sold individually. Add new pizzazz
to your amp with a brighter lamp on the front panel, and one which pays for
itself in the long run with exceptionally long life. Works on 6
volts, AC or DC.
Color is warm white. NOTE: NOT RECOMMENDED FOR USE WITH THE
PURPLE J-115P JEWEL - WILL RESULT IN A DEEP BLUE COLOR RATHER THAN PURPLE. Part #LED-47
$2.95
Click on photo for
larger view
NEW! COOL BLUE BRIGHT OUTPUT LED INDICATOR LAMP,
REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life
BLUE OUTPUT LED replacement lamp for
pilot lamps. Fits Fender amps which are designed for the P-47 type
incandescent bulb (including most Fender amps from the 1950s through the
present). The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb. Works on 6 volts, AC or DC. Output color is cool blue. When used with different colored jewels,
creates a different color and a different vibe! See the results below:
Jewel Color
Resulting Look
Brightness Level
JL-115A Amber
Yellow
High
JL-115B Blue
Medium Blue
High
JL-115C Clear
Crystal Blue
High
JL-115G Green
Light Green
High
JL-115P Purple
Deep Blue
Medium
JL-115R Red
Orange
Medium
JL-115V Violet
Bluish Violet
Low
JL-115W White
Baby Blue
Low
Part #LED-47B
$2.95
Click on photo for
larger view
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE P-47
General replacement lamps for dials, indicators, etc. Sold individually.
6.3V, Fender™ part number 0021642049 Part #P-47
$0.99
Click on photo for
larger view
FENDER SQUARE 5mmX5mm DIFFUSED RED LED
Replaces the channel-switching indicator LED or the power
indicator in several Fender
amps and also in many Fender footswitches. Replaces original Fender
part number 028039. Found in Blues Deluxe, Blues Deville, Hot Rod Deluxe,
Hot Rod Deville, Deluxe 112, Deluxe 112 Plus, Ultimate Chorus, Princeton 112, Princeton 112 Plus,
Powerstage 100, Roc Pro 700, BXR200, KXR60, KXR100, KXR200, Frontman 25R, Pro
Reverb and Twin Amp (Pro Tube Series), Acoustasonic Jr.
Also found in the 028122 and 050419 Fender footswitches. This
LED is part of the circuitry in many Fender footswitches, and its failure often
means the channel switching stops functioning correctly. This LED is
red only - will not replace the bi-color footswitches used in some of these
amps. Part #LED-573
$1.75
(Brown)
Click on photo for
larger view
Fender™ STYLE GUITAR AMP HANDLE.
Brown handle strap, "dogbone" style. Nickel end hooks - replacement for vintage
and modern Fender™ amps. Replacement for Fender™ part number 0990946000. Does
not contain Fender™ logo, so it may be used on other brands of amps. Used on vintage
and modern tweed, brownface and blonde tolex amps such as the Blues Deville. Color of handle strap is
brown. Screws not included - order screw pack SC-402 separately (takes a
pack of 4
screws).
Part #FAH-328
$7.99
(Black)
Click on photo for
larger view
Fender™ STYLE GUITAR AMP HANDLE.
Black handle strap, "dogbone" style. Nickel end hooks -
replacement for vintage and modern Fender™ amps. Replacement for Fender™ part number 0990943000. Does
not contain Fender™ logo, so it may be used on other brands of amps. Used on vintage
and modern black tolex amps such as the Blues Deville. Color of handle strap is
black. Screws not included - order screw pack SC-402 separately (takes a
pack of 4
screws).
Part #FAH-329
$7.99
Click on photo for
larger view
Fender™ "DOGBONE" HANDLE SCREWS
Pack of 4
nickel "Dogbone" handle screws for
Fender™ style FAH-328 and FAH-329 handles. Fits the handle on the
Fender™ Blues Deville. 8-32
thread. Part #SC-402
$1.59
(for a pack of 4 screws)
Click on photo for
larger view
Fender™ STAINLESS STEEL BACK-PANEL SCREWS
Pack of 6 stainless steel back panel screws suitable for Fender™ reissue "Tweed" series amps. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior and Blues Deville, and 59 Bassman reissue.
3/4" long, 10-32 thread. Fender™ Original Part number 0015990049.
Pack of 6 screws. Made of stainless steel, for longer life and no
worries about rust or oxidation.
These screws are not
nickel-plated. Part #FBP-6
$2.99
(for a pack of 6 screws)
Click on photo for
larger view
Fender™ STYLE STAINLESS STEEL CHASSIS MOUNTING SCREWS
Pack of 6 stainless steel chassis mounting screws
suitable for Fender™ reissue "Tweed" series amps.
Mounts the chassis to the cabinet on top as well as the sides of the cabinet. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe,
Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue.
1 1/2" long, 10-32 thread. Replacement for Fender™ Part number
0036619049.
Pack of 6 screws. Made of stainless steel, for longer life and no
worries about rust or oxidation. Note: These screws are not
nickel-plated.
For original Fender screws, see the FGCM-6 set. Part #FCM-6
$2.99
(for a pack of 6 screws)
Click on photo for
larger view
Genuine Fender™
NICKEL-PLATED STEEL CHASSIS MOUNTING SCREWS
Pack of 6 nickel-plated steel chassis mounting screws
suitable for Fender™ reissue "Tweed" series amps.
Mounts the chassis to the cabinet on top as well as the sides of the cabinet. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe,
Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue. 1 1/2" long,
10-32 thread.
Pack of 6 screws. 10-32 X 1-1/2 TH PHS Nickel-Plated Screws.
Genuine Fender™ Original Part number 0036619049. Part #FGCM-6
$5.95
(for a pack of 6 screws)
Click on photo for
larger view
Fender™
STYLE ZINC-PLATED STEEL CABINET WASHERS
Pack of 6 zinc-plated steel cabinet
washers
suitable for Fender™ reissue "Tweed" series amps. Used on
the chassis mounting screws as well as the back-panel mounting screws. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe,
Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue.
Pack of 6 washers. A replacement for Fender™ Part number 0022327049. Part #FCW-6
$0.50
(for a pack of 6 washers)
Click on photo for
larger view
SPEAKER BAFFLE MOUNTING
COPPER SCREWS AND STAINLESS STEEL KEPS NUTS (SET OF 4) FOR Fender™ TWEED AMPS. Set of
4 screws,
copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nuts with
integral washers. This set of
four copper screws connects the speaker baffle board to the cabinet on Fender™
tweed combo amps from
the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue. Replaces Fender part number 036618 or
0036618049. For amps which require additional baffle screws, see the
individual screw/nut part number SC-415, below. Part #SC-415-4
$3.99
(for a pack of 4 screws and 4 nuts)
Click on photo for
larger view
SPEAKER BAFFLE MOUNTING
COPPER SCREW AND STAINLESS STEEL KEPS NUT FOR Fender™ TWEED AMPS. Individual
screw, copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nut with
integral washer. These screws connect the speaker baffle board to the cabinet on Fender™
tweed combo amps from
the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59
Bassman Reissue. Replaces Fender part number 036618 or
0036618049. Part #SC-415
$1.09
(for a single screw with nut)
Set of 4 screws shown. Set of 5 screws also available.
Click on photo for
larger view
SPEAKER BAFFLE MOUNTING
STAINLESS STEEL SCREWS AND STAINLESS STEEL KEPS NUTS (SETS OF 4 OR 5) FOR Fender™
BLUES DELUXE, BLUES DEVILLE, BLUES JUNIOR III, HOT ROD DELUXE OR HOT ROD DEVILLE AMPS WITH
BLACK TOLEX. Sets of either 4 or 5 screws,
stainless steel 6-32, 1 1/2 inches long, flat stainless washers, Phillips and matching 6-32 Keps
Nuts with integral washers. This set of four
nickel style screws
connects the speaker baffle board to the cabinet on Fender™ amps.
Blues Junior III needs the 4-screw set, other larger amps with black tolex need
the 5-screw set.
Replaces Fender part number 050858 or
0050858000. For amps covered in Tweed Tolex, see the SC-415 screws. Part #SC-414-X
4-screw set:
$2.79
5-screw set:
$3.29
Click on photo for
larger view
Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381
$0.99
Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE Popular strain relief found on most
vintage
guitar amplifiers with round power cords, including most vintage Fender™ amps. Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below. Part #SR-1200
$0.99
Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage. Part #YTH-205
$14.95
Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH
CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH) Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 1/4 inch diameter inner hole,
and mounts in a 3/8 inch chassis hole.
Full
datasheet here. Part #RCG-739
$0.49
each
Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE
(GROMMET INNER HOLE 3/8 INCH) Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 3/8 inch diameter inner hole,
and mounts in a 1/2 inch chassis hole.
Full
datasheet here. Part #RCG-745
$0.49
each
Click on photo for
larger view
FUSE HOLDER, ORIGINAL Fender™,
FITS MOST LATER MODEL FENDER AMPSFits full-size fuse.
Chassis mount type with push-on tab connectors. For standard full size 1.25" X
.25" fuses. Fits through a .50" hole in the chassis. As used on the Fender™ 60s
Super Reverb reissue and many other Fender™, SWR™ and other amps. Brand New.
Genuine Fender™ 0036702049. UPC 717669612139. Used on 65 Twin, Hot Rod Deluxe™,
Hot Rod DeVille™, Blues Deluxe™, Blues DeVille™, Prosonic™, Vibrosonic, Pro
Reverb™, Showman™ 50, 59 Bassman™, Tone Master™, Vibro-King, 63 Fender Tube
Reverb and Dual Professional amplifiers Also fits 94 Twin, 65 Super Reverb™,
Pro Tube Twin, 64 Vibroverb™, 57 Twin, Super-Sonic™ series, Princeton
Recording Amp, Band-Master™ VM Head, Deluxe™ VM, Super Bassman and Super Champ™
XD/X2 amplifiers. Part #FH-367
$8.95
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
FUSE,
Fender™ 3A Slow-Blow.
Rated at 3A, for use with Blues
Deville in North America (120V).
Part #MDL-3
$4.95
(Pack of 5 fuses)
Click on photo for
larger view
10 OHM, 5A NTC (Negative
Temperature Coefficient) type Thermistor.
Fender part number 028503. Used in many Fender amp models
since the 1990s. Also used in some Mesa Boogie amps. It is installed in series in a circuit
between the transformer and incoming AC power. This thermistor is rated for
5A maximum current, and is 19mm in diameter. By limiting
inrush current, it protects the transformer and other components in the power
supply at turn-on. This thermistor should only be used on amps which
have a 5 amp fuse or less.
Download data sheet here. Part #CL-60
$3.99
(each)
Click on photo for
larger view
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1B. Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting.
Replacement for Fender™ Blues
Deville (original 90's version only). Replaces original Fender™ part
number 020489.
View the 2-year warranty details
here. Part #4BB3C1B
"Bringing back the sound of vintage Accutronics tanks"
$43.79
Click on photo for
larger view
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3C1B. Input impedance 600 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Replacement for Fender™ Blues Deville Reissue only.
Replaces original Fender™
part number 0050394000.
View the 2-year warranty
details here. Part #4EB3C1B
"Bringing back the sound of vintage Accutronics tanks"
$43.79
Click on photo for
larger view
Reverb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
Part #RB-017
$18.90
In Stock
Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Micalex replacement for the tube sockets in the Fender™ Blues Junior, Pro
Junior, and the Fender™ Hot
Rod Deluxe/Deville and Blues Deluxe/Deville.
Fender part number 0029167049.Also used in Gibson™ Goldtone series amplifiers. Part #TS-9-620
$2.69
Click on photo for
larger view
3-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. This 3-pack replaces all of the
sockets for the 12AX7 preamp tubes in the Fender™ Blues Junior, Hot Rod
Deluxe/Deville and Blues Deluxe/Deville.Also used in Gibson™ Goldtone series amplifiers. Part #TS-9-620-3
$7.79
(for a 3-pack of tube sockets)
Click on photo for
larger view
5-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. This 5-pack replaces all 5 tube
sockets in the Fender™ Blues Junior. Also used in Gibson™ Goldtone series
amplifiers. Part #TS-9-620-5
$12.49
(for a 5-pack of tube sockets)
Click on photo for
larger view
10-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. Used in the Fender™ Blues
Junior, and the Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Used in Gibson™ Goldtone series amplifiers. Part #TS-9-620-10
$23.90
(for a 10-pack of tube sockets)
Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, CERAMIC. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Ceramic replacement for Gibson™ Goldtone series amplifiers. Ceramic
replacement for the tube sockets in the Fender™ Blues Junior, and the Fender™
Hot Rod Deluxe/Deville and Blues Deluxe/Deville. Part #TS-9-217
$2.69
Click on photo for larger view
CERAMIC 8-PIN PC MOUNT OUTPUT TUBE OR RECTIFIER TUBE SOCKET,
crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting
centers, 1" to 1 1/4" chassis hole. Use for the 6L6 power tubes in the
Fender™ Blues Deville. Part #TS-8-807
$3.50
Click on photo for
larger view
Fender™ 24V DC DIP Relay 24V, 8.3mA coil, DPDT. Used for channel switching in
the Blues Deville. Original Fender™ part # 0036613000. Part #RLY-24
$9.95
RESISTOR,
FLAMEPROOF, 470 OHM, 2 WATT. Power tube screen grid
resistors in the Blues Deville. Original Fender™ part number
036468001.
Available individually, or in packs of 5, below.
Part #470FP2
$0.30 each
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, PACK OF 5 RESISTORS.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Part #470FP2-5
$1.15
(Pack of 5 Resistors)
RESISTOR, SANDBLOCK 330 OHM, 5 WATT. Common failure
item in the low voltage power supply of the Fender Hot Rod
Deville, Blues Deluxe, and Blues Deville. Fender part number 028037.
Part #330W5
$0.99
RESISTOR, SANDBLOCK 470 OHM, 5 WATT.
Common failure item in the low voltage power supply of some versions of the Fender Blues Deville. Fender part number 412560000 or 041256.
Part #470W5
$0.99
16V 5W Zener 1N5353
(Equivalent to NTE5131). Used in the power
supply of the Fender™ Blues Deville. Fender™ part number 028119. Part #1N5353
$1.95
R3000
HIGH VOLTAGE PROTECTION DIODE -
3000V, 0.25A Part #R3000
$1.00
Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
POT - Fender™ BIAS POT 25K LINEAR, SCREW
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
FUSE HOLDER, ORIGINAL Fender™,
FITS MOST LATER MODEL FENDER AMPS
Reverb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
CERAMIC 8-PIN PC MOUNT OUTPUT TUBE OR RECTIFIER TUBE SOCKET,
crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting
centers, 1" to 1 1/4" chassis hole. Use for the 6L6 power tubes in the
Fender™ Blues Deville.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
