 FENDER
COMPLETE POTENTIOMETER KIT - BLUES JUNIOR.
Contains all 6 control pots as found in the
original Blues
Junior and Blues Junior III and IV from 1993 to the present.
Part #FPK-116 |
$54.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 25K LINEAR,
Used in the Blues Junior as the middle control.
Fender™ Part numbers 0049402000 AND 0049621000.
Part #FPBJ-25KL |
$9.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 50K LINEAR,
Used in the Blues Junior as the reverb control and the master volume.
Fender™ Part numbers 006268000 and 00347190000.
Part #FPBJ-50KL |
$9.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 250K AUDIO,
Used in the Blues Junior as the treble control.
Fender™ Part numbers 0041913000 AND 0049622000.
Part #FPBJ-250KA |
$9.95 |
|
Click on photo for
larger view |
POT - SNAP-IN, 250K LINEAR, Used In
Blues Junior (bass Control) And Similar Amps. Original Fender™ Part Number
0040985000.
Part #FPBJ-250KL |
$9.95 |
|
Click on photo for
larger view |
 POT - SNAP-IN, 1MEG AUDIO, Used in the Blues Junior as the volume
control. Fender™ Part number 0049401000.
Part #FPBJ-1MA |
$9.95 |
|
Click on photo for
larger view |
MULTI-TURN
TRIM POT, 50K Ohms, TOP ADJUSTMENT SCREW. This 3/8" X 3/8" X 1/8" pot may be used to modify some amplifiers
and install a bias adjust control. 50k Ohms, 0.5 watts, 25
turns. This is the pot most often used to add adjustable bias to the Fender
Blues Junior.
Instructions for the Blues Junior Bias Mod are
found here.
Part #3296W-B50K |
$2.79 |
|
Click on photo for
larger view |
Part #FCK-57
Fender™ Electrolytic Filter Capacitor Kit 57. Contains
the following filter capacitors, used as main and decoupling filters, bias filters in the Fender™
Blues Junior and Blues Junior III from
1995-present. This kit includes only the power supply capacitors.
- 1 F&T Mersen 47uF-500V (Main Filter)
- 3 F&T Mersen 22uF-500V (Decoupling Filters)
- 2 Radial 470uF-50V
- 2 Radial 220uF-25V
- 1 Radial 100uF-25V
Download the
installation guidelines.
|
FCK-57
$37.95 |
|
Click on photo for
larger view |
KNOB KIT, Fender™, Black with Pointer with
bushing.
Replacement for
Fender™ Blues Junior. Upgrade knob for original Blues Junior,
Bronco, and Pro Junior. Includes the Fender™ style 36620000 Black
Chicken-Head knob and the 0033206049
bushing. Knob is a 1/4" set-screw type. This combination replaces
the original 041710 push-on knob used on the original Blues Junior - the 041710 knob is now discontinued.
Part #K-710 |
$3.95 |
|
Click on photo for
larger view |
 BUSHING, Fender™, for push-on knobs
on D-Shaft pots.
The bushing slides over the pot shaft before the knob is installed, and stabilizes the shaft as well as keeping the knob from rubbing the front faceplate. The tapered end of the bushing fits into the hole in the faceplate. The knob is inserted after the bushing is in place, and hides the bushing from view. Original Fender™ part number 0033206049.
Part #K-6049 |
$1.95 |
|
|
Click on photo for
larger view
|
JACK, 1/4",
TIP/SLEEVE 4 PIN, PC MOUNT, Fender™
Style, Original and Reissue Hot Rod Deville.
Fender™
style PC mount 1/4" jack. Mono, 4 pin. Used as the two input jacks, preamp
out jack, and the footswitch jack only on the original 1990s Hot Rod Deville.
Not used on the Hot Rod Deville Reissue (2000s) or the Hot Rod Deville III
(2009- ). Replaces Fender™ part numbers 0990912000, 0037036000, 990912, 037036. Replacement nut/washer set is the JN-916.
Part # J-506 |
$2.89 |
|
Click on photo for
larger view |

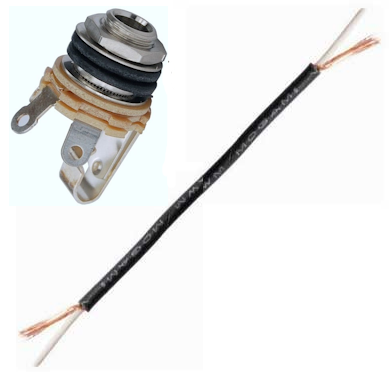

 JACK, 1/4", MONO, CLOSED CIRCUIT
(SHORTING), WIRED, Switchcraft™, LONG BUSHING
Change the plastic J-506 jack in your Blues Junior to this rugged
Switchcraft jack. Watch this video to see if you wish to consider
this project:
https://www.youtube.com/watch?v=-i4MR4WPDAo You will need to
provide about 6 inches of thin insulated stranded wire for this conversion (not
included).
Part #J-L12A |
$5.95 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT
MONO, PC
MOUNT, Switchcraft™
STYLE, NON-ISOLATED
Common PC mount input jack. 3 pins, mono, tip shunt.
Shield tied to chassis mount.
Used in many amplifiers. Fender™ part number 030771. Nut
and washer included.
Part #J-112APC |
$5.95 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT
MONO, PC MOUNT, Switchcraft™
STYLE, ISOLATED
NYLON BUSHING
Found in many applications. 3 pins, mono, tip shunt.
Isolated sleeve. Used as the 'Fat' footswitch jack in the Blues Junior.
Fender™ part number 0027674000.
Nut and washer included.
Part #J-N112APC |
$6.95 |
|
|
 |
NUT AND WASHER, NICKEL, KOBICONN
OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531
, J-532, J-533, J-533G,
J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560.
Part #JN-916 |
$0.75 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK!
JNUT-38 JACK NUT AND WASHER, METAL,
SWITCHCRAFT™, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots. Set of
6 washers and 6 nuts.
Part #JNUT-38-6 |
$4.95
(Set of 6 washers and 6 nuts) |
|
 |
POT
NUT AND WASHER, METAL, SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38 |
$0.99
(Set of 1 washer and 1 nut) |
|
Click on photo for
larger view |
SWITCH, TOGGLE - MADE BY CARLING
- RATED AT 15A, 125VAC. Two position (on/off), double pole
(DPST). Fits 1/2" chassis hole. 1/4"
push on terminals. Original Fender™ part number 003657000 (old
number 036570). Used as the power switch in the Blues Junior.
Part #SW-525 |
$10.95 |
|
|
Click on photo for
larger view |
 Genuine
Fender™ Footswitch
Restore your contemporary Fender™ amp’s footswitch functionality with a
genuine replacement Fender footswitch.
Features 1/4" plug and 12 ft cable. Black body, with Fender™ logo.
Used for Mustang™ I, Mustang II, FM Series and Blues Junior™ amplifiers.
Fender™ part number 0994049000.
Part #FBS-274 |
$24.95 |
|
Click on photo for
larger view |
ORIGINAL
Fender™ PUSH SWITCH
DPDT Mini Short-Throw Push Switch. Has
6 electrical terminals on bottom of switch (DPDT). Used for channel
switching, FX switching on the front panels of many Fender™ amps from the
1990s to present. Found in the Acoustasonic series, Blues Deville, Blues Deluxe,
Blues Jr., Bullet Reverb, Bullet Reverb, Bassman 300, Champion 30, Champion 30 DSP, Champion 110, Frontman 25R, Frontman
25G, Hot Rod Deville, Hot Rod Deluxe, Deluxe 112 & 112 Plus, Roc Pro series, Performer 1000,
Princeton 65, Princeton 65 DSP, Princeton 112 & 112 Plus, PCN-2, PCN-4, SFX, Super-Sonic, Cyber Twin series, Satellite Ultimate Chorus, Super Champ X2, Super Champ XD, Twin Amp Pro Tube, and others. Original Fender™ part number 002809100.
Also Fender™ part number 028091, and 028091049. Switch only - see part
number K-058 for the switch cap.
Has actuator shaft of 2.7mm square.
Part #SW-028 |
$5.95 |
|
Click on photo for
larger view |
BUTTON,
for push switch, Black.
This black button pushes onto the
switch stem of the 'Fat' switch in the
Blues Junior.
Original Fender™ part number 0028104000.
Button only - not the complete switch. See the SW-028 switch above.
Fits switches with
actuator shaft of 2.7mm square.
Part #K-058 |
$2.95 |
|
Click on photo for
larger view |
BUTTON,
for push switch, White.
This white button pushes onto the
switch stem. Used on channel control and drive boost switches on the
front panel of the Fender™ Hot Rod Deluxe III, Hot Rod Deville III, and on the
FAT switch of the Blues Junior III and Blues Junior IV. Original Fender™ part number 0048451000.
Button only - not the complete switch. For the switch, see SW-028.
Fits switches with
actuator shaft of 2.7mm square.
Part #K-048 |
$2.95 |
|
Click on photo for
larger view |

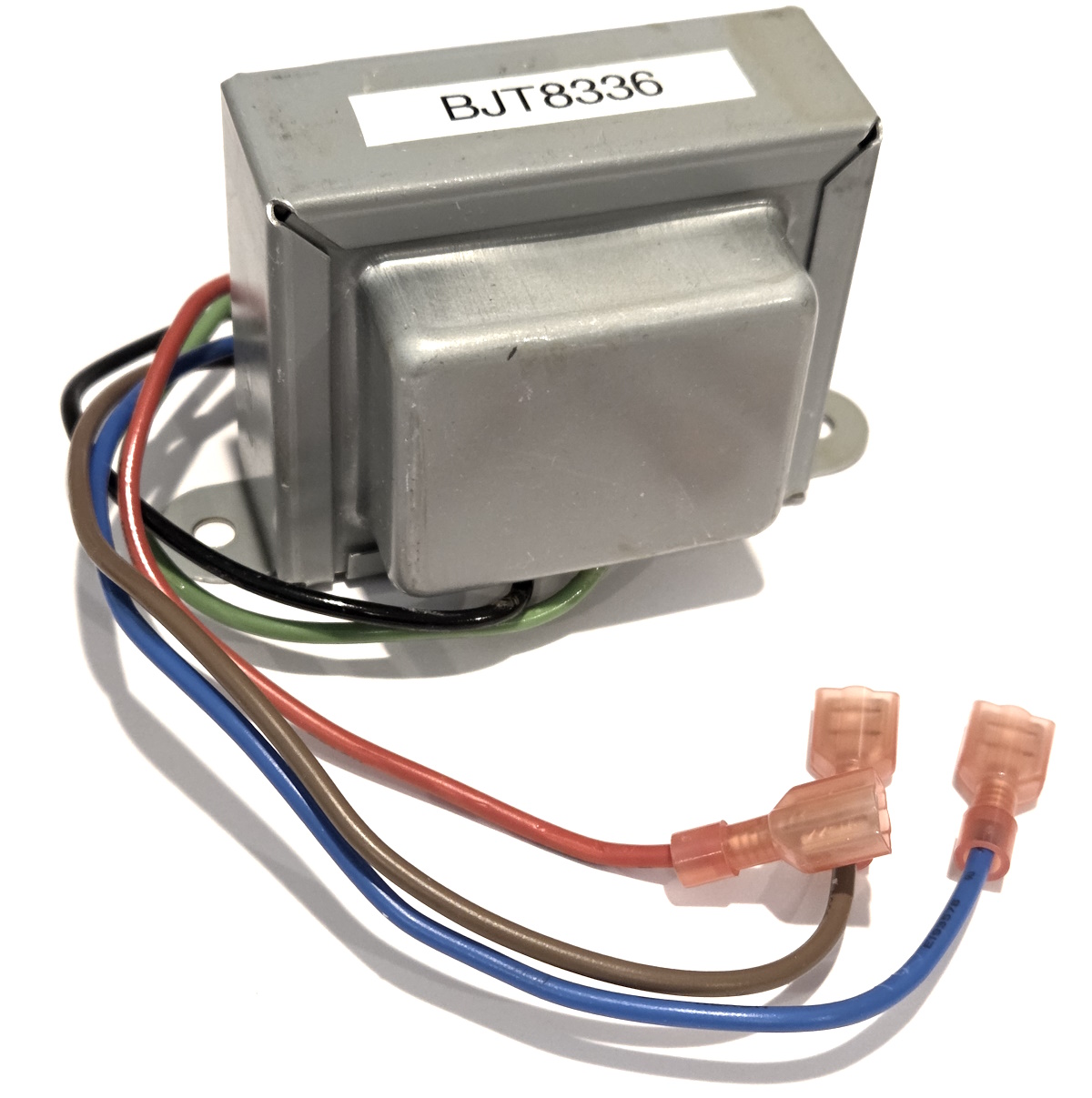

UPGRADE FOR FENDER BLUES JUNIOR OR PRO JUNIOR OUTPUT TRANSFORMER, 8 OHMS, 25 WATTS BY REVISIT
Upgrade output transformer for
Fender™ Blues Junior or Pro Junior.
X-Mount with mounting centers at 3 1/8". 25 Watts, 8 ohms.
Larger than original, requires new mounting hole to be drilled in chassis!
It is common knowledge that Fender's original output transformer in the Blues
Junior and Pro Junior versions is a bit small and not optimal for the best sound.
Fits all versions of the Blues Junior and Pro
Junior, and fixes
the shortcomings of the original output transformer Flaws like woofy,
flabby or farty tone are a thing of the past. Overdrive tones are sweeter,
harmonics are richer. Frequency response extends well past the range of hearing,
so nothing is left behind.
 Output
transformers seldom make an amp louder; they’re mostly about tone quality. But
they do improve headroom by reducing distortion.
6600 Ohm Center-Tapped Primary, 8 Ohm
secondary. Standard 2-hole mounting, 79.4mm (3-1/8") center-to-center.
Standard blue-red-brown primary, green-black secondary wiring color code.
Download spec sheet here.
Read the history of the development of this
transformer here!
Part #BJT8336 |
In stock, ready to ship!
$69.95 |
|
Click on photo for
larger view |

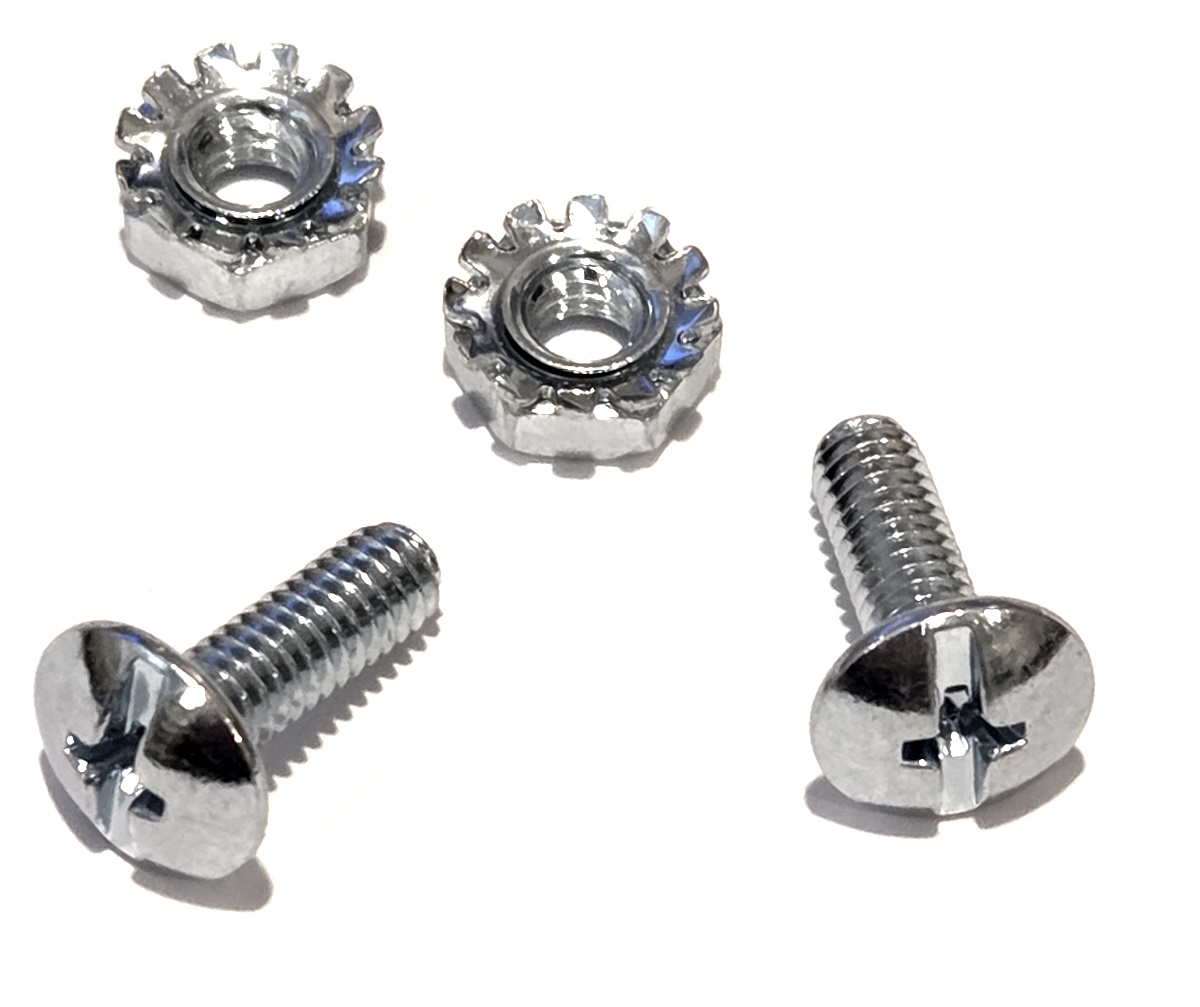

MOUNTING HARDWARE KIT FOR 2-HOLE TRANSFORMERS
Kit contains 2 8-32 thread truss-head machine
screws, 1/2 inch long, and 2 8-32 KEPS hex nuts with built-in locking washer.
The screws have combination heads for use a flat or Phillips screwdriver, and
the screw heads are extra-wide at 3/8" diameter.
Designed for use with chassis holes of 5/32"
or 3/16" (4mm or 5mm).
For mounting any of our Fender transformers
which are designed with 2 mounting holes.
Part #TMH-832-2 |
$0.89
(for a set of 2 screws and 2 nuts) |
|
Click on photo for
larger view |
 Fender™ VINTAGE STYLE GUITAR AMP HANDLE,
FLAT, MEDIUM BROWN
STITCHED SIMULATED LEATHER
Medium brown simulated leather flat handle strap, replacement for Fender™ "tweed" and "brownface"
style amps (as well as other vintage amps). This handle is flat from end-to-end
and is 1/4" thick. Medium brown, white stitched. 5-3/8" from post position to post position, total length of strap when completely flat is 8-3/4". Comes complete with two nickel-plated handle mounts and four screws.
Part #FAH-284 |
$19.95 |
|
Click on photo for
larger view |
HANDLE MOUNTING KIT - FOR STRAP HANDLES
Hardware for mounting one leather style strap handle,
including machine screws and T-Nuts. Excellent for repairing
strap handles where the old wood screws have pulled out of their holes.
Remove amp chassis, drill new holes with 3/16" or 5mm drill bit, tap in T-Nuts on
the underside and mount the handle. Fits Fender™ "tweed" style
amps and some vintage Ampeg™ amps. Works with our handles
GAH-282, GAH-782. 1" oval head M4 X 0.7 Phillips screw with matching M4 threaded T-Nut. Package of 4. Part #THH-2 |
$2.95 |
|
BLACK FENDER HANDLE
Click on photo for
larger view |
ORIGINAL Fender™ GUITAR AMP HANDLE.
Black amplifier handle with vinyl sleeve over steel strap and
one-screw mounting nickel-plated end caps. Includes mounting
hardware (two screws and T-nuts). Used on some versions of the Blues
Junior.
Original Fender™ part number 0990947000.
Part #FAH-332 |
$17.99 |
|
Click on photo for
larger view |
FENDER™
END CAPS & SCREWS, FOR BLACK AND BROWN TRADITIONAL AMP HANDLES
Are your Fender™
handle end caps scratched, rusting, or missing? If the handle strap
is in good shape, you can replace just the end caps for a fraction of the cost
of a new handle! Fits the traditional black or brown Fender™
strap handles used on countless models from the silverface, blackface, blonde
and brownface eras, as well as the more recent '65 and '68 reissues.
Nickel-plate steel end caps, stainless steel screws. Set of 2 end
caps and 2 screws.
Part #FEC-311 |
$7.95 |
|
|
Click on photo for
larger view |
Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for
Fender™ style FAH-332.
See Data Sheet here
Part #SC-403 |
$0.99
(for a pack of 2 screws) |
|
(Brown)
Click on photo for
larger view |
Fender™ STYLE GUITAR AMP HANDLE.
Brown handle strap, "dogbone" style. Nickel end hooks - replacement for vintage
and modern Fender™ amps. Replacement for Fender™ part number 0990946000.
Used on some versions of the Blues Junior. Does not contain Fender™ logo, so it
may be used on other brands of amps. Color of handle strap is
brown. Screws not included - order screw pack SC-402 separately (takes a
pack of 4
screws).
Part #FAH-328 |
$7.99 |
|
(Black)
Click on photo for
larger view |
Fender™ STYLE GUITAR AMP HANDLE.
Black handle strap, "dogbone" style. Nickel end hooks -
replacement for vintage and modern Fender™ amps. Replacement for Fender™ part number 0990943000.
Used on some versions of the Blues Junior. Does not contain Fender™ logo, so it
may be used on other brands of amps. Color of handle strap is
black. Screws not included - order screw pack SC-402 separately (takes a
pack of 4
screws).
Part #FAH-329 |
$7.99 |
|
|
Click on photo for
larger view |
Fender™ "DOGBONE" HANDLE SCREWS
Pack of 4
nickel "Dogbone" handle screws for
Fender™ style FAH-328 and FAH-329 handles. Fits the handle on the
Fender™ Blues Junior versions that used the "dogbone" style handle. 8-32
thread.
Part #SC-402 |
$1.59
(for a pack of 4 screws) |
|
|
Click on photo for
larger view |
Fender™ STAINLESS STEEL BACK-PANEL SCREWS
Pack of 6 stainless steel back panel screws suitable for Fender™ reissue "Tweed" series amps. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior and Blues Deville, and 59 Bassman reissue.
3/4" long, 10-32 thread. Fender™ Original Part number 0015990049.
Pack of 6 screws. Made of stainless steel, for longer life and no
worries about rust or oxidation.
These screws are not
nickel-plated.
Part #FBP-6 |
$2.99
(for a pack of 6 screws) |
|
|
Click on photo for
larger view |
Fender™ STYLE STAINLESS STEEL CHASSIS MOUNTING SCREWS
Pack of 6 stainless steel chassis mounting screws
suitable for Fender™ reissue "Tweed" series amps.
Mounts the chassis to the cabinet on top as well as the sides of the cabinet. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe,
Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue.
1 1/2" long, 10-32 thread. Replacement for Fender™ Part number
0036619049.
Pack of 6 screws. Made of stainless steel, for longer life and no
worries about rust or oxidation. Note: These screws are not
nickel-plated.
For original Fender screws, see the FGCM-6 set.
Part #FCM-6 |
$2.99
(for a pack of 6 screws) |
|
|
Click on photo for
larger view |
Genuine Fender™
NICKEL-PLATED STEEL CHASSIS MOUNTING SCREWS
Pack of 6 nickel-plated steel chassis mounting screws
suitable for Fender™ reissue "Tweed" series amps.
Mounts the chassis to the cabinet on top as well as the sides of the cabinet. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe,
Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue. 1 1/2" long,
10-32 thread.
Pack of 6 screws. 10-32 X 1-1/2 TH PHS Nickel-Plated Screws.
Genuine Fender™ Original Part number 0036619049.
Part #FGCM-6 |
$5.95
(for a pack of 6 screws) |
|
|
Click on photo for
larger view |
Fender™
STYLE ZINC-PLATED STEEL CABINET WASHERS
Pack of 6 zinc-plated steel cabinet
washers
suitable for Fender™ reissue "Tweed" series amps. Used on
the chassis mounting screws as well as the back-panel mounting screws. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe,
Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue.
Pack of 6 washers. A replacement for Fender™ Part number 0022327049.
Part #FCW-6 |
$0.50
(for a pack of 6 washers) |
|
Click on photo for
larger view |
SPEAKER BAFFLE MOUNTING
COPPER SCREWS AND STAINLESS STEEL KEPS NUTS (SET OF 4) FOR Fender™ TWEED AMPS. Set of
4 screws,
copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nuts with
integral washers. This set of
four copper screws connects the speaker baffle board to the cabinet on Fender™
tweed combo amps from
the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue. Replaces Fender part number 036618 or
0036618049. For amps which require additional baffle screws, see the
individual screw/nut part number SC-415, below.
Part #SC-415-4 |
$3.99
(for a pack of 4 screws and 4 nuts) |
|
Click on photo for
larger view |
SPEAKER BAFFLE MOUNTING
COPPER SCREW AND STAINLESS STEEL KEPS NUT FOR Fender™ TWEED AMPS. Individual
screw, copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nut with
integral washer. These screws connect the speaker baffle board to the cabinet on Fender™
tweed combo amps from
the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59
Bassman Reissue. Replaces Fender part number 036618 or
0036618049.
Part #SC-415 |
$1.09
(for a single screw with nut)
|
|
Set of 4 screws shown. Set of 5 screws also available.
Click on photo for
larger view
|
SPEAKER BAFFLE MOUNTING
STAINLESS STEEL SCREWS AND STAINLESS STEEL KEPS NUTS (SETS OF 4 OR 5) FOR Fender™
BLUES DELUXE, BLUES DEVILLE, BLUES JUNIOR III, HOT ROD DELUXE OR HOT ROD DEVILLE AMPS WITH
BLACK TOLEX. Sets of either 4 or 5 screws,
stainless steel 6-32, 1 1/2 inches long, flat stainless washers, Phillips and matching 6-32 Keps
Nuts with integral washers. This set of four
nickel style screws
connects the speaker baffle board to the cabinet on Fender™ amps.
Blues Junior III needs the 4-screw set, other larger amps with black tolex need
the 5-screw set.
Replaces Fender part number 050858 or
0050858000. For amps covered in Tweed Tolex, see the SC-415 screws.
Part #SC-414-X |
4-screw set:
$2.79
5-screw set:
$3.29 |
|
Click on photo for
larger view |
Fender™
Amp Tweed Block Logo Revive the look of your vintage-style or modern
Fender™ amp with a genuine Fender™ amplifier logo.
Fender™ tweed amp logo includes mounting pins and is designed for the following
amplifiers: Pro Junior™, Blues Junior™, JazzMaster™ Ultralight. Approx.
2 15/16" wide and 7/8" tall. Original Fender™ part number
0994096000.
Part #FAL-917 |
$25.95
(each) |
|
Click on photo for
larger view |
Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
Click on photo for
larger view |
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most
vintage
guitar amplifiers with round power cords, including most vintage Fender™ amps. Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 |
$14.95 |
|
Click on photo for
larger view |
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH
CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 1/4 inch diameter inner hole,
and mounts in a 3/8 inch chassis hole.
Full
datasheet here.
Part #RCG-739 |
$0.49
each |
|
Click on photo for
larger view |
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE
(GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 3/8 inch diameter inner hole,
and mounts in a 1/2 inch chassis hole.
Full
datasheet here.
Part #RCG-745 |
$0.49
each |
|
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
FUSE,
Fender™ 2A Slow-Blow.
Rated at 2A, for use with Blues
Junior in North America (120V).
Part #MDL-2 |
$4.95 (Pack of 5 fuses) |
|
Click on photo for larger view
 |
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.
Used in Fender™ Blues Junior. Relaces Fender™ part number 0028055000. View the 2-year warranty
details here.
Part #8EB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.95
In Stock |
|
Click on photo for larger view
|
Korean-made Accutronics Reverb Tank, 9" long, 3 spring, 8EB2C1B. Short
Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input
and grounded output. Mounts horizontal, open side down. Used
in Fender™ Blues Junior. This is the most popular short tank.
See explanation of reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces Fender ™ part numbers 0028055000,
028055, 025269, 020550.
Soft mounting grommets are not included
with this tank. If needed, order the RRG-4 grommet set found in
this section.
Korean-made Accutronics Reverb Tanks are made in South
Korea.
Part #ACC-8EB2C1B |
$35.95
In stock |
|
|
Click on photo for
larger view
|
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Micalex replacement for the tube sockets in the Fender™ Blues Junior, Pro
Junior, and the Fender™ Hot
Rod Deluxe/Deville and Blues Deluxe/Deville.
Fender part number 0029167049.
Also used in Gibson™ Goldtone series amplifiers.
Part #TS-9-620 |
$2.99 |
|
Click on photo for
larger view |
3-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. This 3-pack replaces all of the
sockets for the 12AX7 preamp tubes in the Fender™ Blues Junior, Hot Rod
Deluxe/Deville and Blues Deluxe/Deville.
Also used in Gibson™ Goldtone series amplifiers.
Part #TS-9-620-3 |
$8.79
(for a 3-pack of tube sockets) |
|
Click on photo for
larger view |
5-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. This 5-pack replaces all 5 tube
sockets in the Fender™ Blues Junior. Also used in Gibson™ Goldtone series
amplifiers.
Part #TS-9-620-5 |
$14.49
(for a 5-pack of tube sockets) |
|
Click on photo for
larger view |
10-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. Used in the Fender™ Blues
Junior, and the Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Used in Gibson™ Goldtone series amplifiers.
Part #TS-9-620-10 |
$27.90
(for a 10-pack of tube sockets) |
|
Click on photo for
larger view
|
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, CERAMIC. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Ceramic replacement for Gibson™ Goldtone series amplifiers. Ceramic
replacement for the tube sockets in the Fender™ Blues Junior, and the Fender™
Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Part #TS-9-217 |
$2.69 |
|
 |
FREE! DOCUMENTATION FROM BILL M FOR UPGRADES AND IMPROVEMENTS TO THE FENDER™
BLUES JUNIOR. Documentation only for
improving the Fender™ Blues Junior. This download is the complete
documentation of the famous Bill M. mods for the Blues Junior. The
upgrades and modifications include the following sections, of which any or all may be completed:
1. Standby Switch Installation, 2. Tone Stack Mod, 3. Coupling Cap
Installation, 4. Power Supply Stiffening, 5. Bias Control
Installation, 6. Switchcraft Replacement Input Jack, 6. Upgraded Output
Transformer
Parts for most of the modifications may be
found below.
Sadly, Bill Machrone (Bill M), designer of
these modifications, passed away on
October 30, 2016. First, and most
important if you are making modifications to the PC board:
Download instructions
for removing the PC board from the Blues Junior.
Free Documentation! |
Free! |
 |
 |
How to properly remove the Blues Junior PC Board.
Instructions with photos. |
Free! |
|
Click on photo for
larger view |
SWITCH, CARLING DPST PROGRESSIVE TOGGLE (OFF-STANDBY-PLAY)
FOR BLUES JUNIOR ONLY (SEE DOCUMENTATION ABOVE)
Replacement for amps which use a
single toggle switch for both power and standby. Or, may be used to
engineer a modification to amps which have a toggle power switch switch, but do
not offer a standby switch (such as the Peavey Delta Blues, Fender™ Blues
Junior, etc). See
wiring information here.
Made by Carling™.
Important note! This switch will not fit in the Fender Pro
Junior!
Part #SW-520 |
$10.95 |
|
|
CERAMIC DISC CAPACITOR,
100pF/500V, VISHAY-BC
This capacitor is used in some of the Blues Junior modifications to prevent
phase inverter oscillation.
Part #C-CD-100PF |
$1.29 |
|
Click on photo for
larger view
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
0.1uF/630V
Similar to the original Sprague Orange
Drop capacitors. Rated at
630 volts. Radial leads. 0.1uF, used to replace the
C6 (bass) capacitor in the cream board Blues Junior for the tone stack mod. In
the green board Blues Junior, the bass cap is C11.
You will also need the C-OD-153 below to replace the mid cap as well.
Part #C-PR-104 |
$0.60 |
|
|
CAPACITOR, ORANGE DROP, POLYPROPYLENE, RADIAL,
0.015uF/500V
Original Sprague Orange
Drop capacitors. Rated at
500 volts. Radial leads. 0.015uF, used to replace the
C7 (middle) capacitor in the cream board Blues Junior for the tone stack mod.
In the green board, the mid cap is C13.
You will also need the C-PR-104 capacitor above to replace the bass cap as well.
Also used as a coupling cap replacement on Blues
Junior with green-colored PC boards - this value replaces the 0.0022uF capacitor
(222K) at C1, per the modification recommendations. Replacing
the coupling capacitors along with the tone stack modifications improves the
bass response and overall tone spectrum of the amps.
Part #C-OD-153 |
$1.99 |
|
Click on photo for
larger view
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR TO ORANGE DROP STYLE,
0.022uF/630V
Similar to the original Sprague Orange
Drop capacitors. Rated at
630 volts. Radial leads. 0.022uF, used to replace
coupling capacitor C16 in green-board Blues Junior versions, and both C2 and C8
in the cream-board version. Replacing the coupling capacitors along
with the tone stack modifications improves the bass response and overall tone
spectrum of the amps.
Part #C-PR-223 |
$0.50 |
|
Click on photo for
larger view |
ELECTROLYTIC CAPACITOR,
100uF/450V, AXIAL
This special low-ESR capacitor replaces the stock 47uF capacitor, and is
used to "stiffen" the power supply. Changing this filter capacitor
produces stronger bass tones and sharper, more incisive pick attack.
This capacitor is 0.86 inches in diameter and 1.63 inches in length.
Part #EL-CAP-100-450 |
$6.95 |
|
Click on photo for
larger view |
MULTI-TURN
TRIM POT, 50K Ohms, TOP ADJUSTMENT SCREW.
This 3/8" X 3/8" X 1/8" pot may be used to add a biass
adjustment control to the Blues Junior, as detailed in the instructions. 50K Ohms, 0.5 watts, 25
turns. Allows a very precise bias adjustment which is immune to
changing due to amp chassis vibrations. Adjustment screw on the top.
Part #3296W-B50K |
$2.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Used to replace the plastic input jack in the Blues Junior with a rugged
Switchcraft metal switched jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550).
Details on how to make this modification are in the instructions.
Part #J-12A |
$4.99 |
|
Click on photo for
larger view |
UPGRADE FOR FENDER BLUES JUNIOR OUTPUT TRANSFORMER, 8 OHMS, 25 WATTS BY REVISIT
Upgrade output transformer for Fender™ Blues Junior.
X-Mount with mounting centers at 3 1/8". 25 Watts, 8 ohms.
Larger than original, requires new mounting hole to be drilled in chassis!
It is common knowledge that Fender's original output transformer in the Blues
Junior is a bit small and not optimal for the best sound.
Fits all versions of the Blues Junior, and fixes
the shortcomings of the original output transformer Flaws like woofy,
flabby or farty tone are a thing of the past. Overdrive tones are sweeter,
harmonics are richer. Frequency response extends well past the range of hearing,
so nothing is left behind.
Output
transformers seldom make an amp louder; they’re mostly about tone quality. But
they do improve headroom by reducing distortion.
6600 Ohm Center-Tapped Primary, 8 Ohm
secondary. Standard 2-hole mounting, 79.4mm (3-1/8") center-to-center.
Standard blue-red-brown primary, green-black secondary wiring color code.
Download spec sheet here.
Read the history of the development of this
transformer here!
Part #BJT8336 |
$69.95 |
|
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
