Foot Switch Boxes



Click on photo for
larger view

PREMIUM Fender™ STYLE VINTAGE FOOTSWITCH - NICKEL PLATED
This is the highest quality reproduction of the iconic chrome Fender Style 2-Button Footswitch on the market. Our Premium 2-button Footswitches are hand-wired by our custom shop and contain USA-sourced wire as well as Carling 110-P Footswitch components.  These are the same spec SPST footswitch components used in the original Fender 2-Button Footswitches.  The result is a robust housing with comfortable action and the most reliable functionality on the market.

The Premium Fender Style Vintage Black 2-Button Footswitch connects to the amplifier via RCA plugs. Cable enters rear of pedal.
Replaces Fender™ part # 0994051000
Part #FBS-241
$48.95


Click on photo for
larger view

PREMIUM Fender™ STYLE FOOTSWITCH - BLACK
This is the highest quality reproduction of the iconic black Fender Style 2-Button Footswitch on the market. Our Premium 2-button Footswitches are hand-wired by our custom shop and contain USA-sourced wire as well as Carling 110-P Footswitch components.  These are the same spec SPST footswitch components used in the original Fender 2-Button Footswitches.  The result is a robust housing with comfortable action and the most reliable functionality on the market.

The Premium Fender Style Vintage Black 2-Button Footswitch connects to the amplifier via RCA plugs. Cable enters rear of pedal.
Replaces Fender™ part # 0994051000
Part #FBS-322
$59.99




Click on photo for
larger view

Genuine Fender™ Footswitch
Restore your contemporary Fender™ amp’s footswitch functionality with a genuine replacement Fender footswitch.
Features 1/4" plug and 12 ft cable.  Black body, with Fender™ logo.   Used for Mustang™ I, Mustang II, FM Series and Blues Junior™ amplifiers.  Fender™ part number 0994049000.
Part #FBS-274
$24.95


Click on photo for
larger view

Revisit™ Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and 70s blackface and silverface amps with vibrato and reverb.  Sturdy
nickel metal construction.    Dual RCA Plugs, 16 ft cable.   Replaces Fender™ part number 0994051000
Part #FBS-271
$34.95



Click on photo for
larger view

Revisit™ Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and 70s blackface and silverface amps with vibrato and reverb.  Sturdy black metal construction.    Dual RCA Plugs, 16 ft cable.
Part #FBS-271-B
$32.95


Click on photo for
larger view

GENUINE Fender™  Footswitch for FM 65 DSP, Super Champ™ XD, Champion™ 40 and Champion™ 100 amplifiers.   Genuine Fender™ two-button footswitch for channel select and effects.   Includes detachable 12" cord with 1/4" plugs.   Compatible with the following Fender™ amps:  FM 65 DSP, Super Champ™ XD, Champion™ 40 and Champion™ 100.   Fender™ part number 0071359000.
Part #FBS-277
$39.95



Click on photo for
larger view

Revisit™ Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and 70s blackface and silverface amps with vibrato and reverb.  Sturdy black metal construction.    Dual RCA Plugs, 16 ft cable.
Part #FBS-271-B
$32.95


Click on photo for
larger view

Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller vintage blackface and silverface amps.   Sturdy
nickel metal construction.    Single RCA Plug.
Part #FBS-270
$24.95


Click on photo for
larger view

Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller vintage blackface and silverface amps.   Sturdy black metal construction.    Single RCA Plug.
Part #FBS-270B
$27.95




Click on photo for
larger view

MUSIC MAN STYLE FOOTSWITCH - BLACK
Revisit™ aftermarket replacement for the original Music Man two-button footswitch found on original Music Man amplifiers.  Labeled for vibrato and reverb, but may be used on other models for phaser / reverb, distortion, etc.  Sturdy black metal construction.    Dual RCA Plugs, 12 ft cable.    Music Man amps require special grounding of the footswitch case to prevent hum in the reverb circuit, and this switch employs that additional grounding.
Part #FBS-251
$33.95


Click on photo for
larger view

Marshall™ STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.    Mono 1/4" Plug, 16 ft. cable.   Standard design - footswitch operation shorts the tip to the sleeve - will work with other makes and models of amplifiers as well as Marshall™.   Replaces Marshall™ stock numbers PEDL-90003, P801 and PEDL-00008.   Works with the Marshall™ models 1962, 8040, 2525, 2555, 2550, 2558, 2553, 2554.   JTM60 models:  JTM600-610-615-612-622.   JCM600 models 600-601-602.   JCM900 models 2100-2500-2501-2101-2502.   JTM30 models 310-312.   DBS models 7200-7400-72410-72115.  Rackmount amps 9100-9200.   MG Series I models G30RCD, G50RCD, G80RCD and G100RCD.    IBS models 3520-5522-3540.   ValveState Models 8040 and VS30R.
Part #FBS-470
$29.95


Click on photo for
larger view

Marshall™ STYLE FOOTSWITCH W/LED  Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.  Replaces Marshall™ stock numbers PED801 and PEDL-00001.   Fits the Marshall™ DSL100, DSL201 and DSL50, and the ValveState models AVT50, VS65R and VS30R.   Also the MG Series I model G30RCD.

Also works with the Crate VC3112 Vintage Club 30 and Crate VC5112 Vintage Club 50.   Mono 1/4" Plug, 16 ft. cable.   LED indicates condition of switch.  Can be rewired internally to work with other amplifiers.    Click here for wiring diagram.   NOTE:   Will not work with many amplifiers, even those that used LEDs on the original footswitch, without rewiring.   Electronics background suggested.    Also - will generally NOT work with amplifiers which did not have an LED indicator on the original footswitch.
Part #FBS-470L

$33.95


Click on photo for
larger view

Marshall™ STYLE DUAL FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ dual footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.  Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.  Latching switches.   Replaces Marshall™ stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017.   Fits the Marshall™ JCM900 series:  4100-4500-4101-4501-4102-4502.   The JCM800 series 2210-2205-4210-4212-4211.   The ValveState series:  8080-8100-8200-8280-8240.   The MG Series 1: G80RCD-G100RCD.  The Acoustic Soloist:  AS80R.   Artist Series:  3203 and 4203.

Can work with other makes and models of amplifiers as well as Marshall™ - commonly used on most models of Trace Elliot guitar amps (not the bass amps, however).   Also used on Gibson™ Goldtone amplifiers, and Framus Ruby I, Ruby II, CS, and Red Rogue models.  Works with Vox AC151C1(X), AC15C2, AC30C2(X), AC15VR, AV30, AV60, all Night Train G2 models. 1/4" Stereo plug, 16 ft. cable.    Will also work on the Fender 1990s and 2000s Reissue 65 Twin-Super-Deluxe-Princeton Reverb amps.
Part #FBS-471

$37.95


Click on photo for
larger view

Marshall™ STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.    Mono 1/4" Plug, 16 ft. cable.   Standard design - footswitch operation shorts the tip to the sleeve - will work with other makes and models of amplifiers as well as Marshall™.   Replaces Marshall™ stock numbers P801 and PEDL-00008.   Works with the Marshall™ models 1962, 8040, 2555, 2550, 2558, 2553, 2554.   JTM60 models:  JTM600-610-615-612-622.   JCM600 models 600-601-602.   JCM900 models 2100-2500-2501-2101-2502.   JTM30 models 310-312.   DBS models 7200-7400-72410-72115.  Rackmount amps 9100-9200.   MG Series I model G50RCD.    IBS models 3520-5522-3540.
Part #FBS-470
$29.95


Click on photo for
larger view

Marshall™ STYLE DUAL FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ dual footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.  Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.  Latching switches.   Replaces Marshall™ stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017.   Fits the Marshall™ JCM900 series:  4100-4500-4101-4501-4102-4502.   The JCM800 series 2210-2205-4210-4212-4211.   The ValveState series:  8080-8100-8200-8280-8240.   The MG Series 1: G80RCD-G100RCD.  The Acoustic Soloist:  AS80R.

Can work with other makes and models of amplifiers as well as Marshall™ - commonly used on most models of Trace Elliot guitar amps (not the bass amps, however).   Also used on Gibson™ Goldtone amplifiers, and Framus Ruby I, Ruby II, CS, and Red Rogue models.   1/4" Stereo plug, 16 ft. cable.    Will also work on the Fender 1990s and 2000s Reissue 65 Twin-Super-Deluxe-Princeton Reverb amps.
Part #FBS-471

$37.95


Click on photo for
larger view

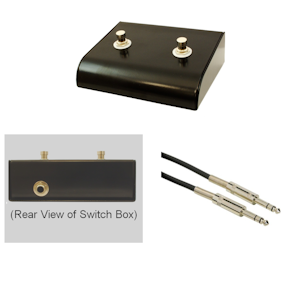

UNIVERSAL STYLE DUAL FOOTSWITCH WITH REMOVABLE CABLE.   Revisit™ replacement for foot switch boxes with stereo 1/4" plug for the amplifier connection.   10 foot long cable is removable from the foot switch box - has a stereo 1/4" plug for connection at both the foot switch end and the amplifier end.    Replaces Marshall™ stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017.   Fits the Marshall™ JCM900 series:  4100-4500-4101-4501-4102-4502.   The JCM800 series 2210-2205-4210-4212-4211.   The ValveState series:  8080-8100-8200-8280-8240.   The MG Series 1: G80RCD-G100RCD.  The Acoustic Soloist:  AS80R.  Includes the dual footswitch box and the stereo cable (10 ft).
Advantages of the removable cable include:
  • Easy to replace cable - no disassembly or soldering needed
  • Easy to change to a different configuration footswitch by changing the cable (for example, to a mono Y-cord for Roland amps)
  • Cable has metal 1/4" plugs with spring strain reliefs for durability

Part #FBS-671

$44.95

Expected back in stock by March 22, 2024


Click on photo for
larger view

Marshall™ STYLE DUAL FOOTSWITCH W/LED  Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.   Replaces Marshall™ stock number PED802, PED802A, PEDL-00013, PEDL-00016, PEDL-10029 and PEDL-91003.  Fits the Marshall™ AS50R, AS50D, DSL401, VS100R, VS102R, VS100RH, VS230R, VS232R.

Also works with the Crate BV120H Blue Voodoo 120 Head.  Stereo 1/4" Plug, 16 ft. cable.   LEDs indicate condition of switches.  Can be rewired internally to work with other amplifiers.    Click here for wiring diagram.    NOTE:   Will not work with many amplifiers, even those that used LEDs on the original footswitch, without rewiring.   Electronics background suggested.    Also - will generally NOT work with amplifiers which did not have LED indicators on the original footswitch.
Part #FBS-471L

$39.95


Click on photo for
larger view

Marshall™ STYLE TRIPLE FOOTSWITCH W/LED   Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Equivalent to the Marshall™ PED-803 and the Marshall™ PEDL-10014.  Sturdy metal construction.   Fits only the Marshall™ VS265.   Connector is a 5-pin DIN plug, 16 ft. cable.   LEDs indicate condition of switches.  Click here for wiring diagram.    Will not work with amplifiers other than the Marshall™ ValveState VS265R.
Part #FBS-473L
$49.95


Click on photo for
larger view

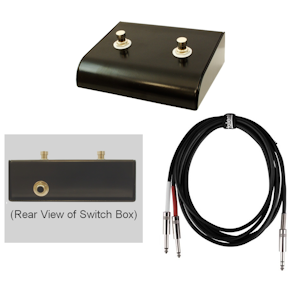

UNIVERSAL STYLE DUAL FOOTSWITCH WITH REMOVABLE CABLE.   Revisit™ replacement for foot switch boxes with two mono 1/4" plugs for the amplifier connection.   10 foot long cable is removable from the foot switch box - has a stereo 1/4" plug for connection at the foot switch end, and dual 1/4" mono plugs for connection at the amplifier end.   Replacement for a number of different footswitches on various amplifiers, including many Orange Amp models which have dual footswitch jacks.  Includes the dual footswitch box and the stereo to mono Y-cable (10 ft).
Part #FBS-571
$39.95


Click on photo for
larger view
FENDER SQUARE 5mmX5mm DIFFUSED RED LED
Replaces the square channel-switching indicator LED in many Fender footswitches.   Replaces original Fender part number 028039.  Found in the 028122 and 050419 Fender footswitches, as well as several others.    This LED is part of the circuitry in many Fender footswitches, and its failure often means the channel switching stops functioning correctly.  This LED is red only - will not replace the bi-color footswitches used in some of these amps.

Part #LED-573
$1.75


LED Colors Available:

Click on photo for
larger view
5mm DIFFUSED LED - CHOICE OF COLORS
Standard 5mm (3/16") diameter diffused LED found in many guitar amplifiers and effects pedals.  Available in white, red, blue, green, or yellow.   This 5mm size is commonly called the T-1-3/4 size.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 ohm resistor, and for 15 volts, a 1K resistor.

Part #LED-5D
$0.59
(per LED)


Select Option:


Quantity:


LED Colors Available:

Click on photo for
larger view
3mm DIFFUSED LED - CHOICE OF COLORS
Standard 3mm (1/8") diameter diffused LED found in many guitar amplifiers and effects pedals.  Available in white, red, blue, green, or yellow.   This 3mm size is commonly called the T-1 size.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 ohm resistor, and for 15 volts, a 1K resistor.

Part #LED-3D
$0.39
(per LED)


Select Option:


Quantity:


Click on photo for
larger view

Fender™ RCA VIBRATO SHORTING PLUG by Revisit™ - GOLD-PLATED.   Did you know that on vintage Fender™ amps (Blackface, Silverface), the reverb will work without a footswitch plugged in, but the vibrato will not?   This handy-dandy little RCA shorting plug will fix that problem, if you do not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™ amp.   This version is made of gold-plated brass for a low resistance connection and highest immunity to oxidation.  Just plug this little RCA plug gadget into the vibrato footswitch jack on the back panel, and your vibrato will come alive.    Turn the intensity knob to zero to cut out the vibrato when this plug is inserted.
Part #FSP-200

$2.50
