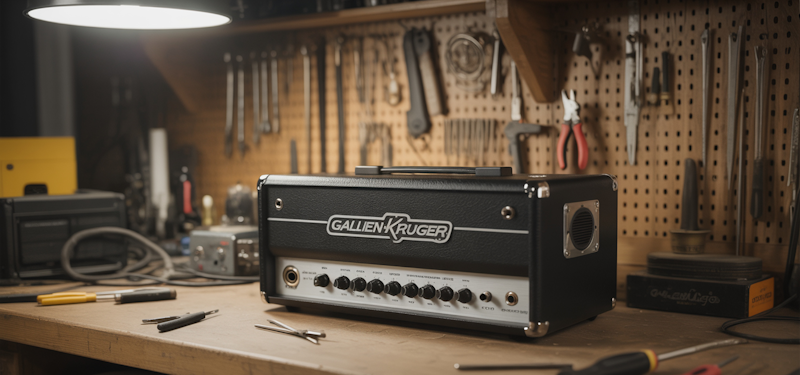

Parts for
Gallien-Kruger
Amps

Hardware     Potentiometers     Jacks     Switch Buttons

     Switches     Jack Panels     Power Cords     Schematics


Click on photo for
larger view
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust.   Used to connect a ground wire to a screw and nut on a chassis.  Angled, with two holes for soldering wires.   With built-in lock washer to keep the screw and nut from loosening.   Designed for a #8 size screw.   Pack of 5 terminals.

Part #GL-113
$1.39
(Pack of 5 terminals)




Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.

This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for large rack cabinets or speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 1" tall. Mounting screws not included.

Part #BRF-1691
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.

This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter (wide end) x 3/4" diameter (narrow end) x 0.85" tall.  Mounting screws not included.  Set of 4 feet.

Part #BRF-9105
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.

This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.
Part #BRF-1692
$4.95
(pack of 4)



Click on photo for
larger view
POT, Gallien-Krueger, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING
Used in many Gallien-Krueger amp models with PC board circuitry, including the 700RB, 800RB and 1000RB (original series from the late 1990s).  Note:  These pots do not fit all G-K amps.  Compare carefully with the photo, or inquire if unsure.  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.


INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut found in this section)
Part #P-GKP-XX

$3.95

Select Option 1:


Quantity:


Click on photo for
larger view

JACK, 1/4", MONO 4-PIN, PC MOUNT, Gallien-Krueger AMPS
Gallien-Krueger
PCB mount 1/4" jack. Tip/Sleeve, 4 pin. Fits certain Gallien-Krueger models (including the G-K Backline 210 and some of the G-K RB series, such as the 400RB-III, 400RB-IV, 700RB, 2001RB, 1001RB, 1001RB-II).  Gallien-Krueger part number 092-0081-0 and 092-0082-0.    Black nut is included.
Part #J-519

$2.95



Click on photo for
larger view

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Metal 3/8" Threads
Used by Fender
and Gallien-Krueger.  PCB mount 1/4" jack. T/R/S, 6 pin.  OEM part number 0059889000.  Nut and washer are included.
Part #J-563

$ 4.75


Click on photo for
larger view
JACK NUT AND WASHER, METAL, SWITCHCRAFT
Genuine Switchcraft™ nut and washer set for the J-563 jack.

Part #JNUT-38

$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$3.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft
Found in vintage Fender
(and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender™ part number 0021550000 (originally 021550).   Peavey part number 71466004.
Part #J-12A
$4.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$5.50


Click on photo for
larger view
Gallien-Krueger™ PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for switching on the front panel of the 400RB-II, 400RB-III, 400RB-IV, 700RB-II, 1001RB-II, the MicroBass Series, Backline 110, Backline 112, Backline 115, Backline 210, and Backline 350 G-K amps.   Original Gallien-Krueger part number 090-0012-0.    For the switch cap, see either the K-212 or the K-058, depending on the amplifier model.  Has actuator shaft of 2.7mm square.
Part #090-0012-0
$4.95


Click on photo for
larger view
BUTTON, for push switch, Black.  This black button pushes onto the switch stem.   Used on channel control and drive boost switches on the front panel of the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior.  Original Fender™ part number 0028104000.   Also fits the Gallien-Krueger MB150E amp.  Button only - not the complete switch.  Fits switches with actuator shaft of 2.7mm square.
Part #K-058
$2.95


Click on photo for
larger view
ROUND SWITCH CAP - FITS SW-212 and 090-0012-0
This is a black 5mm (approx 3/16") diameter X 9mm long switch cap which fits the SW-212 and 090-0012-0 Push Switches.   Exact replacement for most of the round caps used on the Gallien-Krueger 400RB-II, 700RB-II, 1001RB and similar models.   Fits push switches with   actuator shaft of 2.7mm square.   The diameter of this switch cap is smaller than the original round switch cap from Marshall™ found on some of the early ValveState models.  Does NOT fit the TSL/DSL amps in the JCM2000 series.  Does NOT fit the SW-650, SW-701, or SW-206 switches

Part #K-212
$1.50


Click on photo for
larger view

JACK PLATE FOR SPEAKER CABINET, BLACK METAL, DUAL BRITISH 1/4"
This is a tough, durable 1.2mm Black Oxide Steel recessed jack plate, with two British J-502 jacks  installed.   Also included are four #8 x 3/4" black mounting screws.   Wire not included.    Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JPC-344B

$7.95


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180
$1.89


Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$6.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.   Replacement Cord For Many Guitar Amps, Power Amps, Effects Units, Etc. 10 Ft Length Give Extra Flexibility In Equipment Placement, Reduces Use Of Extension Cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95
