MG Series
Parts

We carry a complete selection of Marshall™ Amplifier parts for both vintage and modern amps.

Jacks     Pots     Potentiometer Kits     Knobs     Switches
Power Cords     Output Chip     Fans

Back to Marshall™ Amp Parts Index





Jacks

Click on photo for
larger view
WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and chrome nut jacks to provide proper spacing.   Jacks come with the washers included, but the washers are easily lost.  Without the washers, the jacks will not fit properly.

Part #W-583
$0.18
for each washer.
(Jacks not included).



Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE
Stereo jack. 6 PC board terminals, switched.  With nut and washer.  British style.
Part #J-504
$2.15


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, PACK OF 6
Stereo jack. 6 PC board terminals, switched.  Pack of 6 jacks, with nuts and washers.
Part #J-504-6
$10.99
(Set of 6 jacks)



Click on photo for
larger view

SAVE WITH OUR MULTIPACK ASSORTMENT!  THIS PACK CONTAINS THREE J-503 (4 PIN) AND THREE J-504 (6-PIN) JACKS.
Many amps contain both the 4 pin and the 6 pin British jacks.   This assortment gives you 3 of each jack ...  Three J-503, and three J-504.

Part # J-5034-6

$10.49
(For 3 J-503 Jacks and 3 J-504 Jacks)


Click on photo for
larger view
JACK, 1/4", T/R/S PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-504, with the addition of a special ground washer which contacts the chassis AND is inserted into the ground connection of the PC board via dual pins under the jack.   6 PC board terminals for signal, plus 2 additional terminals for the ground washer.   Only for amplifiers so equipped for this jack, designed
to reduced EMI/RFI interference (radio stations, ground loops).  Found in some Marshall solid state amps, as well as other brands.   Note:  Must be used only on amps designed for this type of jack that have the PCB holes to accept the pins of the ground washer.  Nut is included.
Part #J-504GW
$2.89


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, EXTRA-TALL LEGS.   May be used as a replacement for the footswitch jack on the Marshall™ MG100HDFX.  6 pins, PC mount, with nut and washer.  Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.
Part #J-504SL
$3.95


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE

4 PC board terminals, switched.  Used in many modern Marshall™TM amp models, including the JCM900 series, the Valvestate Series 1 models, JCM2000 series, MG Series and several others.   Also used in many others brands of amps.   With nut and washer.    Marshall part number J3B6005A or S122.
Part #J-503
$1.99


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-503, with the addition of a special ground washer which contacts the chassis AND is inserted into the ground connection of the PC board via dual pins under the jack.   4 PC board terminals for signal, plus 2 additional terminals for the ground washer.   Only for amplifiers so equipped for this jack, designed
to reduced EMI/RFI interference (radio stations, ground loops).  Found in some Marshall solid state amps, as well as other brands.   Note:  Must be used only on amps designed for this type of jack that have the PCB holes to accept the pins of the ground washer.  Nut is included.
Part #J-503GW
$2.59


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
4 PC board terminals, switched.  Used in many brands of amps and other equipment.   Same footprint as J-503 jack - may be used in place of J-503 to add a touch of "chrome" class to your amp!
Part #J-603
$2.79
(per jack)



Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE, PACK OF 6
4 PC board terminals, switched. Used in many modern Marshall™TM amp models, including the JCM900 series, the Valvestate Series 1 models, JCM2000 series, and several others.   Also used in many others brands of amps.    Marshall part number J3B6005A or S122.    Pack of 6 jacks, with nuts and washers.
Part #J-503-6
$9.99
(Set of 6 jacks)



Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, EXTRA-TALL LEGS.   May be used as a replacement for the rear panel jacks FX loop jacks on the Marshall™ MG100DFX and also as the speaker jacks on the MG100HDFX.  4 pins, PC mount, with nut and washer.  Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.
Part #J-503SL
$3.45


Click on photo for
larger view

JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, 6 Pins


Used in the Marshall™ G50RCD, G80RCD and G100RCD as the input jack.   6 pins, as shown in the photo.  No trim ring on the front of jack - only black plastic.  Low profile design.   Used only in the G50RCD, G80RCD, and G100RCD.  Includes nut and washer.


Part # J-530

$6.75


Click on photo for
larger view


JACK, 1/4",  MARSHALL, MONO, 3 PINS
Used as the input jack in the Marshall G10 MKII.    Marshall part number V9158.  No trim ring at the mouth of the jack - black plastic.  Includes nut and washer.

Part #J-9158

$6.70



Click on photo for
larger view


JACK, 1/4", Marshall™ G SERIES, INPUT, LINE OUT, FOOTSWITCH,  PC MOUNT, HAS RED STRIPE, ALSO USED IN YAMAHA, KORG, FENDER.    MONO, SWITCHED.
Used in certain Marshall™ G-series amps from the late 90s  - compare with original jack.   Back legs are slightly staggered - not positioned directly across from each other.   Check the back of the existing jack - if the back is red and the back legs are staggered, this would be the correct replacement.  NUT AND WASHER ARE INCLUDED.  Used as the input jack and the line out jack in the Marshall™ G15RCD.   Used as the input, line out and footswitch jack in the Marshall™ G30RCD.   Used as the line out, footswitch, FX send and return jacks in the Marshall™ G50RCD.   Used as the input jack on certain Fender™ SideKick amps, such as the SideKick Chorus 20.   Also used in Korg and Yamaha keyboards - Korg part number 454X851003, Yamaha part number LB202330.

Part #J-531
$4.75


Click on photo for
larger view



JACK, 1/4", 7-PIN, HEADPHONE,  USED IN Marshall™, FENDER™, YAMAHA™ & OTHERS, PC MOUNT
Used as the headphone jack in the Marshall™ G15RCD and G30RCD.   Original Marshall™ part number V4550.   Used as the headphone jack in Yamaha models YPR6, HE6, PSR520, YPR8, and other models.   Original Yamaha part number LB10187R.   Used in the Fender Sidekick Bass Amp as the headphone jack, Fender part number 022923.  Used in the Korg Triton Studio, Triton extreme, M3, CI8600, CI9600.  Korg part number 454005600, YKB21-5006.  Casio Part # 36120665.  Note:  No trim ring at jack opening.
   Includes nut and washer.

Part # J-540


$6.70


WITH CHROME TRIM RING

Click on photo for
larger view

JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, USED AS CD OUTPUT JACK, PC MOUNT,  ALSO USED IN YAMAHA, KORG, ROLAND, ENSONIQ.  CHROME SLEEVE.
Used in certain Marshall™ G-series amps from the late 90s - compare with original jack.   Used as the CD input jack in the Marshall™ G15RCD and the G30RCD.   Original Marshall™ part number J1031.   Used for the Headphone output of the Roland S-50 and S-770 and for the Headphone and Ext. Control jack of the Roland U-220.   It also replaces all the jacks in the Korg 01/W and 01R/W, and the CV Pedal jacks in the Ensoniq ESQ-1, ESQ-M, and SQ-80 keyboards.  The jack is equivalent to Roland part # 13449148 (YKB21-5009), Korg part # 454004400, and Behringer part # W64-01081-03178.  Used in the Behringer V-Amp and P16-M.  The chrome sleeve at the jacks opening is cosmetic.  The jack will replace equivalent jacks that have a gold sleeve or no sleeve.   Nut and washer are included.  Replacement nut/washer set is the JN-916.

Part #J-532
$4.75


Click on photo for
larger view
MARSHALL MINI-JACK, STEREO, 3.5mm
Used as the Line Out, Headphone, or Music Source Input Jack on the MG15CFX, MG30CFX, MG50CFX, MG100CFX, MG15FX, MG30FX, MG50FX, MG100FX, MG15GFX, MG30GFX, MG50GFX, MG100GFX.   Accepts 1/8 inch or 3.5mm stereo mini-plugs.
Part #J-355
$2.50


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Replacement jack nut as found on the J-503, J-504 jacks.
 Part #J-5NT
$0.50


Click on photo for
larger view
JACK NUT MULTI-PACK - SAVE!   6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Replacement jack nut as found on the  J-503, J-504 jacks
Part #J-5NT-6
$2.39


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, RED
Replacement nut for the J-503, J-504.
Red nuts on these jacks typically are used on later model Marshall™ amps to designate the 'speaker' jacks.
Part #J-5NTR
$1.00


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L, J-504L, J-518 and J-519 black jacks, if you wish to create a two-tone effect.
Part #J-5NTW
$1.00

NUT AND WASHER, NICKEL, KOBICONN OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531 , J-532, J-532G, J-533, J-533G, J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560.
Part #JN-916

$0.75

Potentiometer Kits

Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 14 SINGLE GANG POTS AND 1 DUAL GANG POT.   ORIGINAL Marshall™ REPLACEMENT PARTS -  MG100HDFX HEAD (NOT THE COMBO)
Complete replacement Potentiometer Kit for the Marshall™ MG100HDFX head with 15 pots on the front panel
Part #MPK-17
$39.95


Quantity:


Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 14 SINGLE GANG POTS AND 1 DUAL GANG POT.   ORIGINAL Marshall™ REPLACEMENT PARTS -  MG100DFX COMBO (NOT the MG100HDFX HEAD!)
Complete replacement Potentiometer Kit for the Marshall™ MG100DFX combo with 15 pots on the front panel.
$39.95


Quantity:


Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 12 SINGLE GANG POTS AND 1 DUAL GANG POT.   ORIGINAL Marshall™ REPLACEMENT PARTS -  MG250DFX COMBO
Complete replacement Potentiometer Kit for the Marshall™ MG250DFX combo with 13 pots on the front panel.
Part #MPK-19
$36.95


Quantity:


Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 13 POTS TOTAL.  ORIGINAL Marshall™ REPLACEMENT PARTS.  Marshall™ MODEL MG50DFX.
Complete replacement Potentiometer Kit for the Marshall™ Model MG50DFX.  13 pots on the front panel.
Part #MPK-21
$45.95


Quantity:


Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 13 POTS TOTAL.  ORIGINAL Marshall™ REPLACEMENT PARTS.  Marshall™ MODELS G80RCD and G100RCD.
Complete replacement Potentiometer Kit for the Marshall™ Models G80RCD or G100RCD.  13 pots on the front panel.
Part #MPK-22
$45.95


Quantity:


Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 10 SINGLE GANG POTS.   ORIGINAL Marshall™ REPLACEMENT PARTS -  MG30DFX
Complete replacement Potentiometer Kit for the Marshall™ MG30DFX with 10 pots on the front panel.
Part #MPK-25
$25.95


Click on photo for
larger view
Complete Marshall™ Potentiometer Kit, 8 SINGLE GANG POTS.   ORIGINAL Marshall™ REPLACEMENT PARTS -  MG15DFX
Complete replacement Potentiometer Kit for the Marshall™ MG15DFX combo with 8 pots on the front panel.   Instructions included.

Part #MPK-35
$21.95

Potentiometers

Click on photo for
larger view
POT, PC MOUNT, MG SERIES, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the Marshall™ G10MKII, G10CD, G15RCD, G30RCD, G215RCD, G50RCD, G80RCD, G100RCD, B25, MG10CD, MG15CD, MG15CDR, MG15DFX, MG30DFX, MG50DFX, MG100DFX, MG250DFX, MG100HDFX.  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.  Click on photo for more detail.     Download cross-reference guide for these pots.


INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-MGP-XX

$3.95

Select Option:



Quantity:


Click on photo for
larger view

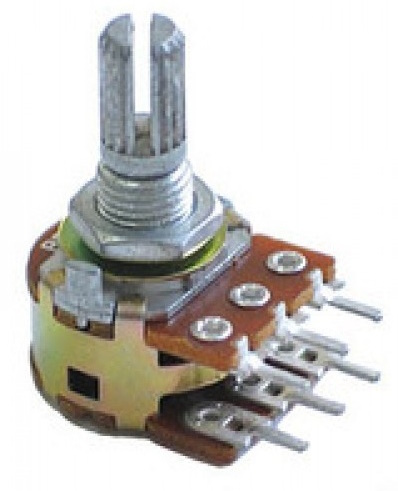

POT, DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the Marshall™ MG100HDFX (Loop Level), MG100DFX (Loop Level), MG250DFX (Master Volume).  Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.  Click on photo for more detail.  Replaces Marshall™ part number POTP-90036.  Download cross-reference guide for these pots.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-MGP-10KBX2
$6.95



Click on photo for
larger view
POT, 10K LINEAR, 9mm, Marshall™, PC MOUNT.  LABELED "B10K", D-Shaft.
Used in the fourth series of MG amplifiers - the ones with the large MG on the faceplate (see photo), such as the MG100FX.    Includes nut and washer.   In the MG100FX, this pot is used in all control locations, all functions.   Replaces original Marshall™ part number M-POTP-91001.

Part #P-VMG-10KL
$9.95

Quantity:

Knobs

Click on photo for
larger view
KNOB, Revisit™ Quality Reproduction of Marshall™ Knob, Push-on Knurled, Single Knob. Excellent quality aftermarket Marshall™ control knobs, push-on type.   Black with gold top.  Designed for the "knurled" type control shafts.    Used on the MG-series amps, except for the latest MG series with the large "MG" on the front panel.   Since Marshall™ has recently changed the appearance of their original Marshall™ brand knobs (duller and more of an orange-gold color), we believe these reproduction knob are now actually closer in appearance to the original Marshall™ knobs.
Part #MKCPT
$1.89
(Single Knob)


Click on photo for
larger view
KNOB SET, Revisit™ Quality Reproduction of Marshall™ Knobs, Push-on Knurled, Set of 6. Excellent quality aftermarket Marshall™ control knobs, push-on type, set of 6 knobs.   Black with gold top.  Designed for the "knurled" type control shafts.    Used on the MG-series amps, except for the latest MG series with the large "MG" on the front panel.   Since Marshall™ has recently changed the appearance of their original Marshall™ brand knobs (duller and more of an orange-gold color), we believe these reproduction knobs are now actually closer in appearance to the original Marshall™ knobs.
Part #MKCPT-6
$9.95
(Set of 6 knobs)


Click on photo for
larger view
KNOB SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of 25.   Excellent quality aftermarket Marshall™ control knobs, push-on type, set of 25 knobs.  Designed for the "knurled" type control shafts   Black with gold top.  Nothing perks up the tired looks of a road-worthy Marshall™ like a complete new set of knobs.  Quality reproduction of the original Marshall™ knobs at half of the cost.  This set of 25 knobs is great for repair shops, at less than $1.00 per knob.    Since Marshall™ has recently changed the appearance of their original Marshall™ brand knobs (duller and more of an orange-gold color), we believe these reproduction knobs are now actually closer in appearance to the original Marshall™ knobs.
Part #MKCPT-25
$24.95
(Set of 25 knobs)



Click on photo for
larger view
KNOB SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of 50.   Excellent quality aftermarket Marshall™ control knobs, push-on type, set of 50 knobs.  Designed for the "knurled" type control shafts. Black with gold top.   Nothing perks up the tired looks of a road-worthy Marshall™ like a complete new set of knobs.  Quality reproduction of the original Marshall™ knobs at half of the cost.  This set of 50 knobs is great for repair shops, at less than 80 cents per knob.    Since Marshall™ has recently changed the appearance of their original Marshall™ brand knobs (duller and more of an orange-gold color), we believe these reproduction knobs are now actually closer in appearance to the original Marshall™ knobs.
Part #MKCPT-50
$39.95
(Set of 50 knobs)



Click on photo for
larger view

KNOB, Revisit Marshall™, PUSH ON D-SHAFT

Standard Revisit Marshall™ control knob, push-on type, for D-Shaft pots used in the latest MG-series amps with the large MG on the front panel.  (MG10, MG15, MG15FX, MG30FX, MG50FX, MG100FX, MG100HFX, MG102FX).    The R-MKDS-C Knob is constructed so that the pointer on the front of the knob is 180 degrees away from the flat spot in the shaft hole on the back side of the knob.
Part #R-MKDS-C

$2.99
(Single Knob)


Switches

Click on photo for
larger view

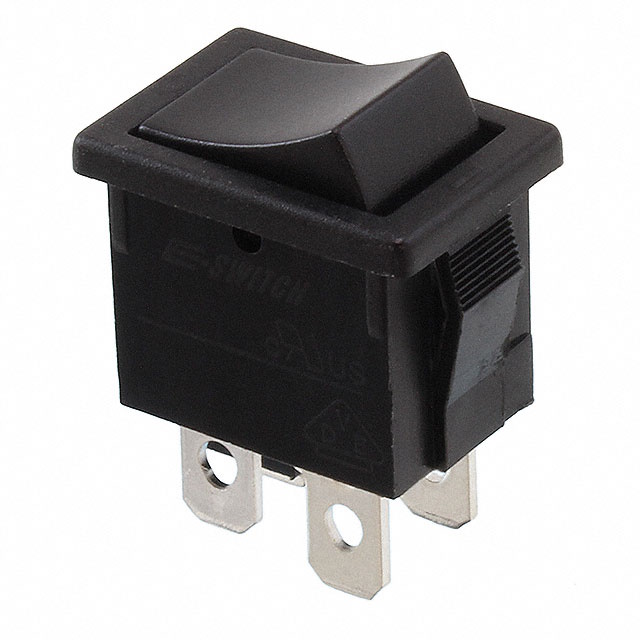

ORIGINAL Marshall™ MINI ROCKER SWITCH FOR Marshall™ MG SERIES - MARKED 0-1 FOR ON/OFF
DPDT Mini Rocker Switch.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   Original Marshall™  replacement.   0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, DPST with .187" tabs.
Part #SW-489
$3.95


Click on photo for
larger view
ORIGINAL Marshall™ MINI ROCKER SWITCH FOR Marshall™ MG SERIES - LIGHTED
DPDT Mini Rocker Switch with internal light.  Has 4 electrical terminals on back of switch.   Red lighted version - easier to see than the tiny LED Marshall™ originally provided as a power-on light.    0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, DPST with .187" tabs.    To ensure that the light works properly, make sure that the terminals directly behind the "1" on the rocker portion feed the power transformer, while the terminals behind the "0" are connected to the incoming power source.
Part #SW-489L
$4.95


Click on photo for
larger view
ORIGINAL Marshall™ , VOX, AND Blackstar™ PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT)Used by Marshall in the following models:  MG15DFX, MG30DFX, MG50DFX, MG100DFX, MG100HDFX, MG250DFX..  Used by Marshall as follows:
TSL100:
MID BOOST SWITCH CLEAN SW2
CLEAN/OD SWITCH SW1
OD/CRUNCH SWITCH SW3
DEEP SWITCH OD SW2
DEEP SWITCH CLEAN SW2
V.P.R.SWITCH SW3
OUTPUT MUTE SWITCH SW4
LOOP LEVEL SWITCH A SW2
LOOP LEVEL SWITCH B SW3

MB450H: Classic Channel Boost

DSL40C and DSL100H: SW2 (Channel Select), SW3 (Lead1/Lead2), SW5 (FX-Loop ON/OFF)

Used in the Vox™ Pathfinder, V9168R,  with Reverb.  Vox™ part number V3650 and V904530002.   Used in most Blackstar™ Amps as SW2; also on back PCB: SW1; SW2; and SW3.  Blackstar™ part number MCSWH02002.   Also found in other brands of amplifiers.  Actuator shaft is 3.3mm square.
Part #SW-650

$4.95


Click on photo for
larger view

Marshall™ STYLE DUAL FOOTSWITCH
Aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.  Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.  Works with the Marshall™ MG50DFX, MG100DFX, MG100HDFX and MG250DFX models.   Stereo 1/4" Plug, 16 ft. cable.
Part #FBS-471
$37.95


Click on photo for
larger view

Marshall™ STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.    Mono 1/4" Plug, 16 ft. cable.   Standard design - footswitch operation shorts the tip to the sleeve - will work with other makes and models of amplifiers as well as Marshall™.   Replaces Marshall™ stock numbers P801 and PEDL-00008.   Works with the Marshall™ models 1962, 8040, 2555, 2550, 2558, 2553, 2554.   JTM60 models:  JTM600-610-615-612-622.   JCM600 models 600-601-602.   JCM900 models 2100-2500-2501-2101-2502.   JTM30 models 310-312.   DBS models 7200-7400-72410-72115.  Rackmount amps 9100-9200.   MG Series I model G50RCD.    IBS models 3520-5522-3540.
Part #FBS-470
$29.95


Click on photo for
larger view

UNIVERSAL STYLE DUAL FOOTSWITCH WITH REMOVABLE CABLE.   Revisit™ replacement for foot switch boxes with stereo 1/4" plug for the amplifier connection.   10 foot long cable is removable from the foot switch box - has a stereo 1/4" plug for connection at both the foot switch end and the amplifier end.    Replaces Marshall™ stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017.   Fits the Marshall™ JCM900 series:  4100-4500-4101-4501-4102-4502.   The JCM800 series 2210-2205-4210-4212-4211.   The ValveState series:  8080-8100-8200-8280-8240.   The MG Series 1: G80RCD-G100RCD.  The Acoustic Soloist:  AS80R.  Includes the dual footswitch box and the stereo cable (10 ft).
Advantages of the removable cable include:
  • Easy to replace cable - no disassembly or soldering needed
  • Easy to change to a different configuration footswitch by changing the cable (for example, to a mono Y-cord for Roland amps)
  • Cable has metal 1/4" plugs with spring strain reliefs for durability

Part #FBS-671

$44.95

Power Cords

Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$6.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Replacement cord for many guitar amps, power amps, effects units, etc. 10 ft length giveS extra flexibility in equipment placement, reduces use of extension cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95

Output Chip

Click on photo for
larger view
TDA7293 OUTPUT CHIP, COMMONLY FOUND IN Marshall™ MG Series (MG50DFX, MG100DFX, MG100HDFX, MG250DFX).  15 pins.  Rated 100 WATT output, at up to 120V SUPPLY.
Part #TDA7293 / TDA7293V
$17.95

Fans

Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG SERIES AMPS - PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOWER NOISE
Fits many of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models.  IMPORTANT NOTE:   Does NOT fit the MG50FX, MG100FX, or MG100HFX models - these are the models with the large "MG" on the front panel.  Check model number carefully.   Note:   Check size of the old fan.   If the old fan is 2" x 2" x 3/8", this is the correct fan.   Some Marshall™ versions of the MG100DFX, MG100HDFX, MG50DFX and the MG250DFX used a larger fan (2 3/8" x 2 3/8" x 1").   If your amp has the larger fan, order the OD6025-12, below.   12 volts DC, 1.10 Watts, 5000 RPM, 11.0 Cubic Feet/Minute Airflow, 26dBA Noise.   Comes with 12" tinned leads - cut off and splice connector from original fan.   Ratings:   Reliability:  A,  Airflow:  A,  Noise:   A-,  Price:   B-
Part #OD5010-12

Installation video for fan:



$23.95


Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG Series PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOW NOISE
Fits some versions of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models.  IMPORTANT NOTE:   Does NOT fit the MG50FX, MG100FX, or MG100HFX models - these are the models with the large "MG" on the front panel.  Check model number carefully.   Note:   Check size of the old fan.   If the old fan is 2 3/8" x 2 3/8" x 1", this is the correct fan.   Some Marshall™ versions of the MG100DFX, MG100HDFX, MG50DFX and the MG250DFX used a smaller fan (2"  x 2" x 3/8").   If your amp has the smaller fan, order the OD5010-12, above.  12 volts DC, 1.70 Watts, 3500 RPM, 18.0 Cubic Feet/Minute Airflow, 27dBA Noise.    Comes with 12" tinned leads - cut off and splice connector from original fan.   Ratings:   Reliability:  A,  Airflow:  A,  Noise:   B,  Price:  B
Part #OD6025-12
$19.95
