Click on photo for
larger view |
POT, 22K-25K VERTICAL LINEAR BIAS ADJUST POT FOR Marshall™
Used in many previous Marshall™ models
with PC board circuitry. Mounted on the main PC board - used to set the bias on the output tubes. Common failure item.
This is the original Marshall™ part. Body of pot is 15mm (about 5/8")
in diameter.
Part #P-BPM-22KL-V |
$2.95 |
|
Click on photo for
larger view |
 POT,
22K-25K HORIZONTAL LINEAR BIAS ADJUST POT FOR Marshall™
Mounted on the main PC board or turret
boards - used to set the bias on the output tubes. This style has
3 pins for mounting - see photo. Common failure item.
This is an alternate horizontal style - particularly useful in modifications, kit
builds, etc. Body of pot is 15mm (about 5/8") in diameter.
Part #P-BPM-22KL-H |
$2.95 |
|
Click on photo for
larger view |
 POT,
JCM2000 SERIES 22K LINEAR BIAS ADJUST POT FOR Marshall™
Marshall part number POTTR22K, used as
bias adjust pots. Found in the DSL-50, DSL-100, TSL-100, TSL-122
models in the JCM2000. Each amplifier uses two bias pots.
Part #POT-TR22K |
$3.50 |
|
Click on photo for
larger view |

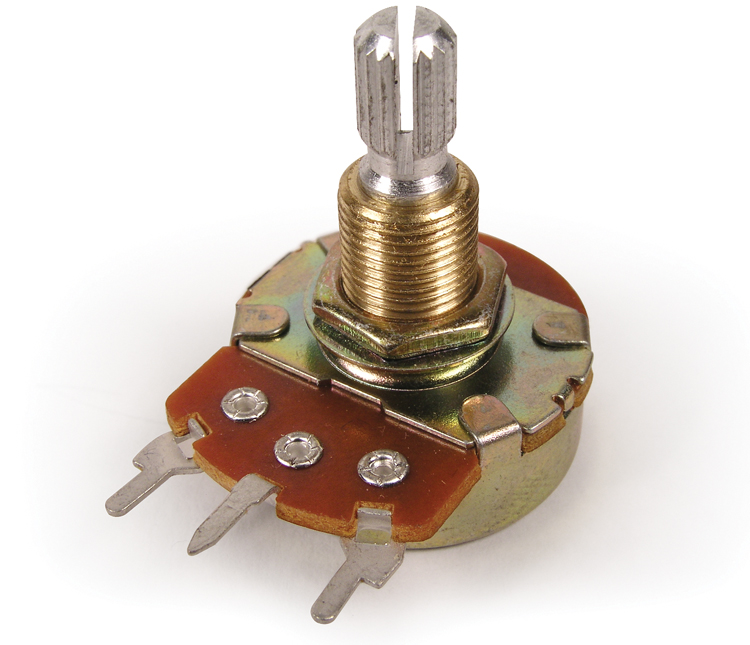

POT, ORIGINAL Marshall™
, PC MOUNT, 24mm DIAMETER BODY,
9.5mm DIAMETER THREADED BUSHING.
Used in many previous Marshall™ models with PC board circuitry (such as
the later JCM800 series). Original Marshall replacement with 8.8mm
(nominal 9mm)
diameter threaded bushing. Bushing length is 9.5mm. Diameter of the body of the pot is the size of a quarter
(about 1 inch or 24mm).
Includes washer and two nuts. Replacement nut is the JN-975. Pots
are manufactured by Alpha, Song Huei, or Di Ya for Marshall. Select Pot Value in Options
Part #P-VM24-XX |
$6.95
| Note - the B4.7K, the B22K, and the
B220K sizes are currently
unavailable from Marshall. Use the B4.7K, B22K and/or the
B220K in the P-VM24AP
style pot below as alternatives. |
|
|
Click on photo for
larger view |
POT, AFTERMARKET Marshall™ TYPE, PC MOUNT, 24mm DIAMETER BODY, 8mm DIAMETER THREADED BUSHING.
This is an alternative pot for 24mm
Marshall pots - made by Alpha. 7.8mm (nominal 8mm)
diameter threaded bushing. Bushing length is 10.5mm. Diameter of the body of the pot is the size of a quarter.
This pot has a smaller diameter bushing than the original - however, unlike many other suppliers,
we include all necessary washers (2) and nuts (3) to be a drop-in
replacement for the original Marshall™ pot.
Replacement nut is the JN-1016. Select Pot Value in Options
Part #P-VM24AP |
$6.95 |
|
Click on photo for
larger view
|
POT - CTS, 3/8" BUSHING
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter
solid metal shaft, 3/8" bushing, solder lugs. Fits perfectly in vintage amps
like Fender™ (Tweed, Brownface, Blonde, original Blackface and original Silverface Models), all
Marshalls up to 1979 and some of the JCM800 versions, vintage Vox, vintage
Orange, vintage Hiwatt, vintage Boogie, Sound City, Music Man and many more. With correct
1/4" shaft and 3/8" bushing. Superior quality, solderable back!
CTS was the original OEM supplier for vintage Fender™ pots. Note:
250K J-Taper, 1 Meg J-Taper, and 3 Meg Reverse Audio (C3M) pots have brass
colored shafts.
Select Pot Value in Options
INCLUDES NUT & WASHER
(For spare or replacement nut, order the JNUT-38
nut found in this section)
Part #P-VC-XX |
Starting at
$5.95 |
|
Click on photo for
larger view
|
POT - CTS, 3/8" BUSHING,
NYLON SHAFT
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter
nylon shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired amplifiers such as vintage Fender™,
Marshall and others.
Nylon shaft pots were used in most Fender silverface series amps from the late
60s and 70s. Some Marshall JCM800 series amps used this pot in the 1980s.
CTS was the original OEM supplier for vintage Fender™ and Marshall pots.
INCLUDES NUT & WASHER
(For spare or replacement nut, order the JNUT-38
nut found in this section)
Part #P-VCT-XX |
Starting at
$4.95 |
|
Click on photos for
larger view |
BRASS
POT ADAPTER SLEEVE
Do you want to put a 1/4" set-screw knob on
your 1/4" knurled shaft potentiometer? Do you need to eliminate the
off-center problem when using a 1/4" set screw knob on a 6mm shaft pot?Just slip one of
our solid brass pot adapter sleeves onto any 1/4" knurled pot shaft
or 6mm pot shaft to ensure a
snug and secure fit for a 1/4" (6.35mm) smooth shaft knob. We have tested this adapter extensively, and it really does work great!
Note: Will NOT work with 3/16" knurled
shaft pots. Those smaller knurled shafts are typically found in Crate and
Peavey amps. Not recommended for D-shaft type shafts.
Part #PAS-635 |
$0.95 |
|
Click on photo for
larger view |
POT NUT, METAL
Replacement metric nut for the Marshall™ 24mm pots (P-Vxxxx-M24) which
have brass colored threaded bushings. Metric
threads M9x.075 zinc plated.
These nuts typically fit the original pots
used in vintage Marshalls.
They do not fit the newer
Alpha replacement 24mm pots which have silver colored threaded bushings - for those
pots, see the JN-1016 nut.
Part #JN-975 |
$0.49 |
|
Click on photo for
larger view |
POT
WASHER, METAL
Replacement metric washer for the Marshall™ 24mm pots (P-Vxxxx-M24) which
have brass colored threaded bushings.
9mm ID, 15mm OD.
These washers typically fit the original pots
used in vintage Marshalls, and the original Marshall™ replacement pots that we
sell.
They do not fit 3/8" diameter pot bushings (such as
pots in vintage Fender amps), or Switchcraft jacks.
Part #JW-9 |
$0.19 |
|
Click on photo for
larger view |
POT NUT, METAL, 8MM
Replacement nut for the Fender™ bracket mount pots with smooth 1/4" shafts
(FPHD-xxxx), such as used on the Hot Rod Deluxe/Deville, Blues
Deluxe/Deville. Also fits the substitute replacement pots for
Marshall™ 24mm with silver-colored threaded bushings, and our P-VA-XX pots. Metric threads M8x.075 zinc
plated.
Part #JN-1016 |
$0.39 |
|
Click on photo for
larger view |
POT NUT, METAL
Replacement metric nut for the Marshall™ 11mm (P-VKG type) Metric
threads M9x.075 zinc plated.
Part #JN-VKG11 |
$0.49 |
|
Click on photo for
larger view |
POTENTIOMETER NUT AND WASHER, METAL
Replacement nut for the Marshall™ style 16mm
pots (P-Vxxxx-M16, P-MGP-XXX and P-Vxxxx-M16S). Metric threads
M7x.075 zinc plated.
Part #PNW-16 |
$0.45 |
|
Click on photo for
larger view |
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
ORIGINAL Marshall™ REPLACEMENT PART.
Used in Marshall™ Valvestate I, JCM900, JCM600,
JTM30, JTM60, and 6100 Series. Used in Marshall™ models: AS80R, 8040, 8080, 8100, 8200, 8240, 8280,
JCM900 Models: 2100, 2101, 2500, 2501, 4100, 4500, 4101, 4102, 4501, 4502, SL-X
2100, SL-X 2500, 6100, 6101, JTM60 and JTM30 Series.
Also
used in other amps besides Marshall™.
Available values: B4.7K, B10K, B22K, B50K, A100K, B100K, B220K, and
A1M. Select Pot Value in Options
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VM16-XX |
$2.95 |
|
Click on photo for
larger view |
POTENTIOMETER DUST CAP,
for all 16mm (5/8") pots. Slips over the case of the pot and helps keep out dust and contamination.
Made by Alpha. Fits all 16mm potentiometers. Sold individually. Note: For single-gang pots only - will not fit
dual 16mm pots.
Part #PDC-16 |
$0.20 each |
|
Click on photo for
larger view |
POT, 10K OHM X2 LINEAR DUAL, (B10K), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.
ORIGINAL Marshall™ REPLACEMENT PART.
Used in Marshall™ Valvestate I, JCM900 and JCM600 Series. Also used in the
JMP1 Preamp as Output Level Control. Used in Marshall™ models:
AS80R, 8200, 8240, 8280, JCM900 Models:
2100, 2101, 2500, 2501, 4100, 4500, 4101, 4102, 4501, 4502, SL-X 2100,
SL-X 2500, JTM60 and JTM30 Series. Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 11.5mm. Fits many other amps besides Marshall™.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-V10KLX2-M16 |
$6.95 |
|
Click on photo for
larger view |
Complete Marshall™ Potentiometer Kit,
11 POTS TOTAL. ORIGINAL Marshall™ REPLACEMENT PARTS.
MARSHALL VS65R.
Complete replacement Potentiometer Kit for the
Marshall™ ValveState Model VS65R. 11 pots on the front panel.
Part #MPK-15 |
$62.95 |
|
Click on photo for
larger view |
Complete Marshall™ Potentiometer Kit,
15 POTS TOTAL. ORIGINAL Marshall™ REPLACEMENT PARTS.
MARSHALL VS100 AND VS100R MODELS.
Complete replacement Potentiometer Kit for the
Marshall™ ValveState Models VS100, VS100R, VS102R, VS100H or VS100RH. 15 pots on the front panel.
Part #MPK-16 |
$81.95 |
|
Click on photo for
larger view |
POT, 11mm, Marshall™ TYPE, PC MOUNT.
Used in many later Marshall™ models with PC board circuitry, including the JCM2000 series TSL100,
TSL122, DSL100, DSL50 as well as some of the late 90's ValveState models and the
MA50/MA100 amps. This pot has 4
pins. Includes mounting nut. Available values: A5K, B5K, B10K,
A10K, B20K, B50K, A100K, B100K, A200K, B200K, A500K, and A1M. Select Pot Value in Options
Part #P-VKG-XX |
$6.95 |
|
Click on photo for
larger view |
POT,
DUAL TANDEM, 7 pins, 14mm, A200K, Marshall™ TYPE, PC MOUNT.
Used in the Marshall™ DSL401 as the
master volume control. This pot has 7 pins.
Marshall™ part number
POTP00076.
Includes mounting nut.
Part #P-VKG-A200KX2 |
$15.95 |
|
Click on photo for
larger view |
POT, 10K LINEAR, 9mm, Marshall™, PC MOUNT. LABELED "B10K", D-Shaft.
Used
in the fourth series of MG amplifiers - such as the MG15FX, MG30FX,
MG50FX, MG100FX, etc. Includes nut and
washer. This pot is used in all
control locations, all functions. Replaces original Marshall™ part number
M-POTP-91001.
Part #P-VMG-10KL |
$9.95 |
|
Click on photo for
larger view |
POT, PC MOUNT, MG SERIES, 16mm DIAMETER BODY,
7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in the Marshall™ G10MKII, G10CD,
G15RCD, G30RCD, G215RCD, G50RCD, G80RCD,
G100RCD, B25, MG10CD, MG15CD, MG15CDR, MG15DFX, MG15MSII, MG30DFX, MG50DFX, MG100DFX,
MG250DFX, MG100HDFX, MB15 and MB30. Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 10mm. Click on photo for more detail.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-MGP-XX |
$3.95 |
|
Click on photo for
larger view |
POT, DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING,
MEDIUM SHAFT.
Used in the Marshall™ MG100HDFX (Loop
Level),
MG100DFX (Loop Level), MG250DFX (Master Volume). Diameter of the body of the pot is slightly smaller than a dime. Shaft length is
10mm. Click on photo for more detail.
Replaces Marshall™ part number POTP-90036.
Download cross-reference guide for
these pots.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-MGP-10KBX2 |
$6.95 |
|
