Effects Pedal Parts

Pad and Hardware     Switches     Lamps     Wah Pedal Parts

Powering     ICs     Jacks     Knobs     Pots     Cables

  Cables
REVISIT 8 INCH PANCAKE RIGHT-ANGLE PATCH CABLE   1/4" Tip/Sleeve Shielded Cable.  Right-Angle Pancake to Right-Angle Pancake.  8" long.   Perfect for daily-chaining multiple pedals.  Revisit quality at an affordable price.

Part #CP-108
$3.95

Only 2 CP-108s left in stock!

REVISIT 6 INCH MOLDED RIGHT-ANGLE PATCH CABLE   1/4" Tip/Sleeve Shielded Cable.  Right-Angle Plug to Right-Angle Plug.  6" long.   Perfect for daily-chaining multiple pedals.  Revisit quality at an affordable price.

Part #MCP-106
$1.19

  Adapters and Powering


Click on photo for
larger view

REVISIT EFFECTS PEDAL POWER SUPPLY 9V DC, 1.6 amps.   Input voltage from 100V AC to 240V AC.   Output 9 volts DC, 1600mA, fully regulated.   Connector is a 2.1mm inner diameter, center negative, outside sleeve positive.  Perfect for most pedals which are 9V battery powered.   This compact supply will power up to 10 pedals (assuming each pedal requires 160mA or less).   For powering multiple pedals, see the DCC10X8 cable, below.

Part #PPS-916
$14.95


Click on photo for
larger view

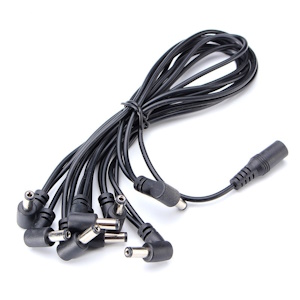

REVISIT PEDAL POWER DAISY CHAIN CABLE
Connect up to 10 Pedals with this Power Cable from a single power supply.  This daisy chain is the industry standard 2.1mm size. There are 1 in and 10 outs. It is well made, has right angle plugs and built with 22AWG wire.  Total length is 8 feet.  The amperage capacity of the power supply you use with this cable needs to be at least as large as the sum of all of the current requirements of your pedals.   For example, if each pedal requires 160mA (or 0.16 amps), the power supply needs to be capable of at least 10 x 0.16 = 1.6 amps (or 1600mA)

Part #DCC10X8
$11.95



Click on photo for
larger view
PEDAL 9V EMERGENCY BATTERY SUPPLY
Consists of a 9V battery clip wired to a 2.1mm x 5mm power connector - wired for positive center.   Add a 9V battery and you have a quick emergency power source for a pedal with a dead battery.   You know, you carry a few spare 9V batteries with you to a gig, but when your pedal dies during a set there is no time between songs to take it apart to swap the battery.   With this ingenious device, you will be up and running again in seconds.  Only for pedals which use a power suppy with + center pin.  9V Battery not included.

Part #EBS-239
$1.99


Click on photo for
larger view

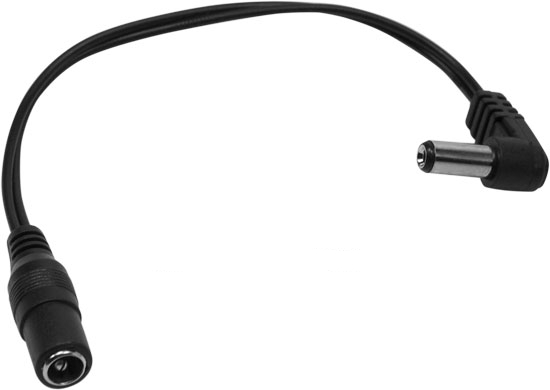

REVISIT POLARITY REVERSING ADAPTER CABLE
Fixes the frustrating problem of having a power supply designed for "center pin positive" and a pedal which requires "center pin negative".  Or vice-versa!   This ingenious adapter cable reverses the center pin with the outside ring, allowing you to successfully use a "backwards" pedal with your pedal power supply.  The connectors are the popular 2.1mm x 5.5mm size.  5 inches long.

Part #PRC-129
$2.29


Click on photo for
larger view

POWER CONNECTOR ADAPTER 2.1mm to 2.5mm
The two most common connectors for AC Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these two connectors are identical, but one uses a larger pin than the other, and therefore They are not compatible.   This Adapter has a 2.1mm pin in the back, with a 2.5mm hole in the front, for cases where the pin in your pedal is just a tiny bit too large for the Adapter.
Part #195-3591
$2.99


Click on photo for
larger view

POWER CONNECTOR ADAPTER 2.5mm to 2.1mm
The two most common connectors for AC adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these two connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible.   This adapter has a 2.5mm pin in the back, with a 2.1mm hole in the front, for cases where the pin in your pedal is just a tiny bit too small for the adapter connector, and your power is intermittent when you move the adapter cable.
Part #195-3604
$2.99


Click on photo for
larger view

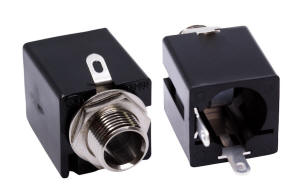

POWER JACK
Handy way to add a power jack for an AC/DC Adapter to an existing devices.   Connector fits the popular 2.1mm x 5.5mm barrel plug found on many adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative adapters.  Fits 1/2" chassis hole.
Part #J-750
$1.49


Click on photo for
larger view

DC POWER JACK
Replacement Barrel DC power jack for many pedals, keyboards, etc which use a PC board mounted DC power jack.  Connector fits the popular 2.1mm x 5.5mm barrel plug found on many adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative adapters.
Part #BJK-118
$0.99


Click on photo for
larger view

1/8" MINI JACK
Switched two-conductor 1/8" mini jack.  Exact replacement for the DC power jack used in the vintage Electro-Harmonix Big Muff and Small Stone, Proco Rat Big Box Reissue and others.
Part #J-218
$0.99


Click on photo for
larger view

POWER BARREL PLUG
Replacement barrel power plug for many AC adapters.  Connector is the popular 2.1mm x 5.5mm barrel plug found on many adapters.   Soldering required to attach to cable.
Part #BP-573
$0.99



Click on photo for
larger view
9V BATTERY CLIP.
Commonly found in effects boxes.   Simple, yet durable construction.    5 3/4" red and black leads.

Part #9VBC
$0.45


Click on photo for
larger view
REPLACEMENT RUBBER TREAD FOR Dunlop™ WAH PEDALS
Dunlop™ Crybaby standard foot tread with adhesive backing.   55mm wide at heal end, 67mm wide at toe end, 193mm long.

Original replacement part for Dunlop™ 105Q Crybaby Bass Wah, Dunlop™ 535Q Crybaby Multi-Wah, Dunlop™ 95Q Crybaby Q-Wah, GCB80, Dunlop™ GCB95 Original Crybaby, Dunlop™ Dunlop™ GCB95 Original CrybabyF Crybaby Classic Wah, Dunlop™ JD-4S Rotovibe Expression Pedal, Dunlop™ UV1FC Univibe Controller Pedal and others.

Part #D-ECB129

$10.95


Click on photo for
larger view
REPLACEMENT SWITCH FELT FOR Dunlop™ WAH PEDALS
Dunlop™ felt pad with adhesive - attaches to underside of foot platform, cushions contact with toe switch.  Approximately 11/16" in diameter.

Original replacement part for Dunlop™ 105Q Crybaby Bass Wah, Dunlop™ 535Q Crybaby Multi-Wah, Dunlop™ 95Q Crybaby Q-Wah, GCB80, Dunlop™ GCB95 Original Crybaby, Dunlop™ Dunlop™ GCB95 Original CrybabyF Crybaby Classic Wah, Dunlop™ JD-4S Rotovibe Expression Pedal, Dunlop™ UV1FC Univibe Controller Pedal and others.

Part #D-ECB031

$2.99


Click on photo for
larger view
REPLACEMENT HOUSING SCREWS FOR MXR™ PEDALS
Set of 4 housing screws for MXR™, Way Huge and other pedals which use 6-32 x 1/2" screws, including pedals which use Bud or Hammond style enclosures.

Replacement screws for Dunlop™ DCB10 DC Brick, MXR™ M101 Phase 90, MXR™ M102 Dyna Comp, MXR™ M103 Blue Box, MXR™ M104 Distortion+, MXR™ M115 Distortion III, MXR™ M132 SuperComp, MXR™ M133 Micro Amp, MXR™ M134 Stereo Chorus, MXR™ M169 Carbon Copy Analog Delay, MXR™ M173 Classic 108 Fuzz, MXR™ M182 El Grande Bass Fuzz, MXR™ MC401 Custom Audio Electronics Boost, MXR™ MC402 Boost Overdrive, Dunlop™ ZW44 Zakk Wylde Overdrive and others.

Part #D-ECB590

$0.59
(for a set of 4 screws)


Click on photo for
larger view
Dunlop™ RUBBER FEET, SET OF 4.
Made for Dunlop™ Crybaby and Vox™ Wah pedals, and other applications where small rubber feet are needed.   Screws included.    Rubber feet are 5/8" diameter x 1/4" tall.
Part #D-ECB151
$6.95


Click on photo for
larger view
RACK, ORIGINAL Dunlop™™
Original Dunlop™ replacement rack for wah pedals (roll pin included : 0.77" length x 0.07" diameter - for mounting the rack to the treadle).
The rack has 14 teeth and mounts to the underside of the treadle piece (rocking structure) of a wah pedal. The teeth of the rack interlock with the teeth of the wah potentiometer gear (i.e. pinion), thereby rotating the potentiometer's shaft as the treadle is rocked back and forth.

Part #D-ECB127
$3.79


Click on photo for
larger view
Dunlop™ DROP-IN BATTERY BOX FOR CRYBABY.
New style replacement battery holder for Dunlop™ CryBaby pedals.   Works with all GCB95 style Crybaby pedals with a rectangular cutout in the bottom panel for the battery.   Replaces the original battery clip which was prone to breaking.  Original Dunlop™ replacement part.
Part #D-ECB244
$3.95


Click on photo for
larger view
Dunlop™™ Replacement rubber grommets for many models of Dunlop™ Wah pedals.
Set of 12 (3 each of 4 sizes) bumpers includes:
  • 3 pieces measuring about 0.38" diameter x 0.35" height (with 0.13" diameter center hole)
  • 3 pieces measuring about 0.38" diameter x 0.21" height (no hole)
  • 3 pieces measuring about 0.38" diameter x 0.16" height (no hole)
  • 3 pieces measuring about 0.38" diameter x 0.13" height (no hole)

Commonly, two front bumpers are fastened underneath the toe-end of the treadle and one rear bumper is fastened underneath the heel-end of the treadle. Alternate bumper heights allow you to customize the fit and feel when stepping into the footswitch or rocking back to a maximum open treadle position.
Part #D-ECB124

$10.95


Click on photo for
larger view
BOTTOM PLATE WITH BATTERY DOOR AND CLIP, Dunlop™™ Bottom Plate with Battery Box for GCB-95. Original Dunlop™ replacement part.  Includes the D-ECB244 battery box (above) and 4 rubber feet.
Part #D-ECB152
$25.95

  Lamps/LEDs

Click on photo for
larger view
REPLACEMENT BULB FOR MORLEY EFFECTS AND VOLUME PEDALS
Long life replacement bulb used for both the pilot lamp and also to drive the photocell in all Morley pedals from 1983 through current models.  Pedal not working?   In most cases, it just needs a new bulb.
Part #L-387
$1.99


Click on photo for
larger view
FENDER SQUARE 5mmX5mm DIFFUSED RED LED
Replaces the square channel-switching indicator LED in many Fender footswitches.   This LED is part of the circuitry in many Fender footswitches, and its failure often means the channel switching stops functioning correctly.  Replaces original Fender part number 028039.  Found in the 028122 and 050419 Fender footswitches, as well as several others.   This LED is red only - will not replace the bi-color footswitches used in some of these amps.

Part #LED-573
$1.75


LED Colors Available:

Click on photo for
larger view
5mm DIFFUSED LED - CHOICE OF COLORS
Standard 5mm (3/16") diameter diffused LED found in many guitar amplifiers and effects pedals.  Available in white, red, blue, green, or yellow.   This 5mm size is commonly called the T-1-3/4 size.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 ohm resistor, and for 15 volts, a 1K resistor.

Part #LED-5D
$0.59
(per LED)


Select Option:


Quantity:


LED Colors Available:

Click on photo for
larger view
3mm DIFFUSED LED - CHOICE OF COLORS
Standard 3mm (1/8") diameter diffused LED found in many guitar amplifiers and effects pedals.  Available in white, red, blue, green, or yellow.   This 3mm size is commonly called the T-1 size.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 ohm resistor, and for 15 volts, a 1K resistor.

Part #LED-3D
$0.39
(per LED)


Select Option:


Quantity:


Click on photo for
larger view
SUPER-BRIGHT 5mm RED WATERCLEAR LED
Standard 5mm (3/16") diameter waterclear red LED found in many guitar amplifiers and effects pedals.   A red waterclear LED looks clear when it is off, and emits a bright red light when power is applied.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 resistor resistor, and for 15 volts, a 1K resistor.

Part #LED-5R-WC
$0.59


LED Colors Available:

Click on photo for
larger view
BEZEL-MOUNTED LED WITH BUILT-IN RESISTOR
The ultimate time saver!  This is an LED mounted in a bezel with a resistor and shrink wrapped wires.
Length is 19mm long - 16mm of which is below the mounting area.  These Prewired LEDs are designed for 8V to 12V DC - no dropping resistor needed.   The length of the wire is about 6.5"   Mounting hole is 8mm, LED color choice is red, amber, green, blue or white.
Part #LED-725-X
$1.95

Select Option:


Quantity:

  Switches

Click on photo for
larger view

Hex footswitch nut, pack of 4

These replacement nuts fit all Carling brand footswitches and toggle switch and some (but not all) other switches which are not made by Carling.   Carling toggle switches are used in Fender amps.  Hex outer surface (9/16"), M12 thread for 15/32" bushing.

Part HFN-4

$0.99
(for a pack of 4 nuts)


Click on photo for
larger view
SWITCH, FULL-SIZE TOGGLE HANDLE AND BUSHING, SPST, WITH MINIATURE BODY.   This Revisit™ switch is the solution when you need a full-size toggle switch with long handle, but have limited room on the inside for a large-body switch.   This ingenious switch is full-size on the exterior, but a space-saver inside the enclosure.  Specifications: • Current rating: 6A @ 125 VAC, 3A @ 250 VAC • Contacts: 2 (SPST) • Threaded bushing diameter: 12 mm (15/32") - fits in 1/2 inch hole.   See dimension drawing here.
Part #SW-320
$2.69


Click on photo for
larger view
SWITCH, FULL-SIZE TOGGLE HANDLE AND BUSHING, SPDT, WITH MINIATURE BODY.   This Revisit™ switch is the solution when you need a full-size toggle switch with long handle, but have limited room on the inside for a large-body switch.   This ingenious switch is full-size on the exterior, but a space-saver inside the enclosure.  Specifications: • Current rating: 6A @ 125 VAC, 3A @ 250 VAC • Contacts: 3 (SPDT) • Threaded bushing diameter: 12 mm (15/32") - fits in 1/2 inch hole.   See dimension drawing here.
Part #SW-325
$3.59


Click on photo for
larger view
FULL-SIZE TOGGLE SWITCH, CARLING™, DPDT

Carling, DPDT 2 position toggle with solder lugs (6A, 125V). 6 Solder Lugs - 2 on each end, and 2 on the bottom (common lugs).   0.687" toggle length. On-On (no center position).

Part #SW-527
$11.95


Click on photo for
larger view
FOOT SWITCH, CARLING™ BRAND, SPDT
Found in many type of footswitches, including the earlier versions of the Dunlop Crybaby Wah pedals (NOT the version F - see FS-435 below for Crybaby GCB-095F).  Has 3 electrical terminals (single pole, double throw)Solder lugs for wire.
Part #FS-492
$17.50

FOOT SWITCH, CARLING BRAND, SPST, REPLACEMENT FOR Fender™, ETC.
Carling SPST footswitch. Used in Fender™ etc. Reverb/tremolo/channel switching pedals.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire.   Made by Carling

Part #FS-493
$9.95

FOOT SWITCH, MOMENTARY, SPST, NORMALLY OPEN
SPST footswitch,
soft touch pushbutton footswitch. Normally open. These are good for tap tempos, loopers (such as the Electro Harmonix 720 Stereo Looper) and anywhere you want the option for a constant or fast foot tap. They are also ok for hand use as they are not too hard to push with fingers.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire, normally open.
Part #FS-552
$4.95

FOOT SWITCH, CARLING BRAND, DPDT, FOR SWITCHING AND EFFECTS.
Has 6 electrical terminals (double pole, double throw)Solder lugs for wire.   Made by Carling

Part #FS-497
$18.95


Click on photo for
larger view
FOOT SWITCH, DPDT
Replacement DPDT footswitch for MXR™ and Dunlop™ pedals.  Made by Carling™ for Dunlop™

Original replacement part for:
Dunlop™ BG95 Buddy Guy Wah, Dunlop™ GCB95F Crybaby Classic Wah, Dunlop 535Q Crybaby Wah, Dunlop™ JD-F2 Fuzz Face Distortion, Dunlop™ JH-F1 Hendrix Fuzz Face, Dunlop™ JH-OC1 Jimi Hendrix Octavio, MXR™ M101 Phase 90, MXR™ M102 Dyna Comp, MXR™ M103 Blue Box, MXR™ M104 Distortion+, MXR™ M107 Phase 100, MXR™ M134 Stereo Chorus, MXR™ M169 Carbon Copy Analog Delay, MXR™ MC401 Custom Audio Electronics Boost, MXR™ MC404 Custom Audio Electronics Wah, Dunlop™ SW95 Crybaby Slash Wah

Part #FS-435
$19.95


Click on photo for
larger view
KICK SWITCH, DUNLOP, USED ON VARIOUS DUNLOP PEDALS.   ORIGINAL DUNLOP PART NUMBER ECB233.   Used in a variety of specialized Dunlop pedals.    Has 12 pins for soldering to a PC board in the pedal, circuit is a 4PDT (4 pole, double throw)

Part #D-ECB-233
$12.95


Click on photo for
larger view
ORIGINAL  Dunlop™ PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (4PDT).    Found in some Dunlop Wah pedals as the kick switch.  Actuator shaft is 3.3mm square.  Same as the D-ECB-233 above, without the kick button.
Part #SW-233
$6.95


Click on photo for
larger view
FOOT SWITCH, DPDT, FOR SWITCHING AND EFFECTS.
Electrically equivalent to FS-497, but with a smaller switch body.  Has 6 electrical terminals (double pole, double throw).   Solder lugs for wire.
Part #FS-498
$4.50


Click on photo for
larger view

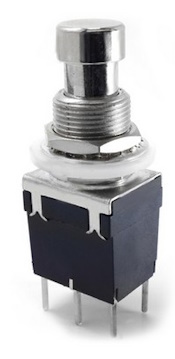

FOOT SWITCH, DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Electrically equivalent and physically the same body size as the FS-498, but made for direct connection to a PC board. Found in the Line 6™ XPS-AB power supply for their Variax guitars.  Has 6 electrical terminals (double pole, double throw).
Part #FS-498-PC
$4.50


Click on photo for
larger view
FOOT SWITCH, SPST, LATCHING, FOR SWITCHING AND EFFECTS - Fender™ TYPE.
Has 3 electrical terminals (single pole, single throw)Solder lugs for wire. Commonly found in newer Fender™ footswitch boxes, including the footswitch box for the Vibro-King Custom, 64 Vibroverb Custom, 68 Custom Deluxe Reverb, and 68 Custom Twin Reverb.  Fender™ part number 0024042000.
Part #FS-298
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, LATCHING, FOR SWITCHING AND EFFECTS - Marshall™ TYPE.
Has 3 electrical terminals (single pole, double throw).   Solder lugs for wire. Commonly found in Marshall™ footswitch boxes, as well as other brands.  Marshall™ part number SWP802.
Part #FS-398
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Has 3 electrical terminals (single pole, double throw). Solder lugs for wire. This is a "soft click" momentary switch - not latching.   See drawing for switch open/closed arrangement.
Part #FS-398-M
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, PC MOUNT, FOR SWITCHING AND EFFECTS - Marshall™ TYPE, LATCHING
Electrically equivalent and physically the same body size as the FS-398, but made for direct connection to a PC board.  Found in the some Marshall™ footswitch boxes with PC board design.  This is a latching switch. Has 3 electrical terminals (single pole, double throw).
Part #FS-398-PC
$4.50


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many stomp boxes.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").  This switch is used in the Marshall AVT Stage Foot Controller PEDL-00039 used in conjunction with the AVT-150, AVT-150H, and AVT-275 models.   See this page for more information.  This is a shorter version than used in MXR™ pedals - will not fit MXR™!    Order the D-ECB554 for MXR™ pedals.
Part #FS-211-PC
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it has solder lugs for wire attachment.   Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").
Part #FS-211
$6.95


Click on photo for
larger view
PREMIUM FOOT SWITCH, TAIWAY 3PDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.   LOW PROFILE
Solder lugs for wire attachment, low profile, small body size for compact spaces.  Longer threaded bushing than the FS-311.  Softer "click" during switching than the FS-311 switch.  Manufactured by Taiway.  Made for effects boxes that do not have a PC board under the footswitch.  3PDT - perfect for true bypass plus an additional contact for LED switching.   Body size is 17mm L x 13.5mm W x 13mm H.   Data sheet here.  This is a latching switch - not a momentary.
Part #FS-311T
$8.95



Only 1 left in stock!


Click on photo for
larger view
FOOT SWITCH, ALPHA 3PDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.   LOW PROFILE
Solder lugs for wire attachment, low profile, small body size for compact spaces.   Made for effects boxes that do not have a PC board under the footswitch.  3PDT - perfect for true bypass plus an additional contact for LED switching.   Body size is 17mm L x 13.5mm W x 13mm H.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").
Part #FS-311
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, MOMENTARY, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC-M, except it has solder lugs for wire attachment.  This switch is a slightly softer-click momentary (no firm click) for those pedals which require a momentary switch.  Switch is marked "M" on the side for momentary.  Momentary switches do not latch - once the switch is released, the contacts revert to their normal state.     Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-211-M
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many Dunlop/MXR stomp boxes. Used in later revisions of the MXR Micro Amp, Carbon Copy, and others.   Also used in the later CSP101SL and M101 versions of the MXR Phase 90, MXR M107 Phase 100, MXR Dime Distortion, MXR Bass Octave Deluxe, MXR Custom Badass Modified O.D., MXR Custom Badass 78 Distortion, MXR Bass Distortion, MXR Bass Envelope Filter, MXR Bass Fuzz Deluxe, MXR Bass Compressor, MXR Fullbore Metal, MXR M117R Flanger, MXR Supercomp, MXR Microamp, MXR M134 Stereo Chorus, MXR M135 SmartGate, MXR M148 Micro Chorus, M169 Carbon Copy  .   Dunlop part number ECB554. The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for locking).  This switch is NOT the same as the FS-211-PC switch - the D-ECB-554 is an extended length switch for Dunlop™ / MXR pedals only.
Part #D-ECB-554
$14.95

TACTILE SWITCH, DUNLOP, FOR WAH PEDALS
Original replacement part for Dunlop™ 105Q Crybaby Bass Wah and Dunlop™ 95Q Crybaby Q-Wah.

Part #D-ECB553
$1.95

FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a latching connection.    Side solder lugs for wire.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to wire a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503
$4.95


Click on photo for
larger view
FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a latching connection.    Bottom solder lugs for wire.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to wire a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503B
$4.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-602-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.

Made for switching and effects units which require a momentary connection rather than a latching connection.    PC terminals.  Has 3 terminals.
Part #FS-502-PC

$4.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-502-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.  Made for switching and effects units which require a momentary connection rather than a latching connection.  PC terminals.  Has 3 terminals.

Part #FS-602-PC
$4.95


Click on photo for
larger view
FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a latching connection.  PC terminals.   Fits some Blackstar™ HT Dual Footpedals.    Blackstar™ part #MCSWH02014.   Note:   With momentary PC Mount switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before installing.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503-PC
$4.95


Click on photo for
larger view

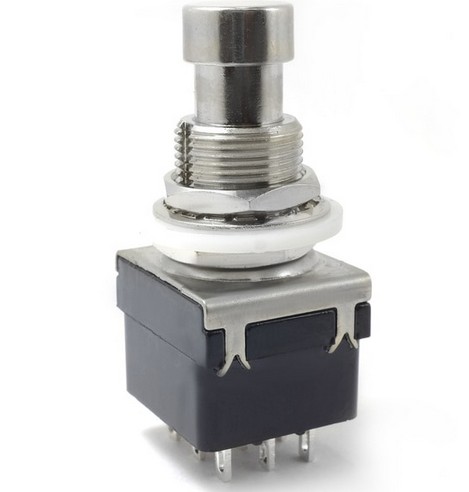

FOOT SWITCH, 3PDT, SOLDER LUGS, LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw).     Commonly found in effects pedals which have "true bypass".   Solder lugs for wire.
Part #FS-501
$6.50


Click on photo for
larger view
FOOT SWITCH, 3PDT, PC MOUNT, LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw)    Commonly found in effects pedals which have "true bypass".   Made for PC mounting.
Part #FS-501-PC
$7.95


Click on photo for
larger view
FOOT SWITCH, 4PDT, SOLDER LUGS, LATCHING, FOR SWITCHING AND EFFECTS.
Has 12 electrical terminals (4 pole, double throw)     For use in effects pedals which have "true bypass".   Solder lugs for wire.   Four poles allow additional features and switching options for your own design, such as additional LED indicators in addition to "true bypass".   With 4PDT, the options you can create in switching are limited only by your imagination!
Part #FS-504
$8.95

FOOT SWITCH, REPLACEMENT FOR BOSS EFFECT PEDALS
Replacement for Boss effects pedals, SPST momentary, push switch. Mounts in square hole approximately .55" x .55" x 1.08" overall length including terminals.
Part #FS-511
$4.50


Click on photo for
 larger view
FOOTSWITCH, PC MOUNT, TACTILE TYPE
Common switch found in Line 6 floor pedals (such as the Pod XT Live, DL4), Digitech floor controllers (such as the Control ONE), older DOD pedals, and Marshall JVM series footswitch boxes.   12mm x 12mm (about 1/2" x 1/2" x 1/4" tall).  Line 6 part number 24-31-0100.
Part #FS-100
$1.95


Click on photo for
 larger view
TACT SWITCH, PC MOUNT
Fits the following:  Boss ME-5.  Casio CZ-1000, CZ-3000, CZ-5000.  Ibanez TS9 Tube Screamer.  Kawai K3, Korg DW Series, EX-8000, KPR-77, Poly-61.  Kurzweil K1000, K1200, K2000.  Roland Axis-1, FC-100, GR-700, JX-8P, PG-800, TB-303, TR-606.  Yamaha DX7, DX9, KX88.  Oberheim Matrix 6/6R/1000.  Sequential Circuits Multi-Trak.   Boss part # 13129715.  Korg # 37505000.  Roland # 13129715.  Yamaha # KA905510.  12mm x 12mm (about 1/2" x 1/2").   Height of switch from under the base to the top of the plunger is about 7mm.   Data Sheet here.
Part #FS-621
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1mm PLUNGER HEIGHT
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.0mm above top of switch (about the thickness of a credit card).   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary).     For through-the-hole mounting on PC boards.
Part #TS-5126
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary.    For through-the-hole mounting on PC boards.   Fits the Line 6 Alchemist, Bass POD XT Live, FBV Shortboard MKII, Floor POD Plus, M9, M13, POD HD300, POD HD400, POD HD500, POD X3 Live, POD XT Live, Spider Valve HD100, Spider Jam, Spider IV SERIES, Spider IV1508, HD500X.    Line 6 part number 24-31-1105
Part #TS-5127
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT, 2 LEGS
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc, including some Boss
and Zoom products.  2 legs, SPST, normally open, momentary.     For through-the-hole mounting on PC boards.
Part #TS-5144
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  6mm PLUNGER HEIGHT, 2 LEGS
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 6.0mm above top of switch.   Used in effects pedals, front panel controls, etc, including some Boss
™ products.  2 legs, SPST, normally open, momentary.     For through-the-hole mounting on PC boards.
Part #TS-5146
$0.99


Click on photo for
larger view
SWITCH, SLIDE, SWITCHCRAFT™, DPDT (6 TERMINALS),  REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender™ AMPS.   Also used in many other applications, including some Electro Harmonix AC powered effects pedals, such as the Memory Man.  Also used as the slide switch on Jazzmaster and Jaquar guitars.  Used for the power switch in the vintage 60s and 70s Fender Champ, Vibro Champ, and Bronco amps. Rated at 3A, 125VAC.    Click here for physical specifications.   Two screws are included with the switch.
SW-116S
$5.95


Click on photo for
larger view
SWITCH, SLIDE, DPDT (6 TERMINALS),  MADE BY ALPHA (TAIWAN)  Used in some Electro Harmonix AC powered effects pedals, such as the Memory Man.  Click here for physical specifications.   Two screws are included with the switch.
Part #SW-242S
$1.95



Click on photo for
larger view
Genuine Carling Technologies dress nuts for use with all mini toggle switches. These plated dress nuts feature a chamfered edge for a professional look and work on any 15/32-32 UNS threaded bushing.  Note:  The dress nut will only tighten down to the point where the threads of the switch have reached the top of the nut.   To use this nut properly, adjust the back nut on the switch to allow 1/8 inch or 3.4mm thread extension beyond the panel. Two sides are flatted for use with a tool when fastening.
Part #DN-154
$0.79


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).

Part #SW-MTS-S11
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-ON SWITCHING, SHORT BAT HANDLE.
Used as two position mini toggle switches.  3 solder lug terminals, 2 position switch with short bat handle lever.

Part #SW-MTS-S11-SL
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, PC BOARD TERMINALS  ON-ON SWITCHING (NO CENTER OFF POSITION).
Same as the SW-MTS-S11 above, except designed for PC board insertion.

Part #SW-MTS-S11-PC
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Off / Coil Tap (South)
2. Coil Tap (North) / Series Humbucker / Coil Tap (South)

Part #SW-MTS-S101
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, CARLING™ TECHNOLOGIES MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
0.354" Bushing length
1/4" Mounting hole
Solder lugs
High quality Carling™ brand


Part #SW-MTS-
S101-CAR
$4.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION), SHORT BAT HANDLE.
Used as three position mini toggle switches.  3 solder lug terminals, 3 position switch with short bat handle lever.

Part #SW-MTS-S101-SL
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING
Same as the SW-MTS-S101 above, except designed for PC board insertion.

Part #SW-MTS-S101-PC
$1.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (taps 2 humbuckers )   2. In phase / Reverse Phase   3. Series Humbucker/Parallel Humbucker   4.  Series / Parallel (neck and bridge pickups)
Part #SW-MTS-D11
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, ON-ON SWITCHING, SHORT BAT HANDLE.
Used as two position mini toggle switches.  6 solder lug terminals, 2 position switch with short bat handle lever.

Part #SW-MTS-D11-SL
$2.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-ON SWITCHING (NO CENTER OFF POSITION).
Same as the SW-MTS-D11 above, except designed for PC board insertion.

Part #SW-MTS-D11-PC
2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:

1. Series Humbucker / Off / Coil Tap (North)   2. Series Humbucker / Off / Coil Tap (South)   3. Coil Tap (North) / Series Humbucker / Coil Tap (South)
4. In Phase / Off / Out of Phase
5. Series / Off / Parallel

Part #SW-MTS-D101
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING, SHORT HANDLE
Same as the SW-MTS-D101 above, except with a short bat handle.

Part #SW-MTS-D101-SL
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING
Same as the SW-MTS-D101 above, except designed for PC board insertion.

Part #SW-MTS-D101-PC
$2.95


ON-ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON-ON SWITCHING (WITH SPLIT-ON CENTER POSITION)
IN GUITARS, COMMONLY USED TO PROVIDE the FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker/Coil Tap/Parallel Humbucker   2.   Humbucker/Coil Tap/Humbucker Out of Phase     3.  Neck Pickup/Both Pickups/Bridge Pickup
Part #SW-MTS-D111
$3.95


ON-ON
3PDT

Click on photo for
larger view
SWITCH, MINI 3PDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER POSITION)  (Note:  Color of switch body may vary from photo)

Part #SW-MTS-311
$3.95

  Wah Pedal Parts

Click on photo for
larger view
POT, GEARED, 100K, DUNLOP HOT POTZ II FOR USE ON DUNLOP CRYBABY
The Jim Dunlop ECB-424B Hot Potz II 100K Potentiometer is a replacement for Dunlop Crybaby wah pedals. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB-424B
$39.99


Click on photo for
larger view
POT, GEARED, 470K, DUNLOP HOT POTZ II FOR USE ON DUNLOP JIMI HENDRIX CRYBABY
The Jim Dunlop ECB-424A Hot Potz II 470K Potentiometer is a replacement for Dunlop Jimi Hendrix Crybaby wah pedals and the GCB80 High Gain Volume Pedal. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB-424A
$39.99


Click on photo for
larger view
POT, GEARED, 100K, FOR USE ON Dunlop™ CRYBABY AND Vox™ WAH PEDALS
Smooth operation, very similar to original pots as used in the Dunlop™ and Vox™ pedals.  Replacement pot for Dunlop™, Vox, etc., Wah pedals with gear & rack operation.  Nut and washers included.   100K as used in most wah pedals.  (Note - not for pedals where the control pot is PC board mounted, such as the Crybaby 535Q.)    Soldering is required to install this replacement pot.   Unlike the original sealed pot (or the replacement sealed Hot Potz), this pot has a slot where cleaning fluid may be sprayed.
Part #R-VWAH
$11.95


Click on photo for
larger view
Dunlop™ RUBBER FEET, SET OF 4.
Made for Dunlop™ Crybaby and Vox™ Wah pedals, and other applications where small rubber feet are needed.   Screws included.    Rubber feet are 5/8" diameter x 1/4" tall.
Part #D-ECB151
$6.95


Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, effects units, larger floor effects pedals, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  0.84" diameter x 0.31" high.   Screws not included.    Set of 4 feet.
Part #BRF-750
$4.95
(pack of 4)



Click on photo for
larger view
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  Just under 1 inch - 15/16" diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8" tall.    Screws not included.    Set of 4 feet.
Part #BRF-723
$4.95
(pack of 4)



Click on photo for
larger view
RACK, ORIGINAL Dunlop™™
Original Dunlop™ replacement rack for wah pedals (roll pin included : 0.77" length x 0.07" diameter - for mounting the rack to the treadle).
the rack has 14 teeth and mounts to the underside of the treadle piece (rocking structure) of a wah pedal. The teeth of the rack interlock with the teeth of the wah potentiometer gear (i.e. pinion), thereby rotating the potentiometer shaft as the treadle is rocked back and forth.

Part #D-ECB127
$3.95


Click on photo for
larger view
Wah Pedal Slide Gear Prop.   Used on Crybaby wah pedals from the Thomas Organ days in the 1960s until present ownership by Dunlop.    This prop pushes the flat side gear attached to the movable pedal into the rotary gear on the control potentiometer.    Diameter of round portion of prop is 3/8 inch.   Screw is NOT included.
Part #
RCC-361
$0.99



Click on photo for
larger view
9V BATTERY CLIP.
Commonly found in effects boxes.   Simple, yet durable construction.    5 3/4" red and black leads.

Part #9VBC
$0.45

  ICs

Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP
Part #NJM4558-D

$1.00

Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532
$1.50

Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534
$1.50

Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068
$1.50

Precision Op-Amp, very low offset voltage.   Used in some effects pedals, such as the ProCo RAT.
Part #OP07

$4.40

Low-current, JFET input, TL062 Dual Op-Amp in 8-pin DIP package.   Compatible with TL072 designs, with significantly lower current draw.   Good choice for battery-operated pedals to increase battery life.
Part #TL062
$1.00

Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.  Also TL071CN.
Part #TL071CP
$1.50

Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.  Also TL072CN.
Part #TL072CP
$1.60

High slew rate, JFET input, TL082 Dual Op-Amp in 8-pin DIP packag
Part #TL082
$1.90


4808-3004
From the 3M Company ... 8-pin DIP socket, fits all of the 8-pin op-amps above.   We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
#4808-3004
$0.35


1N34A GERMANIUM DIODE  Popular in distortion pedals for signal clipping at lower forward voltage.   Peak reverse voltage 45VDC.  Reverse voltage 20V.   Peak forward current 150mA.  DO-7 glass case.  Low leakage.

Part #1N34A
$0.95

  Jacks

Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, AUTHENTIC Lumberg
German craftsmanship in a compact 1/4" jack.   Mono, open circuit.  Features the most compact size for a 1/4" jack available.   Perfect for tight fits in pedals.    Download datasheet
Part #J-303
$3.89


Click on photo for
larger view
JACK, 1/4", STEREO, OPEN CIRCUIT, WIRED, AUTHENTIC Lumberg
German craftsmanship in a compact 1/4" jack.   Stereo, open circuit.  Features the most compact size for a 1/4" jack available.  Perfect for tight fits in pedals.  Commonly used as the input jack in many pedals.  Download datasheet
Part #J-304
$3.99


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$4.29


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L11
$5.39


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.

Part #J-L11W
$5.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft
Found in vintage Fender
(and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender™ part number 0021550000 (originally 021550).   Peavey part number 71466004.
Part #J-12A
$4.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$5.50


Click on photo for
larger view
JACK, 1/4", MONO, TIP SHUNT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but includes a set of isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.   Commonly used in older Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville amps to replace the fragile input jacks.
Part #J-L12AW
$5.99


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.  Fender part number 0013043000.
Part #J-12B
$4.35


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12B
$5.99


Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT MONO, HAND WIRED, Switchcraft STYLE, NON-ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  2 pins T/S, open circuit, non-switched.  Nut and washer included.

Part #J-111X
$4.39



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT MONO, HAND WIRED, Switchcraft STYLE, METAL BUSHING
Common input jack in guitar amps.  T/S closed circuit, switched, metal bushing, 3 pins for wiring.  Nut and washer included.  Fender part number 0066439000.   Found in a number of SWR amps as the input jack.

Part #J-112AX
$4.50


Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, NON-ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched.  Nut and washer included.

Part #J-112BX
$4.50


Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender™ Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069
$0.49
(For a pair of washers.  Each jack needs two washers.)


5 PIN MIDI CONNECTOR, PCB   Female, right angle.  Pin spacing 2.54mm (0.1").   2A 100VAC - 1A 24VDC.   Often found in keyboards, rack mount MIDI-controlled processors, etc.
Part #J-1010
$1.95


Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT MONO, HAND WIRED, Switchcraft STYLE, NON-ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  2 pins T/S, open circuit, non-switched.  Nut and washer included.

Part #J-111X
$4.39



Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT MONO, HAND WIRED, Switchcraft STYLE, ISOLATED NYLON BUSHING
Common input jack in guitars, hand-wired effects pedals.  2 pins
T/S, open circuit, non-switched, nylon bushing for ground isolation.  Nut and washer included.

Part #J-N111X
$3.99


Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, NON-ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched.  Nut and washer included.

Part #J-112BX
$4.50



Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT MONO, SOLDER LUGS, Switchcraft STYLE, ISOLATED NYLON BUSHING
3 lugs, mono, tip shunt.  Nylon bushing for ground isolation.  Used in many amplifiers.  Nut and washer included.

Part #J-N112AX
$5.69



Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, ISOLATED NYLON BUSHING
Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched, nylon bushing for isolation.  Nut and washer included.

Part #J-N112BX
$4.50



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  T/R/S closed circuit, switched, metal bushing, 5 pins for wiring.  Nut and washer included.  Genuine Switchcraft

Part #J-114BX
$6.95



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft, NYLON BUSHING

T/R/S closed circuit, switched, nylon bushing for ground isolation from enclosure, 5 pins for wiring.  Nut and washer included.  Genuine Switchcraft

Part #J-N114BX
$6.95



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, METAL BUSHING
Tip is switched  (normally closed), ring conductor is not switched.  4 pins for wiring, metal bushing. Used in DOD™ and other brands.   Nut and washer included.  Genuine Switchcraft

Part #J-113BX
$6.95



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, METAL BUSHING
Tip is open, ring is switched  (normally closed).  4 pins for wiring, metal bushing.  Unusual arrangement used in special applications.   Nut and washer included.  Genuine Switchcraft

Part #J-113FX
$6.95


Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as Marshall™ .  NOT used in Crate™, Ampeg™. 4 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-580
$3.99


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as Marshall™ and Dunlop™™/MXR™ products.  NOT used in Crate™, Ampeg™ (see J-581L for those).   6 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-581
$4.49


Click on photo for
larger view
JACK, STEREO, MXR / Dunlop™ TYPE WITH EXTRA RING CONTACT
Exclusive Dunlop™ jack - used in several MXR™ pedals.  Has additional off-normal contact on the ring conductor.  Chrome nut is included.
Part #D-ECB040
$5.95




Click on photo for
larger view

JACK, 9-PIN Low Profile, 1/4",  Marshall™, Fender™, CHROME Trim Ring.  Used as the Effects A return jack and Effects B return jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL122 and TSL-100.  Nut and washer are included.   CHROME trim ring.  Jack data here.  Replacement nut/washer set is the JN-916.

Part # J-560
$6.50


Click on photo for
larger view

JACK, 9-PIN Low Profile, 1/4", Marshall™  Used as the INPUT and LOOP jacks on the Marshall Guv`nor Pedal with the black case.   Also used as the input jack on the Marshall Drive Master Pedal.  Nut and washer are included.   Note:  GOLD trim ring on face of jack


Part # J-560G

$6.70


Click on photo for
larger view


JACK, 1/4",  MARSHALL, MONO, 3 PINS
Used as the input jack in the Marshall G10 MKII.    Marshall part number V9158.  No trim ring at the mouth of the jack - black plastic.   Includes nut and washer.

Part #J-9158

$6.70


Click on photo for
larger view

JACK, 1/4", TIP/RING/SLEEVE, 6 PIN, PC MOUNT, ADA MP-1 Input Jack.  Hard-to-find 6-pin input jack used in SOME VERSIONS of the ADA MP-1 preamp.   Check your particular MP-1, as three completely different jacks were used at various times over several years during the production of the MP-1.  Includes nut and washer.   Replacement nut/washer set is the JN-916.   Also see the J-575G jack, below, for the low-profile version.

Part # J-535
$6.70


Click on photo for
larger view

JACK, 5-PIN Low Profile, 1/4", ADA™.  Used as the jacks on SOME VERSIONS of the ADA MP1 effects processor.  Nut and washer are included.   Note:  GOLD trim ring on face of jack.

Part # J-575G

$6.70



Click on photo for
larger view

JACK, 5-PIN Low Profile, 1/4", Marshall™, Gold Trim Ring.  Used as the OUTPUT jack on the Marshall Guv`nor Pedal and the Marshall Drive Master Pedal.  Nut and washer are included.  Note:  GOLD trim ring on face of jack.

Part # J-565G
$4.70


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft STYLE, NYLON THREADS, 2 PINS
Common jack in Crate
& Ampeg, and in some solid state products from Fender during the early 1980s.   Nut and washer included.   2 pins.


Part #RN111PC
$5.98


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft STYLE, NYLON THREADS, 3 PINS (TIP/RING/SLEEVE)
Found in a number of products in the 80s and 90s, including m effects pedals, etc.  Open circuit (no switching) tip/ring/sleeve.  3 PC board pins.   Nut and washer included.


Part #RN112BPC
$5.98

Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$4.50
(Set of 6 washers and 6 nuts)


JACK NUT AND WASHER, METAL, SWITCHCRAFT
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view

DC POWER JACK
Handy way to add a power jack for an AC/DC adapter to an existing devices.   Connector fits the popular 2.1mm x 5.5mm barrel plug found on many adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative adapters.  Fits 1/2" chassis hole.
Part #J-750
$1.49


Click on photo for
larger view

DC POWER JACK
Replacement Barrel DC power jack for many pedals, keyboards, etc which use a PC board mounted DC power jack.  Connector fits the popular 2.1mm x 5.5mm barrel plug found on many adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative adapters.
Part #BJK-118
$0.99


Click on photo for
larger view

1/8" MINI JACK
Switched two-conductor 1/8" mini jack.  Exact replacement for the DC power jack used in the vintage Electro-Harmonix Big Muff and Small Stone, Proco Rat Big Box Reissue and others.
Part #J-218
$0.99


Click on photo for
larger view

POWER BARREL PLUG
Replacement barrel power plug for many AC adapters.  Connector is the popular 2.1mm x 5.5mm barrel plug found on many adapters.   Soldering required to attach to cable.
Part #BP-573
$0.99

  Knobs

Click on photo for
larger view
REPRODUCTION OF the DUNLOP MXR KNOB, BLACK KNOB WITH WHITE LINE
Good replica of the
Dunlop MXR Knob - as used on the Phase 90 and other MXR pedals.   Also a good replacement for knobs on most Orange Amps.  1" (25.4mm) diameter at the base x 0.6" (15mm) high.  Set Screw, for smooth shaft pots.
Part #K-345
$1.99


Click on photo for
larger view
REPRODUCTION OF THE MINI MXR™ KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small MXR™ Knob.    Diameter (bottom): 20mm at the base. Height: 11.45mm With Set Screw for smooth 1/4" shafts.
Datasheet

Part #K-830
$1.99


Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.   CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Small size 0.78" (20mm) diameter, 0.43" (11mm) tall, fits smooth 1/4" shaft. Classic look found on Boss FX units.  With set screw.
Part #K-828
$1.79


Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.  CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Medium size 0.91" (23mm) diameter, 0.5" (12mm) tall, fits smooth 1/4" shaft.   Smooth silver top.  Classic look found on Boss FX units.  With set screw.
Part #K-348
$1.95


Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.  CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Large size 1.06" (27mm) diameter, 0.6" (15mm) tall, fits smooth 1/4" shaft.  Smooth silver top.  Classic look found on Boss FX units.  With set screw.
Part #K-372
$1.95


Click on photo for
larger view
KNOB, BLACK KNOB WITH YELLOW CAP, EXTENDED POINTER, SET SCREW WITH BRASS INSERT.
Medium size knob 3/4" (19mm) diameter, 0.65" (16.7mm) tall, fits smooth 1/4" shaft (6.3mm).  Set screw with brass insert.   Extended pointer with white line - max diameter is 0.89" (22.6mm) including extended pointer.
Part #K-905
$1.95


Click on photo for
larger view
REPRODUCTION OF the DAVIES 1900H KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small 1900H Davies knob.   Looks great on pedals.  1/4" Shaft, Size-Diameter 12.7mm, height 15.9mm, With Set Screw.
Part #K-559
$1.99


Click on photo for
larger view
Dunlop™ MXR™ KNOB, BLACK KNOB WITH WHITE LINE
Original Dunlop™ MXR™ Knob - as used on the Phase 90 and other MXR™ pedals.  With set screw.
Part #D-ECB130
$5.99


Click on photo for
larger view
REPRODUCTION OF THE MINI MXR™ KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small MXR™ Knob.   Also works great as a replacement on many Orange Amps.  Diameter (bottom): 20mm, Height: 11.45mm
With Set Screw.    Datasheet

Part #K-829
$1.99


Click on photo for
larger view
Dunlop™ MXR™ KNOB COVER
Original Dunlop™ MXR™ Knob Cover - as used on the Phase 90 and other MXR™ pedals.

Part #D-ECB131
$3.79


Click on photo for
larger view
DAVIES STYLE 1400 REPRODUCTION KNOB.
Replaces the Dunlop™ ECB245 knob.    Small knob, 11/16" diameter x 13/32" high.    For 1/4" smooth shaft - with set screw.

Part #K-1400
$1.99


Click on photo for
larger view
DAVIES STYLE 1470 REPRODUCTION KNOB.
Used on a number of classic effects pedals.   Larger knob, 1" diameter (at the base) x 1/2" high.   Pointer extends about 3mm beyond the outside rim of the knob.   Black thermoset plastic, for 1/4" smooth shaft - with brass set screw.
Part #K-1470
$2.49


Click on photo for
larger view
KNOB, Medium, Black with White Line Indicator, for 1/4" smooth shaft, with set screw.    Great effects pedal knob.   0.75" diameter, 0.575" tall (19mm x 15mm).   Clone of the Davies 1510 knob.
Part #K-202
$1.49


Click on photo for
larger view
KNOB, Medium, Cream/Beige with Black Line Indicator.   Push-on, for knurled shaft pots (no set screw)  Great effects pedal knob for knulred shaft pots.   0.75" diameter, 0.575" tall (19mm x 15mm)    Used in many Egnater™ amp models  including the Rebel, Renegade, and Tourmaster series as well as others.   Designed for push-on knurled pot shafts (no set screw).   Not for the Egnater™ Mk II series.
Part #K-151
$1.79


Click on photo for
larger view
KNOB, MINI CHICKEN HEAD, SET  SCREW, CREAM
Mini Chicken Head Knob for smaller applications such as effects pedals.  Cream.  Fits 1/4" smooth shaft, brass insert, with set screw.  0.90 inches from nose to tail.   Regular chicken head knobs are 1.2 inches long.   Clone of the Davies 2300 knob.
Part #MCHKCR
$1.49


Click on photo for
larger view
KNOB, MINI CHICKEN HEAD, SET  SCREW, BLACK
Mini Chicken Head Knob for smaller applications such as effects pedals.  Black.  Fits 1/4" smooth shaft, brass insert, with set screw.  0.90 inches from nose to tail.   Regular chicken head knobs are 1.2 inches long.   Clone of the Davies 2300 knob.
Part #MCHKBK
$1.49


Click on photo for
larger view
KNOB, Electro-Harmonix™, Black with Cross Slot and White Dot Indicator  1/4" smooth shaft, with set screw.    General control knob, fits all current EH pedals, plus a variety of other applications.    0.80" wide at the base, 0.62" wide at the top, 0.61" tall.
Part #K-344
$1.99


Click on photo for
larger view
KNOB, Electro-Harmonix™, Large Black with White Line Indicator  Push on for 1/4" Knurled Shaft.   Used on many current EH pedals, plus a variety of other applications.    1.00" wide, 0.62" tall.
Part #K-346
$1.99


Click on photo for
larger view
KNOB, Electro-Harmonix™, Small Black with White Line Indicator  Push on for 1/4" Knurled Shaft.   Used on many current EH pedals, plus a variety of other applications.    0.66" wide, 0.53" tall.
Part #K-347
$1.99

KNOB, Black Plastic with Colored Pointer.   Push on type for 1/4" Knurled Shaft.   Excellent replacement for knobs on mixers or pedals which have knurled split 1/4" shaft  pots.  Soft touch, high quality.   Height: 17mm, Bottom Diameter: 16mm, Top Diameter: 12mm.    Available with different pointer colors:   Blue, Gray, Green, Orange, Red, White or Yellow.   Choose pointer color in "Options", above the Add to Cart button
Part #K-350
$1.00

Select Option:


Quantity:

KNOB, Soft Rubber, Black Body with Colored Pointer.   Push on type for 1/4" Knurled Shaft.   Excellent replacement for knobs on mixers or pedals which have knurled split 1/4" shaft pots.  Soft touch rubber, high quality.   Height: 14mm, Bottom Diameter: 16mm, Top Diameter: 11mm.    Available with Red, White, or Blue pointer.  Choose pointer color in "Options", above the Add to Cart button.
Part #K-817
$1.00

Select Option:


Quantity:

  Pots

Click on photo for
larger view
POT, GEARED, 100K, DUNLOP HOT POTZ II FOR USE ON DUNLOP CRYBABY
The Jim Dunlop ECB24B Hot Potz II 100K Potentiometer is a replacement for Dunlop Crybaby wah pedals. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB-424B
$39.95


Click on photo for
larger view
POT, GEARED, 470K, DUNLOP HOT POTZ II FOR USE ON DUNLOP JIMI HENDRIX CRYBABY
The Jim Dunlop ECB-424A Hot Potz II 470K Potentiometer is a replacement for Dunlop Jimi Hendrix Crybaby wah pedals and the GCB80 High Gain Volume Pedal. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB-424A
$39.95


Click on photo for
larger view
POT, GEARED, 100K, FOR USE ON Dunlop™ CRYBABY AND Vox™ WAH PEDALS
Smooth operation, very similar to original pots as used in the Dunlop™ and Vox™ pedals.  Replacement pot for Dunlop™, Vox, etc., Wah pedals with gear & rack operation.  Nut and washers included.   100K as used in most wah pedals.  (Note - not for pedals where the control pot is PC board mounted, such as the Crybaby 535Q.)    Soldering is required to install this replacement pot.   Unlike the original sealed pot (or the replacement sealed Hot Potz), this pot has a slot where cleaning fluid may be sprayed.
Part #R-VWAH
$11.95


Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SPLIT KNURLED SHAFT (10mm LONG).
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm, and shaft is knurled for push-on knobs.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VM16M-XX
$3.95

Select Option:



Quantity:

W-TAPER


Click on photo for
larger view
POT, W-TAPER, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED SHAFT
Found in many Hartke amps as well as other amps and pedals.  Typically used as an EQ pot.   W-Taper pots are reverse audio taper up to the midpoint, but regular audio taper past the midpoint.   Available with or without "center click detent" which marks the midpoint with a slight click you can feel as you turn the pot.  Diameter of the body of the pot is slightly smaller than a dime.  Available in the two most common values of W20K and W100K.   Both values are available with or without the center click detent.  Click on photo for more detail.

INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-W16-XX
$3.95

Select Option 1:


Select Option 2:


Quantity:


Click on photo for
larger view
POT, 1 MEG OHM X2 LINEAR DUAL, (B1M), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER  THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 10mm.   Exact replacement for the volume control pots (both channels) on the Orange Dual Terror Amp.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V1MBX2-M16M
Currently unavailable

$6.95




Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT (6.5mm LONG).
Used in many models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 6.5mm.  NoteThese pots have a positioning tab to the left of the threaded bushing.   If not needed, this tab may be easily removed with utility pliers or longnose.  Click on photo for more detail.  Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VM16S-XX

$3.95

These pots are being phased out in favor of the more popular P-VM16M-XX type.

Select Option:


Quantity:


Click on photo for
larger view
POT, DUAL 50K OHM LINEAR, (B50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 6.5mm.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V50KLX2-M16S
$6.95


Click on photos for
larger view

BRASS POT ADAPTER SLEEVE
Do you want to put a 1/4" set-screw knob on your 1/4" knurled shaft potentiometer?  Do you need to eliminate the off-center problem when using a 1/4" set screw knob on a 6mm shaft pot?

Just slip one of our solid brass pot adapter sleeves onto any 1/4" knurled pot shaft or 6mm pot shaft to ensure a snug and secure fit for a 1/4" (6.35mm) smooth shaft knob. We have tested this adapter extensively, and it really does work great!

Note:  Will NOT work with 3/16" knurled shaft pots.  Those smaller knurled shafts are typically found in Crate and Peavey amps.  Not recommended for D-shaft type shafts.

Part #PAS-635

$0.95


Click on photo for
larger view
POT, PC MOUNT, ALPHA 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, D-SHAFT.    Hard-to-find D-Shaft type.  Available values:  A5K, B5K, B10K, A20K, B20K, A50K, B50K, A100K, B100K, A500K, B500K.  For knobs designed for D-Shaft pots.   Click on photo for more detail.    Download cross-reference guide for these pots.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VDS16-XX
$3.95

Select Option:



Quantity:


Click on photo for
larger view
POT, 5K  LINEAR, (B5K), PC MOUNT, 13mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT D-STYLE FLATTED 1/4" SHAFT.
Smaller than the common "dime-sized" 16mm pot, used in applications where a tighter density of pots is required, such as effects pedals.   Shaft length is 8.0mm, flat part of shaft is 7.0mm.  Threaded bushing is 7mm.  See complete dimensions here.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V5KL-M13
$3.95


Click on photo for
larger view
POT, PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT FOR SET-SCREW TYPE KNOB
For use in many brands of effects pedals.  For use with 1/4" type set-screw knobs.
  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the PNW-16 nut and washer set found here)..   Made by Alpha.
Part #P-V41-XX
$2.95

Select Option:


Quantity:


Click on photo for
larger view
POT, PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED 1/4" SHAFT FOR PUSH-ON TYPE KNOB
For use in many brands of effects pedals.  For use with 1/4" type knurled push-on knobs.
  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the PNW-16 nut and washer set found here)Made by Alpha.
Part #P-V91-XX
$2.95

Select Option:


Quantity:


Click on photo for
larger view
POT, WIRE TERMINALS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED 1/4" SHAFT, SHAFT LENGTH 8mm
For use in many products where the pots are the smaller 16mm and are hand-wired.  Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 8mm.  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the PNW-16 nut and washer set found here)..   Made by Alpha.
Part #P-VKM16-XX
$3.95

Select Option:


Quantity:


Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
