Revisit™ BiasEasy™
|
|
|
Click on photo for
larger view |
Revisit™ BiasEasy™
200
Cathode Current Measuring Probe
For 8-pin power tubes such as 6L6, 6V6, 5881, 6550,
EL34, KT88, KT66, KT100, etc.
Requires separate digital volt-ohmmeter capable of reading current.
This device reads cathode current.
Note: This
adapter will NOT test 7591 tubes. Quality throughout, with a ceramic
socket, gold-plated socket pins and gold-plated banana plugs to ensure solid connections and
accurate readings.Not a kit - this
device is fully assembled and ready to use! Complete with detailed
instructions.
Used with a basic multimeter (Get Yours Here).
Part #RBE-200 |
$29.95 |
|
Click on photo for
larger view |

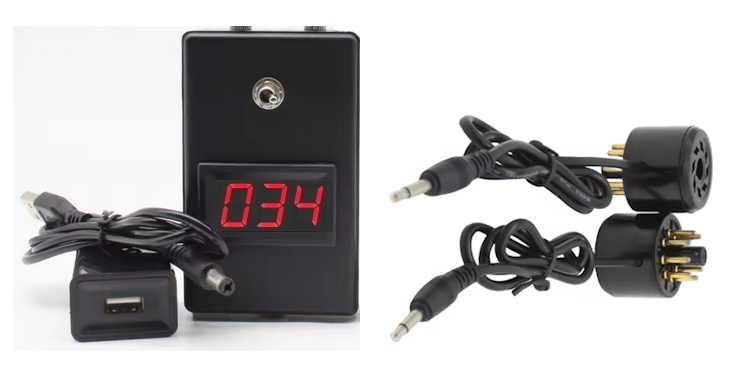

 Revisit™ BiasEasy™
800
The Bias Easy™ 800 measures the
current in the power tubes of your amp. Includes two 8-pin probes with gold
plated pins and socket, power adapter and
operating instructions. Fully assembled and ready to use. For 8-pin
power tubes such as 6L6, 6V6, 5881, 6550, EL34, KT88, KT66, KT100, etc.
Not for 7591 tubes.
The Bias Easy™ 800 allows you to monitor the bias
setting safely and easily. While adjusting the bias control pot of your amp, the
Bias Easy™ shows the actual current flowing through each of two power tubes.
A switch on the meter allows you to go back and forth between the two tubes.
This lets you set and evaluate the full reasonable biasing range your amp and
tubes offer so that you may find the perfect setting. Complete
instructions are
included.
The bias setting has a dramatic impact on the
amp's tone, response, break-up and dynamic character.
Part #RBE-800 |
$89.95 |
|
Click on photo for
larger view |

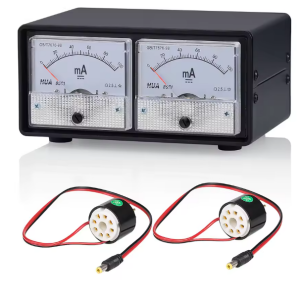

Revisit™ BiasEasy™
1200 Quad Tube Amp Bias Tester
The Bias Easy™ 1200 measures the
current in the power tubes of your amp. Designed for amplifiers with
4 power tubes, such as 100 watt Marshalls and the Fender Twin Reverb.
(May also be used on amps with only 2 power tubes). Includes four 8-pin probes with
gold
plated pins and socket, power adapter and
operating instructions. Fully assembled and ready to use. For 8-pin
power tubes such as 6L6, 6V6, 5881, 6550, EL34, KT88, KT66, KT100, etc.
Not for 7591 tubes.
The Bias Easy™ 1200 allows you to monitor the bias
setting safely and easily. While adjusting the bias control pot of your amp, the
Bias Easy™ 1200 shows the actual current flowing through each of the four power tubes.
A rotary switch on the meter allows you to check each tube for current flow. This lets you set and evaluate the full reasonable biasing range your amp and
tubes offer so that you may find the perfect setting. Complete
instructions are
included.
The bias setting has a dramatic impact on the
amp's tone, response, break-up and dynamic character.
Part #RBE-1200 |
$124.95 |
|
|
|
Instrument
Cables |
|
|
Click on photo for
larger view |
Revisit™
INSTRUMENT CABLE 15 FEET
Revisit 1/4" musical instrument cables
provide the reliable link that lets you concentrate on a great performance. Also
great for unbalanced line level interconnection, too.
15 feet long, 1/4" straight connectors.
22 AWG oxygen-free copper stranded center conductor for maximum signal transfer
Coaxial construction and copper 95% braided
shield reduce noise
Premium jacket materials provide ease of
handling and long service life
Gold plated straight 1/4" connectors for
long-term conductivity
Part #GCB-15 |
$13.99 |
|
| |
Revisit™
Power Cables |
|
|
Click on photo for
larger view |
 Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR AT EQUIPMENT END. Common replacement cord for use on many
guitar amps, power amps, effects units, etc. Standard NEMA 5-15 plug
for North American use at 110-120 Volts AC. IEC connector at
equipment end. Used only in North America.
Part #PC-300 |
$6.95 |
|
Click on photo for
larger view |
Revisit™
10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC
CONNECTOR AT EQUIPMENT END. REPLACEMENT CORD FOR
MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.
10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT,
REDUCES USE OF EXTENSION CORDS. Standard NEMA
5-15 plug for North American use at 110-120 Volts AC.
IEC connector at equipment end. Used only in
North America.
Part #PC-600 |
$10.95 |
|
Click on photo for
larger view |
SUPER-LONG,
16 gauge
Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,
OUR LONGEST POWER CORD!
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or
7.9mm).
Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13
amps maximum. Used only in
North America.
Part #PC-163SJT15 |
$19.95 |
|
Click on photo for
larger view |

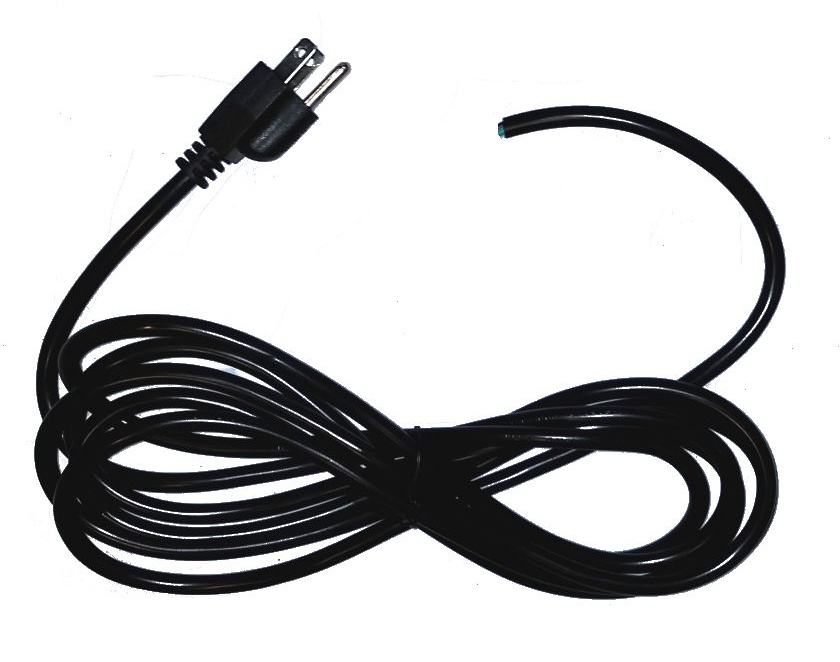

EXTRA-LONG
12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type. Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length is an
extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).
Wire gauge is 18AWG, rated at 10 amps.
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in
North America.
Part #PC-183SJT12 |
$13.95 |
|
Click on photo for
larger view |

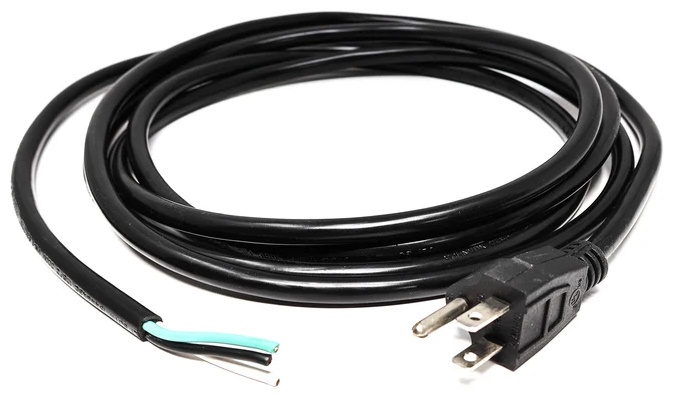

8 ft POWER CORD, 3-WIRE, 18ga, SJT type.
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SJT8 |
$9.95 |
|
Click on photo for
larger view |
8
ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line". Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length 8 feet,
18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).
Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp
cords in smaller amplifiers where there was formerly a 2-wire cord without
ground. Standard NEMA 5-15 plug for North American use at 110-120 Volts
AC. Used only in North America.
Part #PC-183SVT8-TL |
$9.95 |
|
Click on photo for
larger view |

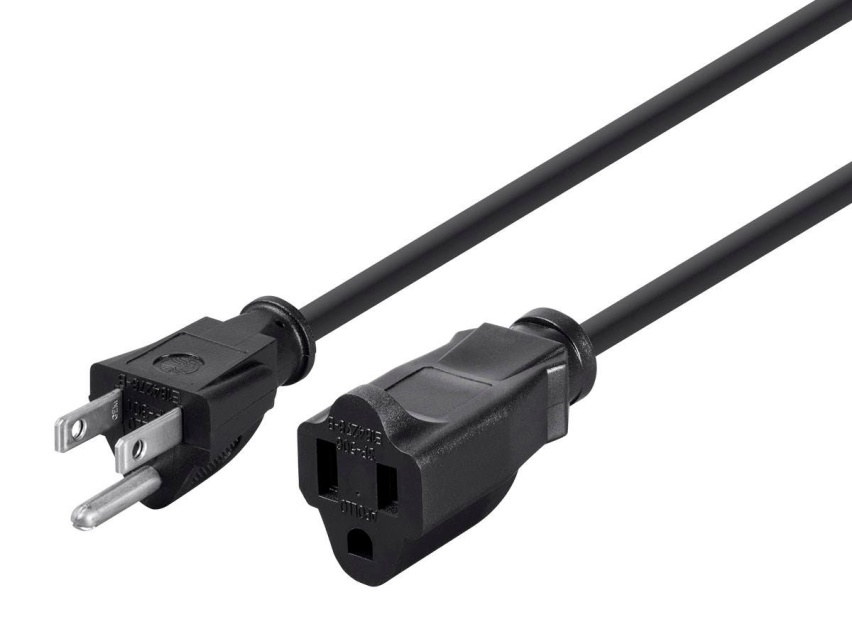

15 ft
EXTENSION CORD, 3-WIRE, 16ga, 13 Amps. Quality extension cord for use
on stage, at home, office or workshop. Cord length is 15 feet, 16 gauge,
3-wire cord thickness is 0.31 inches (about
5/16" or 7.9mm).
Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC,
13 amps maximum. Used only in
North America.
Part #EC-5301 |
$19.95 |
|
| |
Revisit™
Power Adapters |
|
|
Click on photo for
larger view |

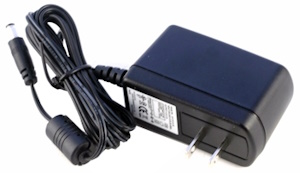

 REVISIT EFFECTS PEDAL POWER SUPPLY 9V DC, 1.6
amps.
Input voltage from 100V AC to 240V AC. Output 9 volts DC,
1600mA, fully regulated. Connector is a 2.1mm inner
diameter, center negative, outside sleeve positive. Perfect for
most pedals which are 9V battery powered. This compact
supply will power up to 10 pedals (assuming each pedal requires 160mA or
less). For powering
 multiple
pedals, see the DCC10X8 cable, below.
Part #PPS-916 |
$14.95 | |
|
Click on photo for
larger view |
REVISIT
PEDAL POWER DAISY CHAIN CABLE
Connect up to 10 Pedals with this Power Cable from a single power supply.
This daisy chain is the industry standard 2.1mm size. There are 1 in and 10
outs. It is well made, has right angle plugs and built with 22AWG wire.
Total length is 8 feet. The amperage capacity of the power supply you use
with this cable needs to be at least as large as the sum of all of the current
requirements of your pedals. For example, if each pedal requires
160mA (or 0.16 amps), the power supply needs to be capable of at least 10 x 0.16 =
1.6 amps (or 1600mA)
Part #DCC10X8 |
$11.95 |
|
Click on photo for
larger view |

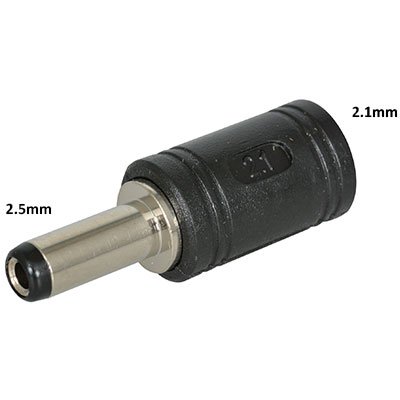

POWER CONNECTOR ADAPTER 2.1mm to 2.5mm
The two most common connectors for AC adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm. The outside diameter of these connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible. This adapter has a 2.1mm pin in the back, with a 2.5mm hole in the front, for cases where the pin in your pedal is just a tiny bit too large for the adapter.
Part #195-3591 |
$2.99 | |
Click on photo for
larger view |
POWER CONNECTOR ADAPTER 2.5mm to 2.1mm
The two most common connectors for AC adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm. The outside diameter of these connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible. This adapter has a 2.5mm pin in the back, with a 2.1mm hole in the front, for cases where the pin in your pedal is just a tiny bit too small for the adapter connector, and your power is intermittent when you move the adapter cable.
Part #195-3604 |
$2.99 |
|
| |
Revisit™
Transformers
and Chokes |
|
|
Click on photo for
larger view |
CHOKE,
Revisit™ Filter Choke for
medium size Fender™ amps.
Replacement filter choke for Fender™
Deluxe, Deluxe Reverb, Vibrolux and Vibrolux Reverb. Replaces Fender™
part number 125C3A & 022707.
Inductance 4H, +/- 15%, DC current 50mA. Vacuum impregnated with
polyurethane varnish for quiet and long life operation. For dimensions and
technical specifications, click here.
Part #FC-194A |
$18.95 |
|
|
Click on photo for
larger view |
CHOKE,
Revisit™ Filter Choke for
most larger Fender™ amps with 6L6 power tubes.
Replacement filter choke for Fender™
Bassman,
Bandmaster, Concert, Showman, Dual Showman, Pro Reverb, Super Reverb, Twin Reverb,
Vibroverb, etc.
Not used with the Vibrolux - see the FC-194A choke for the Vibrolux. Replaces Fender™
part number 125C1A, 022699 and 036486.
Inductance 4H, +/- 15%, DC current 90mA. Vacuum impregnated with
polyurethane varnish for quiet and long life operation. For dimensions and
technical specifications, click here.
Part #FC-194B |
$33.95 |
|
Click on photo for
larger view |
TRANSFORMER,
Revisit™ Fender™ REVERB DRIVER. For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc. Equivalent to Fender™
#125A20B & #022921. For vintage Mesa-Boogie™ models, including
vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber,
Maverick, Lonestar Special, and many others . Mesa Boogie™
part number 550185. 10" cut leads, X-Mount with 1 3/4" mounting
centers. Input impedance 14.5K ohms, output impedance 4 ohms.
Part #TGR-001 |
$20.95 |
|
Click on photo for
larger view |
Revisit™ OUTPUT TRANSFORMER, FENDER. Replacement for
Fender™ Champ, VibroChamp, Champion 600 and Bronco amps. Equivalent to #125A35A &
#022905.
X-Mount with mounting centers at 2 3/8".
Part #TF22905 |
$44.95 |
|
Click on photo for
larger view |

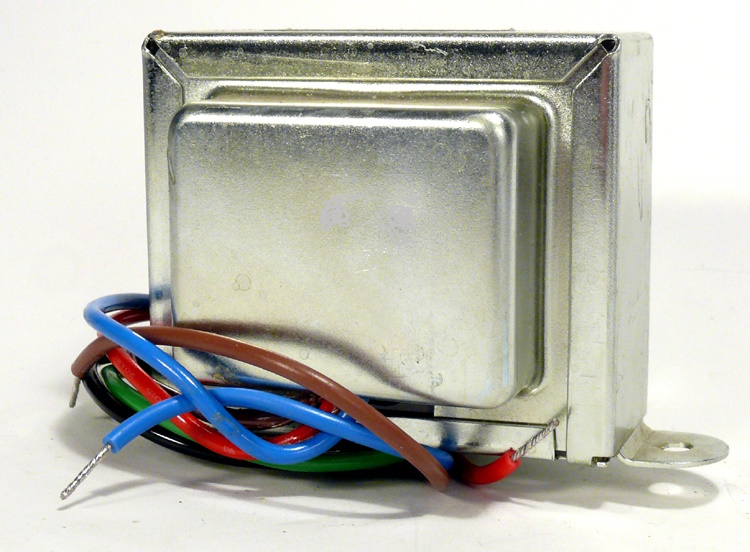

Revisit™ OUTPUT TRANSFORMER, FENDER. Replacement for
Fender™ Deluxe, Deluxe Reverb. Equivalent to #125A1A &
#041318.
X-Mount with mounting centers at 3 1/4". 25 Watts, 8 ohms.
Part #TF41318 |
$34.95 |
|
| |
Revisit™
Footswitch
Boxes |
|
|
|
Click on photo for
larger view |
Revisit™ Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy
nickel metal construction.
Dual RCA Plugs, 16 ft cable. Replaces Fender™ part number 0994051000
Part #FBS-271 |
$34.95 |
|
|
Click on photo for
larger view |
Revisit™ Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy black metal
construction. Dual RCA Plugs, 16 ft cable.
Part #FBS-271-B |
$32.95 |
|
|
Click on photo for
larger view |

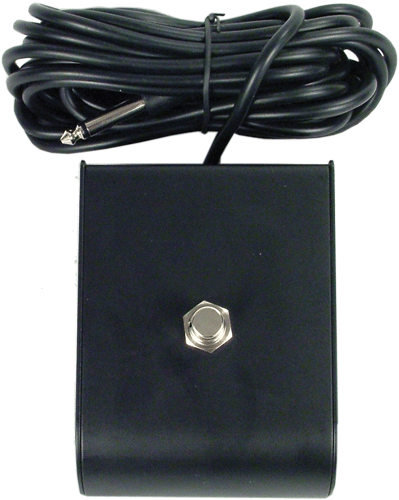

Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller
vintage blackface
and silverface amps. Sturdy
nickel metal construction.
Single RCA Plug.
Part #FBS-270 |
$24.95 |
|
|
Click on photo for
larger view |
Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller
vintage blackface
and silverface amps. Sturdy black metal construction.
Single RCA Plug.
Part #FBS-270B |
$27.95 |
|
|
Click on photo for
larger view |
 MUSIC MAN STYLE FOOTSWITCH - BLACK
Revisit™ aftermarket replacement for the original Music Man two-button footswitch found on
original Music Man amplifiers. Labeled for vibrato and reverb, but may be
used on other models for phaser / reverb, distortion, etc. Sturdy black
metal construction. Dual RCA Plugs, 12 ft cable.
Music Man amps require special grounding of the footswitch case to prevent hum
in the reverb circuit, and this switch employs that additional grounding.
Part #FBS-251 |
$33.95 |
|
|
Click on photo for
larger view
|
Marshall™ STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ footswitch -
same quality, just without the Marshall™ logo and Marshall™ price tag.
Sturdy metal construction. Mono 1/4" Plug, 16 ft. cable.
Standard design - footswitch operation shorts the tip to the sleeve - will work
with other makes and models of amplifiers as well as Marshall™.
Replaces Marshall™ stock numbers PEDL-90003, P801 and PEDL-00008. Works with the
Marshall™ models 1962, 8040, 2525, 2555, 2550, 2558, 2553, 2554. JTM60
models: JTM600-610-615-612-622. JCM600 models 600-601-602.
JCM900 models 2100-2500-2501-2101-2502. JTM30 models 310-312.
DBS models 7200-7400-72410-72115. Rackmount amps 9100-9200. MG
Series I models G30RCD, G50RCD, G80RCD and G100RCD. IBS models 3520-5522-3540.
ValveState Models 8040 and VS30R.
Part #FBS-470 |
$29.95 |
|
|
Click on photo for
larger view
|
Marshall™ STYLE FOOTSWITCH W/LED Revisit™
aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo
and Marshall™ price tag. Sturdy metal construction. Replaces
Marshall™ stock numbers PED801 and PEDL-00001. Fits the Marshall™ DSL100, DSL201 and DSL50,
and the ValveState models AVT50, VS65R and VS30R. Also the MG Series I
model G30RCD.
Also works with the Crate VC3112 Vintage Club 30 and Crate VC5112 Vintage Club
50. Mono 1/4" Plug,
16 ft. cable. LED indicates condition of switch. Can be rewired internally to work with other amplifiers. Click here for wiring diagram.
NOTE: Will not work with many amplifiers, even those that used LEDs
on the original footswitch, without rewiring. Electronics
background suggested. Also - will generally NOT work with
amplifiers which did not have an LED indicator on the original footswitch.
Part #FBS-470L |
$33.95 |
|
|
Click on photo for
larger view
|
Marshall™ STYLE FOOTSWITCH W/LED Revisit™
aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo
and Marshall™ price tag. Sturdy metal construction. Replaces
Marshall™ stock numbers PED801 and PEDL-00001. Fits the Marshall™ DSL100, DSL201 and DSL50,
and the ValveState models AVT50, VS65R and VS30R. Also the MG Series I
model G30RCD.
Also works with the Crate VC3112 Vintage Club 30 and Crate VC5112 Vintage Club
50. Mono 1/4" Plug,
16 ft. cable. LED indicates condition of switch. Can be rewired internally to work with other amplifiers. Click here for wiring diagram.
NOTE: Will not work with many amplifiers, even those that used LEDs
on the original footswitch, without rewiring. Electronics
background suggested. Also - will generally NOT work with
amplifiers which did not have an LED indicator on the original footswitch.
Part #FBS-470L |
$33.95 |
|
|
Click on photo for
larger view
|
Marshall™ STYLE DUAL FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ dual footswitch - same quality, just without the Marshall™ logo
and Marshall™ price tag. Sturdy metal construction. Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.
Latching switches. Replaces Marshall™ stock number P802, P803, P804,
P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017. Fits the
Marshall™ JCM900 series: 4100-4500-4101-4501-4102-4502. The
JCM800 series 2210-2205-4210-4212-4211. The ValveState series:
8080-8100-8200-8280-8240. The MG Series 1: G80RCD-G100RCD. The Acoustic Soloist: AS80R. Artist Series: 3203 and
4203.
Can work with other makes and models of amplifiers as well as Marshall™
- commonly used on most models of Trace Elliot guitar amps (not the bass amps,
however). Also used on Gibson™ Goldtone amplifiers, and Framus Ruby
I, Ruby II, CS, and Red Rogue models. Works with Vox AC151C1(X),
AC15C2, AC30C2(X), AC15VR, AV30, AV60, all Night Train G2 models.
1/4" Stereo plug, 16 ft. cable. Will also work on the
Fender 1990s and 2000s Reissue 65 Twin-Super-Deluxe-Princeton Reverb
amps.
Part #FBS-471 |
$37.95 |
|
|
Click on photo for
larger view
|
Marshall™ STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ footswitch -
same quality, just without the Marshall™ logo and Marshall™ price tag.
Sturdy metal construction. Mono 1/4" Plug, 16 ft. cable.
Standard design - footswitch operation shorts the tip to the sleeve - will work
with other makes and models of amplifiers as well as Marshall™.
Replaces Marshall™ stock numbers P801 and PEDL-00008. Works with the
Marshall™ models 1962, 8040, 2555, 2550, 2558, 2553, 2554. JTM60
models: JTM600-610-615-612-622. JCM600 models 600-601-602.
JCM900 models 2100-2500-2501-2101-2502. JTM30 models 310-312.
DBS models 7200-7400-72410-72115. Rackmount amps 9100-9200. MG
Series I model G50RCD. IBS models 3520-5522-3540.
Part #FBS-470 |
$29.95 |
|
|
Click on photo for
larger view
|
Marshall™ STYLE DUAL FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall™ dual footswitch - same quality, just without the Marshall™ logo
and Marshall™ price tag. Sturdy metal construction. Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.
Latching switches. Replaces Marshall™ stock number P802, P803, P804,
P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017. Fits the
Marshall™ JCM900 series: 4100-4500-4101-4501-4102-4502. The
JCM800 series 2210-2205-4210-4212-4211. The ValveState series:
8080-8100-8200-8280-8240. The MG Series 1: G80RCD-G100RCD. The Acoustic Soloist: AS80R.
Can work with other makes and models of amplifiers as well as Marshall™
- commonly used on most models of Trace Elliot guitar amps (not the bass amps,
however). Also used on Gibson™ Goldtone amplifiers, and Framus Ruby
I, Ruby II, CS, and Red Rogue models.
1/4" Stereo plug, 16 ft. cable. Will also work on the
Fender 1990s and 2000s Reissue 65 Twin-Super-Deluxe-Princeton Reverb
amps.
Part #FBS-471 |
$37.95 |
|
|
Click on photo for
larger view |
UNIVERSAL STYLE
DUAL FOOTSWITCH WITH REMOVABLE CABLE. Revisit™
replacement for foot switch boxes with stereo 1/4" plug for the amplifier
connection. 10 foot long cable is removable from the foot switch box - has a stereo 1/4" plug
for connection at both the foot switch end and the amplifier end.
Replaces Marshall™ stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010,
PEDL-00015, PEDL-00017. Fits the Marshall™ JCM900 series:
4100-4500-4101-4501-4102-4502. The JCM800 series
2210-2205-4210-4212-4211. The ValveState series:
8080-8100-8200-8280-8240. The MG Series 1: G80RCD-G100RCD. The Acoustic Soloist: AS80R. Includes the dual footswitch box and the
stereo cable (10 ft).
Advantages of the removable cable include:
- Easy to replace cable - no disassembly or
soldering needed
- Easy to change to a different
configuration footswitch by changing the cable (for example, to a mono
Y-cord for Roland amps)
- Cable has metal 1/4" plugs with spring
strain reliefs for durability
Part #FBS-671 |
$44.95 |
|
|
Click on photo for
larger view
|
Marshall™ STYLE DUAL FOOTSWITCH W/LED Revisit™ aftermarket replacement for the original Marshall™ footswitch - same
quality, just without the Marshall™ logo and Marshall™ price tag. Sturdy
metal construction. Replaces Marshall™ stock number PED802, PED802A,
PEDL-00013, PEDL-00016, PEDL-10029 and PEDL-91003. Fits the Marshall™
AS50R, AS50D, DSL401, VS100R, VS102R,
VS100RH, VS230R, VS232R.
Also
works with the Crate BV120H Blue Voodoo 120 Head. Stereo 1/4" Plug,
16 ft. cable. LEDs indicate condition of switches. Can be rewired internally to work with other amplifiers. Click here for wiring diagram.
NOTE: Will not work with many amplifiers, even those that used LEDs
on the original footswitch, without rewiring. Electronics
background suggested. Also - will generally NOT work with
amplifiers which did not have LED indicators on the original footswitch.
Part #FBS-471L |
$39.95 |
|
|
Click on photo for
larger view |
Marshall™ STYLE TRIPLE FOOTSWITCH W/LED Revisit™
aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo
and Marshall™ price tag. Equivalent to the Marshall™ PED-803 and the
Marshall™ PEDL-10014. Sturdy metal construction. Fits only
the Marshall™ VS265. Connector is a 5-pin DIN plug, 16 ft. cable. LEDs indicate condition of switches.
Click here for wiring diagram. Will
not work with amplifiers other than the Marshall™ ValveState VS265R.
Part #FBS-473L |
$49.95 |
|
|
Click on photo for
larger view |
UNIVERSAL STYLE
DUAL FOOTSWITCH WITH REMOVABLE CABLE. Revisit™ replacement for foot
switch boxes with two mono 1/4" plugs for the amplifier connection.
10 foot long cable is removable from the foot switch box - has a stereo 1/4"
plug for connection at the foot switch end, and dual 1/4" mono plugs for
connection at the amplifier end. Replacement for a number of
different footswitches on various amplifiers, including many Orange Amp models
which have dual footswitch jacks. Includes the dual footswitch box and the
stereo to mono Y-cable (10 ft).
Part #FBS-571 |
$44.95 |
|
| |
Revisit™
Corners |
|
|
Click on photo for
larger view |

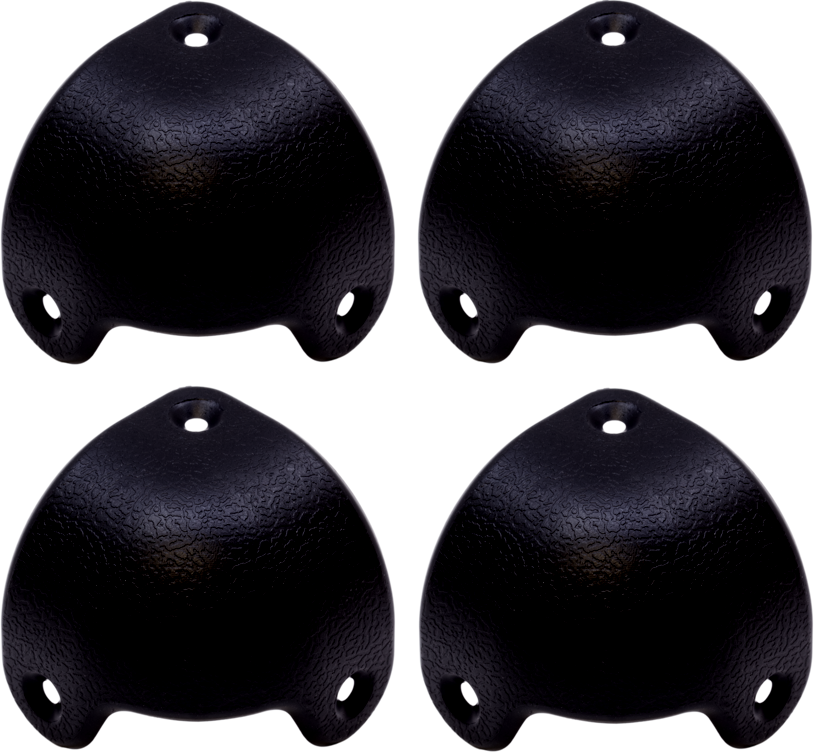

Revisit™
Quality Reproduction of Marshall™ CORNERS, FRONT OF
CABINET
Front corner set, 3/4" radius. Includes 12
gold rivets for attaching to cabinet. For
Marshall™
heads, combos and straight
speaker cabinets. Replace your
Marshall™
corners with quality parts at 25% less than Marshall™
prices.
Will not fit slanted speaker cabinets,
such as the 1960A. For slanted cabinets, see the MC-1092 set.
Part #RC-1091 |
$7.95
(For a set of 4 corners with 12 rivets) |
|
Click on photo for
larger view |

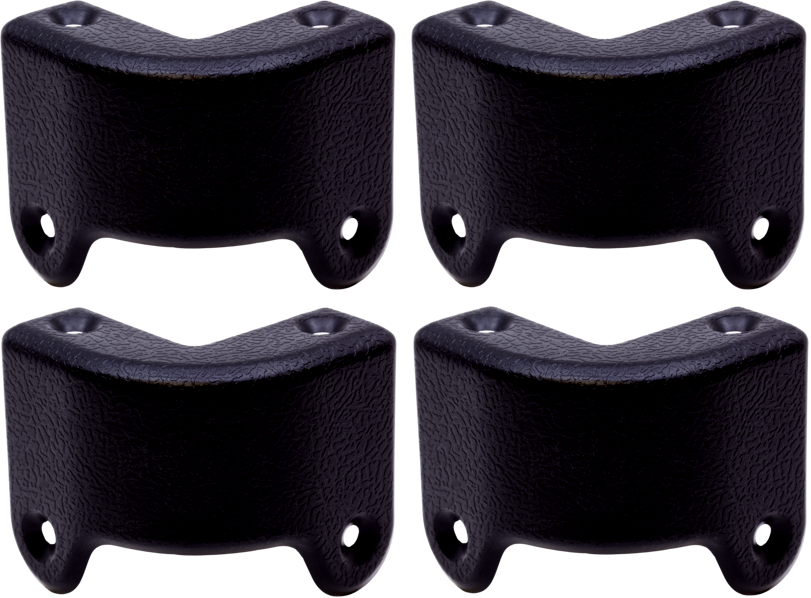

Revisit™
Quality Reproduction of Marshall™ Corners, Rear of
Cabinet
Rear corner set, 3/4" radius. Includes
16
gold rivets for attaching to cabinet. For Marshall™
heads, combos and
speaker cabinets. Replace your
Marshall™
corners with quality parts at 25% less than Marshall™
prices.
Part #RC-1090 |
$8.95
(For a set of 4 rear corners with 16 rivets) |
|
Click on photo for
larger view |
Revisit™
Metal 2-Leg Cabinet Corner Black
Durable powder-coated steel corners provide
protection and a finished look for small to medium sized speaker cabinets
and racks. Two legs, one edge is cut-away, for use on front of
cabinet with any thickness of wood from 1/2" and larger. Dimensions: 1.6" H x 1.6" W x 0.5" D. Set of
4 corners. Screws not included - recommend the SC-304 truss-head
screws for use with these corners.
Part #SCC-130-2
|
$4.99
(Set of 4 corners) |
|
Click on photo for
larger view |
Revisit™
Metal 2-Leg Wrap-Around Cabinet Corner
with Lip - Black
Durable black-finished steel corners provide
protection and a finished look for small to medium sized speaker cabinets
and racks. Cabinet corner, wrap-around style that suits 3/4" wood with vinyl
or paint covering, 2 leg • Dimensions: 1.42" x 0.87" • Metal thickness: 0.9
mm/.035" Set of
4 corners. Screws not included - recommend the SC-304 truss-head
screws for use with these corners.
Part #SCC-130-2L
|
$4.99
(Set of 4 corners) |
|
Click on photo for
larger view |
Revisit™
Metal 3-Leg Cabinet Corner Black
Durable powder-coated steel corners provide
protection and a finished look for small to medium sized speaker cabinets
and racks. Dimensions: 1.6" H x 1.6" W x 1.6""D.
Set of 4 corners. Screws not included - recommend the SC-304
truss-head screws for use with these corners.
Part #SCC-130-3
|
$4.99
(Set of 4 corners) |
|
Click on photo for
larger view |
Revisit™
Black Truss-Head Corner Screws
Flat pan type black truss-head corner screws for NON counter-sunk
black corners,
such as our SCC-130-2, SCC-130-2L and SCC-130-3 corners. 1/2 inch long,
Phillips head, black powder coated. Sold individually.
Part #SC-304
|
$0.20
(each) |
|
Click on photo for
larger view |
Revisit™
Metal 2-Leg Cabinet Corner Nickel Plated
Steel
Durable nickel-plated steel corners provide
protection and a finished look for small to medium sized speaker cabinets
and racks. Two legs, one edge is cut-away, for use on front of cabinet
with any thickness of wood from 1/2" and larger. Dimensions: 1.6" H x 1.6" W x 0.5" D. Set of
4 corners. Screws not included - recommend the SC-225 truss-head
screws for use with these corners.
Part #NPC-157-2
|
$5.95
(Set of 4 corners) |
|
Click on photo for
larger view |
Revisit™
Metal 2-Leg Wrap-Around Cabinet Corner
with Lip - Nickel Plated Steel
Durable nickel-plated steel corners provide
protection and a finished look for small to medium sized speaker cabinets
and racks. Cabinet corner, wrap-around style that suits 3/4" wood with vinyl
or paint covering, 2 leg • Dimensions: 1.42" x 0.87" • Metal thickness: 0.9
mm/.035" Set of
4 corners. Screws not included - recommend the SC-225
truss-head screws for use with these corners.
Part #NPC-157-2L
|
$5.95
(Set of 4 corners) |
|
Click on photo for
larger view |
Revisit™
Metal 3-Leg Cabinet Corner Nickel Plated
Steel
Durable nickel-plated steel corners provide
protection and a finished look for small to medium sized speaker cabinets
and racks. Dimensions: 1.6" H x 1.6" W x 1.6"" D.
Set of 4 corners. Screws not included - recommend the
SC-225 truss-head screws for use with these corners.
Part #NPC-157-3
|
$5.95
(Set of 4 corners) |
|
Click on photo for
larger view |
Revisit™
Nickel-plated Truss-Head Corner Screws
Flat pan type truss-head corner screws for NON counter-sunk
nickel corners,
such as our NPC-157-2, NPC-157-2L and NPC-157-3 corners. 1/2 inch long,
Phillips head, nickel plated. Sold individually.
Part #SC-225
|
$0.20
(each) |
|
Click on photo for
larger view |
Revisit™
Black Plastic Stacking Corners - Set of 4
corners
For speaker cabinets and cases.
Popular "chevron" angled ridges for interlocked stacking. Screws not included - recommend the
SC-411-8 black screws for use with these corners (two packs of SC-411-8
screws needed per set of 4 corners.)
Part #BPC-834
|
$2.99
(Set of 4 corners) |
ONLY 1 SET LEFT!
DISCONTINUED!
|
| |
Revisit™
Handles |
|
|
Click on photos for
larger view
(Assembled)
|
Marshall™
AFTERMARKET HANDLE
Identical to the Genuine Marshall™ Handle MAH-294, except does not
have the "Marshall" name imprinted on the end caps. Save
compared to the price of the original Marshall™ handle. For modern heads and combo amps. Used
primarily on JCM900, JCM2000, larger ValveState, and JVM series amps. Replaces Original Marshall™ part number M-PACK-00031
or stock number MAH-294. Kit contains:
- (2) Countersunk screws - M5 x 0.8, overall
length of 25 mm
- (2) Mounting brackets
- (2) Black bracket covers (no Marshall™
logo)
- (1) Rubber handle with metallic insert
- Center-to-center screw mounting distance
is 8 3/8" (213mm).
- Overall length of assembled and mounted
handle is 101/4" (260mm).
- Replacement screws are the Marshall™ SC-404
screws, below
Part #RAH-294 |
$15.99 |
|
Click on photos for
larger view
|
VINTAGE
Revisit™ REISSUE
GOLD/BLACK HANDLE - Marshall™ JCM-800 style
Marshall™ Handle for vintage heads and combo amps. Used
on some early JCM800 series. Kit contains:
- (2) Mounting brackets
- (2) Gold bracket covers
- (1) Rubber handle strap with metallic insert
- Center-to-center screw mounting distance
is 9 inches between the inside two screws, and 10 inches between the outside
two screws.
- Overall length of assembled and mounted
handle is 11-1/4" (286mm).
- Mounting screws are included.
Part #MAH-287 |
$19.99 |
|
Click on photos for
larger view
|
VINTAGE
Revisit™ REISSUE
SILVER/BLACK HANDLE - Marshall™ JCM-800 style
Marshall™ Handle for vintage heads and combo amps. Used
on some early JCM800 series. Kit contains:
- (2) Mounting brackets
- (2) Silver color bracket covers
- (1) Rubber handle strap with metallic insert,
silver ends
- Center-to-center screw mounting distance
is 9 inches between the inside two screws, and 10 inches between the outside
two screws.
- Overall length of assembled and mounted
handle is 11-1/4" (286mm).
- Mounting screws are included.
Part #MAH-355 |
$19.99 |
|
Click on photos for
larger view
|
VINTAGE
Revisit™ REISSUE
GOLD/BLACK HANDLE REPLACEMENT STRAP - Marshall™ JCM-800 style
The strap part only of handle part number MAH-287. Used on some
early Marshall™
JCM800 series amps. 11 inches, end-to-end.Part #MHS-295 |
$13.95 |
|
Click on photos for
larger view
|
VINTAGE
Revisit™ REISSUE
GOLD HANDLE END CAP - Marshall™ JCM-800 style
One end cap only of handle part number MAH-287. Used on some
early Marshall™
JCM800 series amps. Sold individually. Note:
We urge you to also replace the MIC-295 internal clamp at the same time.
These end caps may not lock securely on old internal clamps, making the end caps
randomly pop off when lifting the amp by its handle.Part #MHC-295 |
$1.95
(for one end cap) |
|
Click on photos for
larger view
|
VINTAGE
Revisit™ REISSUE
HANDLE INTERNAL CLAMP - Marshall™ JCM-800 style
One internal clamp only of handle part numbers MAH-287 or MAH-355. Used on some
early Marshall™
JCM800 series amps. Sold individually.
Part #MIC-295 |
$1.60
(for one clamp) |
|
Click on photos for
larger view
|
VINTAGE
Revisit REISSUE GOLD/BLACK HANDLE - JMP, JTM "PLEXI"
Handle for vintage Marshall™ heads and combo amps. Replacement for
the original Marshall™ JMP, JTM "Plexi" series. Kit contains:
- (2) Mounting brackets
- (2) Gold bracket covers
- (1) Rubber handle strap with metallic insert
- Center-to-center screw mounting distance
is 9".
- Overall length of assembled and mounted
handle is 10.7" (272mm).
- Mounting screws are NOT included
Part #MAH-288 |
$23.95 |
|
Click on photo for
larger view |
 Revisit™ BLACK GUITAR AMP HANDLE,
WITH HARDWARE.
Rugged rubber black handle strap, steel reinforced. Black metal caps.
Black 10-32 screws and T-Nut mounting hardware are included. Handle strap is 7/8"
wide. Designed for screw holes set 8 1/4 to 8 3/8 inches apart. Total length of handle when properly mounted is
10 1/4". Great replacement for the Budda Superdrive 30 (Series 1
only, pre-Peavey).
Part #GAH-271B |
$11.99 |
|
Click on photo for
larger view |
Revisit™
NICKEL/BLACK GUITAR AMP HANDLE
- NICKEL, WITH HARDWARE.
Rugged rubber black handle strap, steel reinforced. Polished
nickel metal caps.
10-32 screws and T-Nut mounting hardware are included. Handle strap is 7/8"
wide. Designed for screw holes set 8 1/4 inches apart. Total length of handle when properly mounted is
10 1/4".
Not recommended for Fender, as the screws are set too far apart for
Fender™ amp specifications.
Part #GAH-271C |
$9.99 |
|
Click on photo for
larger view |
Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, BLACK WITH
BLACK STITCHING
Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera,
Blackstar, many others. Handle
length is 8-9/16 inches (8.57"), center-to-center mounting distance is 7-3/8
inches (7.38") Black with black stitching, nickel mounts.
More details Mounting
screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-281 |
$15.95 |
|
"SHORTY" AMP HANDLE
Click on photo for
larger view |
Revisit™

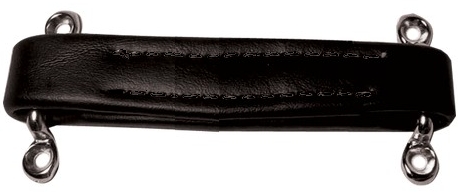

"SHORTY" AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, BLACK WITH
BLACK STITCHING
Similar to the AH-281 handle above, but 1-3/4 inches shorter. Handle
length is 6-13/16 inches (6.80"), center-to-center mounting distance is 6
inches (5.98") Black with black stitching, nickel mounts. Mounting
screws not included - use SC-402 or SC-403-4 screw pack. This is a great handle
to consider for smaller combo amps, practice amps, etc. Delivers a
professional quality look and reliability in a smaller size for smaller amps.
More details
Part #AH-281-S
"Shorty" |
$12.95 |
|
Click on photo for
larger view |
Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, DARK BROWN WITH
BROWN STITCHING
Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera,
Blackstar, many others. Handle
length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8
inches (7.38") Dark brown with brown stitching, nickel mounts.
More details Mounting
screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-270 |
$15.95 |
|
Click on photo for
larger view |
Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE,
TAN WITH TAN STITCHING
Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera,
Blackstar, many others. Handle
length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8
inches (7.38") Tan with tan stitching, nickel mounts.
More details Mounting
screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-108 |
$15.95 |
|
Click on photo for
larger view |
Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, DARK BROWN WITH
WHITE STITCHING
Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera,
Blackstar, many others. Handle
length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8
inches (7.38") Dark brown with white stitching, nickel mounts.
More details Mounting
screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-318 |
$15.95 |
|
Click on photo for
larger view |
Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, DEEP NAVY BLUE-GREY WITH
WHITE STITCHING
Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera,
Blackstar, many others. Handle
length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8
inches (7.38") Dark navy blue-grey with white stitching, nickel mounts.
More details Mounting
screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-319 |
$16.95 |
|
| |
Revisit™
Feet |
|
|
Click on photo for
larger view |
NICKEL GLIDE FEET,
Revisit™, PACK OF 4, SCREWS INCLUDED.
Nickel cover over rubber foot. 15/16" Diameter, 0.33" Tall.
Replacement for glides used
on many Fender™ amplifiers, including the blackface and silverface designs.
Set of 4, includes 7/8" wood screws. Replaces Fender™ part number 0993900000.
Part #SG-239 |
$4.95
(pack of 4 with screws) |
|
Click on photo for
larger view |
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip
on all types of surfaces. Ideal for smaller amps, amp heads, effects units,
larger floor effects pedals, or speaker
cabinets. The integral metal washer in the mounting hole helps prevent
mounting screw "break-through" and adds overall durability.
0.84"
diameter x 0.31" high. Screws not included. Set of 4
feet.
Part #BRF-750
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for smaller amps, amp heads, or speaker
cabinets. The integral metal washer in the mounting hole helps prevent
mounting screw "break-through" and adds overall durability.
Just under 1 inch - 15/16"
diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8"
tall. Screws not included. Set of 4
feet.
Part #BRF-723
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK RUBBER FEET, SET OF 4
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for large rack cabinets or speaker cabinets.
the integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter x 1" tall. Mounting
screws not included.
Part #BRF-1691
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets.
The integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter
(wide end) x 3/4" diameter (narrow end) x 0.85" tall. Mounting
screws not included. Set of 4 feet.
Part #BRF-9105
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets.
The integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter x
5/8" tall. Mounting
screws not included.
Part #BRF-1692
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK RUBBER FEET, SET OF 4.
Tapered: 1 3/16" diameter at small end,
1 1/4" diameter at large end. 1/2" tall. Black rubber with metal insert. Used to
support effects, amps, mixers. Mounting screws not included.
Part #BRF-9112 |
$4.95
(pack of 4) |
|
Click on photo for
larger view |
X-LARGE BLACK RUBBER FEET, SET OF 4. Tapered:
1 5/8" diameter at large end, 1 1/4" at small end. 3/4" tall. Black rubber with
metal insert. Used to support amp heads, speaker cabinets. Mounting screws not
included.
Part #BRF-9107 |
$7.95
(pack of 4) |
|
| |
Revisit™
Knobs |
|
|
Click on photo for
larger view |
KNOB, Revisit™ Quality Reproduction of Marshall™ Knob, Push-on Knurled, Single
Knob.
Excellent quality aftermarket Marshall™ control knobs, push-on type, set of 6
knobs. Black with gold top. Designed for the "knurled" type control shafts.
Found on a variety of Marshall™ amps, including some JCM-800, JCM-900,
JTM-30 series, JTM-60 series, JCM-600 series, 9001 and 9004 preamp, the early
ValveState models (8010, 8020, 8040, 8080, 8100, 8200, 8240, 8280) and the
earlier MG series versions as well as other models. Note: In most
cases, the gold color on the new knob will be deeper than the other old knobs on
your amp - the gold caps on Marshall™ knobs fade over time.
Especially true if your amp is ~20 years old or greater (JCM800 and JCM900, for
example).
Since Marshall™ has recently changed the appearance of their original
Marshall™ brand knobs (duller and more of an orange-gold color), we believe
these reproduction knob are now actually closer in appearance to the original
Marshall™ knobs.
Part #MKCPT |
$1.89
(Single Knob) |
|
Click on photo for
larger view |
KNOB
SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of 6.
Excellent quality aftermarket Marshall™ control knobs, push-on type, set of 6
knobs. Designed for the "knurled" split-shaft potentiometers.
Found on a variety of Marshall™ amps, including some JCM-800, JCM-900,
JTM-30 series, JTM-60 series, JCM-600 series, 9001 and 9004 preamp, the early
ValveState models (8010, 8020, 8040, 8080, 8100, 8200, 8240, 8280) and the
earlier MG series versions as well as other models. Note: In most cases, the gold
color on the new knob will be deeper than the other old knobs on your amp - the
gold caps on Marshall™ knobs fade over time. Especially true if your
amp is ~20 years old or greater (JCM800 and JCM900, for example). Since
Marshall™ has recently changed the appearance of their original Marshall™ brand
knobs (duller and more of an orange-gold color), we believe these reproduction
knobs are now actually closer in appearance to the original Marshall™ knobs.
Part #MKCPT-6 |
$9.95
(Set of 6 knobs) |
|
Click on photo for
larger view |
KNOB
SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of 10. Excellent quality
aftermarket Marshall™ control knobs, push-on type,
set of 10 knobs. Designed for the "knurled" split-shaft
potentiometers.
Found on a variety of Marshall™ amps, including some JCM-800, JCM-900,
JTM-30 series, JTM-60 series, JCM-600 series, 9001 and 9004 preamp, the early
ValveState models (8010, 8020, 8040, 8080, 8100, 8200, 8240, 8280) and the
earlier MG series versions as well as other models.
Nothing perks up the tired looks of a road-worthy Marshall™ like a complete new
set of knobs. Older Marshalls typically have knobs where some of the
gold caps have fallen off, and the other gold caps have faded to look more like
silver than gold. It used to be a bit pricey to swap out the
complete set of knobs on some of the JCM900's, but with this
new set of aftermarket Marshall™ knobs, it's affordable. This
set of 10 knobs is perfect for many JCM900 series models with 10 control pots,
such as the 2101, 2501, 4100, 4101, 4102, 4500, 4501, and 4502.
Quality reproduction of the original Marshall™ knobs at half of the
cost. Since Marshall™ has recently changed the appearance of their
original Marshall™ brand knobs (duller and more of an orange-gold color), we
believe these reproduction knobs are now actually closer in appearance to the
original Marshall™ knobs.
Part #MKCPT-10 |
$14.95
(Set of 10 knobs) |
|
Click on photo for
larger view |

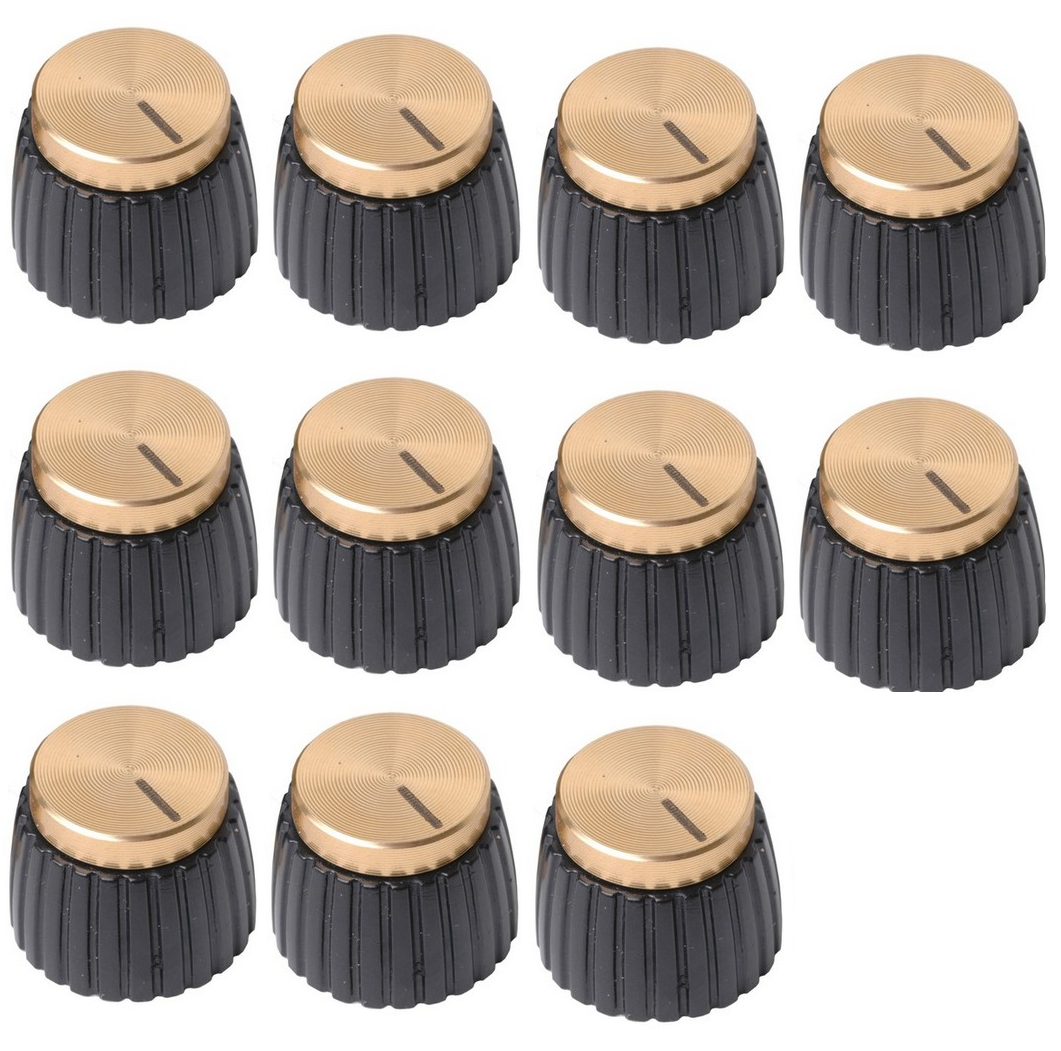

KNOB
SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of 11. Excellent quality
aftermarket Marshall™ control knobs, push-on type,
set of 11 knobs. Designed for the "knurled"
type control shafts (used on some JCM800s - check your
particular amp to make sure it has knurled knobs and not solid smooth shaft pots
with set-screw knobs).
Nothing perks up the tired looks of a road-worthy Marshall™ like a complete new
set of knobs. Older Marshalls typically have knobs where some of the
gold caps have fallen off, and the other gold caps have faded to look more like
silver than gold. It used to be a bit pricey to swap out the
complete set of knobs on some of the split-channel JCM800's with 11 controls, but with this
new set of aftermarket Marshall™ knobs, it's affordable. This
set of 11 knobs is perfect for many split-channel JCM800 series models with 11 control pots,
such as the 2205, 2210, 4210, 4211, 4212, 5210, and 5212. (Check your
particular amp to make sure it has knurled knobs and not solid smooth shaft pots
with set-screw knobs) Quality reproduction of the original Marshall™ knobs at half of the
cost. Since Marshall™ has recently changed the appearance of their
original Marshall™ brand knobs (duller and more of an orange-gold color), we
believe these reproduction knobs are now actually closer in appearance to the
original Marshall™ knobs.
Part #MKCPT-11 |
$15.95
(Set of 11 knobs) |
|
Click on photo for
larger view |
KNOB
SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of
25. Excellent quality
aftermarket Marshall™ control knobs, push-on type,
set of 25 knobs. Designed for the "knurled"
type control shafts Nothing perks up the tired looks of a
road-worthy Marshall™ like a complete new set of knobs. Quality reproduction of the original Marshall™ knobs at half of the
cost. This set of 25 knobs is great for repair shops, at less than $1.00
per knob. Since Marshall™ has recently changed the appearance of their
original Marshall™ brand knobs (duller and more of an orange-gold color), we
believe these reproduction knobs are now actually closer in appearance to the
original Marshall™ knobs.
Part #MKCPT-25 |
$24.95
(Set of 25 knobs) |
|
Click on photo for
larger view |
KNOB
SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of
50. Excellent quality
aftermarket Marshall™ control knobs, push-on type,
set of 50 knobs. Designed for the "knurled"
type control shafts Nothing perks up the tired looks of a
road-worthy Marshall™ like a complete new set of knobs. Quality reproduction of the original Marshall™ knobs at half of the
cost. This set of 50 knobs is great for repair shops, at less than 80
cents
per knob. Since Marshall™ has recently changed the appearance of their
original Marshall™ brand knobs (duller and more of an orange-gold color), we
believe these reproduction knobs are now actually closer in appearance to the
original Marshall™ knobs.
Part #MKCPT-50 |
$39.95
(Set of 50 knobs) |
|
|
KNOB,
Revisit™ Marshall™, PUSH ON D-SHAFT (Read applicable models!)
Standard Revisit™
Marshall™ style control knob, push-on type, for D-Shaft pots used in
the following Marshall™ amp models: DSL-201 combo, DSL-401 combo,
DSL-40C combo, TSL-122 combo, TSL-601 combo, TSL-602 combo, JVM205H head,
JVM210H head, JVM410H head, VS15 combo, VS30R combo, VS65R combo, VS100R
combo, VS100RH head, VS102R combo, VS230 combo, VS265 combo, AVT20 combo, AVT50
combo, AVT50H head, AVT100 combo, AVT150 combo, AVT150H head, AVT275 combo, AS100D combo, MA50C
Combo, MA100C Combo, MG10, MG15, MG15FX, MG30FX, MG50FX, MG100FX, MG100HFX,
MG102FX.
For the similar knob used on DSL and TSL JCM2000 series heads, MA series heads,
and JVM series combos see the MKDS knob elsewhere on this page.
The R-MKDS-C Knob is constructed so that the pointer on the front of the knob is
180 degrees away from the flat spot in the shaft hole on the back side of the
knob.
Part #R-MKDS-C |
$2.99
(Single Knob) |
|
Click on photo for
larger view |
KNOB,
Revisit™ Quality REPRODUCTION of Marshall™, Set Screw.
Revisit™ aftermarket Marshall™ control knob, with
gold cap and set screw.
Fits 1/4" shaft. Similar to original Marshall™ set-screw knob. This style of knob was used mainly in
the 60s and 70s. Note: 1960s Plexi models may have a smaller knob.
Those are no longer available, so we recommend these as a replacement.
Comments on appearance and construction: In most cases, the gold color on the
new knob will be deeper than the other old knobs on your amp - the gold caps on
Marshall™ knobs fade over time. Since Marshall has recently changed the appearance of their original Marshall brand knobs (duller and more of an orange-gold color), we believe these reproduction knobs are now actually closer in appearance to the original Marshall knobs.
These knobs have a brass insert, so they tend to be
more durable than the genuine all-plastic Marshall knobs.
Part #MKSS |
$1.99
(Single Knob) |
|
Click on photo for
larger view |
KNOB
SET, Marshall™ type, Set Screw, Set of 6.
Revisit™ aftermarket Marshall™ control
knobs, with
gold cap and set screw.
Fits 1/4" shaft, set of 6 knobs. Similar to original Marshall™ set-screw knob. This style of knob was used mainly in
the 60s and 70s. Note: 1960s Plexi models may have a smaller knob.
Those are no longer available, so we recommend these as a replacement.Comments on appearance and construction: In most cases, the gold color on the
new knob will be deeper than the other old knobs on your amp - the gold caps on
Marshall™ knobs fade over time. Since Marshall has recently changed the appearance of their original Marshall brand knobs (duller and more of an orange-gold color), we believe these reproduction knobs are now actually closer in appearance to the original Marshall knobs.
These knobs have a brass insert, so they tend to be
more durable than the genuine all-plastic Marshall knobs.
Part #MKSS-6 |
$9.95
(Set of 6 knobs) |
|
SET SCREW
Click on photo for
larger view |
KNOB,
Revisit™ Quality REPRODUCTION of Marshall™, Black Top, Set Screw.
Revisit™ aftermarket Marshall™ control knob, with
black metal cap, brass insert and set screw. Fits 1/4"
shaft. Similar to original Marshall™ set-screw knob used on the early
Marshall models until the early 1980s. Shiny ridged
black metal top on black plastic body.
Part #MKBSS |
$1.99
(Single Knob) |
|
PUSH-ON
Click on photo for
larger view |
KNOB,
Revisit™ Quality REPRODUCTION of Marshall™, Black Top, Push-On.
Revisit™ aftermarket Marshall™ control knob, with
black metal cap, push-on for knurled shaft pots, used on most Marshall
models from the late 1980s to the present. Similar to original
Marshall™ push-on knobs. Shiny ridged black metal top on black
plastic body.
Part #MKBPT |
$1.99
(Single Knob) |
|
Click on photo for
larger view |
KNOB, Silver Marshall™ type, SET SCREW
Revisit™ aftermarket Marshall™ control knob, with
silver cap and set screw.
Fits 1/4" smooth shaft. Similar to original silver Marshall™ set-screw knob,
which has been discontinued.
Part #MKSSS |
$1.99
(Single Knob) |
|
Click on photo for
larger view |
KNOB, Silver Marshall™ type, PUSH ON
Revisit™ aftermarket Marshall™ control knob, with
silver cap and designed to fit a "knurled" 1/4" shaft. No
set-screw. Similar to original silver Marshall™ knob,
which has been discontinued.
Part #MKSPT |
$1.99
(Single Knob) |
|
| |
Revisit™
Kits |
|
|
Click on photo for
larger view |
Fender™ VIBRATO
REBUILD KIT by
Revisit™
For all vintage blackface and
silverface Fender amplifiers with opto-isolator type vibrato from the 1963-1981 era (not reissue
models). This would include most all 60s and 70s Fender amps with
vibrato except for the Bronco, Vibro-Champ, Princeton, or Princeton Reverb - kit
will not work on those models. If you have vibrato problems, changing the vibrato 12AX7
oscillator tube should be the first step (2nd preamp tube away from the power
tubes).
If that does not solve the problem, changing the components contained in this kit
should do the trick. Contains 3 phase shift ceramic disc capacitors,
two resistors
and one opto-isolator. More info here.
Part #VRK-1 |
$16.95 |
|
(Picture for illustrative purposes only - actual kit components will vary from this photo)
|
FENDER "BLACKFACE" KIT
by
Revisit™ This kit changes the circuit design of your late
60s or 70s vintage Silverface Fender™ Amp to the original "Blackface" amps of
the early-to-mid 60s. Most players agree that the pre-CBS blackface
amps sounded much better than the silverface successors designed
by the CBS engineers. With this kit, you can take your amp back to
the Leo Fender design. In addition, you also restore the bias-setting
capability of the amp in place of the "balance" control.
These modifications are completely
reversible, and no permanent changes to the chassis (such as drilling holes,
etc) are required. The kit includes 9 resistors, 4 capacitors and
instructions. Note: This kit does NOT apply to the silverface
Bantam Bassman, Bassman, Bassman Ten, Bronco, Champ, Deluxe Reverb, Musicmaster
Bassman, Princeton Reverb, or VibroChamp.
Part #FBK-1 |
$11.95 |
|
(Picture for illustrative purposes only - actual kit components will vary from this photo)
|
FENDER "S-L-O-W-E-R VIBRATO" KIT by
Revisit™ FOR VINTAGE BLACKFACE
AND SILVERFACE This kit changes the circuit design
of the vibrato to slow down the slow end of the vibrato speed control
considerably, giving a much wider usable speed range. Fast
speed remains virtually unchanged, and the intensity remains the same.
Jazz players especially love the slower vibrato. The official Fender vibrato "tick cure" is also included in this kit, as listed
on a Fender service bulletin from several years ago. This kit is applicable
to all two-channel vintage Blackface and Silverface amps from the 1960-1970 era.
This kit does not apply to Bronco, Princeton or VibroChamp
circuits. Kit includes necessary parts and instructions.
Soldering capability is required.
Part #FSVK-100 |
$3.50 |
|
(Picture for illustrative purposes only - actual kit components will vary from this photo)
|
FENDER "S-L-O-W-E-R VIBRATO" KIT by
Revisit™ FOR REISSUE AMPS This kit changes the circuit design
of the vibrato to slow down the slow end of the vibrato speed control
considerably, giving a much wider usable speed range.
Fast speed remains virtually unchanged, and the intensity remains the same.
Fits `65 Twin Reverb™
Reissue, `65 Super Reverb™ Reissue, `65 Deluxe Reverb™ Reissue, '65 Princeton
Reverb™ Reissue, `68 Custom Twin Reverb™, `65 Custom Super Reverb™, `68 Custom
Deluxe Reverb™, '68 Custom Princeton Reverb™.
Kit includes necessary parts and instructions.
Soldering capability is required.
Part #FRSVK |
$1.25 |
|
|
Click on photo for
larger view
|
Fender™
RCA VIBRATO SHORTING PLUG
by
Revisit™ - GOLD-PLATED. Did you know that on
vintage Fender™ amps (Blackface, Silverface), the reverb
will work without a footswitch plugged in, but the vibrato will not?
This handy-dandy little RCA shorting plug will fix that problem, if you do
not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™
amp. This version is made of gold-plated brass for a low
resistance connection and highest immunity to oxidation. Just plug this little RCA plug gadget into the vibrato
footswitch jack on the back panel, and your vibrato will come alive.
Turn the intensity knob to zero to cut out the vibrato when this plug is
inserted.
Part #FSP-200
|
$2.50
|
|
 |
"Bringing back the sound of vintage Accutronics tanks" |
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3A1A.
Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0
seconds), input grounded/output grounded, designed for horizontal mounting, open
side up. Replacement for the Gibbs Type F reverb tanks used in the
60s and early 70s, including the Sunn™
Solarus and Sentura I.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3A1B.
Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0
seconds), input grounded/output grounded, designed for horizontal mounting, open
side down. Replacement for the Gibbs Type F reverb tanks used in the
60s and early 70s, including Ampeg™
models Echo Jet, Echo Twin, B12X, B12XY.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB2C1B. Input impedance
8 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B. Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. Also used in Reissue
models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb,
Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin
Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb,
Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb
Reissue,
Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65
Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™
Dual Professional.
Also used in Mesa Boogie™ MK2C and others, LAB™ Series L5, L7, L9,
Koch™ Powertone I, Ampeg™
VT-40, Ampeg™ Super Rocket SR212 and B-52 AT-100.
Used in the Epiphone™ Blues Custom 30 Amp.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1C. Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for
vertical wall mounting, long axis horizontal, connectors up.
Original Fender™ number 0047604000, used in the Fender™ stand-alone reverb unit,
and the Fender™ 63 Reverb. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3C1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2A1B. Input impedance 150 ohms, output impedance 2250 ohms,
medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for
horizontal mounting, open side down. Common replacement for
Music Man™,
and the Mesa Boogie™ F-30 and F-50. Also replaces the 53-5004-2 Vox
reverb tank used in the V1133 Royal Guardsman, the V1123 Buckingham, and the
V1154 Viscount Combo Amp. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB2A1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2C1B. Input impedance 150 ohms, output impedance 2250 ohms,
medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for
horizontal mounting, open side down. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB2C1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3A1B. Input impedance 150 ohms, output impedance 2250 ohms,
long decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for
horizontal mounting, open side down. Longer decay replacement for
Music Man™,
and Mesa Boogie™. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB3A1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1B. Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting. Common replacement for Fender™ Blues Deluxe (original 90s version), Fender™ Blues Deville (original 90s version).
Also found in Fender™ London Reverb, Harvard Reverb II, Studio Lead, and Showman
115 (1980s). Used in the Rivera™ Rake, Fandango and Jake Studio
Combo. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB3C1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1D. Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded.
Mounts on vertical wall, long axis horizontal, connectors down. Common replacement for Marshall™ (DSL100, TSL100, DSL60, TSL60, TSL122,
DSL201, DSL401) Also found in certain Laney™ models. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB3C1D"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB2C1C. Input impedance
250 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for
vertical wall, long axis horizontal, connectors up. Common
replacement for Polytone™ amps, including the Polytone 103, Polytone Studio 212
and other models.
See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4DB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB2C1D. Input impedance
250 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for
vertical wall, long axis horizontal, connectors down. Common
replacement for Marshall™ 2550, 2558, 2558V, 3005, 3210, 4212, 5213, 5275, 8200, 8280,
JCM2210, JCM3005, JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622
and some ValveState models. Also fits the Vox™ AC15TB
and AC15TBX. Also is an
upgrade tank for the 9" tank in the Fender™ Frontman FM210 and FM212.
See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4DB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics
4DB3C1D. Input impedance 250 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for
vertical wall, long axis horizontal, connectors down. Common
replacement for Marshall™ 3203, 4203, 5275 and some ValveState models.
Also is an upgrade tank for the 9" tank in the Fender™ Frontman FM210 and FM212, and an
upgrade tank for the Roland™
JC90.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4DB3C1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2A1A. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side up. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2A1B. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side down. Common replacement for
vintage Gibson™, Epiphone™ and Kalamazoo™
amplifiers which used a driver
transformer for the reverb input side. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1B. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side
up. Generally used in heads where the tank is mounted with the open
side up, but is also found in some combo amps. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1B. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Peavey™ (including Bravo 112,
Encore 65, Valveking 100 (VK100), Classic 30, Backstage 30,
Windsor Studio, Ultra Plus 120, etc. Peavey™
part number 71011114).
Upgrade for Vox™ AC30CC. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3A1D. Input impedance 600 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input
grounded/output grounded. Mounts on vertical wall, long axis
horizontal, connectors down. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB3A1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3C1B. Input impedance 600 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe Reissue and Blues Deville Reissue.
Fender™ part number 0050394000. Also found in Peavey™, Music Man™. Used in the Traynor™ Custom Valve 50
(Model YCV50).
Upgrade for Vox™ AC30CC See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1A. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side up.
Common replacement for
certain Randall™ amps, including the RG-120-410.
Replacement for Gibson™ GSS-100 Solid State Amp, and the Gibson™ Dual Medalist. Replacement
for the Kustom K-200-A. Also used in the
Gibson™ Reverb III external reverb unit.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side down.
Exact replacement for
certain Gibson™ amps, including the GA-2RVT (Maestro), GA3-RV, GA19RVT (Falcon), G40 solid state and Medalist 410. Exact
replacement for the Laub Unique 26R amplifier (60s-70s) as well as several
Magnatone models. Exact replacement for the Randall RG-80 combo. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Exact replacement for Marshall™ 2040, 2205, 2210,
4140, 4145, 4210, 4211, and 4212 (JCM800 series).
Exact replacement for the Gibbs Type "C" Reverb Tank found in a number of
vintage Ampeg™ models, including
Reverberocket, Jet, Gemini, B12XT, AC12,
V4, VT22, V2, VT40, GV15/22.
Exact replacement for Gibbs Type "C" Reverb tank found in a number of Gibson™
amps, including the GA-15RVT (Explorer, 1964), GA-35RVT (Lancer, 1965), GA-55RVT
(1965), GA-77RVT (1963). Replaces Vox reverb tank 23-5002-2 in the
solid state Berkeley II, solid state and tube Cambridge Reverb, V-8 Berkeley
Super Reverb, Viscount, and Super Beatle (V14, V114, V1141 and V1142). See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2A1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1A. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output insulated. Mounts horizontal, open side up.
Primarily found in Peavey, including the Peavey Classic 4x10 combo amp.
Also used in the classic Shure Vocal Master VA-300C. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2B1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output insulated. Mounts horizontal, open side down.
Primarily found in Traynor and Yorkville, including the Traynor YGM-3 and YGM-4. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2B1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1A.
Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75
seconds), input isolated/output grounded. Mounts horizontal, open
side up. Exact replacement for Kustom™ K100-2, K100-5, K150-2,
K200-B5, K250-2, K250-4, and K400-B5. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for horizontal mounting, open side down.
Used in a few Ampeg models. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Exact replacement for Marshall™ 5210, 5212 (JCM800 series). See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1D. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors down. Exact replacement for Genz Benz™
El Diablo 100. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1A.
Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75
seconds), input isolated/output isolated, designed for horizontal mounting, open
side up. Used in some versions of the Ampeg™ V4. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2D1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output isolated, designed for horizontal mounting, open side down.
Exact replacement for Tapco™
4400 / 4400A Reverb Unit, some versions of the Ampeg™ V4. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2D1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output isolated, designed for designed for vertical mounting, long axis
horizontal, connectors up. Exact replacement for Ampeg™ VT-22. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2D1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1A. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output grounded, designed for horizontal mounting, open side up.
Common replacement for
certain versions of the Ampeg™ Gemini amps. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1B. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output grounded, designed for horizontal mounting, open side down.
Common replacement for Ampeg™, Music Man™
RP and RD series, Epiphone™
EA-28RVT, Gibson™ GA19RVT, Gibson™ GA20RVT and others. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1C. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output grounded, designed for vertical mounting, long axis horizontal,
connectors up.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3A1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3B1B. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output insulated, designed for horizontal mounting, open side down.
Exact replacement for
Fisher™
Spacexpander from the
1960s. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3B1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1A. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
insulated/output insulated, designed for horizontal mounting, open side up.
Common replacement for most vintage Kustom amps
from the 1960s and early 70s. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3D1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1B. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
insulated/output insulated, designed for horizontal mounting, open side down.
Common replacement for Ampeg™
(Type C) . See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3D1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2A1B. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts
horizontal, open side down.
Found in some Mesa Boogie™ and
Fender™ Models. Also used in the PRS SE-20, Reverend Goblin, Kingsnake and
early Hellhound models. See explanation of Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2A1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2A1C. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts
on vertical wall, long axis horizontal, connectors up. Used
as an upgrade external tank in the Mesa Boogie™ Caliber 50+. See explanation of Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2A1C
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1A. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side up.
Replacement for tanks in early Yamaha solid-state amps from the 1970s and early
80s. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1B. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side down.
Found in Orange™ Rockerverb
(HEAD ONLY),
Orange™
Rockerverb MKII (HEAD ONLY), and Orange™
Rockerverb MKIII (HEAD ONLY).
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2D1A. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts
horizontal, open side up.
Found in some Roland™ JC120 (very
early versions and also the JC120UT). The 8DB2C1B is used in some
other versions of the Jazz Chorus 120. Unsure? Measure
input resistance on old tank - if it is less than 5 ohms, the 8AB2D1A is the
replacement) Also used in the Roland™ Space Echo RE-501, RE-301, and RE-201.
as well as
the Roland™ Bolt 60,
and the Roland Jazz Chorus JC77. See explanation of
Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2D1A
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2D1B. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts
horizontal, open side down.
Found in some versions of the Roland™
Space Echo RE-501 and RE-201 with the tank
mounted on the bottom. Also used in the Acoustic™
G60T (Model 162 or Model 163). See explanation of Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2D1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB3C1B. Short
Tank, Long Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB3A1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB3C1B. Short Tank,
Long Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side down.
Found in Fender™ Super Champ, Fender™ Princeton Reverb II, and Orange Rockerverb,
and Kitty Hawk Supreme Series I.
Also found in later versions
of the Reverend Hellhound amps. Fender™ part number 0018454000 (018454). See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2A1B.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, grounded
input and grounded output. Mounts horizontal, open side down.
Primarily used by Musicman™, Crate™ and Ampeg™.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2A1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1A.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side up.
Primarily used by Gibson™, Epiphone™. Used in the Crate™ Blue-Voodoo
BV120H and Stealth GT-50.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1B.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side down.
Primarily used by Rivera PUBSTER 25 & CHUBSTER 40 , Rivera Knucklehead Reverb,
Vox™ AC30, with solid state reverb as used in the Seventies, Ampeg™ Jet II J12R, Crate™ G212,
Crate™ GT212, Crate™ Palomino V32 &
V16, Crate™ Vintage Club VC3112 & VC5212, Music Man™ RD50, Kitty Hawk Supreme, Marshall™ G80RCD, Marshall™ G100RCD. Upgrade for
Laney™
VC15 (part nr. 10006), Brunetti Singleman, Mesa Boogie™ Rectoverb.
Replaces Ampeg™ / Crate™ part number 79-201-02.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2D1B.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and output. Mounts horizontal, open side down. Fits the SWR California Blonde amplifier. Upgrade
for the 1BB1D1B reverb tanks used in Acoustic™ amplifiers from the 1970s, such
as the models 230 and 330.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2D1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB3C1B.
Short Tank, Long Decay, input impedance
190 ohms, output 2575 ohms, insulated input and grounded output. Used in
the Fender™ Yale Reverb and Harvard Reverb II amps which use the "short" tank.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB3D1B.
Short Tank, Long Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and output. Mounts horizontal, open side down. Primarily
used in Rivera™ amplifiers
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB3D1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1D.
Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Designed for horizontal
mounting, open side up. Primarily found in the Marshall™ 4100,
4101, 4102, 4500, 4501, 4502 in situations where the tank is mounted "upside
down".
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1B.
Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side down. Primarily used by Marshall™ VS100,
Marshall™ VS265, a few versions of the Marshall JCM900 series, Polytone™ Minibrute
I through Minibrute IV, Polytone™
Megabrute, Fender™ FM212R, FM210R, FM65R, Frontman 212R, Frontman 210R,
Frontman 65R.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1D.
Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Mounts on vertical wall, long axis
horizontal, connectors down.
Primarily found in the Marshall™ 4100, 4101, 4102, 4500, 4501, 4502, 5150,
5205, 8080, 8100, 8240, AS50, AS50R, AS80R, AVT50, AVT50H, JCM600, JCM602,
JTM310, JTM312, JTM610, JTM612, JTM615, JTM622, MA50C, MA100C, MA100H, G25R, G50RCD, VS100R,
VS100RH, VS102R, VS230, VS232, VS265, and VS65R.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1E.
Short Tank, Medium Decay, input
impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Mounts
on vertical wall with long axis vertical, input side up. Primarily used
BY Roland™
GC-408, Roland™
Jazz Chorus JC90, Roland™ Jazz Chorus JC120B
as well as some other versions (the 8AB2D1A is also used in certain JC120 models
... Unsure? Measure resistance of the input side of the old tank.
If it is around 35 ohms or so, the 8DB2C1E is correct). Also the Roland™
Cube 40 and Cube
60 models from the 1980s, and the Roland
Blues Cube BC60 from the 1990s. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1E "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB3C1B.
Short Tank, Long Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side down. Primarily used by
Marshall™ JCM900.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2B1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms,
grounded input and insulated output. Mounts horizontal, open side down. Used in
Jet City™ amps.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2B1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1A. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side
up. Used in Peavey™ 6505+ and Yamaha™ JX30.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.
Used in Fender™ Blues Junior, Fender™ Transistor Amps such as:
Fender™ Deluxe 85, Fender™
Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series
(Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™
Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™
Ultimate Chorus, Fender™ Princeton Chorus, Fender™ Vaporizer, Fender™ Acoustasonic Junior,
Fender™ M-80 HM Series Combo, Peavey Envoy 110, Peavey™ Ultra 60/120,
Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior
Hot Rod, Tech 21™ Trademark 30. This is the most popular short tank.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces Fender ™ part numbers 0028055000,
028055, 025269, 020550.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty
details here.
Part #8EB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1C. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output.
Mounts on vertical wall, long axis horizontal, connectors up.
Used in the Burriss Royal Bluesman amp.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1D. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts
vertical wall, long axis horizontal, connectors down. Used in
Fender™ Acoustasonic Junior, Fender™ M-80 HM Series Head, Tech 21™
Trademark 30.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces original Fender™ part number
0031669000.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty
details here.
Part #8EB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1E. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output.
Mounts on vertical wall with long axis vertical, input side up. Used in Crate™ Tube Driver
series of amps, such as the TD-70.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2C1E "Bringing back the sound of vintage Accutronics tanks" |
$42.89 Special Order
Ready to ship
4 business days
after we receive
your order. |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB3C1B. Short
Tank, Long Decay, input impedance 800 ohms, output 2575 ohms, insulated input
and grounded output. Mounts horizontal, open side down. Used as an
upgrade in Fender™ Blues Junior, Fender™ Transistor Amps such as: Fender™ Deluxe
90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series (Super
60, Super 112), Peavey™ Ultra 60/120 etc, Tech 21™ Trademark 30. VOX™ Upgrade for
Vox™ AC15CC and Vox™ AC15C.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
View the 2-year warranty
details here.
Part #8EB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2A1B. Short
Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input
and grounded output. Mounts horizontal, open side down.
Primarily used in Crate™ Amps. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB2A1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2B1F. Short
Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input
and insulated output. Mounts on vertical wall with long axis vertical, output side
up.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB2B1F
"Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3C1B. Short
Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, insulated input
and grounded output. Mounts horizontal, open side down.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB1A1B. Input impedance 10 ohms, output impedance 2575 ohms,
short decay (1.2 - 2.0 seconds), input grounded/output grounded, designed for horizontal mounting, open side down.
Common replacement for Mesa Boogie™
Mark I, Mark II, Mark IIB, Mark IIC Plus, Mark III, Mark IV, Mark IV-B. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB1A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
Special Order
Ready to ship
4 business days
after we receive
your order. |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB1C1B. Input impedance 10 ohms, output impedance 2575 ohms,
short decay (1.2 - 2.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Common replacement for Diezel™.
Also a great upgrade for the Epiphone™ So-Cal from the original two-spring tank. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB1C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
Special Order
Ready to ship
4 business days
after we receive
your order. |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2A1B. Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input
and output grounded, designed for horizontal mounting, open side down.
Exact replacement for
Mesa Boogie™ MK V, Lonestar, Lonestar Special,
Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express
Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.
Also used in some Fender™, Vox™ AC30 (1960s+70s),
and
Engl™
Screamer (E330, E335) See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB2A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3A1B. Input impedance 10 ohms, output impedance 2575 ohms,
long decay (2.75 - 4 seconds), input
and output grounded, designed for horizontal mounting, open side down.
A longer decay replacement for
Mesa Boogie™ MK I, MK II, MK III, MK IV, MK V, Lonestar, Lonestar Special,
Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express
Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.
Also may be used in some Fender™, Vox™ AC30 (1960s+70s),
and
Engl™
Screamer (E330, E335) See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2C1B. Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Fender™. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1B. Input impedance 10 ohms, output impedance 2575 ohms,
long decay (2.75 - 4 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Fender™.
Upgrade for the 4AB3C1B 2-spring tank. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics
9AB3C1C.
Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4
seconds), input insulated/output grounded, designed for vertical mounting. A longer decay replacement for
the Fender 6G15 Reverb Unit (1960s).
See explanation of Accutronics reverb tank numbering system here. See
a chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3C1C
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9BC2C1B. Input impedance 190 ohms, output impedance
12,000 ohms,
medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Gibson™ GA-30RV
(2004),
Gibson™ GA-60RV
(2004), Vox™ AC30TBR Top Boost Reverb model (1991-1993), and Orange
AD30R. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9BC2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9EB2C1B. Input impedance 800 ohms, output impedance 2575 ohms,
medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Peavey™ Nashville 112, Vox™ AC50CPH, AC100CPH.
Upgrades Vox™ AC30CC, deeper reverb for the Fender™ Hot Rod Deluxe/DeVille! See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9EB2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, replacement for Accutronics 9EB3C1B
and Belton BL3EB3C1B.
Input impedance 800 ohms, output impedance 2575 ohms, long decay (2.75 - 4
seconds), input insulated/output grounded, designed for horizontal mounting,
open side down. Common replacement for Tech 21™ Trademark 60 and
Trademark 120, Vox™ AC30C2X, AC50CPH, AC100CPH.
Upgrades Vox™ AC30CC. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9EB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2A1C. Input impedance
1475 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Common replacement for
Fender, Peavey, Music Man™, Gemini,
Portaflex. Upgrade for Marshall™ 2205,
2210 (JCM800 series).
Upgrade for several
vintage Ampeg™ models, including
Reverberocket, Jet, Gemini, B12XT, AC12,
V4, VT22, V2, VT40, GV15/22. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2A1C
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2C1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Upgrade replacement for Marshall™ 5210, 5212 (JCM800 series). See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2C1D. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors down. Upgrade replacement for Genz Benz™
El Diablo 100. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2D1B. Input impedance
1475 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input
insulated/output insulated, designed for horizontal mounting, open side down.
Replacement for the DIY project Tellun 156 Neural Agonizer.
Upgrade
for the Tapco™
4400 / 4400A Reverb Unit, some versions of the Ampeg™ V4. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2D1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view |
Rubber mounting grommets for
reverb tanks, package of four. Provides shock absorption for
tanks mounted directly to the inside of a wooden amp cabinet, preventing hum,
roar, shock sensitivity and feedback. Mounting Hole Diameter = 3/8"
Outer Diameter = 1/2"
Part #RRG-4 |
$1.99
(For a pack of 4 grommets) |
|
Click on photo for
larger view
(Reverb tank not included)
|
Handmade Reverb Tank Bag for 9"
tanks. Works with any short
(9") reverb tank. Reverb bags give the reverb tank better
isolation which results is fuller, richer reverb and less feedback.
Handmade of single-ply black Tolex. Replacement for Fender and many other
amps. Bag dimensions: 4.5"W x 1.5"H x 9.5"L. Includes loops at
each end for screw attachment to the amp cabinet, and a tuck-in flap to close up
the end. Mounting screws not included.
Part #RB-009 |
$13.95
In Stock |
|
Click on photo for
larger view |
Revisit™
RCA JACK, PANEL MOUNT,
CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS
SPEAKER JACK.
RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic
base, round. Chrome RCA jack. Used in vintage USA-Made Accutronic Reverb Tanks
made before 2010. Black phenolic base.
Part #J-351 |
$3.50 |
|
Click on photo for
larger view |
TRANSFORMER,
Revisit™ Fender™ REVERB DRIVER. For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc. Equivalent to Fender™
#125A20B & #022921. For vintage Mesa-Boogie™ models, including
vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber,
Maverick, Lonestar Special, and many others . Mesa Boogie™
part number 550185. 10" cut leads, X-Mount with 1 3/4" mounting
centers. Input impedance 14.5K ohms, output impedance 4 ohms.
Part #TGR-001 |
$20.95 |
|
|
Click on photo for
larger view |
3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173 |
$8.95
In Stock |
|
|
Click on photo for
larger view |
4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174 |
$8.95
In stock |
|
|
Click on photo for
larger view |
5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 5 feet long.
Part #RC-175 |
$8.95
In stock |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable - universal. Made
with the same style shielded wire and RCA connectors as the originals.
Warning: Not designed for use in amps other than Fender, due to the bare
shields.
These reverb cables perfectly replicate the original cables found in vintage
Fender™ vintage blackface and some silverface amplifiers. One cable is 3 ft
long, and the other is 5 ft long. By coiling up any excess cable into the
reverb isolation bag, these cable lengths are suitable for most vintage Fender™
combo amps, with these exceptions: Super Reverb, Quad Reverb, Super Six
Reverb.
Part #RC-200 |
$29.95 |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Super Reverb, Quad Reverb, and Super Six Reverb (blackface
and early silverface). Long length for larger amplifiers. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 43 inches (110 cm), long one is 55 inches (140
cm).
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45. Warning: Not designed for use in amps other than Fender, due to the bare
shields.
Instructions not included - assumes you are familiar with building this type of
cable. Soldering skills and tools required.
Part #RK-279L |
$15.95
Assembly required (with soldering skills needed) |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Twin Reverb, Pro Reverb and Vibrosonic Reverb (blackface
and early silverface). Medium length for medium-sized amplifiers. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 39 inches (99 cm), long one is 51 inches (130 cm).
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Warning: Not designed for use in amps other than Fender, due to the bare
shields.
Instructions not included - assumes you are familiar with building this type of
cable. Soldering skills and tools required.
Part #RK-279M |
$14.95
Assembly required (with soldering skills needed) |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Deluxe Reverb, Vibrolux Reverb and Princeton Reverb (blackface
and early silverface). Short length for smaller amps. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 36 inches, long one is 47 inches.
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Warning: Not designed for use in amps other than Fender, due to the bare
shields.
Instructions not included - assumes you are familiar with building this type of
cable. Soldering skills and tools required.
Part #RK-279S |
$13.95
Assembly required (with soldering skills needed) |
|
Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
|
